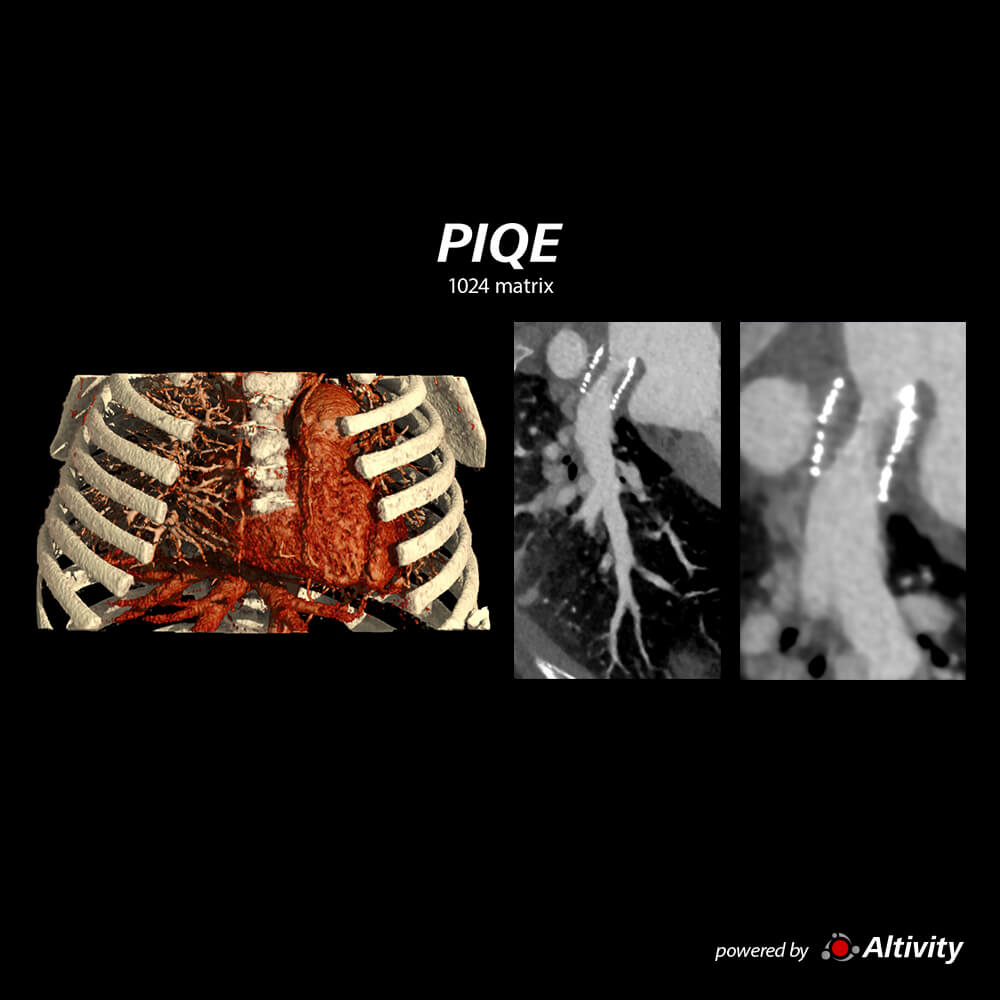

Cardiac 2-year-old

Aquilion ONE / INSIGHT Edition

ECG gated Volume scan of a 2 year old child reconstructed with PIQE 1024.

View Scan Parameters

Scan Mode Volume
Collimation 0.5 mm
kVp 100
mAs SUREExposure
Rotation Time 0.24s
Scan Range 100mm
Dose Reduction PIQE
CTDIvol 1.5mGy
DLP 15.2mGy.cm
Effective Dose 0.4mSv
k-factor 0.026
Aquilion ONE / INSIGHT Edition Cardiac 2-year-old
Aquilion ONE / INSIGHT Edition Cardiac 2-year-old
× 拡大画像

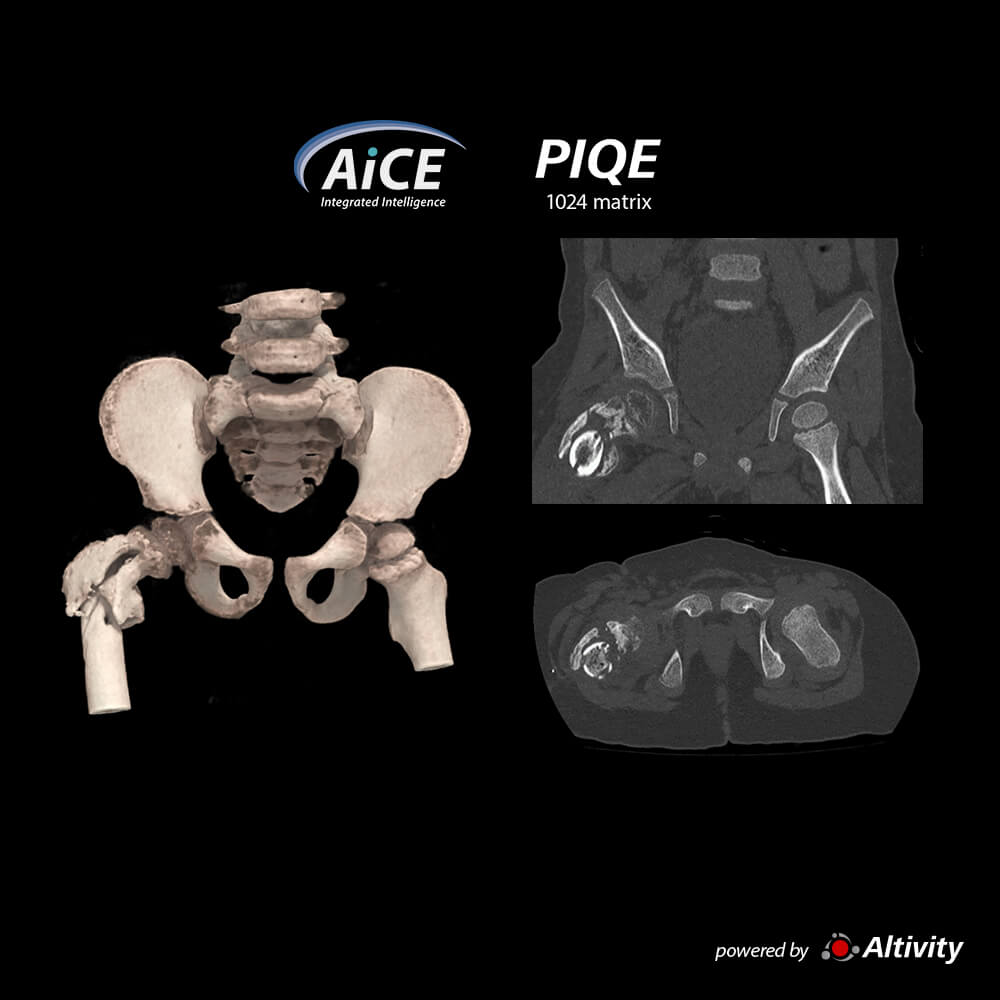

Pelvis Fracture

Aquilion ONE / INSIGHT Edition

A fracture of the proximal femur is seen in this 16cm (0.5mm x 320) volume scan of the pelvis on a 2-year-old child.

View Scan Parameters

Scan Mode Volume
Collimation 0.5 mm
kVp 100
mAs SUREExposure
Rotation Time 0.275s
Scan Range 160mm
Dose Reduction PIQE/AiCE
CTDIvol 1.8mGy
DLP 28.4mGy.cm
Effective Dose 0.9mSv
k-factor 0.030
Aquilion ONE / INSIGHT Edition Pelvis Fracture
Aquilion ONE / INSIGHT Edition Pelvis Fracture
× 拡大画像

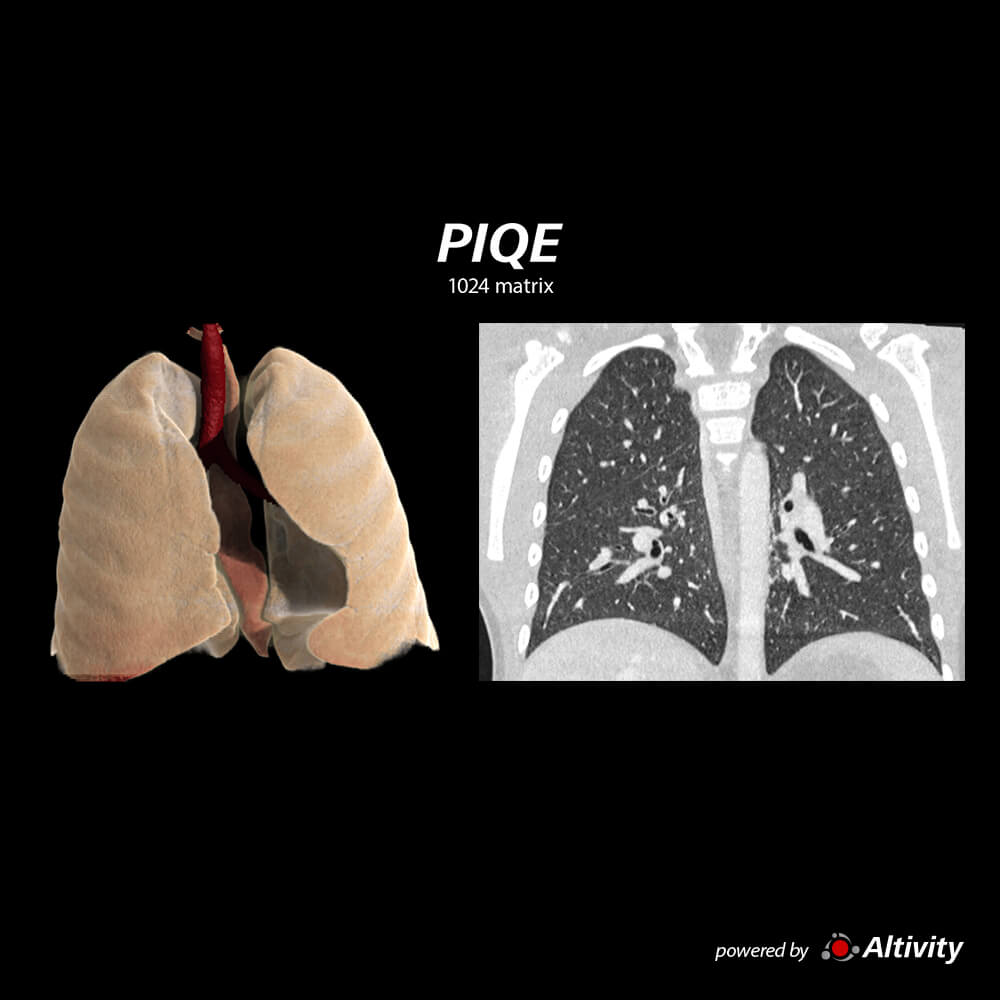

Chest 2-year-old

Aquilion ONE / INSIGHT Edition

A one rotation, 16cm (0.5mm x 320) volume scan was performed on this 2-year-old child. PIQE provides excellent image quality of the lung parenchyma.

View Scan Parameters

Scan Mode Volume
Collimation 0.5 mm
kVp 80
mAs SUREExposure
Rotation Time 0.24s
Scan Range 160mm
Dose Reduction PIQE
CTDIvol 1.5mGy
DLP 24.4mGy.cm
Effective Dose 0.6mSv
k-factor 0.026
Aquilion ONE / INSIGHT Edition Chest 2-year-old
Aquilion ONE / INSIGHT Edition Chest 2-year-old
× 拡大画像

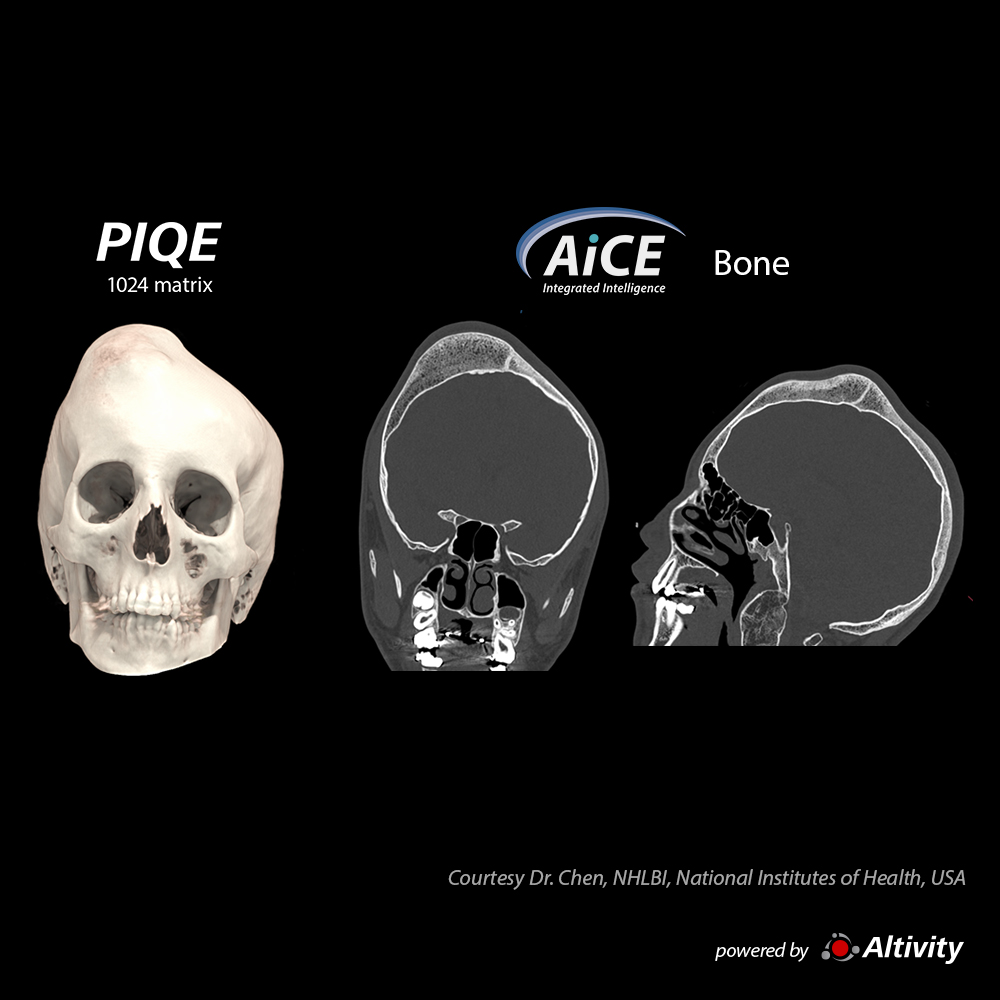

Skull 14-year-old

Aquilion ONE / INSIGHT Edition

Abnormal growth of the skull seen in this 14-year-old

View Scan Parameters

Scan Mode Helical
Collimation 0.5 mm
kVp 120
mAs SUREExposure
Rotation Time 0.75s
Scan Range 195mm
Dose Reduction AIDR 3D enhanced
CTDIvol 39.2mGy
DLP 823.8mGy.cm
Effective Dose 1.7mSv
k-factor 0.0021
Aquilion ONE / INSIGHT Edition Skull 14-year-old
Aquilion ONE / INSIGHT Edition Skull 14-year-old
