Alphenix solutions for interventional radiology and oncology

As interventional procedures and oncology treatments increase in complexity, Alphenix flexibility supports you in delivering the best possible outcome to your patients.

Clinical Gallery

WorkRite

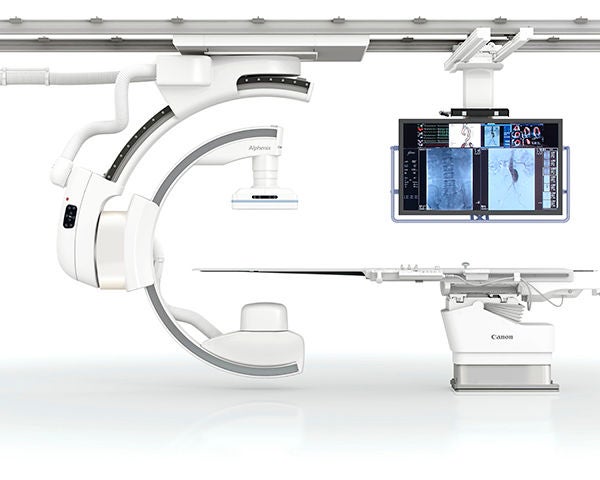

Move the system, not the patient

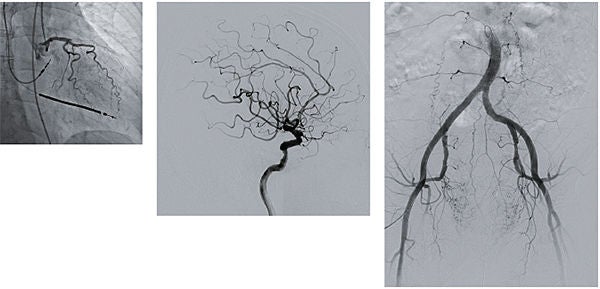

Whether in a cath lab, hybrid suite or in an operating room, Alphenix is designed around the concept that not every procedure is the same. The range of C-arm positioners provide coverage from head-to-toe and fingertip-to-fingertip.


WorkRite

Enhanced workflow to give you greater control and flexibility

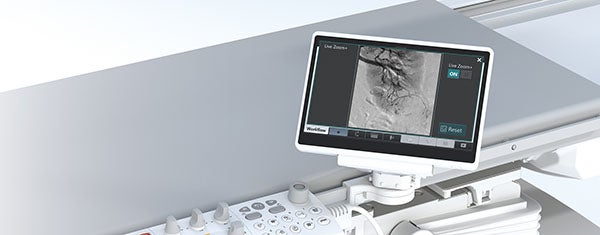

Alphenix floor- and ceiling-mounted C-arms support complex interventional procedures with an unprecedented range of patient access and full-body coverage. The new tableside Alphenix Tablet gives you control right at your fingertips to deliver a faster, more seamless and richer work experience. The new feature-rich Alphenix Workstation better integrates applications to help you plan, analyze and perform procedures.


WorkRite

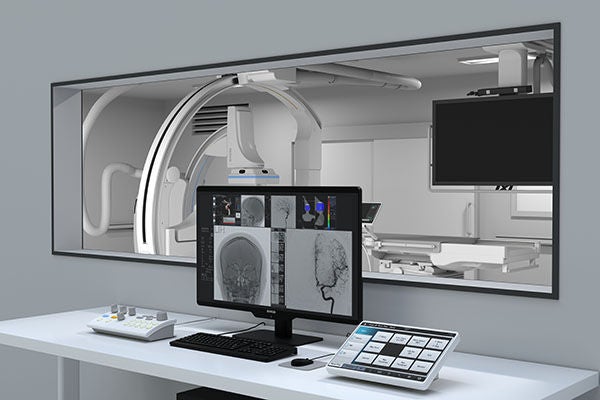

Alphenix Unispot: Organize the control room, simplify the workflow

Alphenix Unispot can manage multiple image sources with one keyboard and mouse, keeping the layout of the control room organized. The medical grade 32 inch monitor delivers high quality images with fine details to meet your clinical needs and simplify workflows.

Redefining the Angio Suite for Interventional Radiology

Prof. Boris Guiu

St. Eloi University Hospital, Montpellier, France



Dr. Ralph Gnannt

University Children’s Hospital Zurich, Switzerland

Read testimonial Read more customer testimonials

ImagingRite

Navigate with confidence and accuracy

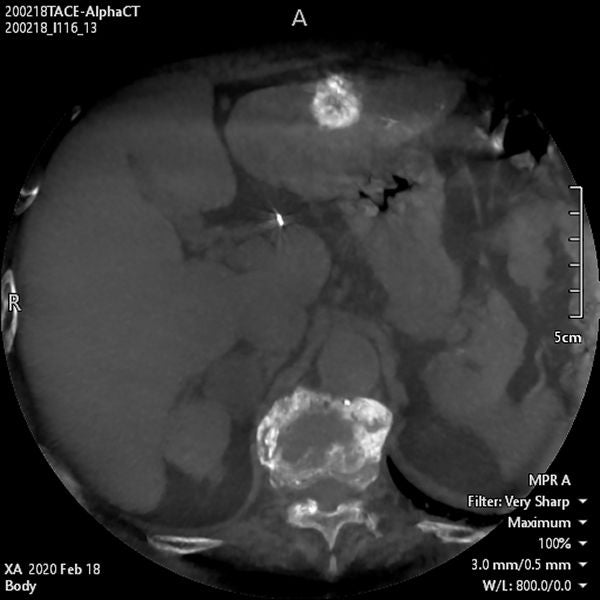

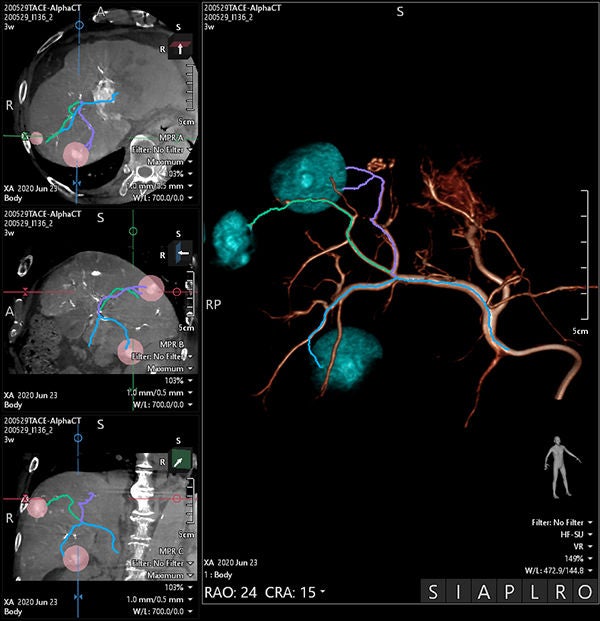

Comprehensive planning tools allow for quick and intuitive analysis prior to embolization procedures. Using 3D volume data to select the tumor and define the corresponding feeding vessels, this information as an overlay can be viewed during live fluoro of the procedure. In multi-phase Alpha CT, visualization of contrast media corresponds to arterial, venal and capillary blood flow providing valuable insight in identification of hepatic tumor feeding vessels.


ImagingRite

Visualize features and devices as never before

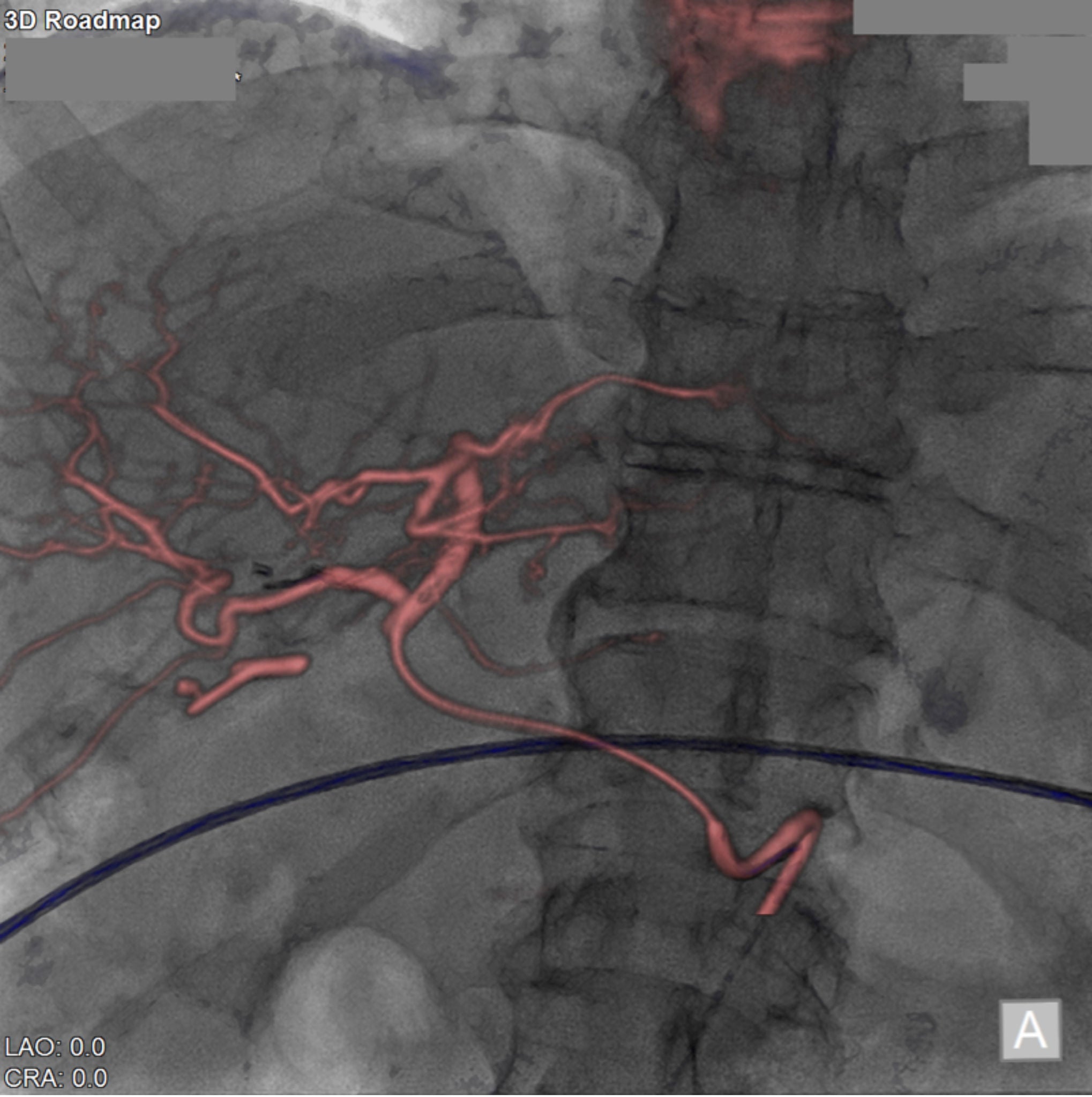

An improved imaging chain with new hardware and software technologies provide you with faster and more assured visualization. Superimpose 3D volume data on the live fluoro display to safely see and perform procedures with confidence.

DoseRite

See more of interest, with less exposure

Alphenix features an improved imaging chain, including Illuvis noise reduction technology, provides cleaner, sharper, more defined images during stent placement, embolization or ablation procedures while minimizing dose. Further dose management tools include DoseRite Spot ROI to reduce dose outside the region of interest while still allowing visualization of the surrounding anatomy to aid device placement and DoseRite Spot Fluoro to significantly reduce patient dose as well as scatter radiation to clinical staff using asymmetric collimation.

DoseRite

Comprehensive dose management tools benefit patients and clinical staff

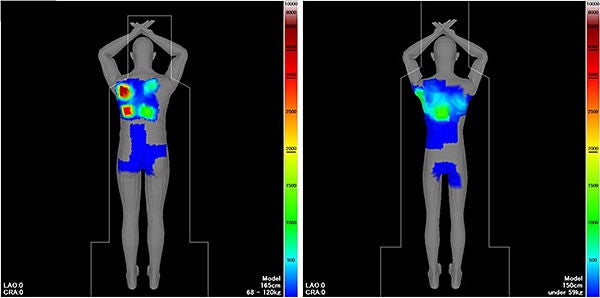

Advanced hardware significantly reduces patient dose and scatter radiation offering greater protection for the patient and clinical staff. Real-time software tools help eliminate unnecessary exposure to minimize dose and improve workflow. Enhanced dose tracking tools allow real-time estimated peak skin dose monitoring and archiving. Real-time monitoring and visualization of dose allows the operator to choose a different approach during a long procedure, to avoid regions where dose thresholds have been exceeded.

InvestRite

The smart investment choice

Whatever your clinical needs, versatile space-saving configurations make refitting existing suites an economical option. Alphenix systems seamlessly integrate into your HIS and PACS networks. Improvements in functionality, speed and workflow efficiency boost system utilization and productivity. In addition, lower energy consumption, flexible upgrade options and Canon’s industry-recognized customer service, all help you get the best out the system once installed.


System Options

Flexible Configurations to Address Your Clinical Needs

Developed in collaboration with leading clinicians, Alphenix offers a range of C-arm positioners designed to offer unprecedented access to your patient.

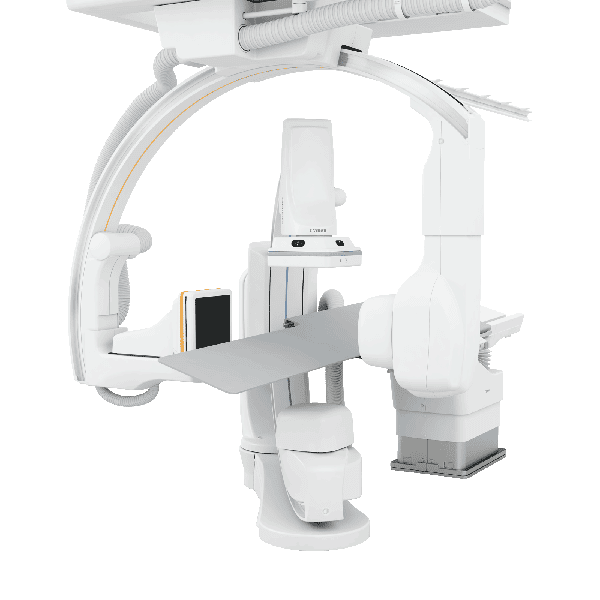

Alphenix Biplane

(Multi-access biplane system)

Combines the exception flexibility of a floor-mounted and ceiling-mounted C-arm combination, the biplane system is the ideal choice in complex interventional procedures.


Alphenix Sky +

(Advanced ceiling-mounted system)

Advanced ceiling-mounted C-arm offers unprecedented flexibility and full body 3D imaging capability with faster acquisition, fewer artifacts and less contrast agent.

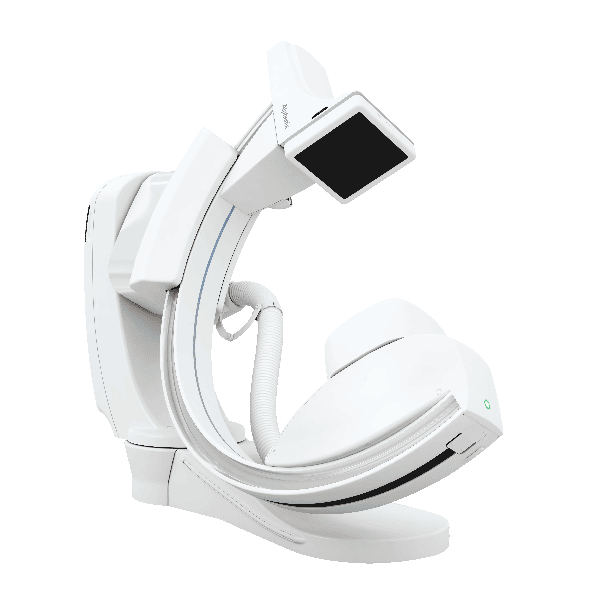

Alphenix Core +

(Floor-mounted multi-access single-plane system)

Provides unmatched flexible patient access, the five-axis floor-mounted C-arm is ideally suited for a wide range of interventional applications.

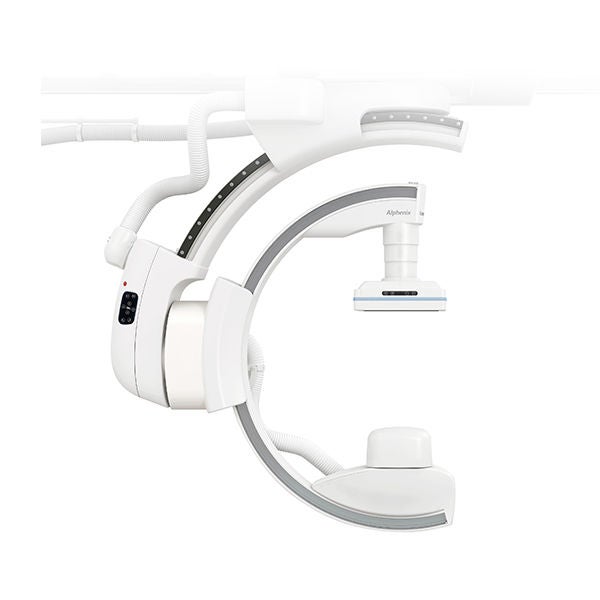

Alphenix Sky

(Ceiling-mounted)

Features a unique ceiling-mounted C-arm to provide longitudinal and lateral coverage to support upper extremity examinations.

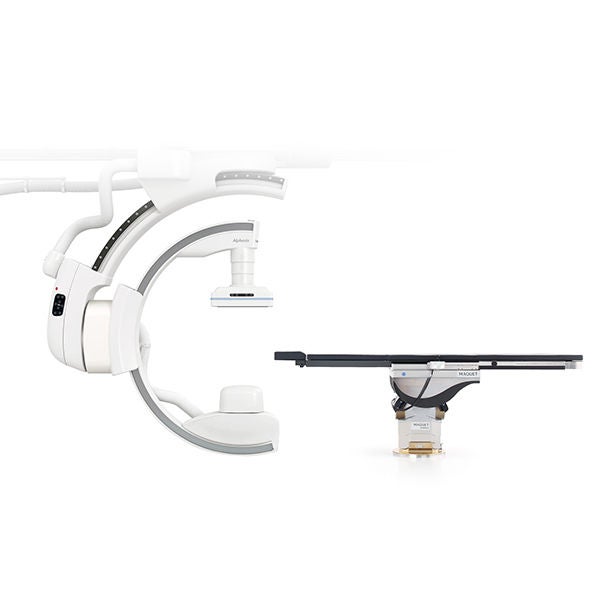

Alphenix Hybrid +

(Advanced ceiling-mounted system integrated with hybrid OR)

Dedicated for use with an operating table, advanced ceiling-mounted C-arm offers unprecedented flexibility and full body 3D imaging capability with faster acquisition, fewer artifacts and less contrast agent.


Detector size choices

Alphenix interventional angiography systems are available with a choice of flat panel detectors sizes to suit your coverage needs.



8”x8” (20cm x 20cm)

Compact detector ideal for dedicated cardiac procedures.



12”x12” (30cm x 30cm)

Offers a good balance between anatomical coverage and projection flexibility in mixed applications.



12”x16” (30cm x 40cm)

The size of choice for angiography when a larger field size is required.

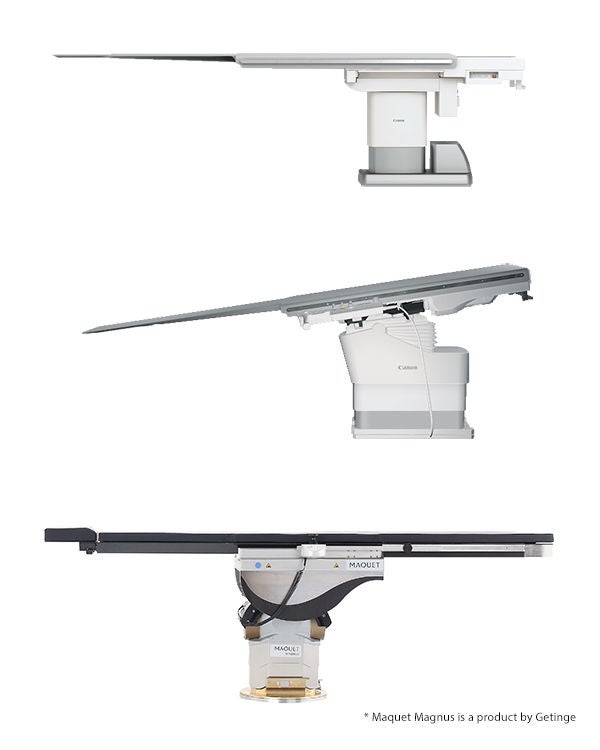

Table choices

Multiple table options are available that facilitate positioning flexibility and clinical procedure to support your needs.


Recorded Live Cases & Testimonial

Webinar: The Living Image (4D CT)

The New Era For Interventional Radiology

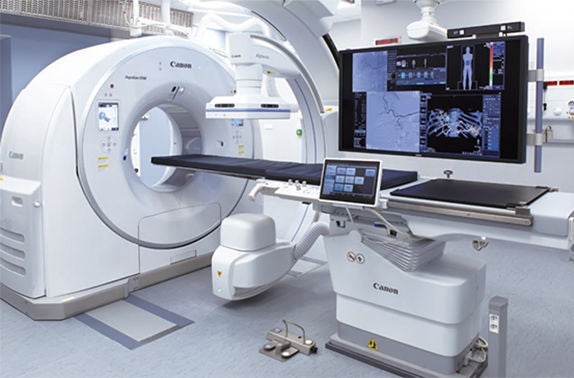

Canon Medical Brazil and Real Hospital Português present the first Alphenix 4D CT to be installed in Brazil and South America.

As interventional procedures and oncology treatments increase in complexity, Alphenix flexibility can help customers ensure the very best outcomes for their patients.

How RHP became a pioneer in South America with Canon Alphenix 4D CT technology

Moderator Dr. Carlos Abath introduces Real Hospital Portuguese introduction to 4D CT

Clinical benefit of using Canon Angio-CT in Interventional Radiology – Julien Garnon

Learn clinical benefit of using Canon Angio-CT in interventional radiology with real experience of world renown hospital, university of Strasbourg France.


Improve Prostate embolization planning using Angio-CT – Francisco Carnevale

Find out how you can identify prostate artery during prostate artery embolization with 4D CT technology.

SIRT treatment with more confidence and security with Angio–CT – Felipe Nasser

Discover how trans arterial radio therapy for primary tumors and secondary hepatic malignancies are performed when other minimal invasive or chemotherapeutic treatments have failed.

Using Angio-CT in combined interventional with high bleeding risk cases – Marcos Menezes

Hear how Dr. Marcos Menezes will combine embolization and ablation procedures, at the same time, for patient with bleeding risk using 4DCT, generating more confidence and quality in care.

Testimonials

Expanding Interventional Radiology with the Highest Image Quality

“The system is really addictive. I cannot think how to treat my patients without the Alphenix 4D CT.”
Prof. Franco Orsi, Head of the Interventional Radiology department, IEO, Milan, Italy.

Read testimonial

Sky’s the Limit for Royal Bournemouth with Alphenix Sky Ceiling-Mounted System

“The system has been really intuitive to use and we have received really good apps support from the Canon Medical team.”
Anne-Marie Jenkins, X-ray and Ultrasound Service Manager at Royal Bournemouth Hospital

Read testimonial

Alphenix 4D CT – Cutting-Edge Innovation in one Single Room

“With good results and low morbidity the techniques possible with the Alphenix 4D CT system provide high-quality patient care at low medical cost.”
Prof. Alban Denys, Head of Interventional Radiology at CHUV.

Read testimonial

The Alphenix 4D CT – More Treatments in a More Accurate Manner

“With Canon’s new Angio CT system, we have become more efficient and have been able to shorten the waiting times significantly for several interventions.”
Dr. Olle Haller, Head of Interventional Radiology, Gävle Central Hospital, Sweden.

Read testimonial

Maximum Efficiency, Prioritized Patient Safety and Increased Revenue with Canon Medical’s 4D CT Technology

Osman Ahmed, MD Section of Vascular and Interventional Radiology Department of Radiology University of Chicago Medical Center

Yiemeng Hoi, PhD, Dale Marek, RT(R), Mark Hohn, Andrew Kuhls-Gilcrist, PhD, DABR Medical Affairs, Interventional X-ray Canon Medical Systems USA, Inc.

Read Whitepaper

The Largest Radiology Center in Korea Increases the Success Rate of Prostate Artery Embolization (PAE)

Dr. Jung, Chief of Intervention Center at the Human Medical Imaging & Intervention Center, Korea.

Read testimonial

Improved Utilization Following Conversion of a Fluoroscopy Suite to Hybrid CT/ Angiography System

Nicholas Feinberg, MD, Brian Funaki, MD, Mark Hieromnimon, BS, Samuel Guajardo, RT, Rakesh Navuluri, MD, Steven Zangan, MD, Jonathan Lorenz, MD, and Osman Ahmed, MD

Read article (link to external website)

Expanding Use of Interventional Radiology in Clinical Practice

Prof. Yasuaki Arai
Executive Advisor to the President Interventional Radiology Center
Department of Diagnostic Radiology National Cancer Center Hospital

Read Whitepaper
