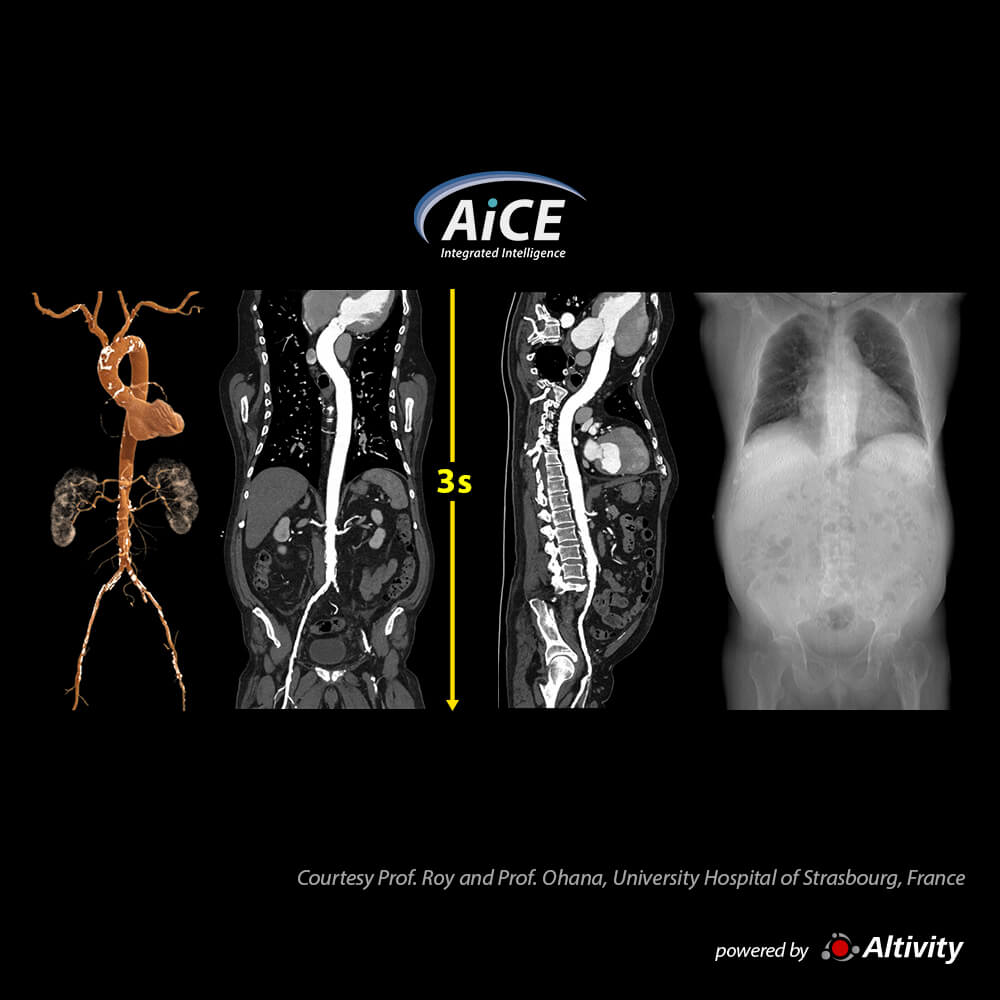

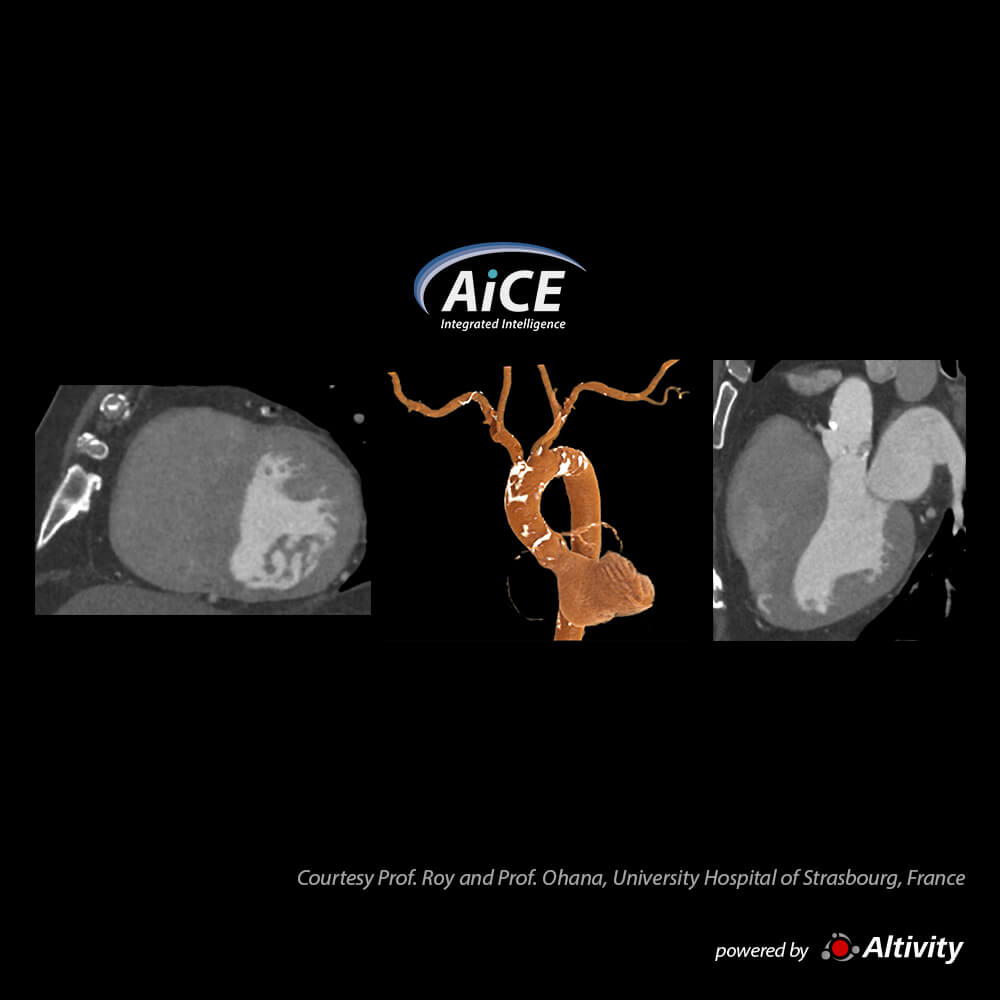

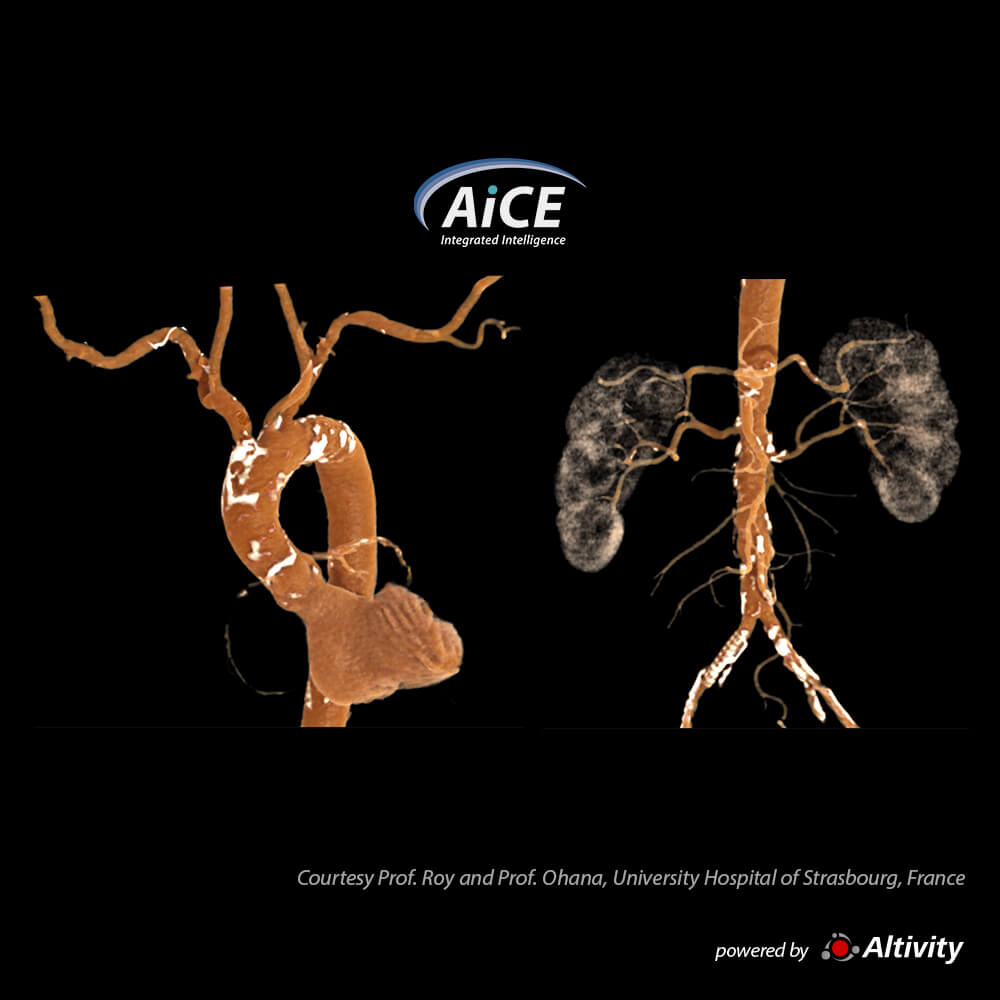

Aorta CTA – Turbo Helical

Aquilion ONE / INSIGHT Edition

This ultrafast CTA scan is performed in 3s. The whole aorta is clearly seen without motion artifacts.

View Scan Parameters

Scan Mode Ultra Helical
Collimation 0.5 mm x 160
kVp 100
mAs SUREExposure
Rotation Time 0.24s
Scan Range 670mm
Dose Reduction AiCE
CTDIvol 3.3mGy
DLP 243.1mGy.cm
Effective Dose 3.5mSv
k-factor 0.0145
Aquilion ONE / INSIGHT Edition Aorta CTA – Turbo Helical
Aquilion ONE / INSIGHT Edition Aorta CTA – Turbo Helical
Aquilion ONE / INSIGHT Edition Aorta CTA – Turbo Helical
Aquilion ONE / INSIGHT Edition Aorta CTA – Turbo Helical
Aquilion ONE / INSIGHT Edition Aorta CTA – Turbo Helical
Aquilion ONE / INSIGHT Edition Aorta CTA – Turbo Helical
× 拡大画像

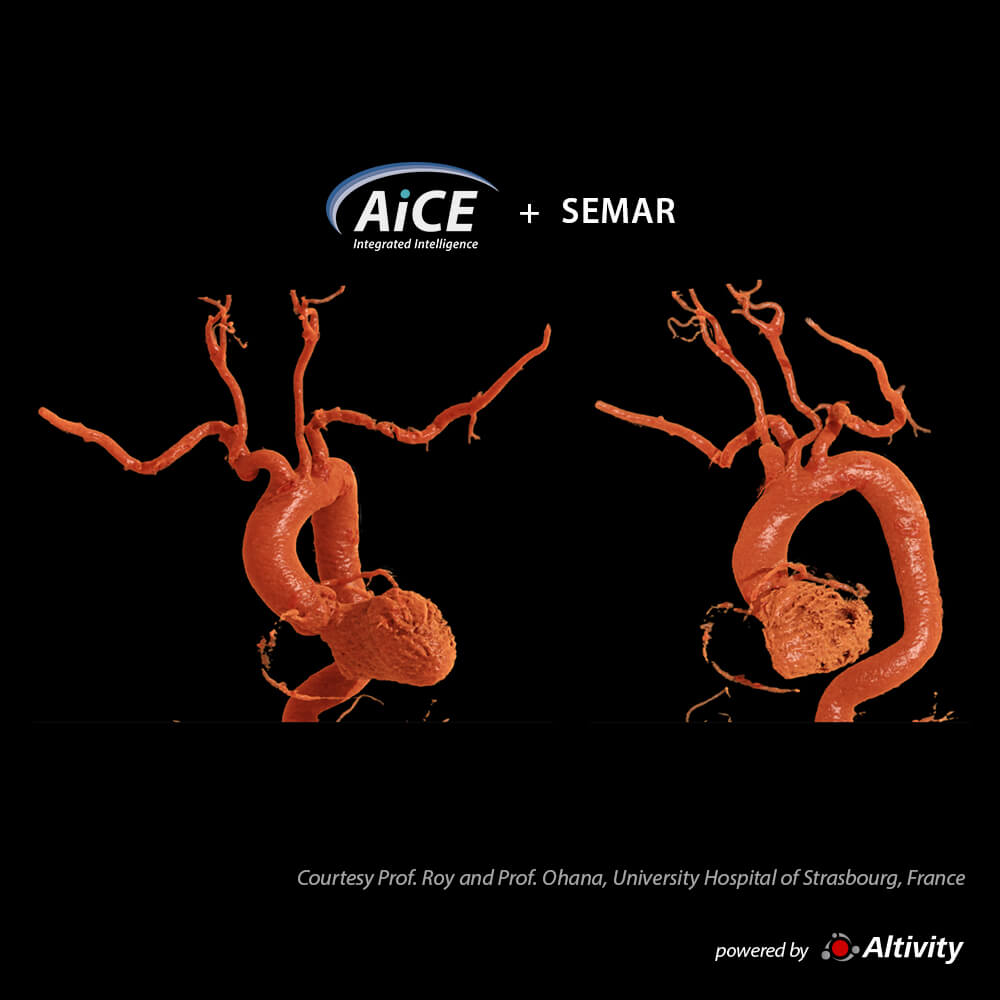

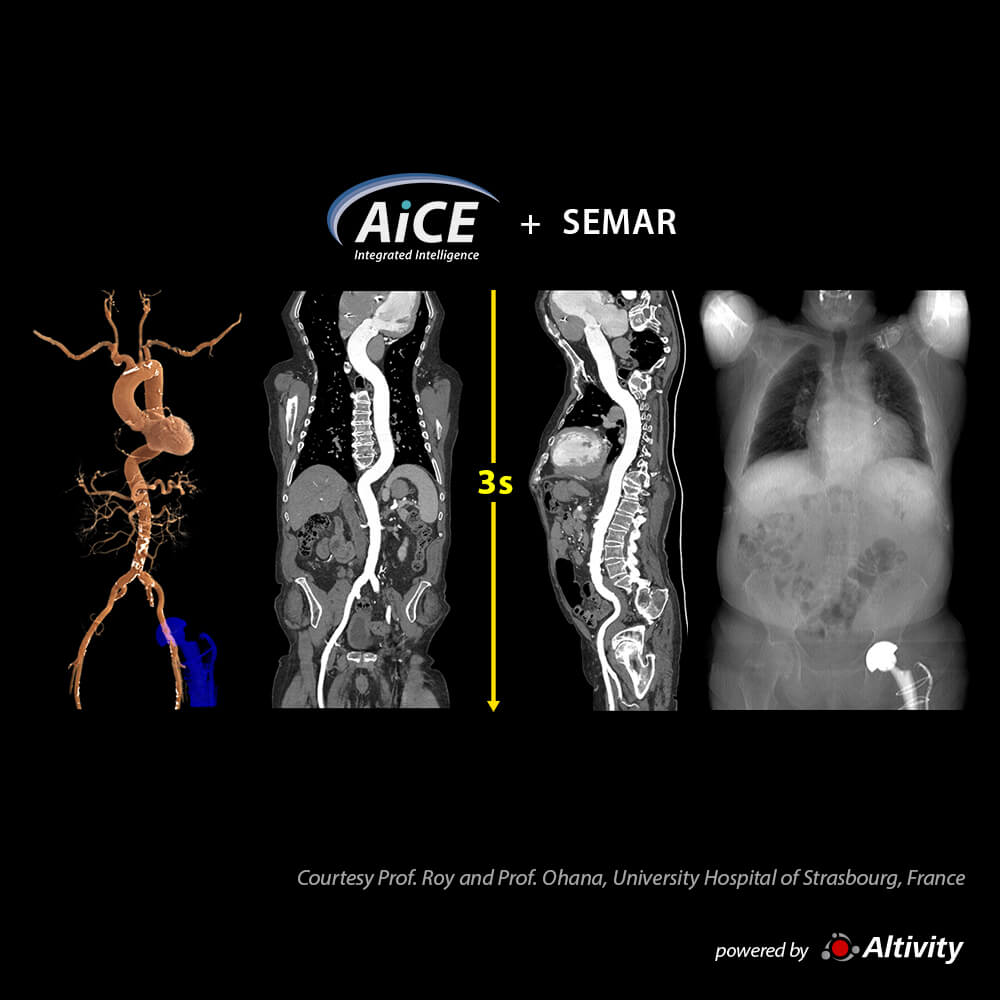

Aorta CTA – Turbo Helical+SEMAR

Aquilion ONE / INSIGHT Edition

This ultrafast CTA scan is performed in 3s. SEMAR removes the metal artifact around the implant.

View Scan Parameters

Scan Mode Ultra Helical
Collimation 0.5 mm x 160
kVp 100
mAs SUREExposure
Rotation Time 0.24s
Scan Range 734mm
Dose Reduction AiCE + SEMAR
CTDIvol 3.2mGy
DLP 256.4mGy.cm
Effective Dose 3.7mSv
k-factor 0.0145
Aquilion ONE / INSIGHT Edition Aorta CTA – Turbo Helical+SEMAR
Aquilion ONE / INSIGHT Edition Aorta CTA – Turbo Helical+SEMAR
Aquilion ONE / INSIGHT Edition Aorta CTA – Turbo Helical+SEMAR
Aquilion ONE / INSIGHT Edition Aorta CTA – Turbo Helical+SEMAR
× 拡大画像

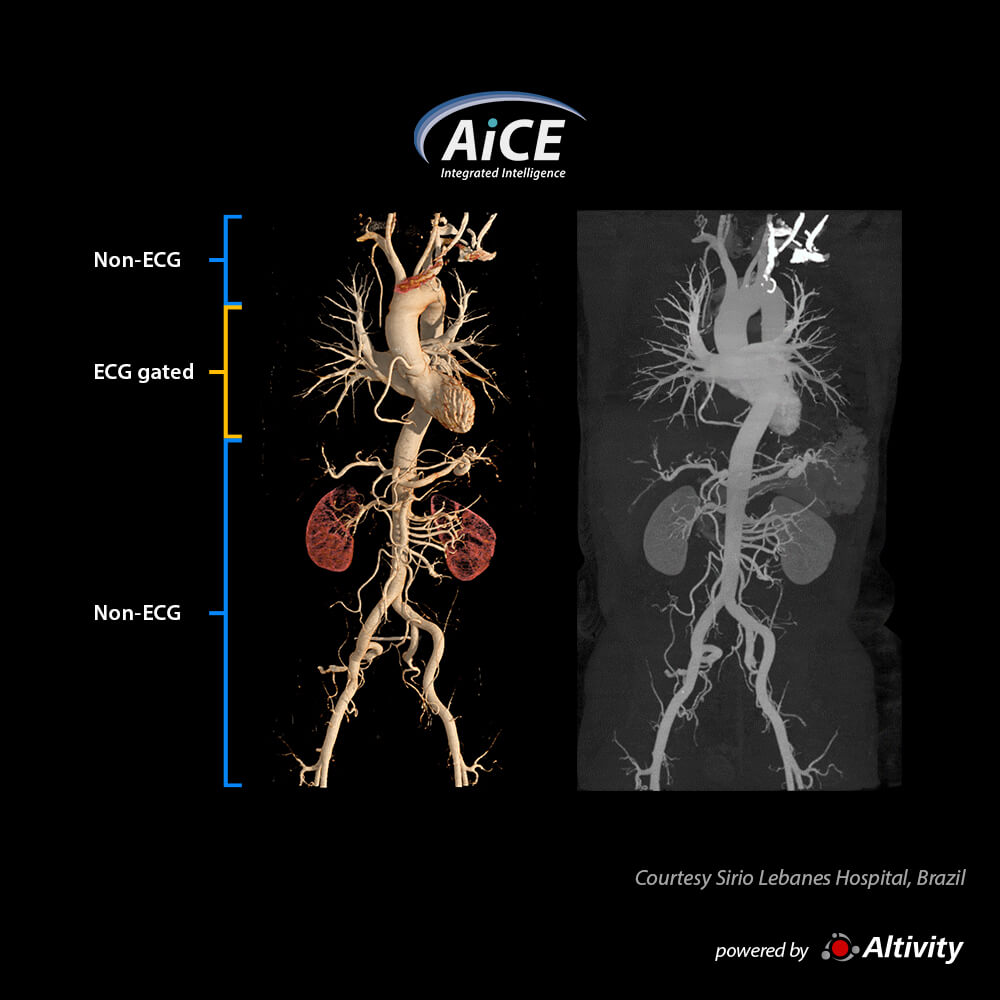

Aorta CTA using vHP

Aquilion ONE / INSIGHT Edition

Variable Helical Parameters delivers an ECG gated scan of the heart and a non gated scan of the remaining aorta in a single scan, contrast injection and breath hold.

View Scan Parameters

Scan Mode Ultra Helical
Collimation 0.5 mm x 80
kVp 120
mAs SUREExposure
Rotation Time 0.24s
Scan Range 660mm
Dose Reduction AiCE + PIQE 1024
CTDIvol 22.4mGy
DLP 1643.4mGy.cm
Effective Dose 23.8mSv
k-factor 0.0145
Aquilion ONE / INSIGHT Edition Aorta CTA using vHP
Aquilion ONE / INSIGHT Edition Aorta CTA using vHP
Aquilion ONE / INSIGHT Edition Aorta CTA using vHP
Aquilion ONE / INSIGHT Edition Aorta CTA using vHP
× 拡大画像

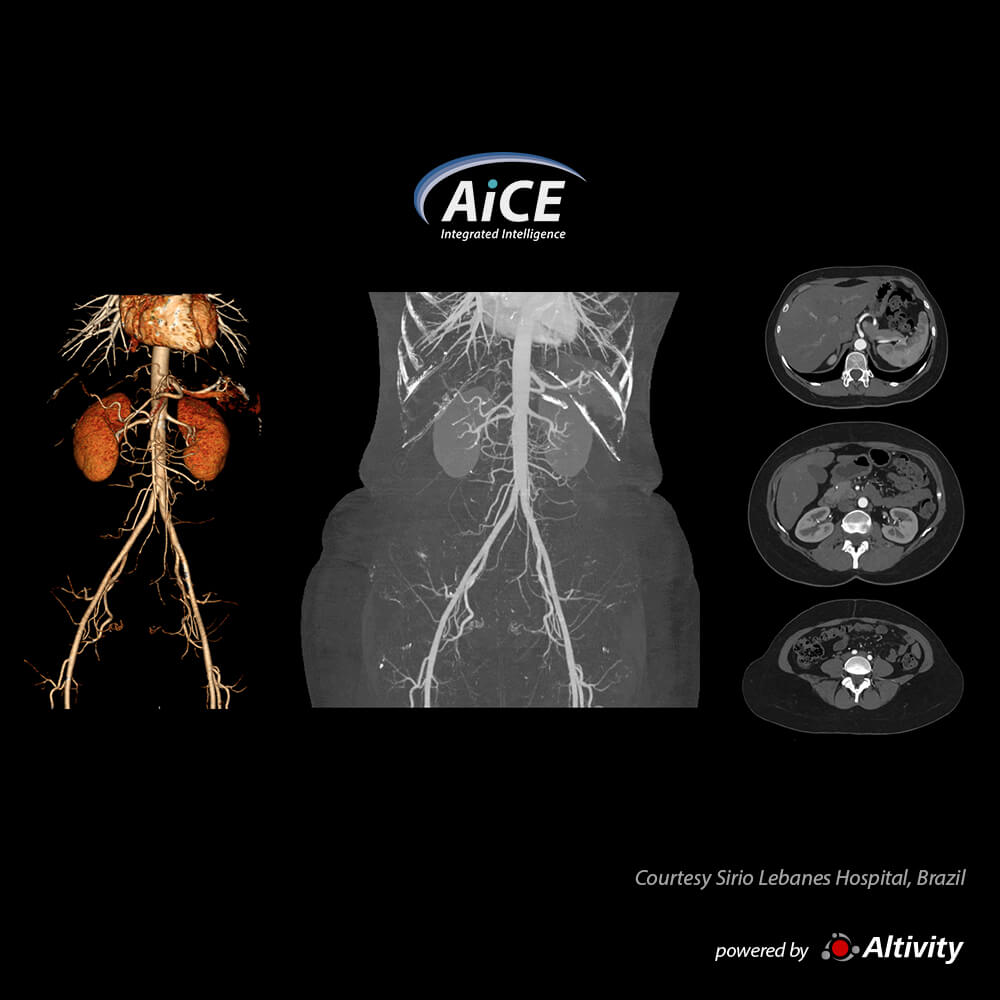

Aorta CTA with SCT

Aquilion ONE / INSIGHT Edition

Fully automatic bone removal with Angio SCT saved in the scan protocol provides excellent images of the aorta free from overlying bone and calcium.

View Scan Parameters

Scan Mode Ultra Helical
Collimation 0.5 mm x 80
kVp 100
mAs SUREExposure
Rotation Time 0.5s
Scan Range 660mm
Dose Reduction AiCE
CTDIvol 9.8+9.8mGy
DLP 1055mGy.cm
Effective Dose 15.8mSv
k-factor 0.015
Aquilion ONE / INSIGHT Edition Aorta CTA with SCT
Aquilion ONE / INSIGHT Edition Aorta CTA with SCT
× 拡大画像

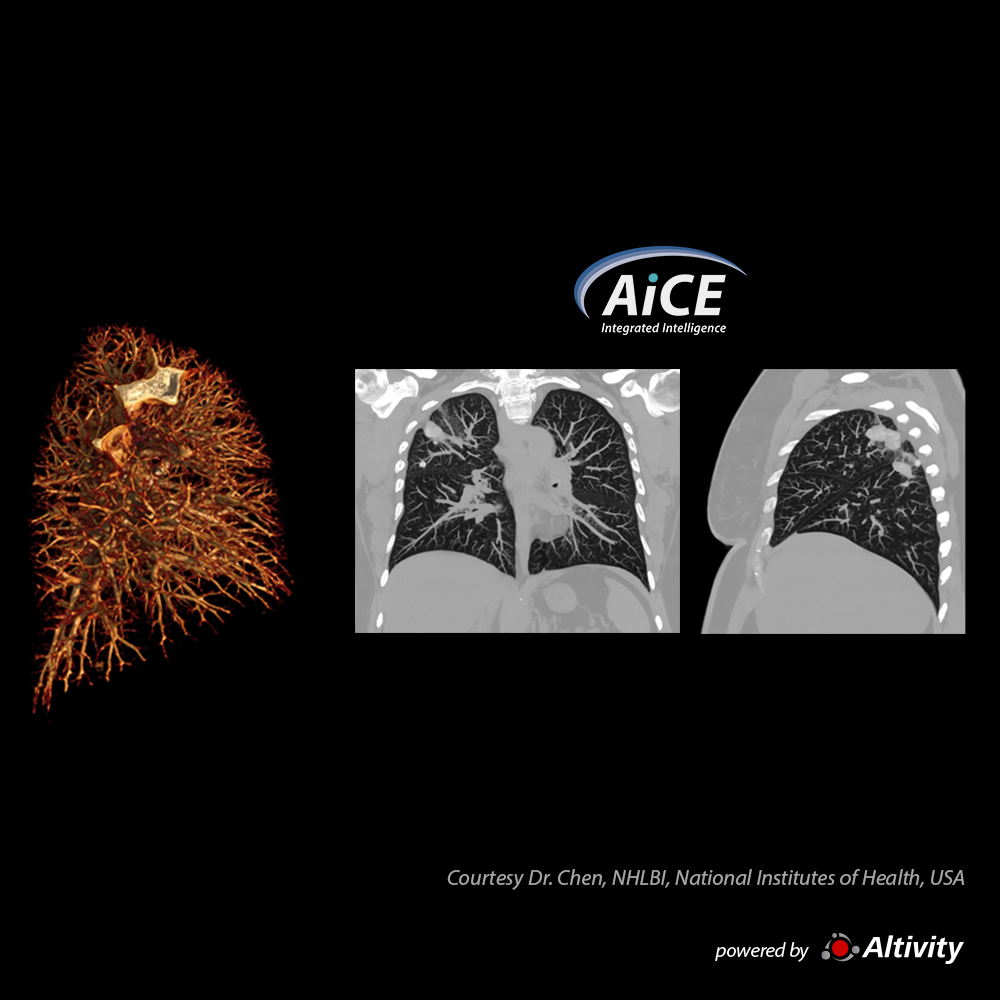

Pulmonary Cryptococcus Infection

Aquilion ONE / INSIGHT Edition

Excellent GIR images with PIQE 1024 and excellent lung detail with AiCE lung demonstrating lung infection.

View Scan Parameters

Scan Mode Ultra Helical
Collimation 0.5 mm x 80
kVp 120
mAs SUREExposure
Rotation Time 0.5s
Scan Range 276mm
Dose Reduction PIQE 1024/AiCE Lung
CTDIvol 11.7mGy
DLP 371.5mGy.cm
Effective Dose 5.2mSv
k-factor 0.014
Aquilion ONE / INSIGHT Edition Pulmonary Cryptococcus Infection
Aquilion ONE / INSIGHT Edition Pulmonary Cryptococcus Infection
× 拡大画像

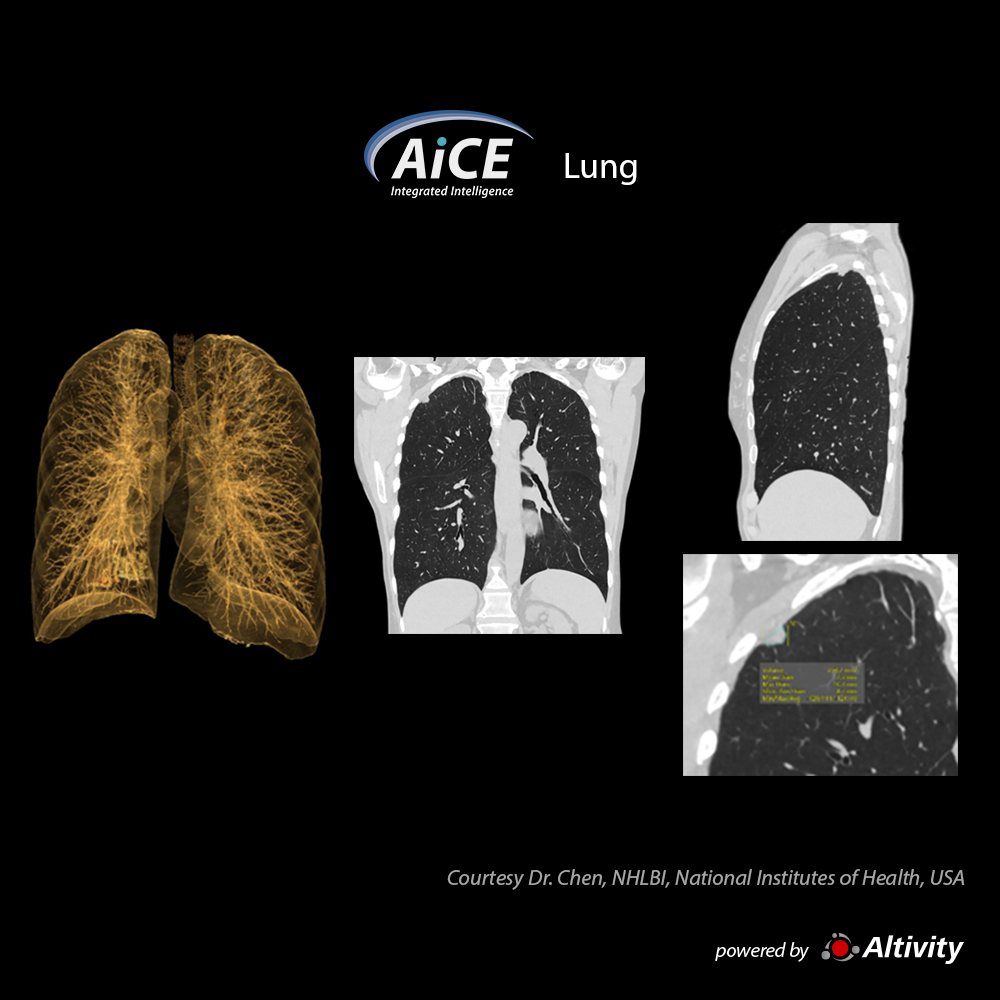

70kV Chest

Aquilion ONE / INSIGHT Edition

The lung nodule is seen in this lung scan performed at 70kV.

View Scan Parameters

Scan Mode Ultra Helical
Collimation 0.5 mm x 80
kVp 70
mAs SUREExposure
Rotation Time 0.5s
Scan Range 331mm
Dose Reduction PIQE 1024/AiCE Lung
CTDIvol 3mGy
DLP 112.4mGy.cm
Effective Dose 1.58mSv
k-factor 0.014
Aquilion ONE / INSIGHT Edition 70kV Chest
Aquilion ONE / INSIGHT Edition 70kV Chest
× 拡大画像

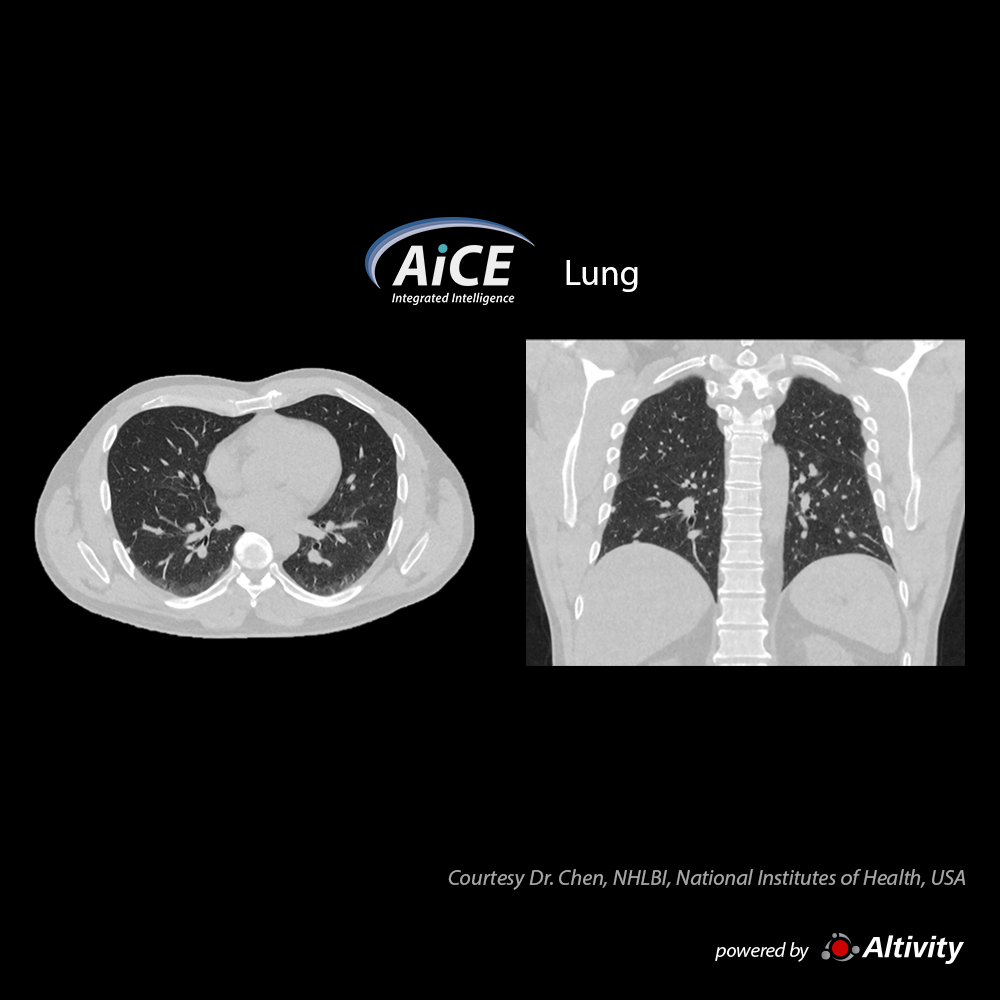

SilverBeam Chest at 0.3mSv

Aquilion ONE / INSIGHT Edition

A lung nodule is seen in this low dose chest scan performed for screening follow up.

View Scan Parameters

Scan Mode Ultra Helical
Collimation 0.5 mm x 80
kVp 120
mAs 40
Rotation Time 0.5s
Scan Range 303mm
Dose Reduction AiCE Lung
CTDIvol 0.6mGy
DLP 20.2mGy.cm
Effective Dose 0.3mSv
k-factor 0.014
Aquilion ONE / INSIGHT Edition SilverBeam Chest at 0.3mSv
Aquilion ONE / INSIGHT Edition SilverBeam Chest at 0.3mSv
× 拡大画像

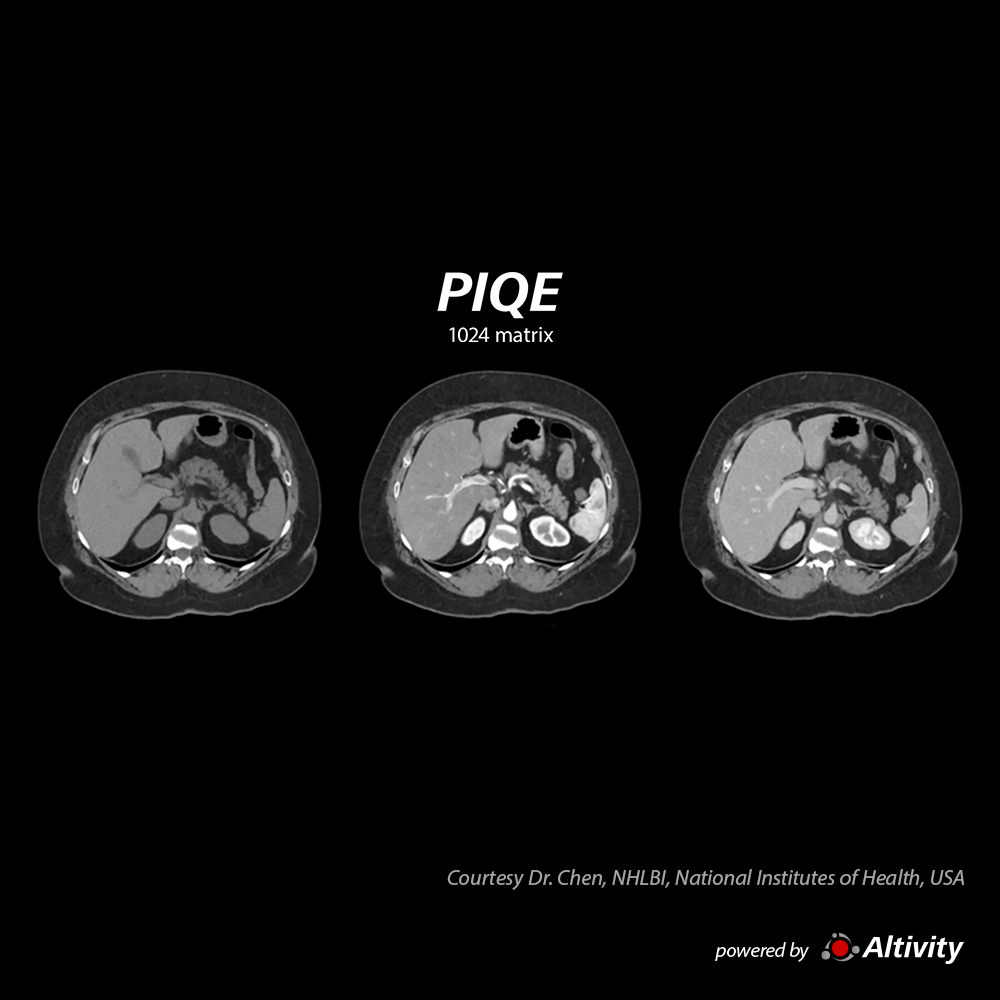

Multiphase Abdomen 40 BMI

Aquilion ONE / INSIGHT Edition

40-year-old female with BMI 40 underwent a 3 Phase Liver scan reconstructed with PIQE 1024 for metastatic tumor follow up.

View Scan Parameters

Scan Mode Ultra Helical
Collimation 0.5 mm x 80
kVp 100
mAs SUREExposure
Rotation Time 0.5s
Scan Range 232mm x3
Dose Reduction PIQE 1024 Body
CTDIvol 14.7mGy x3
DLP 1209mGy.cm
Effective Dose 18mSv
k-factor 0.015
Aquilion ONE / INSIGHT Edition Multiphase Abdomen 40 BMI
Aquilion ONE / INSIGHT Edition Multiphase Abdomen 40 BMI
× 拡大画像

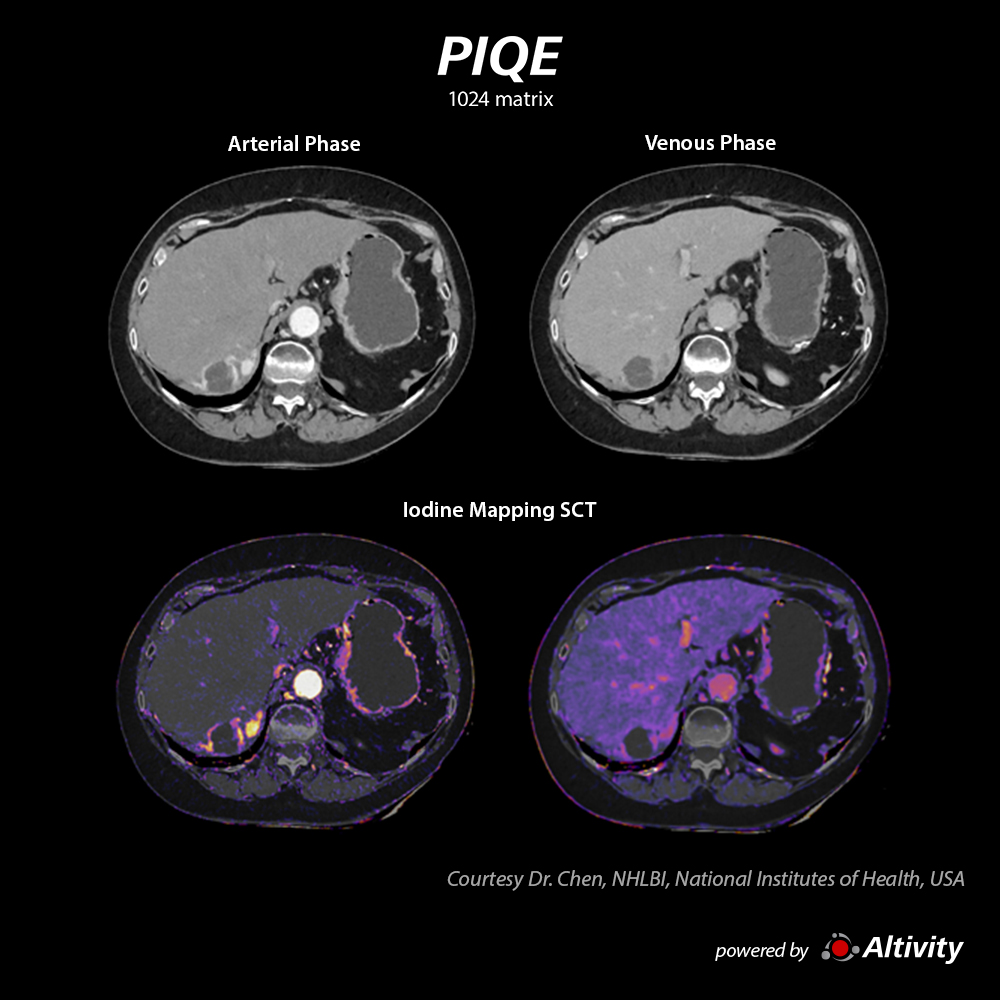

Liver lesion with iodine mapping SCT

Aquilion ONE / INSIGHT Edition

Liver Lesion demonstrated with iodine mapping SCT.

View Scan Parameters

Scan Mode Ultra Helical
Collimation 0.5 mm x 80
kVp 120
mAs SUREExposure
Rotation Time 0.5s
Scan Range 220mm/220mm/635mm
Dose Reduction PIQE 1024 Body
CTDIvol 4.8mGy x3
DLP 562.1mGy.cm
Effective Dose 8.4mSv
k-factor 0.015
Aquilion ONE / INSIGHT Edition Liver lesion with iodine mapping SCT
Aquilion ONE / INSIGHT Edition Liver lesion with iodine mapping SCT
