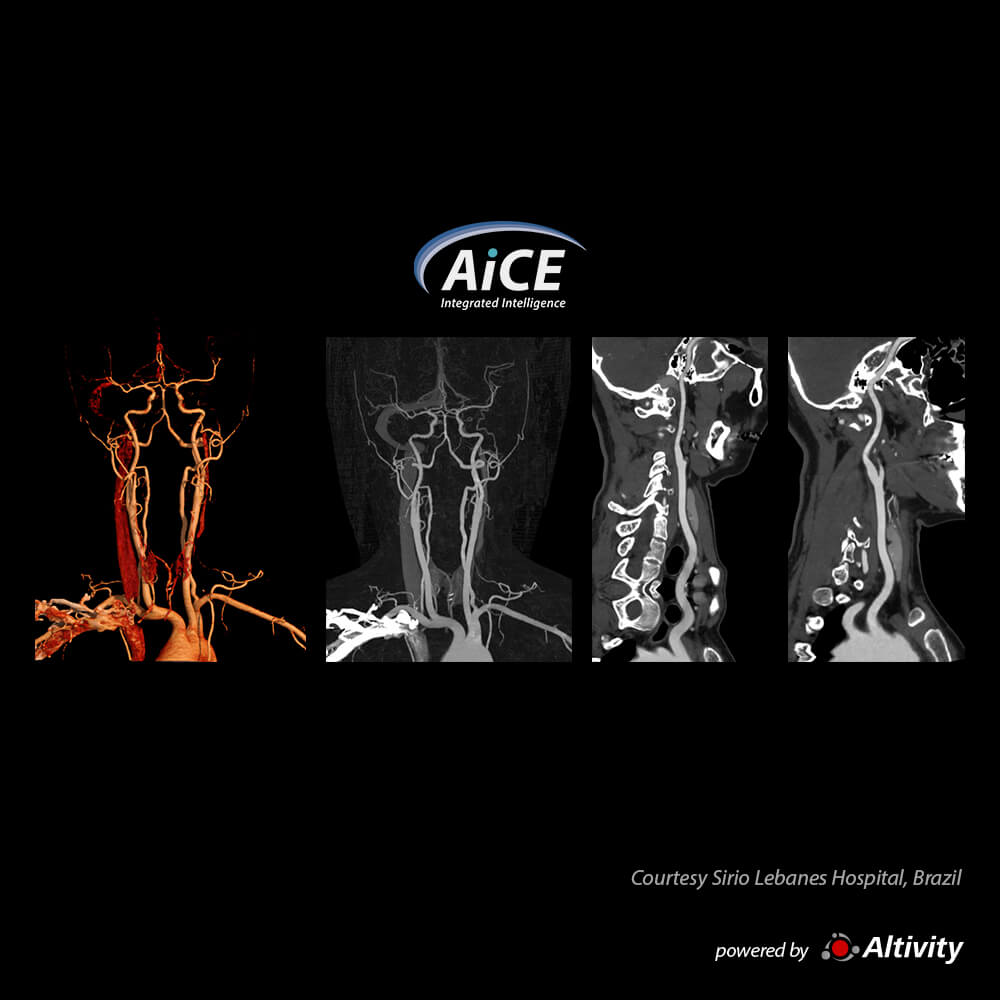

Carotid CTA with SCT

Aquilion ONE / INSIGHT Edition

Fully automatic bone removal with Angio SCT saved in the scan protocol provides excellent images of the carotid arteries free from overlying bone.

View Scan Parameters

Scan Mode Ultra Helical
Collimation 0.5 mm x 80
kVp 100
mAs SUREExposure
Rotation Time 0.5s
Scan Range 330mm
Dose Reduction AiCE
CTDIvol 3.2+5.4mGy
DLP 360.1mGy.cm
Effective Dose 2.1mSv
k-factor 0.0059
Aquilion ONE / INSIGHT Edition Carotid CTA with SCT
Aquilion ONE / INSIGHT Edition Carotid CTA with SCT
× 拡大画像

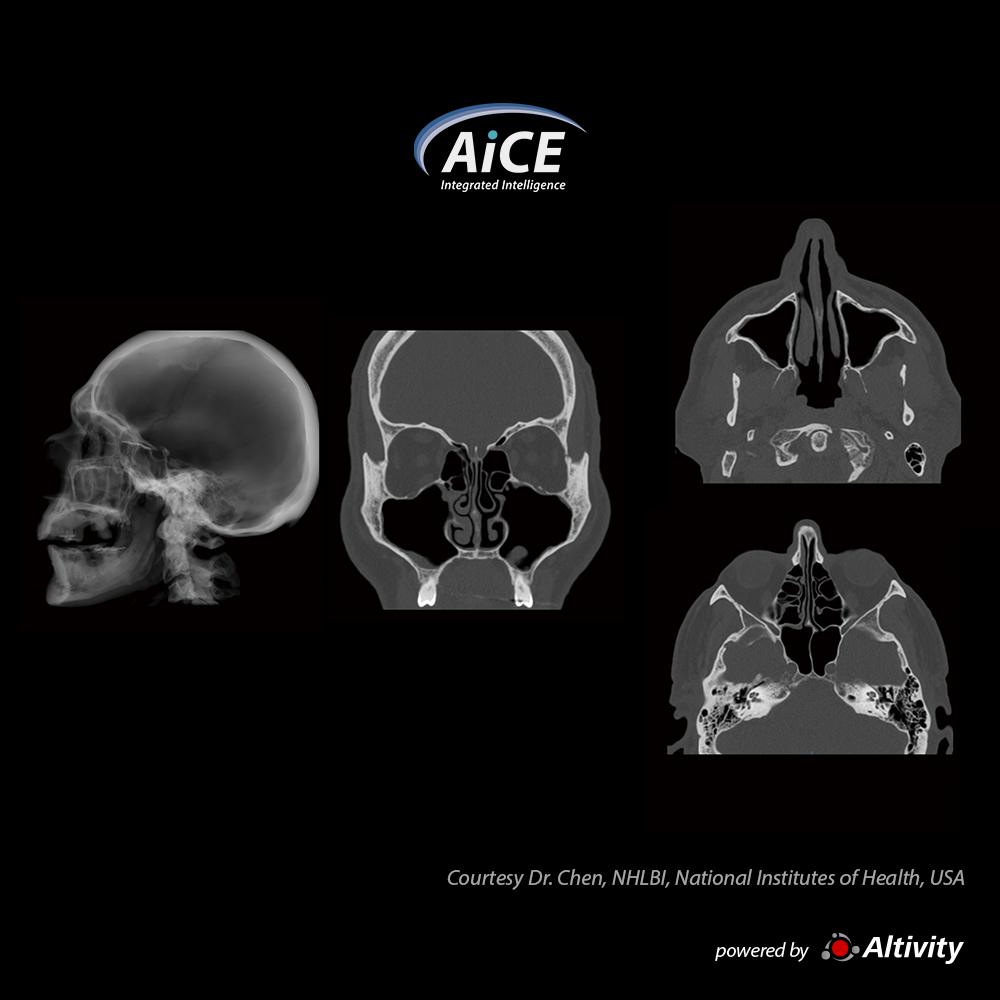

Sinuses

Aquilion ONE / INSIGHT Edition

56-year-old male with sinusitis. Excellent bone detail with AiCE Bone reconstructions

View Scan Parameters

Scan Mode Ultra Helical
Collimation 0.5 mm x 80
kVp 120
mAs 60
Rotation Time 0.5s
Scan Range 207mm
Dose Reduction AiCE/PIQE 1024
CTDIvol 9.7mGy
DLP 241.0mGy.cm
Effective Dose 0.51mSv
k-factor 0.0021
Aquilion ONE / INSIGHT Edition Sinuses
Aquilion ONE / INSIGHT Edition Sinuses
× 拡大画像

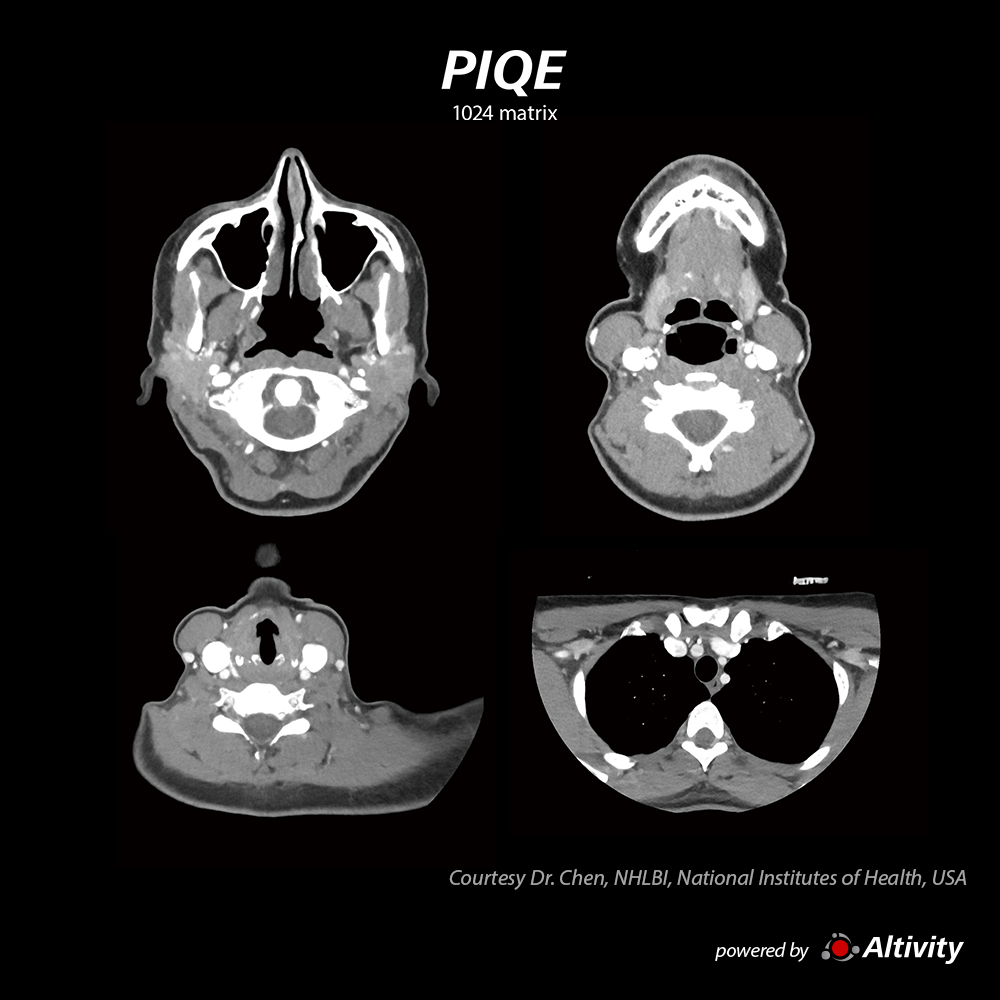

Neck +C

Aquilion ONE / INSIGHT Edition

Excellent detail with PIQE 1024 reconstructions.

View Scan Parameters

Scan Mode Ultra Helical
Collimation 0.5 mm x 80
kVp 100
mAs SUREExposure
Rotation Time 0.24s
Scan Range 256mm
Dose Reduction PIQE 1024
CTDIvol -
DLP -
Effective Dose -
k-factor 0.0039
Aquilion ONE / INSIGHT Edition Neck +C
Aquilion ONE / INSIGHT Edition Neck +C
