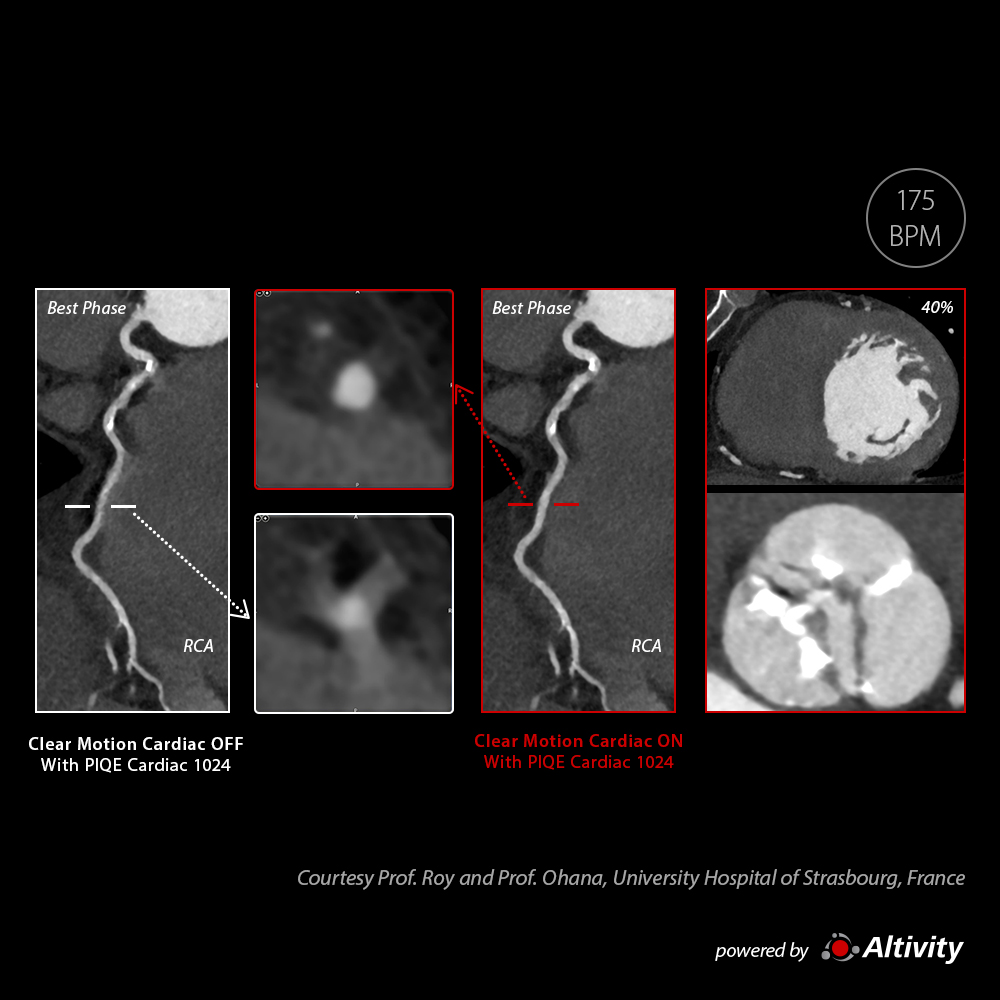

Pre-TAVR with CLEAR Motion Cardiac

Aquilion ONE / INSIGHT Edition

A pre-TAVR CT was performed without beta blockers on a patient with a heart rate of 175 bpm. Despite a very high heart rate, images reconstructed with PIQE 1024 and CLEAR Motion Cardiac show a nearly motion-free myocardium, aortic valve, and coronary arteries.

View Scan Parameters

Scan Mode ECG Volume
Collimation 0.5 mm
kVp 100
mAs SUREExposure
Rotation Time 0.24s
Scan Range 160mm
Dose Reduction AiCE
CTDIvol 9.4mGy
DLP 151mGy.cm
Effective Dose 2.1mSv
k-factor 0.014
Pre-TAVR with CLEAR Motion Cardiac
Pre-TAVR with CLEAR Motion Cardiac
× 拡大画像

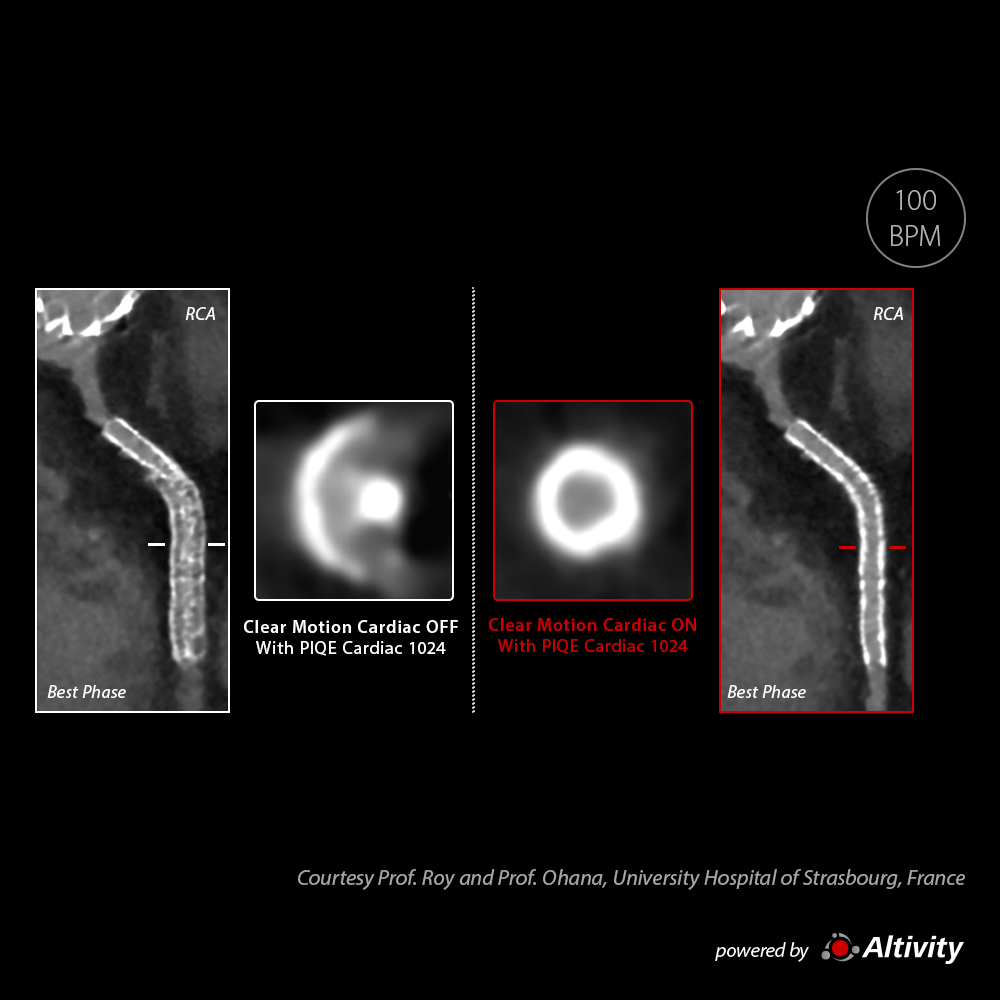

Stent with CLEAR Motion Cardiac

Aquilion ONE / INSIGHT Edition

Aquilion ONE / INSIGHT Edition

View Scan Parameters

Scan Mode ECG Volume
Collimation 0.5 mm
kVp 100
mAs SUREExposure
Rotation Time 0.24s
Scan Range 160mm
Dose Reduction AiCE
CTDIvol 15.4mGy
DLP 216mGy.cm
Effective Dose 3.0mSv
k-factor 0.014
Stent with CLEAR Motion Cardiac
Stent with CLEAR Motion Cardiac
× 拡大画像

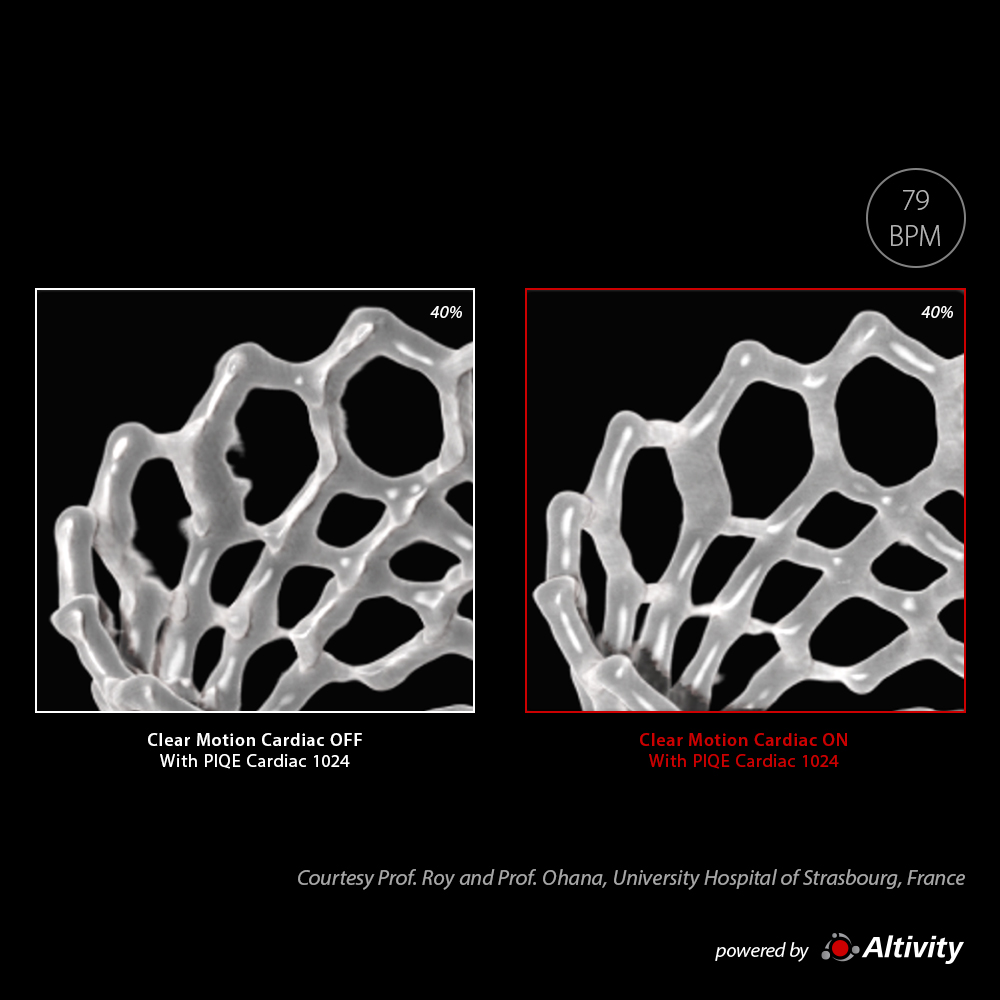

SAPIEN 3 Valve with CLEAR Motion Cardiac

Aquilion ONE / INSIGHT Edition

A post-TAVR CT was performed without beta blockers in a patient with a heart rate of 79 bpm. The Global Illumination rendering of the valve appears sharp and well visualized with PIQE 1024 and CLEAR Motion Cardiac.

View Scan Parameters

Scan Mode ECG Volume
Collimation 0.5 mm
kVp 100
mAs SUREExposure
Rotation Time 0.24s
Scan Range 160mm
Dose Reduction AiCE
CTDIvol 17.7mGy
DLP 283mGy.cm
Effective Dose 3.9mSv
k-factor 0.014
SAPIEN 3 Valve with CLEAR Motion Cardiac
SAPIEN 3 Valve with CLEAR Motion Cardiac
× 拡大画像

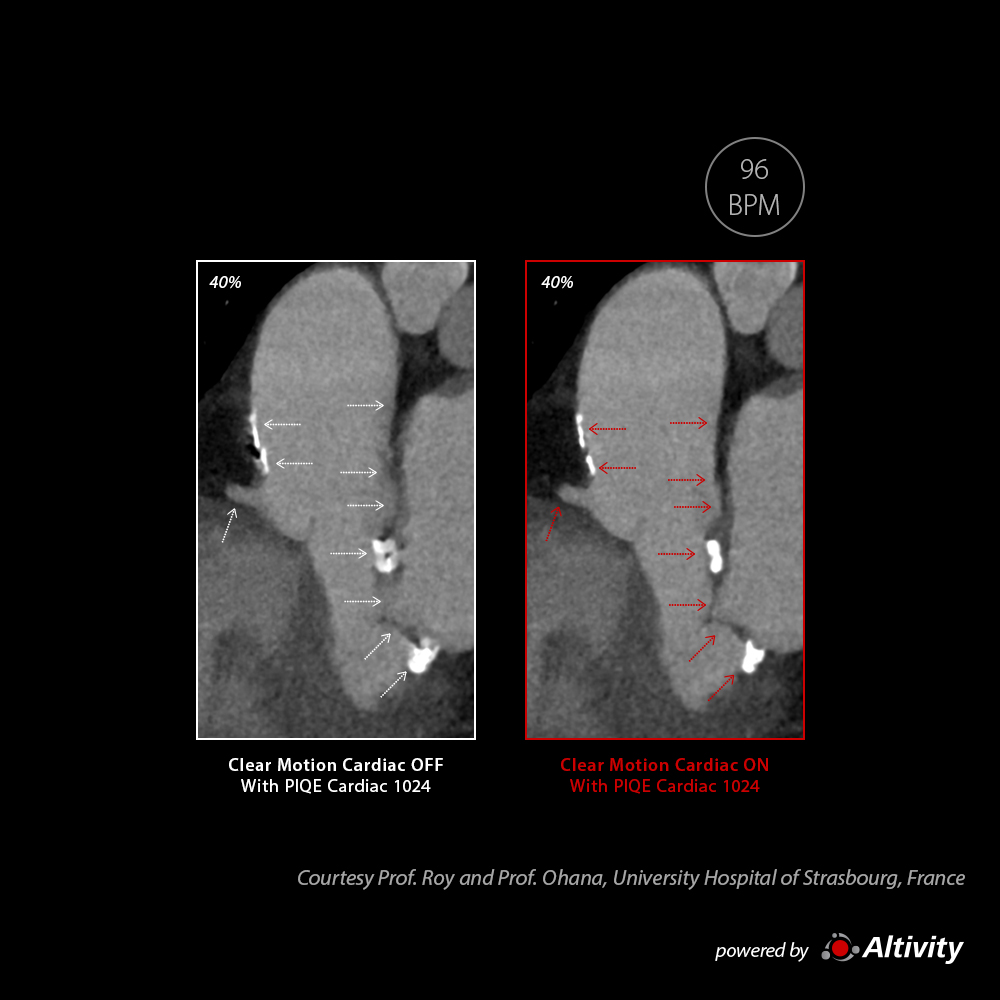

Calcified Aortic Valve with CLEAR Motion Cardiac

Aquilion ONE / INSIGHT Edition

A pre-TAVR CT was performed without beta blockers on a patient with a heart rate of 96 bpm. The calcified aorta and aortic valve are well visualized with PIQE 1024 and CLEAR Motion Cardiac.

View Scan Parameters

Scan Mode ECG Volume
Collimation 0.5 mm
kVp 100
mAs SUREExposure
Rotation Time 0.24s
Scan Range 160mm
Dose Reduction AiCE
CTDIvol 14.4mGy
DLP 187mGy.cm
Effective Dose 2.6mSv
k-factor 0.014
Calcified Aortic Valve with CLEAR Motion Cardiac
Calcified Aortic Valve with CLEAR Motion Cardiac
× 拡大画像

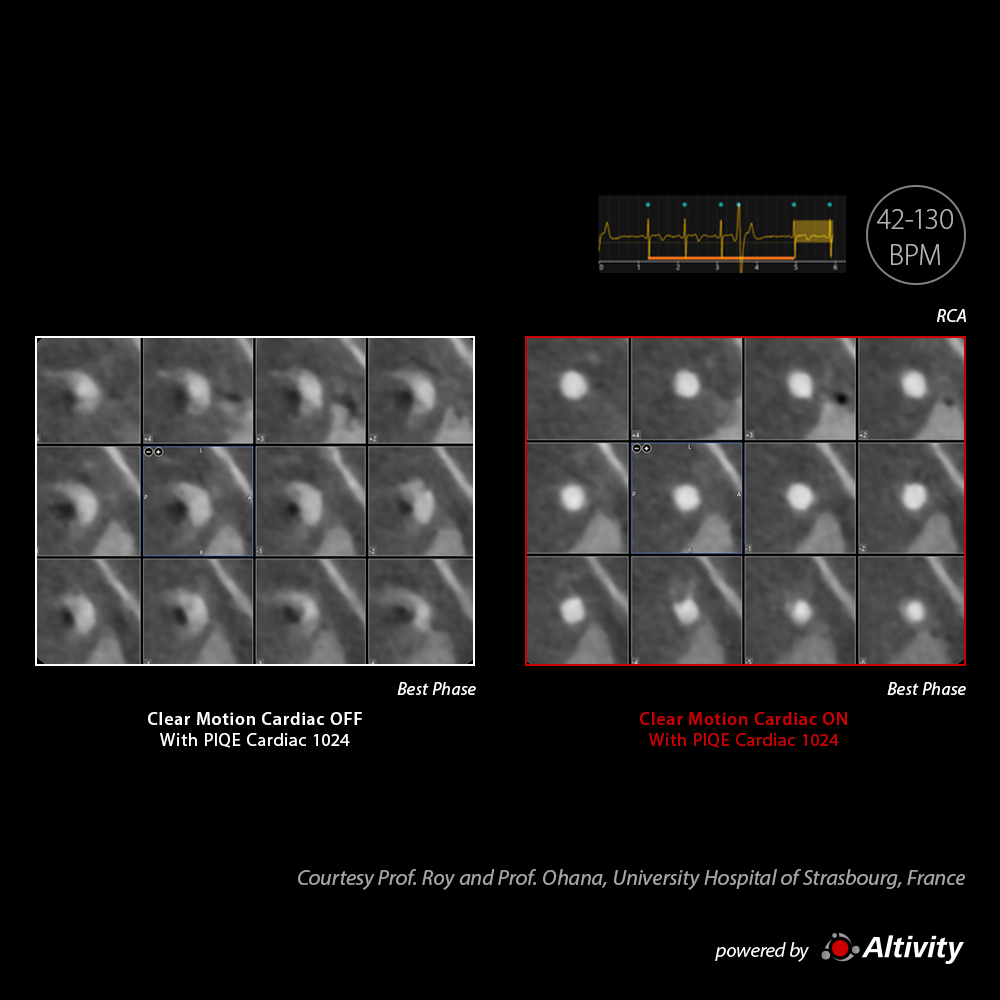

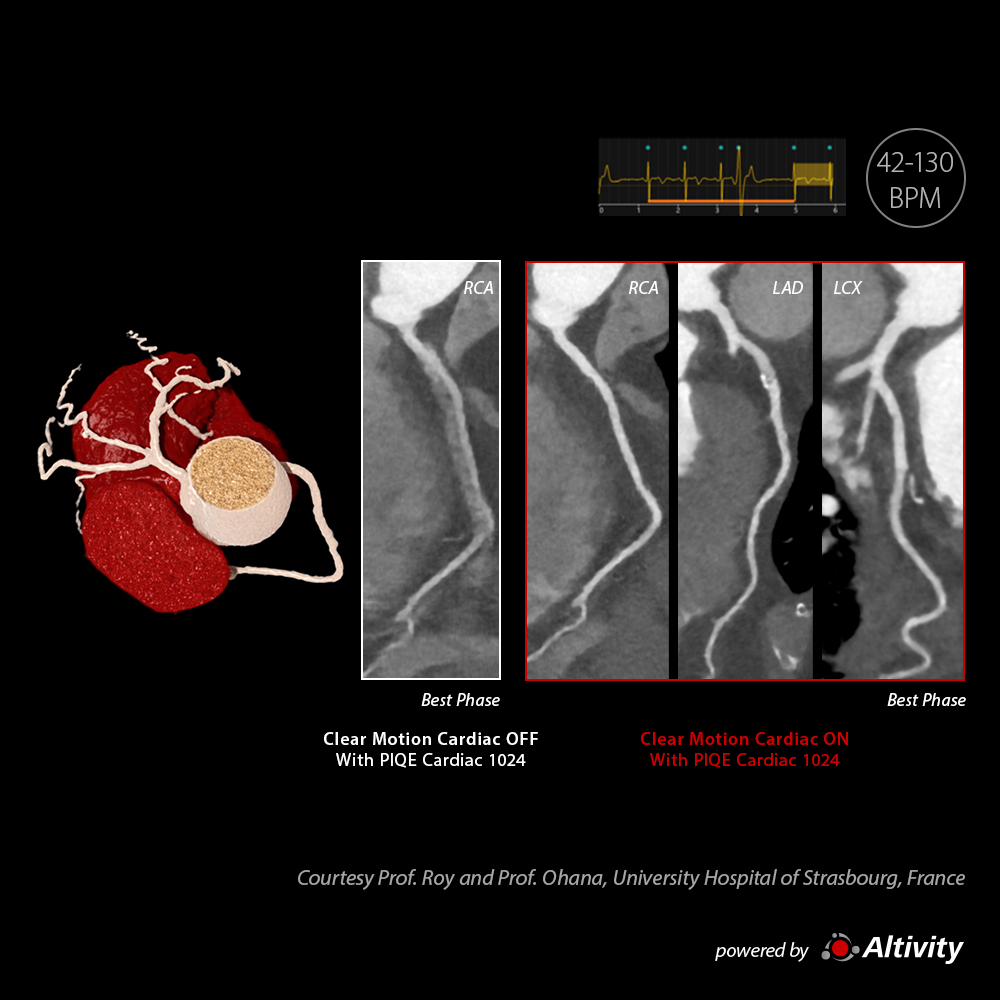

Arrhythmia with CLEAR Motion Cardiac

Aquilion ONE / INSIGHT Edition

A Cardiac CTA was performed on a patient with arrhythmia. The heart rate ranged from 42-130 bpm. The combination of PIQE 1024 and CLEAR Motion delivered excellent visualization of the coronary arteries despite arrhythmia.

View Scan Parameters

Scan Mode ECG Volume
Collimation 0.5 mm
kVp 100
mAs SUREExposure
Rotation Time 0.24s
Scan Range 160mm
Dose Reduction AiCE
CTDIvol 11.7mGy
DLP 186mGy.cm
Effective Dose 2.6mSv
k-factor 0.014
Arrhythmia with CLEAR Motion Cardiac
Arrhythmia with CLEAR Motion Cardiac
Arrhythmia with CLEAR Motion Cardiac
Arrhythmia with CLEAR Motion Cardiac
× 拡大画像

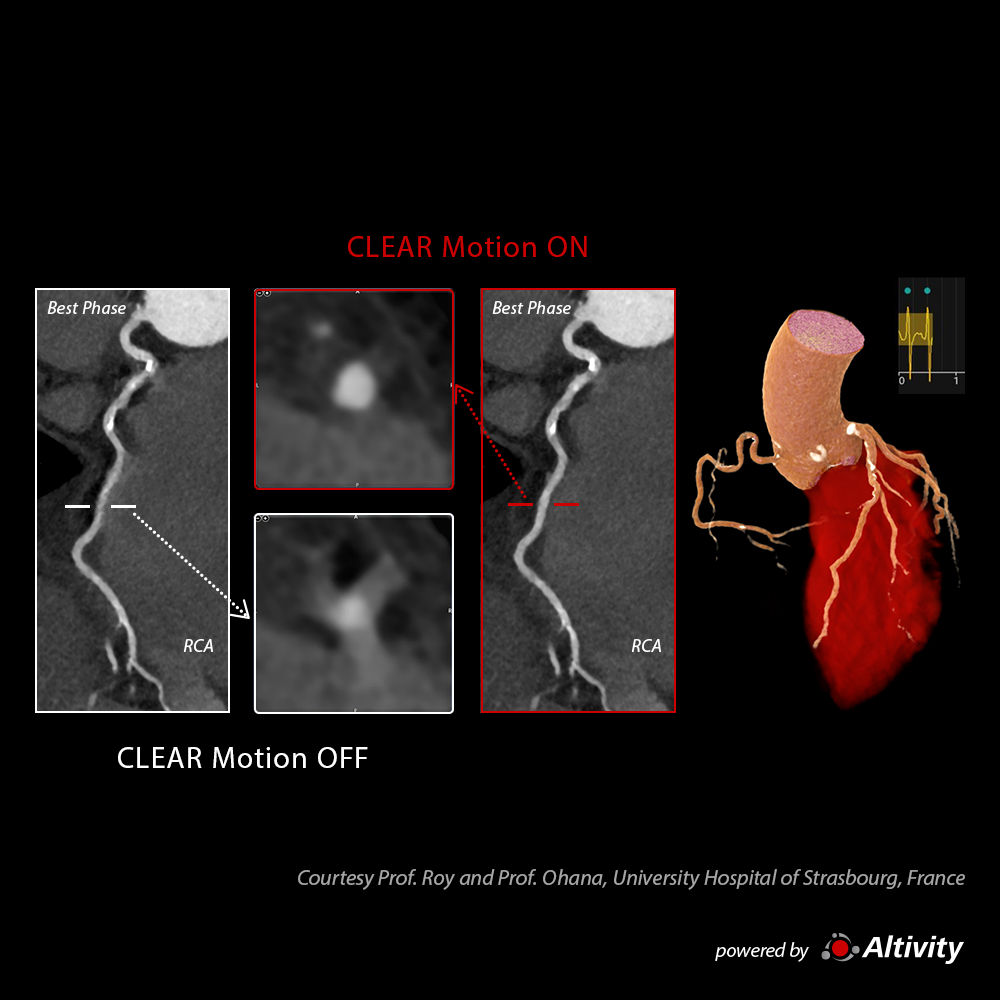

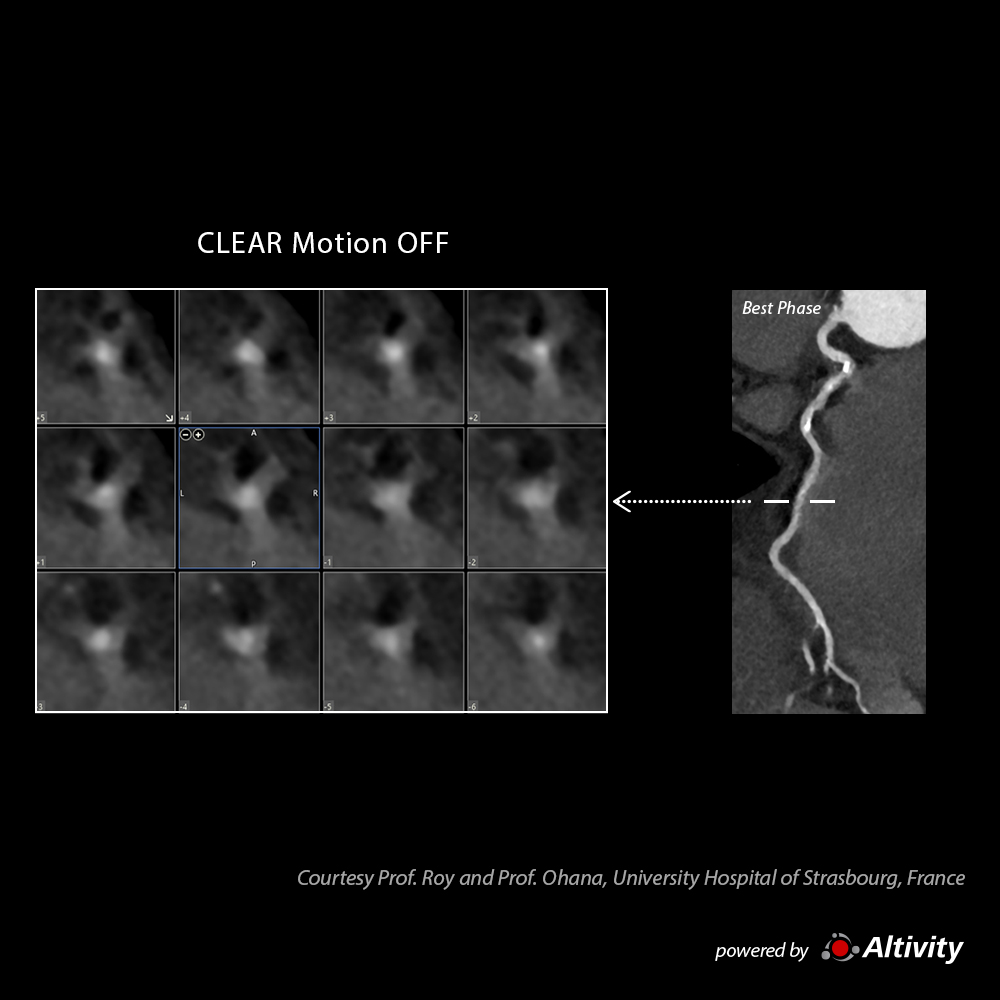

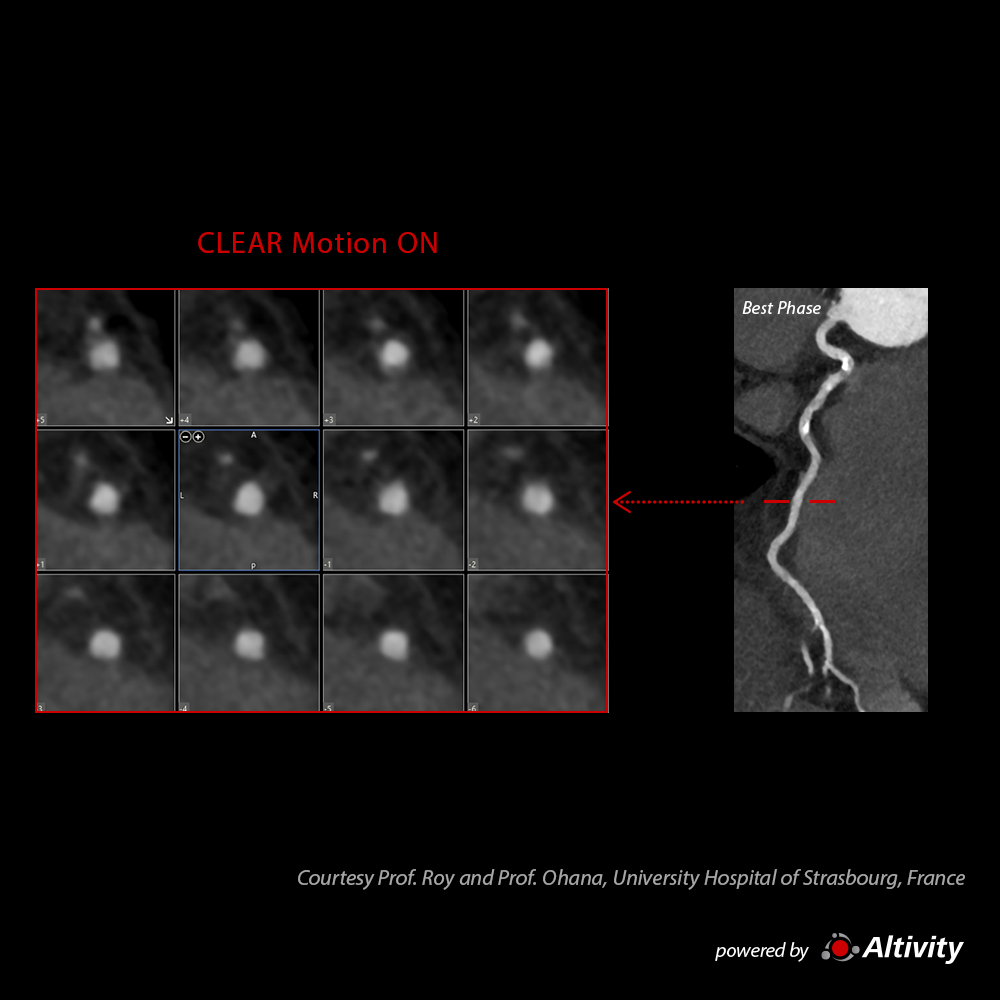

Cardiac CTA with High Heart Rate: 175 BPM

Aquilion ONE / INSIGHT Edition

CLEAR Motion removes motion artifact in the right coronary artery in this cardiac CTA scan with a heart rate of 175bpm.

View Scan Parameters

Scan Mode Volume
Collimation 0.5 mm
kVp 100
mAs SUREExposure
Rotation Time 0.24s
Scan Range 160mm
Dose Reduction AiCE
Cardiac CTA with High Heart Rate: 175 BPM
Cardiac CTA with High Heart Rate: 175 BPM
Cardiac CTA with High Heart Rate: 175 BPM
Cardiac CTA with High Heart Rate: 175 BPM
Cardiac CTA with High Heart Rate: 175 BPM
Cardiac CTA with High Heart Rate: 175 BPM
× 拡大画像

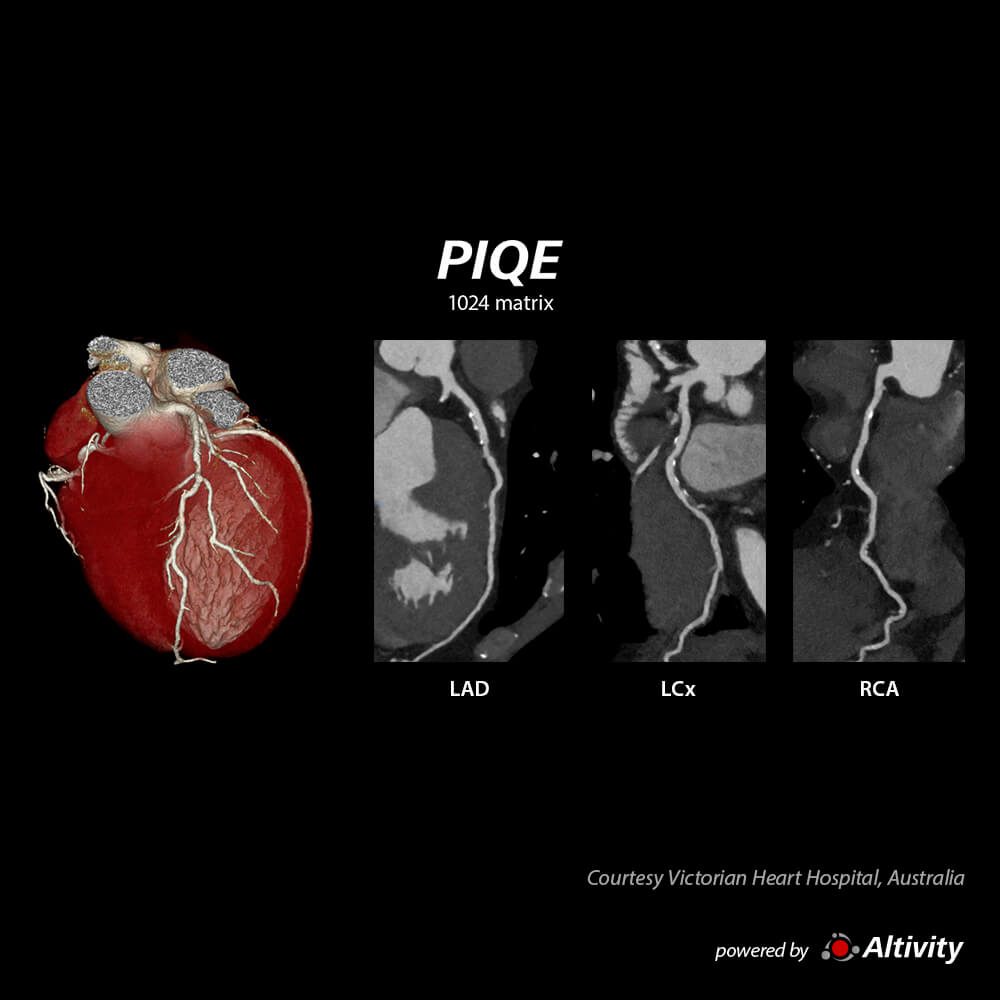

Cardiac

Aquilion ONE / INSIGHT Edition

One rotation, 16cm (0.5mm x 320) coverage of the heart in a patient with BMI 29 and a heart rate of 50bpm. PIQE images clearly demonstrate the calcified plaque in the vessels.

View Scan Parameters

Scan Mode Volume
Collimation 0.5 mm
kVp 120
mAs SUREExposure
Rotation Time 0.24s
Scan Range 160mm
Dose Reduction PIQE 1024
CTDIvol 14.9mGy
DLP 237.9mGy.cm
Effective Dose 3.3mSv
k-factor 0.014
Aquilion ONE / INSIGHT Edition Cardiac
Aquilion ONE / INSIGHT Edition Cardiac
× 拡大画像

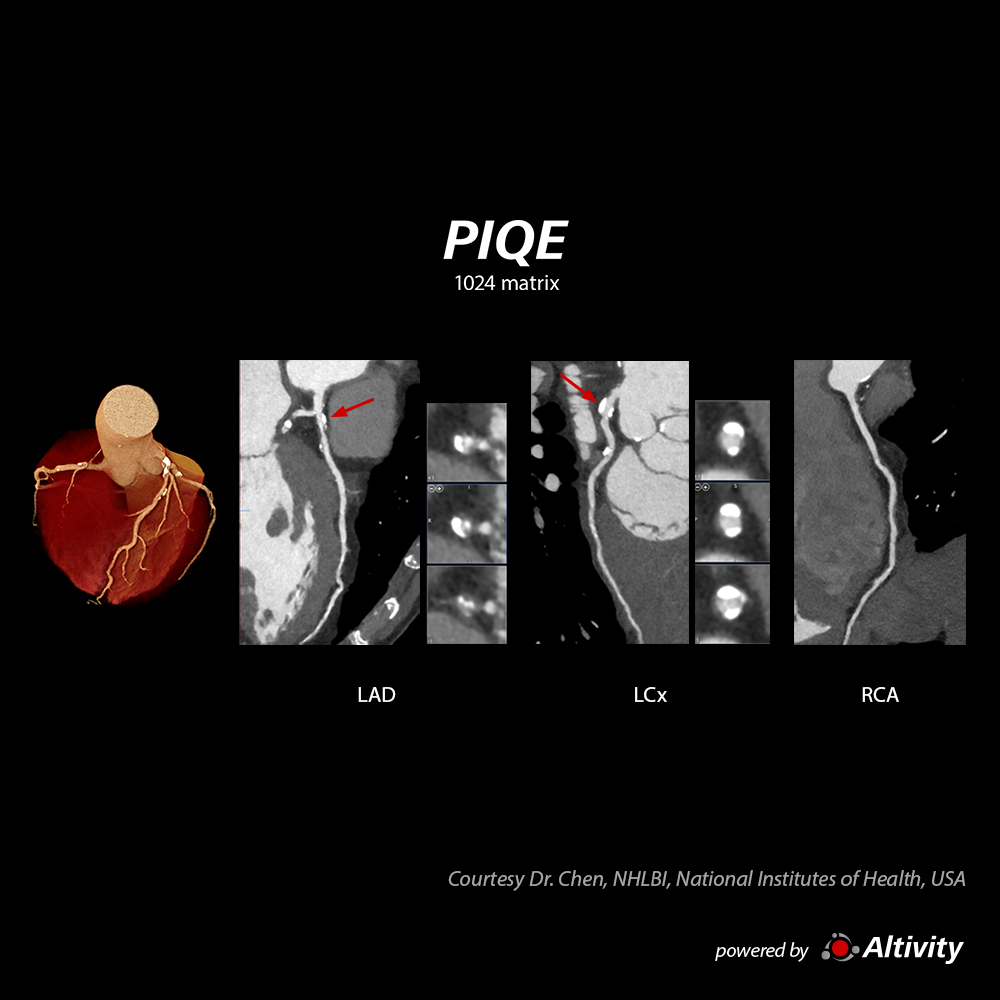

Plaque HR 62bpm

Aquilion ONE / INSIGHT Edition

Calcified plaques demonstrated in this one beat scan reconstructed with PIQE 1024.

View Scan Parameters

Scan Mode Volume
Collimation 0.5 mm
kVp 120
mAs SUREExposure
Rotation Time 0.24s
Scan Range 130mm
Dose Reduction PIQE 1024 Cardiac
CTDIvol 13.4mGy
DLP 174.4mGy.cm
Effective Dose 2.4mSv
k-factor 0.014
Aquilion ONE / INSIGHT Edition Plaque HR 62bpm
Aquilion ONE / INSIGHT Edition Plaque HR 62bpm
× 拡大画像

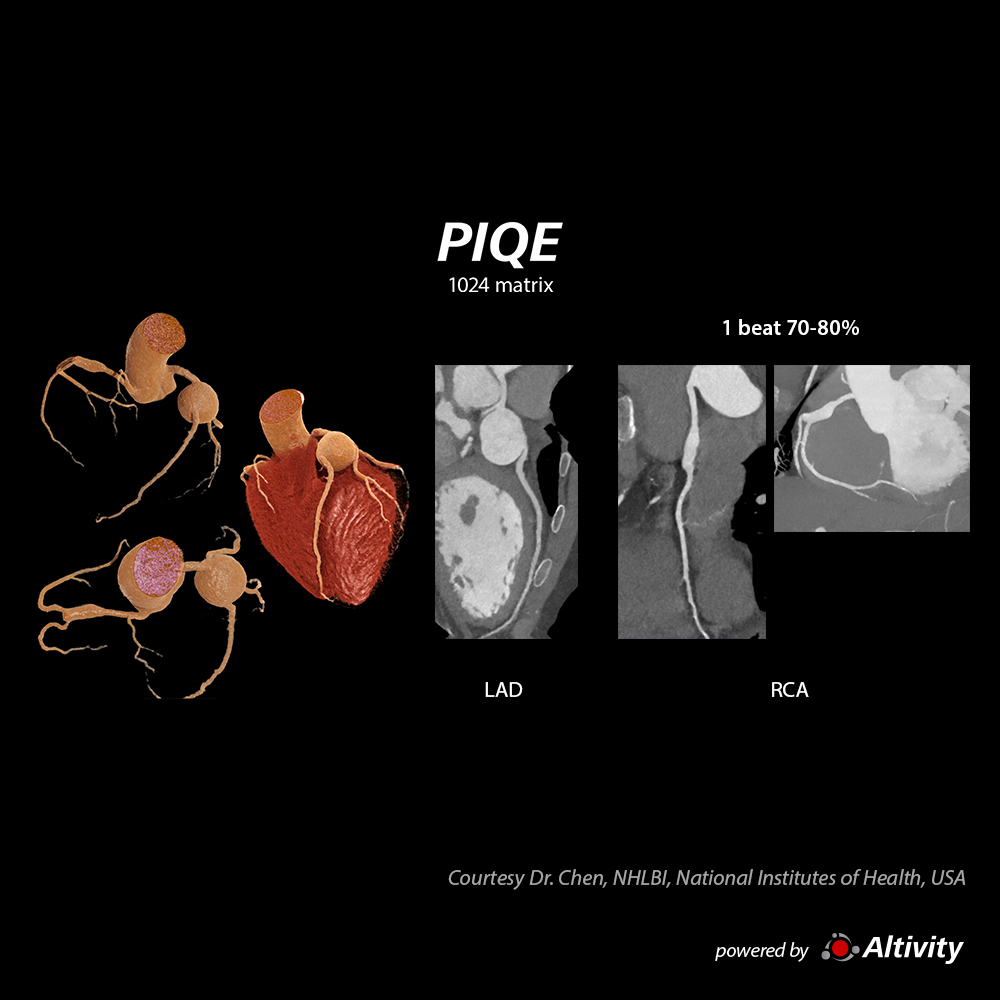

Aneurysms HR 60bpm

Aquilion ONE / INSIGHT Edition

Aneurysms are seen in the RCA and LAD

View Scan Parameters

Scan Mode Volume
Collimation 0.5 mm
kVp 100
mAs SUREExposure
Rotation Time 0.24s
Scan Range 120mm
Dose Reduction PIQE 1024 Cardiac
CTDIvol 8.4mGy
DLP 101mGy.cm
Effective Dose 1.4mSv
k-factor 0.014
Aquilion ONE / INSIGHT Edition Aneurysms HR 60bpm
Aquilion ONE / INSIGHT Edition Aneurysms HR 60bpm
