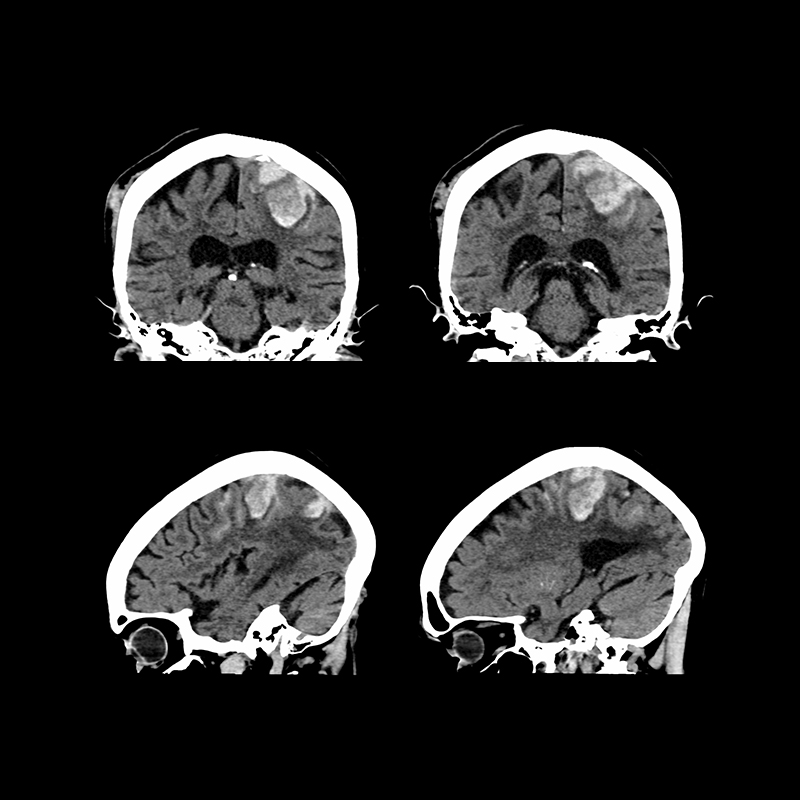

Brain, AiCE LCD

Aquilion Prime SP

View Scan Parameters

Scan Mode Helical
Collimation 0.5mm x 40
kVp 120
mAs 240
Rotation Time 0.75s
Scan Range 140.0mm
Reconstruction AiCE Brain LCD
CTDIvol 57.0mGy
DLP 915.8mGy·cm
Effective Dose 5.4mSv
k-factor 0.0021 (AAPM Report 96)
Aquilion Prime SP Brain, AiCE LCD
Aquilion Prime SP Brain, AiCE LCD
Aquilion Prime SP Brain, AiCE LCD
Aquilion Prime SP Brain, AiCE LCD
× 拡大画像

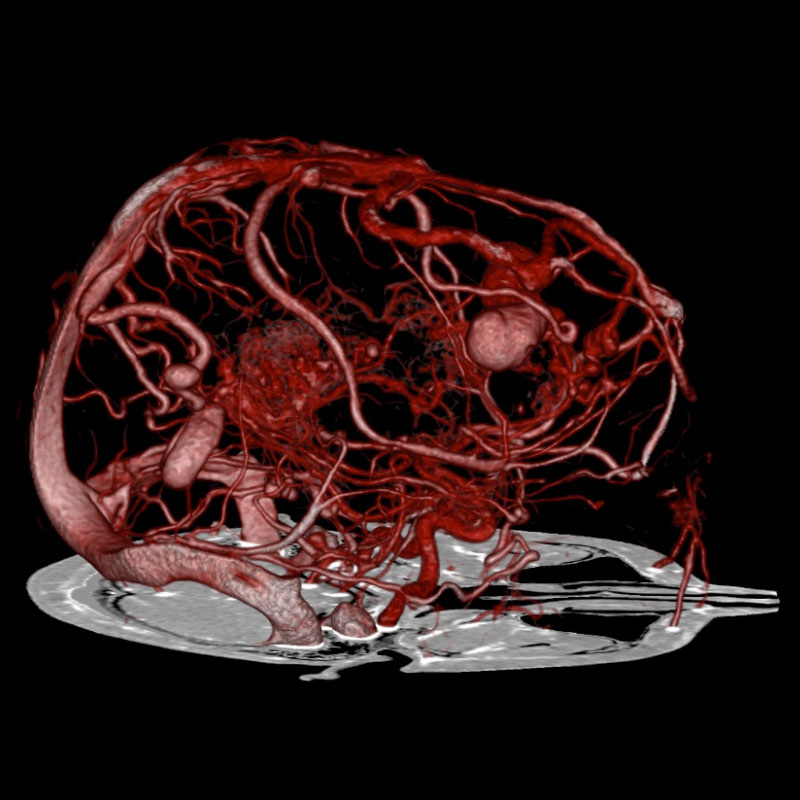

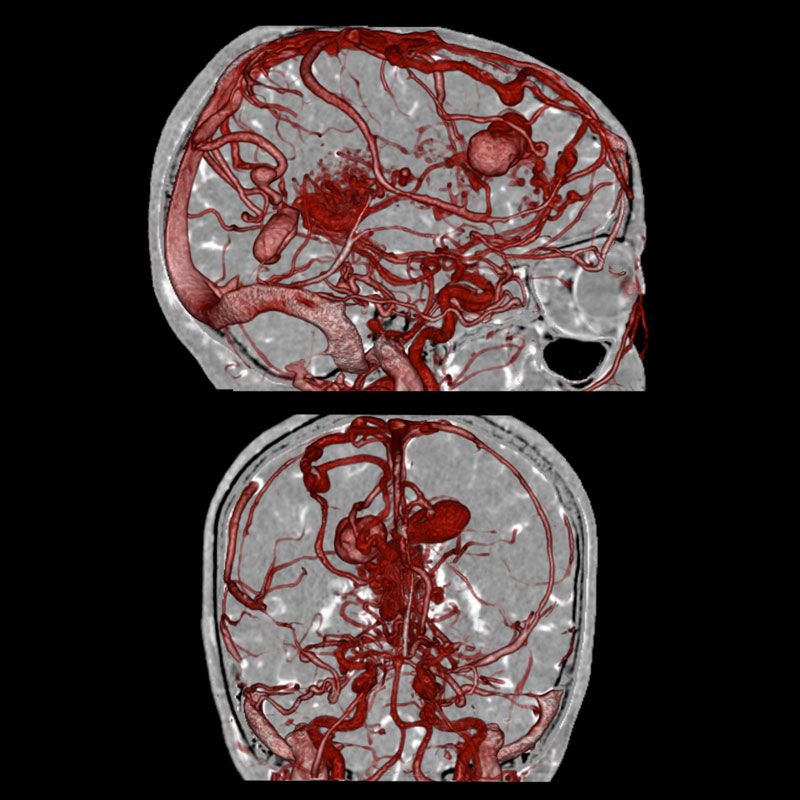

Brain CTA SURESubtraction aneurysms and AVMs

Aquilion Prime SP

Auto subtraction demonstrates intracranial aneurysms associated with AVM.

View Scan Parameters (Non-Contrast)

Scan Mode Ultra-Helical
Collimation 0.5mm x 80
kVp 120
mAs 165
Rotation Time 0.75s
Scan Range 225.0mm
Reconstruction AiCE
CTDIvol 51.5mGy
DLP 953.1mGy·cm
Effective Dose 2.00mSv
k-factor 0.0021 (AAPM Report 96)

View Scan Parameters (Contrast)

Scan Mode Ultra-Helical
Collimation 0.5mm x 80
kVp 120
mAs 165
Rotation Time 0.75s
Scan Range 225.0mm
Reconstruction AiCE
CTDIvol 35.2mGy
DLP 698.8mGy·cm
Effective Dose 1.46mSv
k-factor 0.0021 (AAPM Report 96)
Aquilion Prime SP Brain CTA SURESubtraction aneurysms and AVMs
Aquilion Prime SP Brain CTA SURESubtraction aneurysms and AVMs
Aquilion Prime SP Brain CTA SURESubtraction aneurysms and AVMs
Aquilion Prime SP Brain CTA SURESubtraction aneurysms and AVMs
Aquilion Prime SP Brain CTA SURESubtraction aneurysms and AVMs
Aquilion Prime SP Brain CTA SURESubtraction aneurysms and AVMs
× 拡大画像

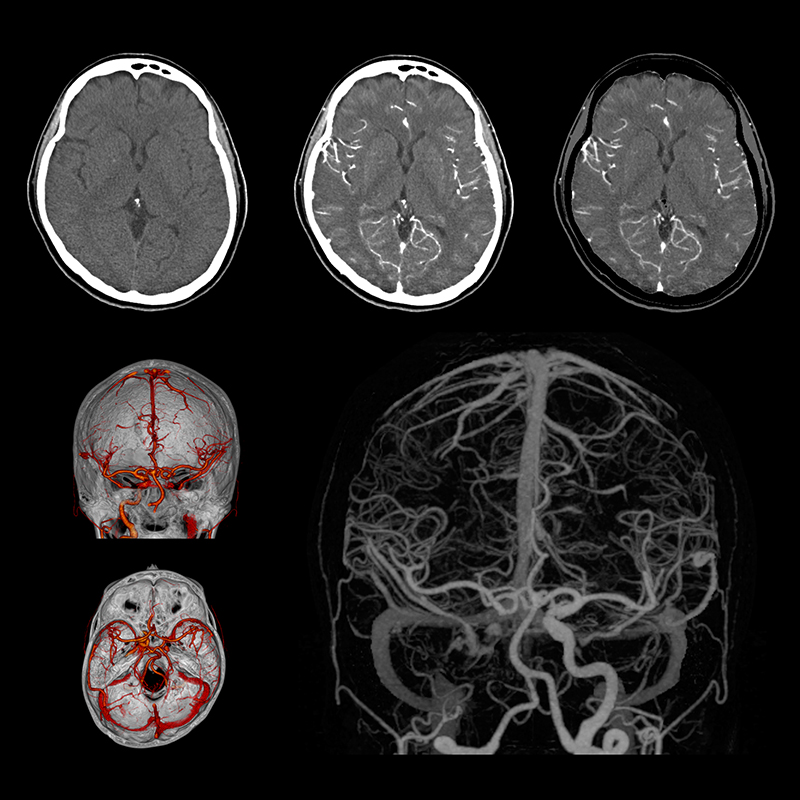

Brain CTA SURESubtraction Rt. ICA Occlusion

Aquilion Prime SP

CTA with SURESubtraction demonstrates a right ICA occlusion.

View Scan Parameters (Non-Contrast)

Scan Mode Ultra-Helical
Collimation 0.5mm x 80
kVp 120
mAs 150
Rotation Time 0.75s
Scan Range 164.0mm
Reconstruction AiCE
CTDIvol 42.1mGy
DLP 871.4mGy·cm
Effective Dose 1.83mSv
k-factor 0.0021 (AAPM Report 96)

View Scan Parameters (Post-Contrast)

Scan Mode Ultra-Helical
Collimation 0.5mm x 80
kVp 120
mAs 187
Rotation Time 0.75s
Scan Range 164.0mm
Reconstruction AiCE
CTDIvol 52.7mGy
DLP 1089.3mGy·cm
Effective Dose 2.28mSv
k-factor 0.0021 (AAPM Report 96)
Aquilion Prime SP Brain CTA SURESubtraction Rt. ICA Occlusion
Aquilion Prime SP Brain CTA SURESubtraction Rt. ICA Occlusion
Aquilion Prime SP Brain CTA SURESubtraction Rt. ICA Occlusion
Aquilion Prime SP Brain CTA SURESubtraction Rt. ICA Occlusion
Aquilion Prime SP Brain CTA SURESubtraction Rt. ICA Occlusion
Aquilion Prime SP Brain CTA SURESubtraction Rt. ICA Occlusion
× 拡大画像

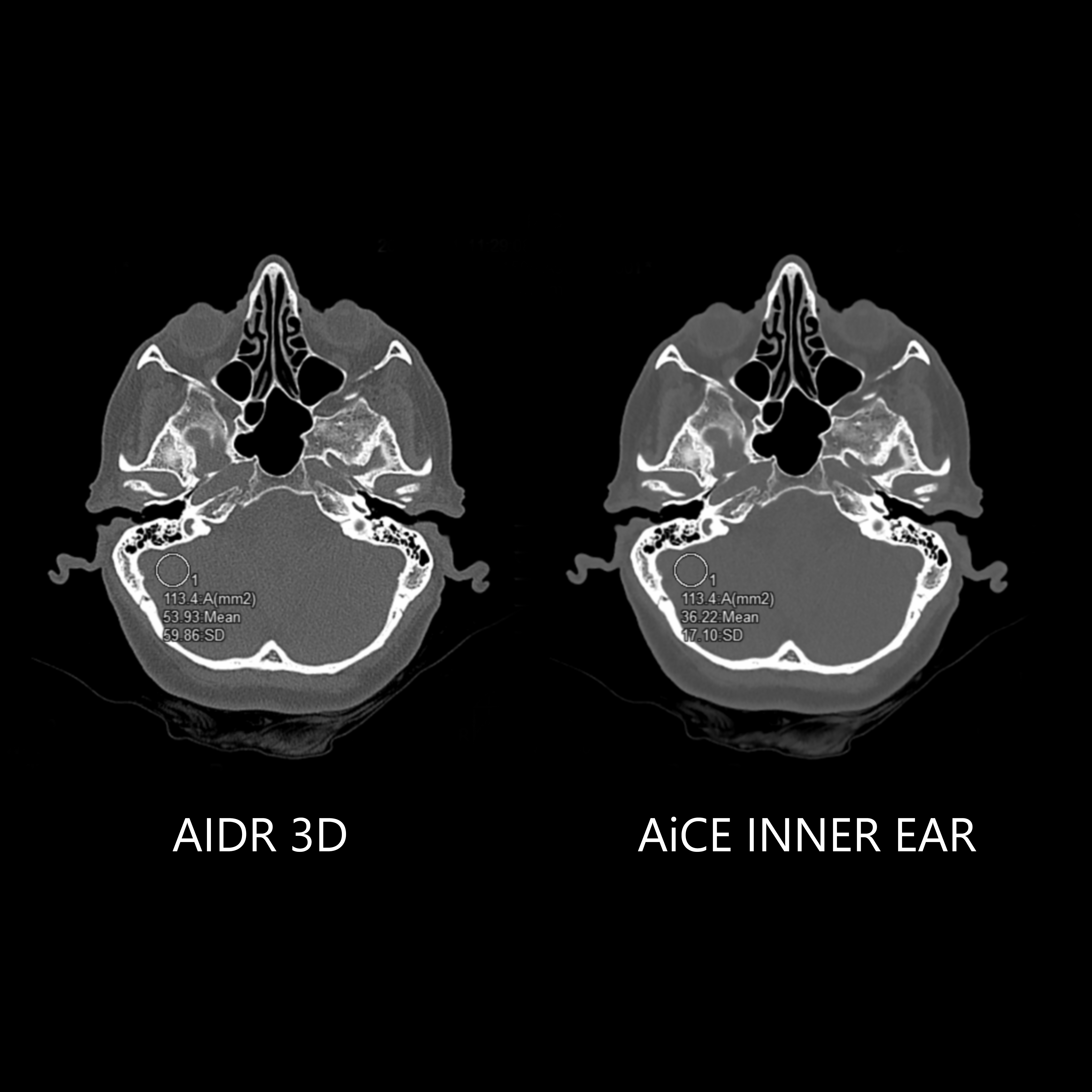

IAC, AiCE

Aquilion Prime SP

AiCE DLR enabling high diagnostic confidence in evaluation of small bony structures in IAC, through significant noise reduction while maintaining high-resolution.

View Scan Parameters

Scan Mode Ultra-Helical
Collimation 0.5mm x 40
kVp 120
mAs 150
Rotation Time 0.5s
Scan Range 57.0mm
Reconstruction AiCE Inner Ear
CTDIvol 35.6mGy
DLP 181.3mGy·cm
Effective Dose 0.4mSv
k-factor 0.0021 (AAPM Report 96)
Aquilion Prime SP IAC, AiCE
Aquilion Prime SP IAC, AiCE
Aquilion Prime SP IAC, AiCE
Aquilion Prime SP IAC, AiCE
Aquilion Prime SP IAC, AiCE
Aquilion Prime SP IAC, AiCE
× 拡大画像

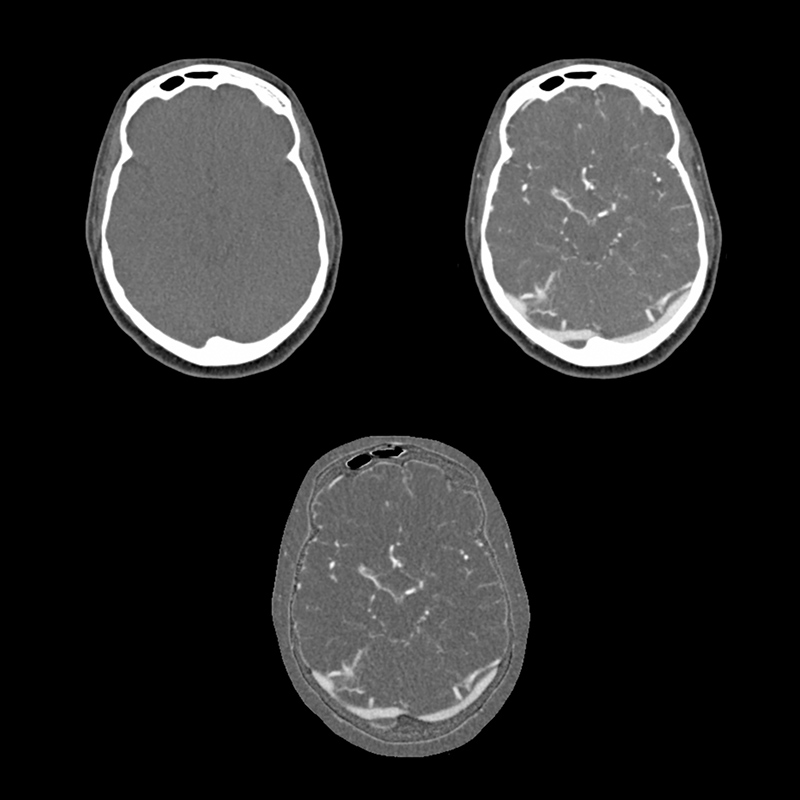

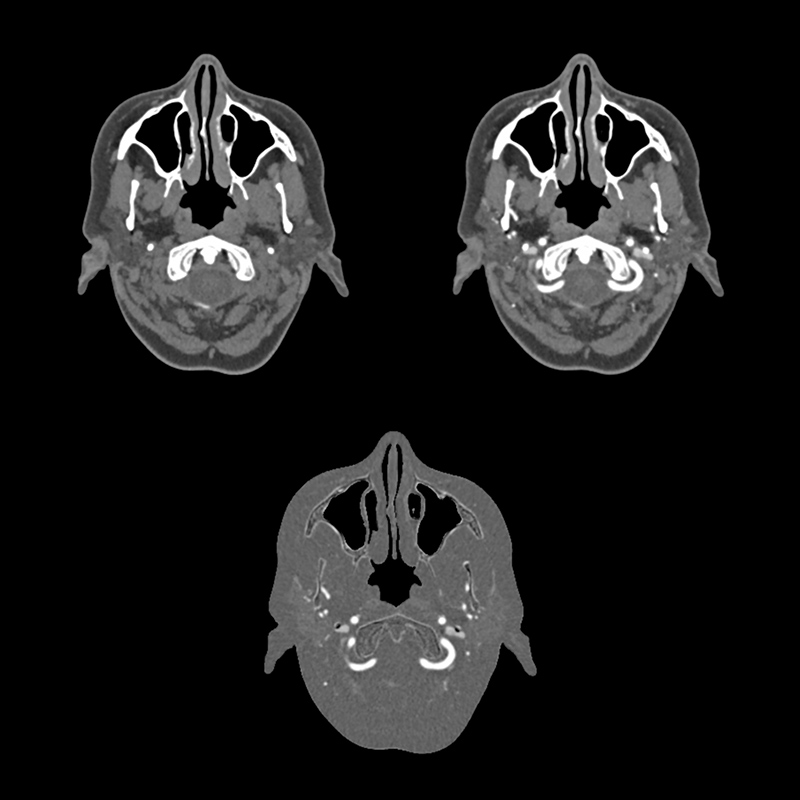

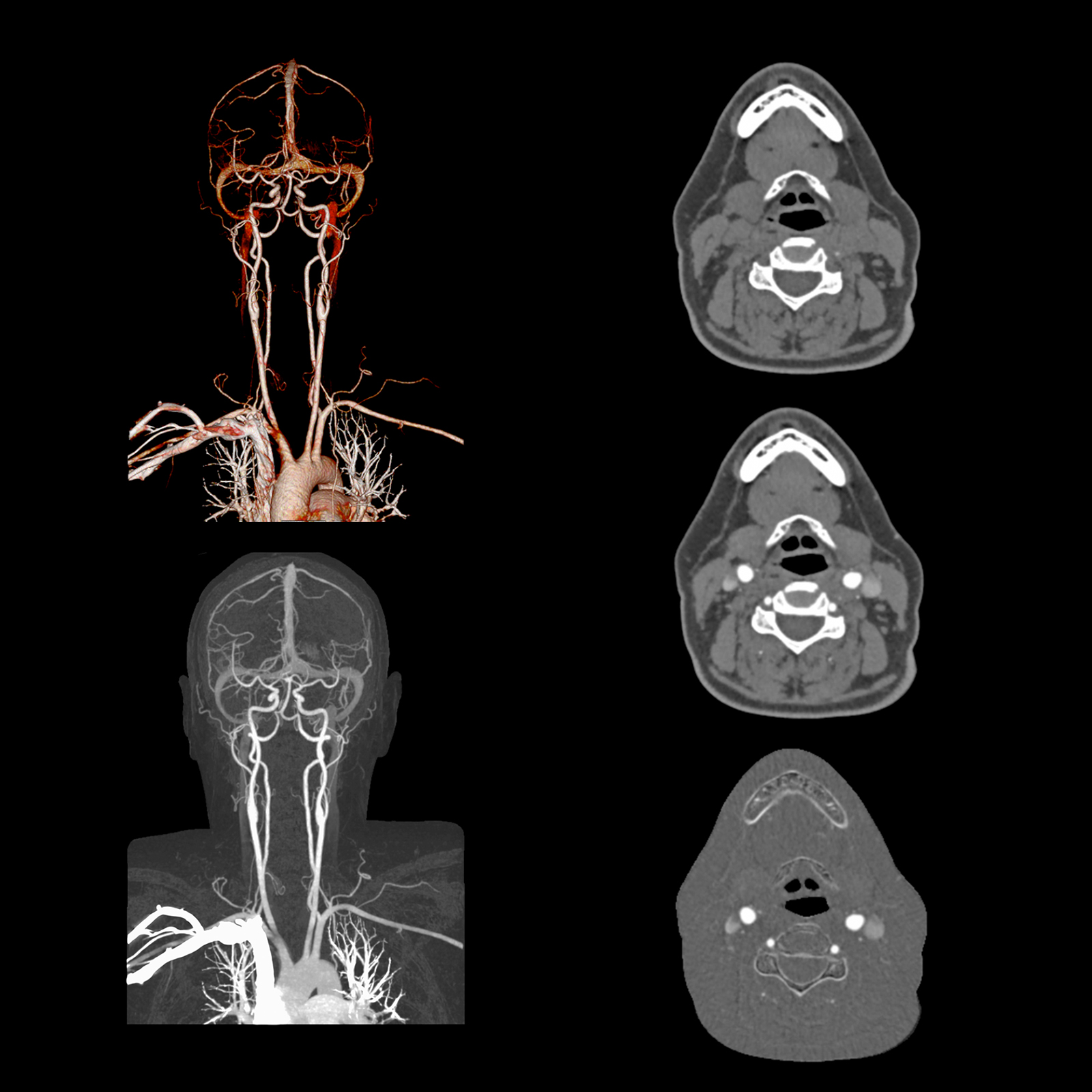

SURESubtraction, Carotid CTA

Aquilion Prime SP

SURESubtraction automatically generates images with subtracted bones improving the visualization of the neurovascular anatomy.

View Scan Parameters (Non-Contrast)

Scan Mode Ultra-Helical
Collimation 0.5mm x 80
kVp 100
mAs SUREExposure
Rotation Time 0.5s
Scan Range 350.0 mm
Reconstruction AiCE
CTDIvol 3.9mGy
DLP 152.7mGy·cm
Effective Dose 0.47mSv
k-factor 0.0031 (AAPM Report 96)

View Scan Parameters (Contrast)

Scan Mode Ultra-Helical
Collimation 0.5mm x 80
kVp 100
mAs SUREExposure
Rotation Time 0.5s
Scan Range 350.0 mm
Reconstruction AiCE
CTDIvol 3.9mGy
DLP 152.7mGy·cm
Effective Dose 0.80mSv
k-factor 0.0031 (AAPM Report 96)
Aquilion Prime SP SURESubtraction, Carotid CTA
Aquilion Prime SP SURESubtraction, Carotid CTA
Aquilion Prime SP SURESubtraction, Carotid CTA
Aquilion Prime SP SURESubtraction, Carotid CTA
Aquilion Prime SP SURESubtraction, Carotid CTA
Aquilion Prime SP SURESubtraction, Carotid CTA
Aquilion Prime SP SURESubtraction, Carotid CTA
Aquilion Prime SP SURESubtraction, Carotid CTA
× 拡大画像

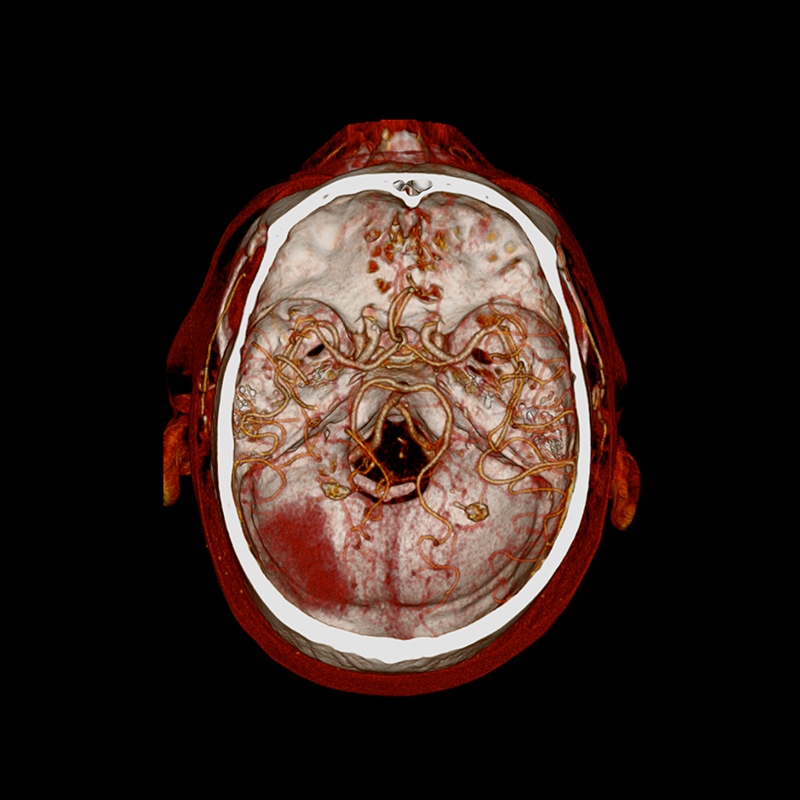

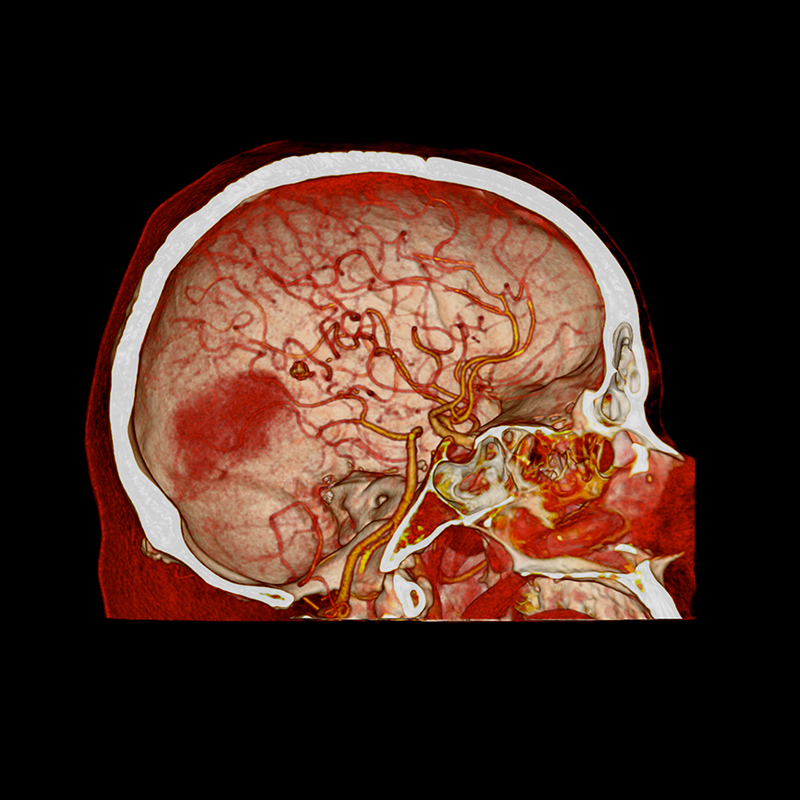

Brain Hemorrhage

Aquilion Prime SP

Contrast enhanced CT of the head with AIDR 3D demonstrates a brain hemorrhage.

View Scan Parameters

Scan Mode Ultra-Helical
Collimation 0.5mm x 80
kVp 120
mAs 225
Rotation Time 0.5s
Scan Range 162.0 mm
Reconstruction AIDR 3D
CTDIvol 27.2mGy
DLP 561.0mGy·cm
Effective Dose 1.17mSv
k-factor 0.0021 (AAPM Report 96)
Aquilion Prime SP Brain Hemorrhage
Aquilion Prime SP Brain Hemorrhage
Aquilion Prime SP Brain Hemorrhage
Aquilion Prime SP Brain Hemorrhage
Aquilion Prime SP Brain Hemorrhage
Aquilion Prime SP Brain Hemorrhage
Aquilion Prime SP Brain Hemorrhage
Aquilion Prime SP Brain Hemorrhage
Aquilion Prime SP Brain Hemorrhage
Aquilion Prime SP Brain Hemorrhage
× 拡大画像

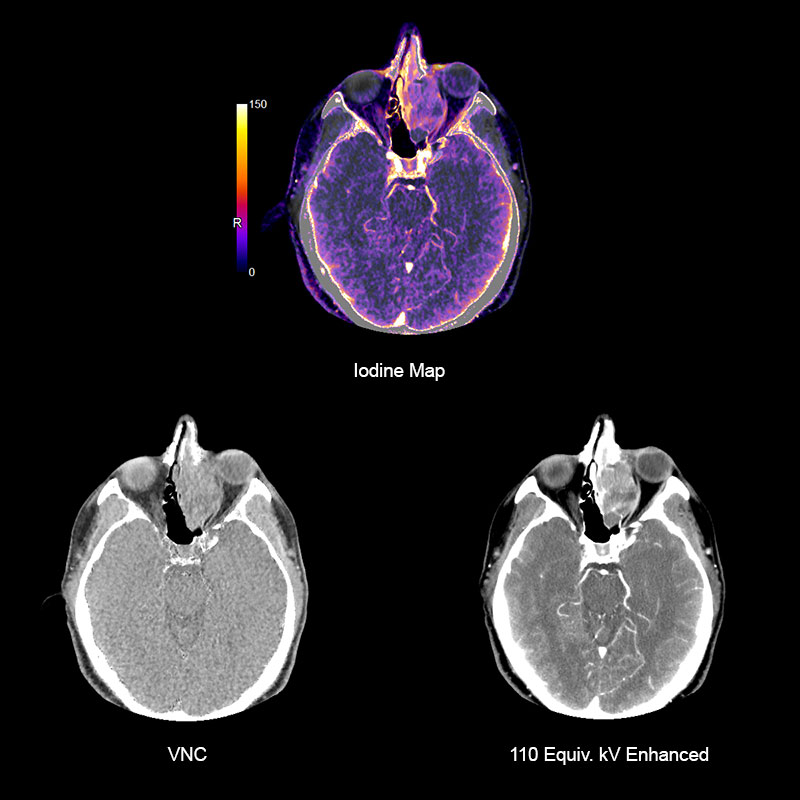

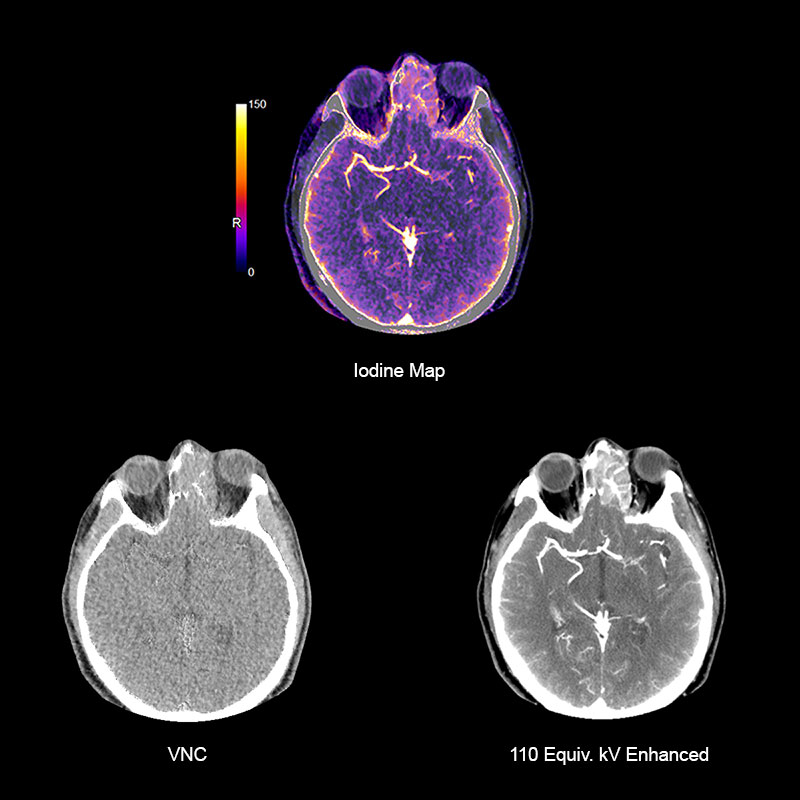

Sinus DE Adenocarcinoma

Aquilion Prime SP

Iodine maps,110 Equiv. kV Enhanced images demonstrate tumor enhancement, the VNC images show bone destruction.

View Scan Parameters

Scan Mode DE-Helical
Collimation 0.5mm x 80
kVp 80/135
mAs 100/570
Rotation Time 0.5s
Scan Range 310.0mm
Reconstruction AIDR 3D
CTDIvol 21.4mGy
DLP 688.8mGy·cm
Effective Dose 1.14mSv
k-factor 0.0021 (AAPM Report 96)
Aquilion Prime SP Sinus DE Adenocarcinoma
Aquilion Prime SP Sinus DE Adenocarcinoma
Aquilion Prime SP Sinus DE Adenocarcinoma
Aquilion Prime SP Sinus DE Adenocarcinoma
