Abdomen Pelvis, Large Patient, AiCE

Aquilion Prime SP

View Scan Parameters

Scan Mode Ultra Helical
Collimation 0.5mm x 80
kVp 120
mAs SUREExposure
Rotation Time 0.5s
Scan Range 465.0mm
Reconstruction AiCE Body
CTDIvol 15.5mGy
DLP 733.2mGy·cm
Effective Dose 10.9mSv
k-factor 0.015 (AAPM Report 96)

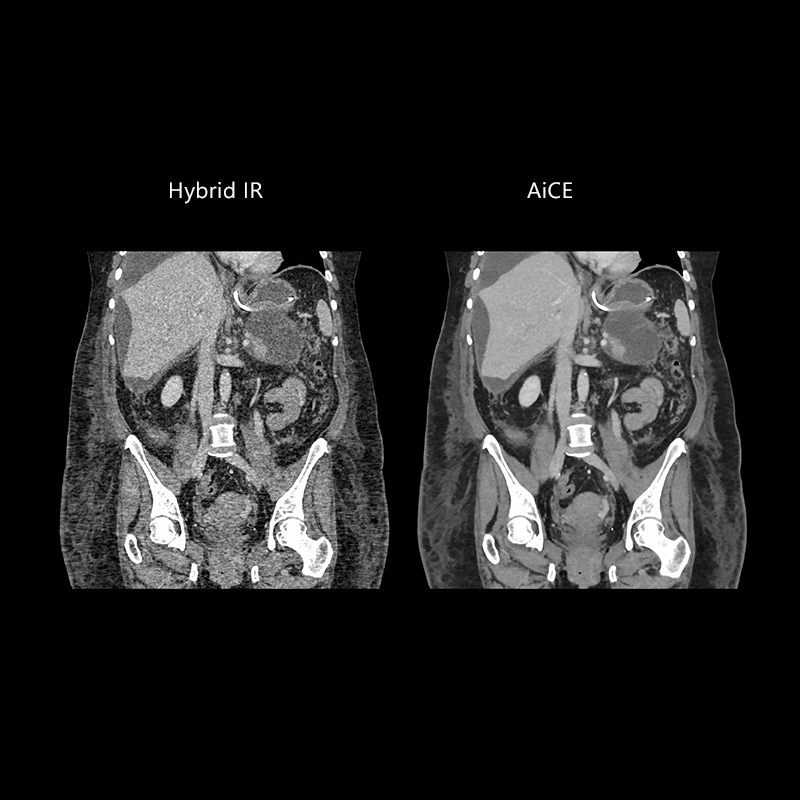

Aquilion Prime SP Abdomen Pelvis, Large Patient, AiCE
Aquilion Prime SP Abdomen Pelvis, Large Patient, AiCE
Aquilion Prime SP Abdomen Pelvis, Large Patient, AiCE
Aquilion Prime SP Abdomen Pelvis, Large Patient, AiCE
× 拡大画像

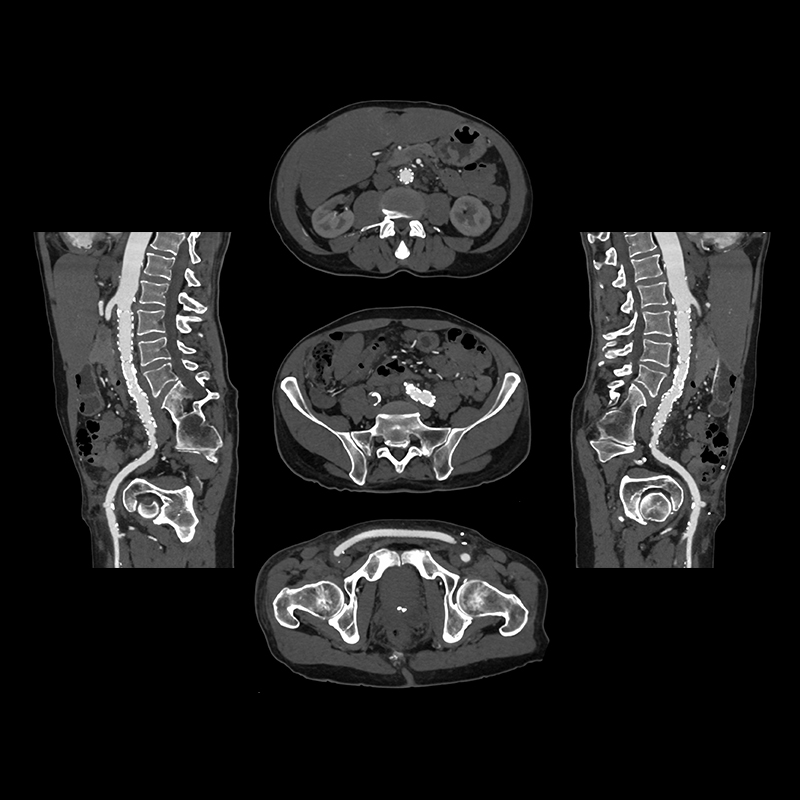

Abdomen Pelvis CTA, Endograft, AiCE

Aquilion Prime SP

View Scan Parameters

Scan Mode Ultra Helical
Collimation 0.5mm x 80
kVp 120
mAs SUREExposure
Rotation Time 0.35s
Scan Range 421.0mm
Reconstruction AiCE Body Sharp
CTDIvol 9.2mGy
DLP 431.4mGy·cm
Effective Dose 6.4mSv
k-factor 0.015 (AAPM Report 96)
Aquilion Prime SP Abdomen Pelvis CTA, Endograft, AiCE
Aquilion Prime SP Abdomen Pelvis CTA, Endograft, AiCE
Aquilion Prime SP Abdomen Pelvis CTA, Endograft, AiCE
Aquilion Prime SP Abdomen Pelvis CTA, Endograft, AiCE
Aquilion Prime SP Abdomen Pelvis CTA, Endograft, AiCE
Aquilion Prime SP Abdomen Pelvis CTA, Endograft, AiCE
× 拡大画像

Chest AiCE, COVID-19

Aquilion Prime SP

Use AiCE Lung in low dose chest imaging for reduced noise and improved detail of lung parenchyma on COVID-19 positive patients.

View Scan Parameters

Scan Mode Ultra Helical
Collimation 0.5mm x 80
kVp 10
mAs SUREExposure
Rotation Time 0.35s
Scan Range 325.0mm
Reconstruction AiCE Body Sharp
CTDIvol 2.1mGy
DLP 77.2mGy·cm
Effective Dose 1.0mSv
k-factor 0.014 (AAPM Report 96)

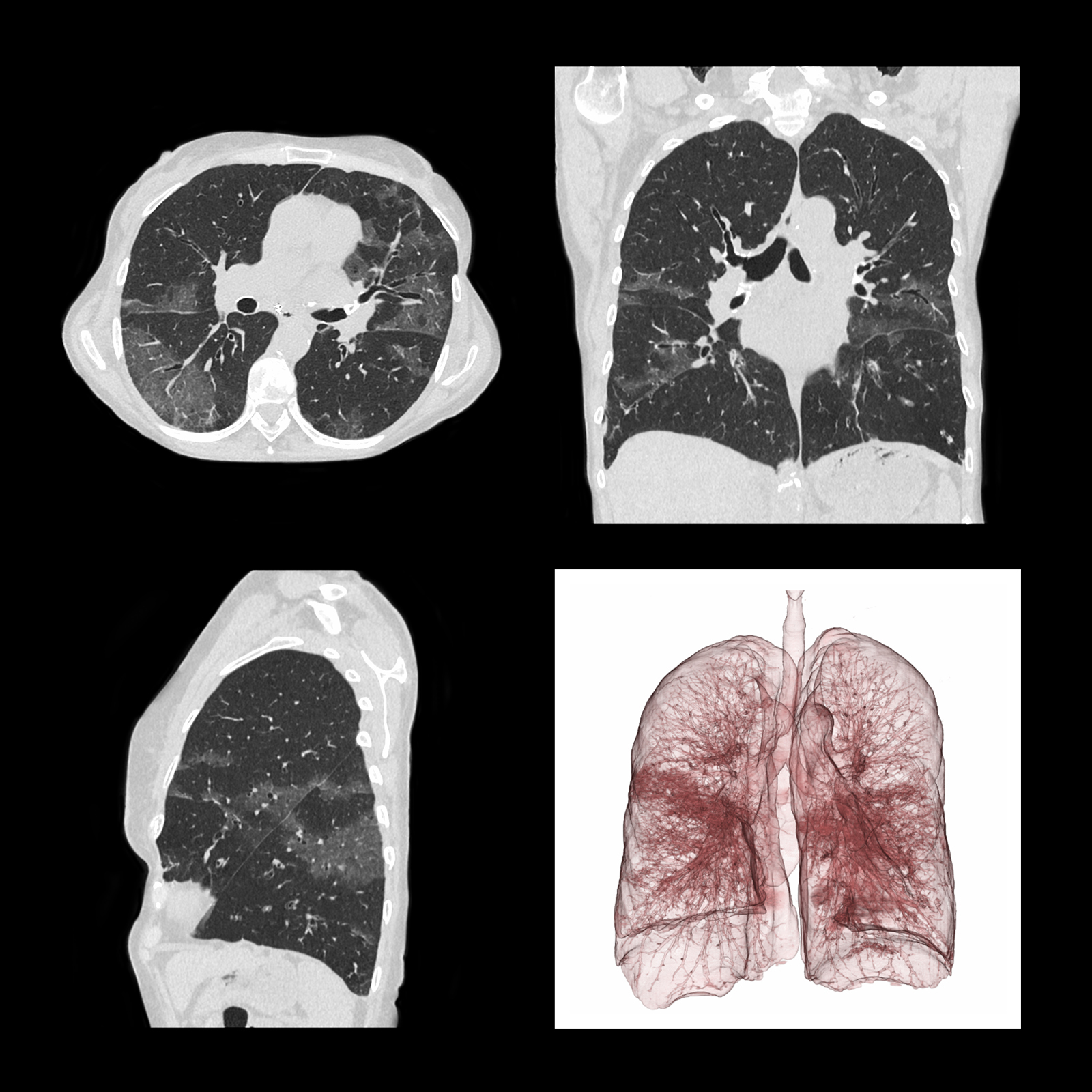

Aquilion Prime SP Chest AiCE, COVID-19
Aquilion Prime SP Chest AiCE, COVID-19
Aquilion Prime SP Chest AiCE, COVID-19
Aquilion Prime SP Chest AiCE, COVID-19
Aquilion Prime SP Chest AiCE, COVID-19
Aquilion Prime SP Chest AiCE, COVID-19
Aquilion Prime SP Chest AiCE, COVID-19
Aquilion Prime SP Chest AiCE, COVID-19
× 拡大画像

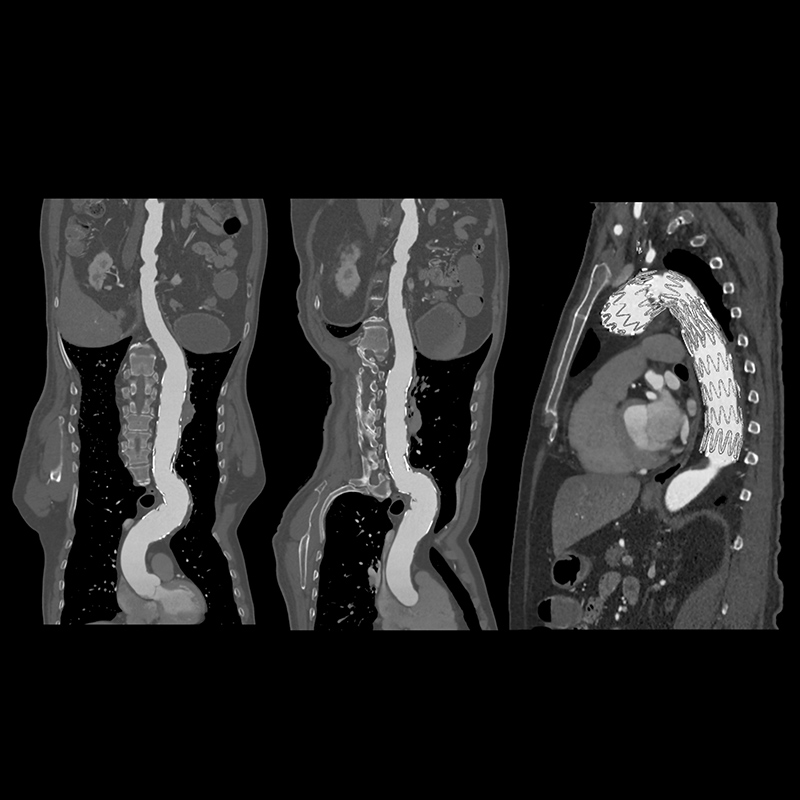

Aorta vHP - Aortic Stent Graft

Aquilion Prime SP

A vHP, Aortic CTA scan demonstrates an endovascular stent graft repair placed in the aortic arch. HR 67–92 bpm

View Scan Parameters

Scan Mode vHP
Collimation 0.5mm x 40
HP 15.6 – 111.0
kVp 100
mAs SUREExposure
Rotation Time 0.35s
Scan Range 646.5mm
Reconstruction AIDR 3D
CTDIvol 11.4mGy
DLP 787.20mGy·cm
Effective Dose 11.4mSv
k-factor 0.0145 (AAPM Report 96)
Aquilion Prime SP Aorta vHP - Aortic Stent Graft
Aquilion Prime SP Aorta vHP - Aortic Stent Graft
Aquilion Prime SP Aorta vHP - Aortic Stent Graft
Aquilion Prime SP Aorta vHP - Aortic Stent Graft
Aquilion Prime SP Aorta vHP - Aortic Stent Graft
Aquilion Prime SP Aorta vHP - Aortic Stent Graft
Aquilion Prime SP Aorta vHP - Aortic Stent Graft
Aquilion Prime SP Aorta vHP - Aortic Stent Graft
× 拡大画像

Chest Lesions, AiCE

Aquilion Prime SP

AiCE DLR demonstrating excellent visualization of subtle Ground-Glass Opacity and Emphysematous changes, through low-noise and high-resolution characteristics.

View Scan Parameters

Scan Mode Ultra Helical
Collimation 0.5mm x 80
kVp 120
mAs EC
Rotation Time 0.5s
Scan Range 388.0mm
Reconstruction AiCE Lung
CTDIvol 9.1mGy
DLP 392.5mGy·cm
Effective Dose 5.7mSv
k-factor 0.014 (AAPM Report 96)
Aquilion Prime SP Chest Lesions, AiCE
Aquilion Prime SP Chest Lesions, AiCE
Aquilion Prime SP Chest Lesions, AiCE
Aquilion Prime SP Chest Lesions, AiCE
Aquilion Prime SP Chest Lesions, AiCE
Aquilion Prime SP Chest Lesions, AiCE
Aquilion Prime SP Chest Lesions, AiCE
Aquilion Prime SP Chest Lesions, AiCE
× 拡大画像

Liver Iodine Mapping Masses

Aquilion Prime SP

A three-phase liver protocol was completed. The iodine maps demonstrate liver masses. A low attenuation lesion is seen on the left kidney.

View Scan Parameters (Non-Contrast)

Scan Mode Ultra-Helical
Collimation 0.5mm x 80
kVp 120
mAs SUREExposure
Rotation Time 0.5s
Scan Range 252.0mm
Reconstruction AIDR 3D
CTDIvol 7.1mGy
DLP 211.6mGy·cm
Effective Dose 3.17mSv
k-factor 0.015 (AAPM Report 96)

View Scan Parameters (Arterial Phase)

Scan Mode Ultra-Helical
Collimation 0.5mm x 80
kVp 120
mAs SUREExposure
Rotation Time 0.5s
Scan Range 255.0mm
Reconstruction AIDR 3D
CTDIvol 7.1mGy
DLP 213.3mGy·cm
Effective Dose 3.19mSv
k-factor 0.015 (AAPM Report 96)

View Scan Parameters (Venous Phase)

Scan Mode Ultra-Helical
Collimation 0.5mm x 80
kVp 120
mAs SUREExposure
Rotation Time 0.5s
Scan Range 450.0mm
Reconstruction AIDR 3D
CTDIvol 6.2mGy
DLP 306.5mGy·cm
Effective Dose 4.49mSv
k-factor 0.015 (AAPM Report 96)

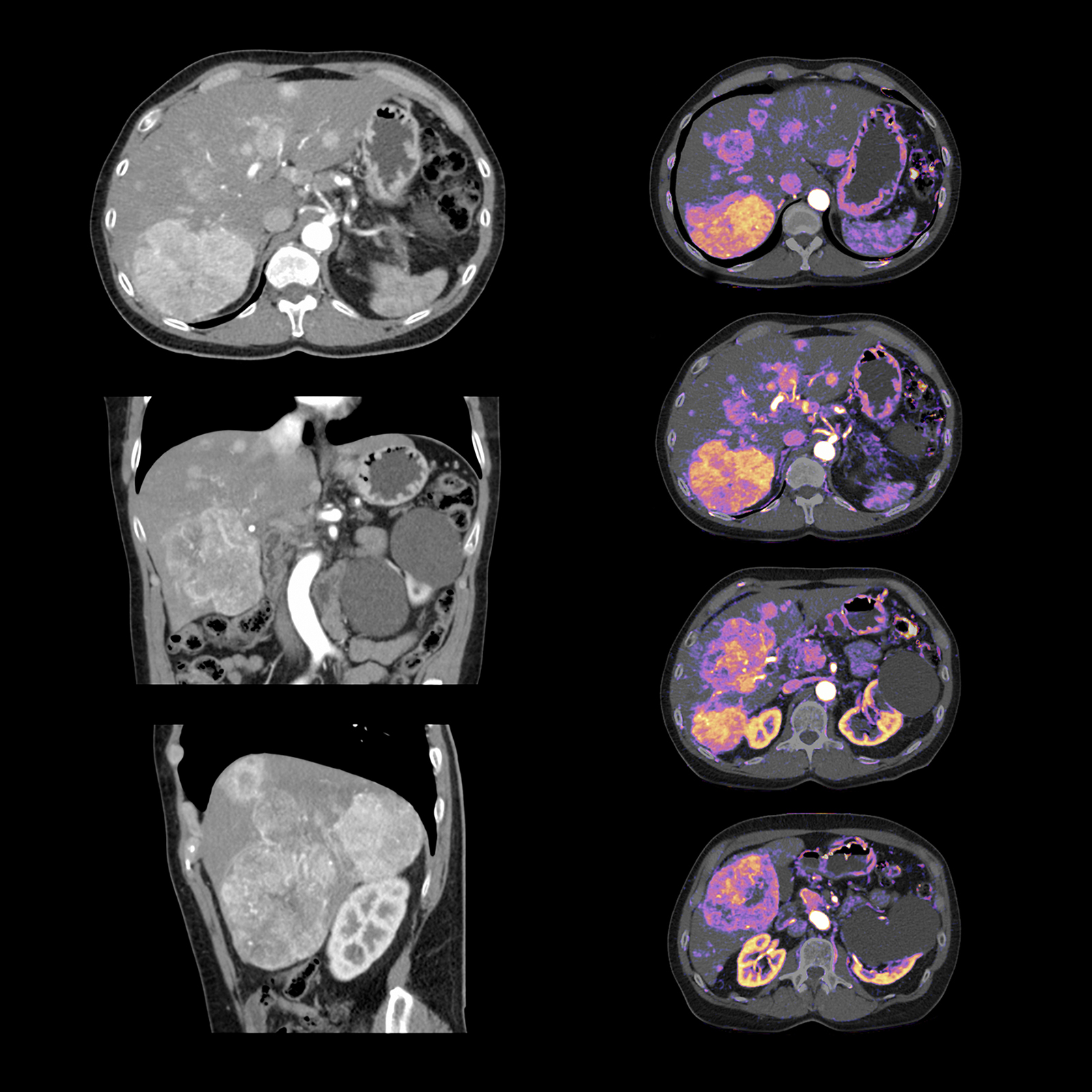

Aquilion Prime SP Liver Iodine Mapping Masses
Aquilion Prime SP Liver Iodine Mapping Masses
Aquilion Prime SP Liver Iodine Mapping Masses
Aquilion Prime SP Liver Iodine Mapping Masses
Aquilion Prime SP Liver Iodine Mapping Masses
Aquilion Prime SP Liver Iodine Mapping Masses
Aquilion Prime SP Liver Iodine Mapping Masses
Aquilion Prime SP Liver Iodine Mapping Masses
Aquilion Prime SP Liver Iodine Mapping Masses
Aquilion Prime SP Liver Iodine Mapping Masses
× 拡大画像

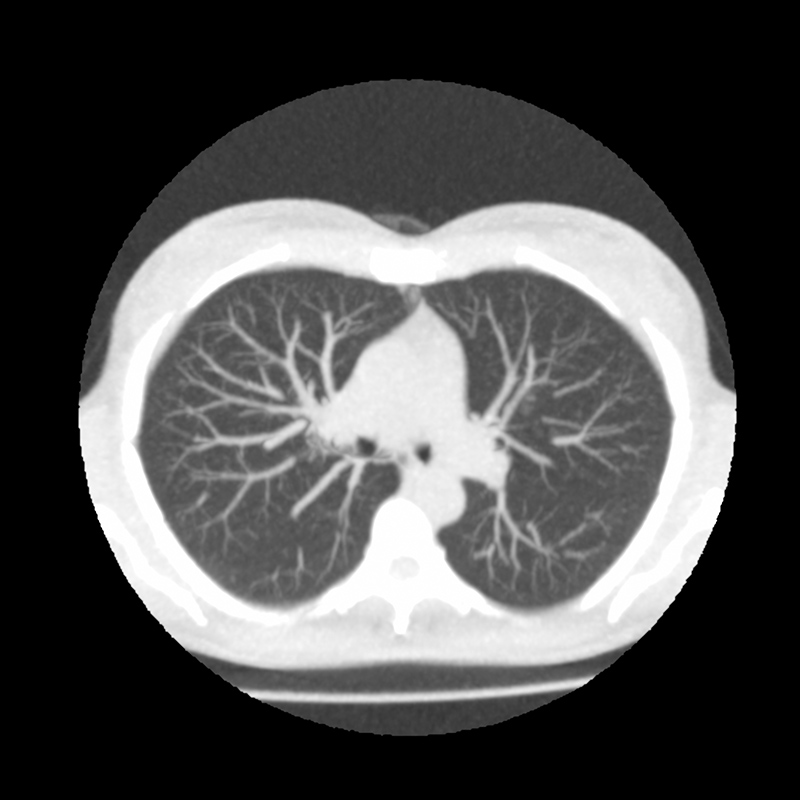

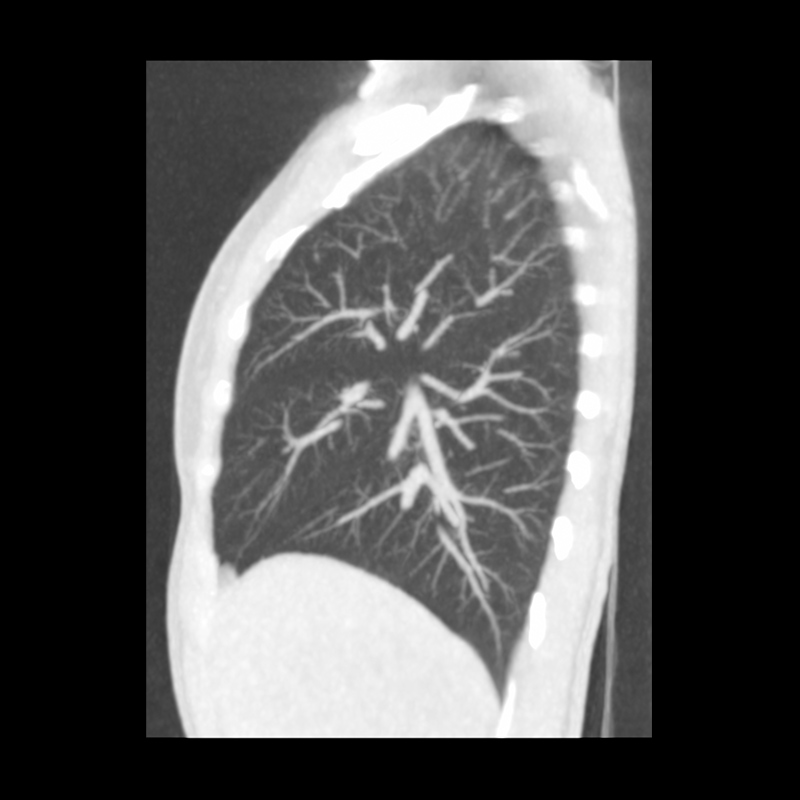

Lung Ultra-Low Dose

Aquilion Prime SP

An ultra-low dose, non-contrast lung CT scan was performed with AIDR 3D. Effective dose 0.02 mSv

View Scan Parameters

Scan Mode Helical
Collimation 1.0mm x 40
kVp 80
mAs 3
Rotation Time 0.35s
Scan Range 314.4mm
Reconstruction AIDR 3D
CTDIvol 0.0mGy
DLP 1.7mGy·cm
Effective Dose 0.02mSv
k-factor 0.014 (AAPM Report 96)

View Scan Parameters (Post contrast)

Scan Mode Ultra-Helical
Collimation 0.5mm x 80
kVp 100
mAs SUREExposure
Rotation Time 0.35s
Scan Range 1383.0mm
Reconstruction AIDR 3D
CTDIvol 2.8mGy
DLP 396.3mGy·cm

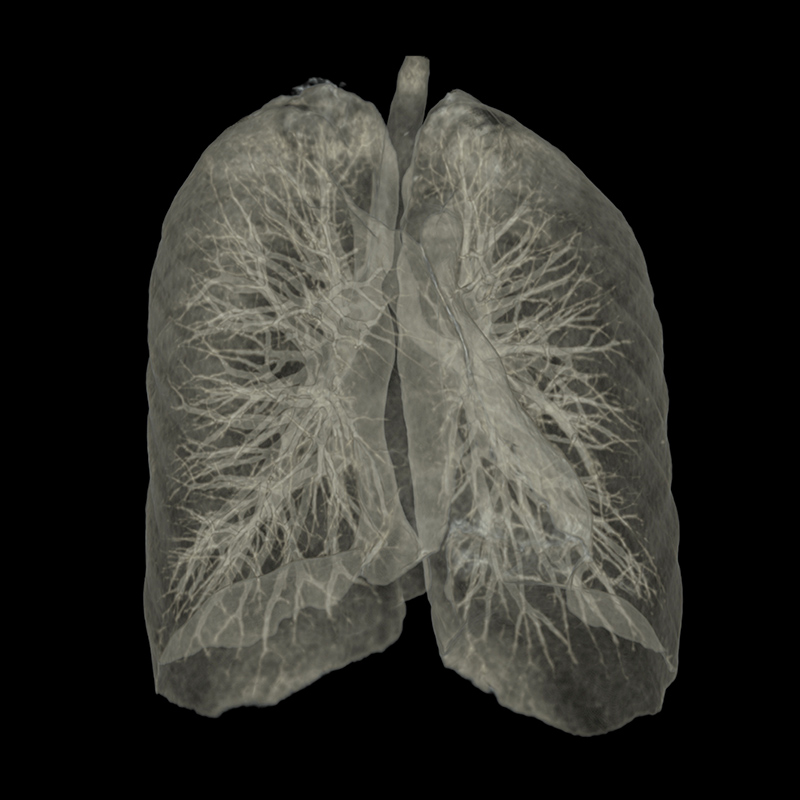

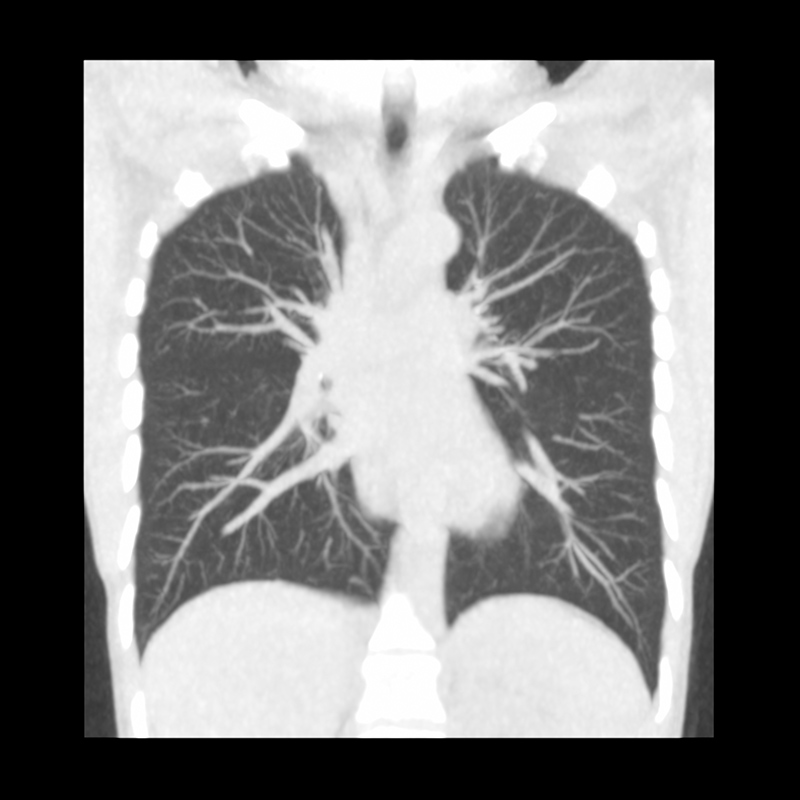

Aquilion Prime SP Lung Ultra-Low Dose
Aquilion Prime SP Lung Ultra-Low Dose
Aquilion Prime SP Lung Ultra-Low Dose
Aquilion Prime SP Lung Ultra-Low Dose
Aquilion Prime SP Lung Ultra-Low Dose
Aquilion Prime SP Lung Ultra-Low Dose
Aquilion Prime SP Lung Ultra-Low Dose
Aquilion Prime SP Lung Ultra-Low Dose
× 拡大画像

Runoff SURESubtraction

Aquilion Prime SP

A SURESubtraction Runoff CTA was performed to evaluate peripheral arteries.

View Scan Parameters (Pre-contrast)

Scan Mode Ultra-Helical
Collimation 0.5mm x 80
kVp 100
mAs SUREExposure
Rotation Time 0.35s
Scan Range 1383.0mm
Reconstruction AIDR 3D
CTDIvol 2.3mGy
DLP 332.7mGy·cm
Aquilion Prime SP Runoff SURESubtraction
Aquilion Prime SP Runoff SURESubtraction
Aquilion Prime SP Runoff SURESubtraction
Aquilion Prime SP Runoff SURESubtraction
Aquilion Prime SP Runoff SURESubtraction
Aquilion Prime SP Runoff SURESubtraction
× 拡大画像

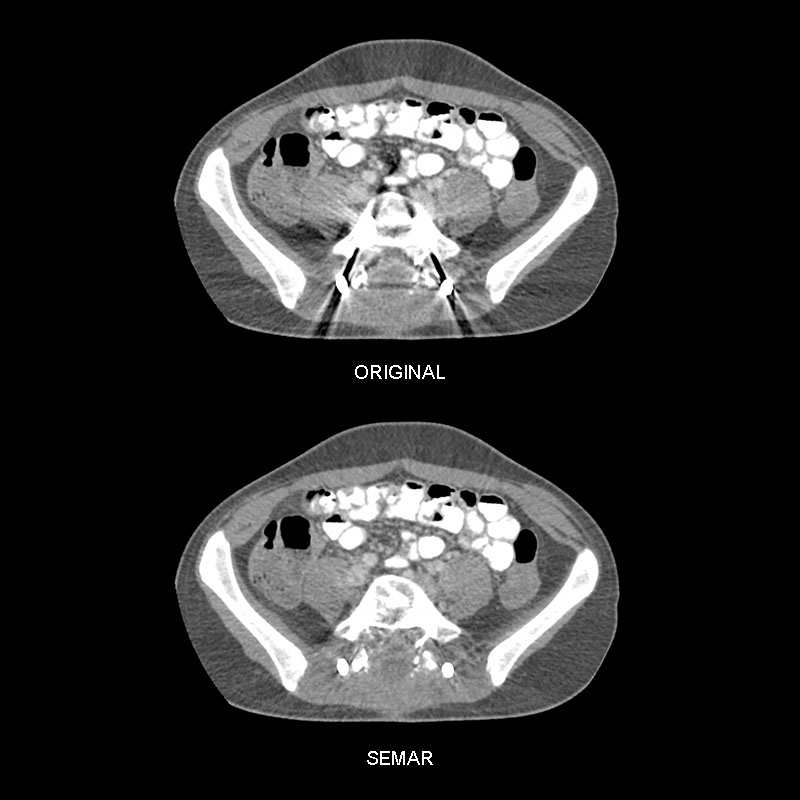

Lumbar Spine Fixation

Aquilion Prime SP

3D and MPR demonstrate spinal fixation with reduced metal artifact due to SEMAR.

View Scan Parameters

Scan Mode Ultra-Helical
Collimation 0.5mm x 80
kVp 80
mAs SUREExposure
Rotation Time 0.5s
Scan Range 429.0mm
Reconstruction AIDR 3D
Metal Artifact Reduction SEMAR
CTDIvol 4.7mGy
DLP 223.1mGy·cm
Effective Dose 3.34mSv
k-factor 0.015 (AAPM Report 96)

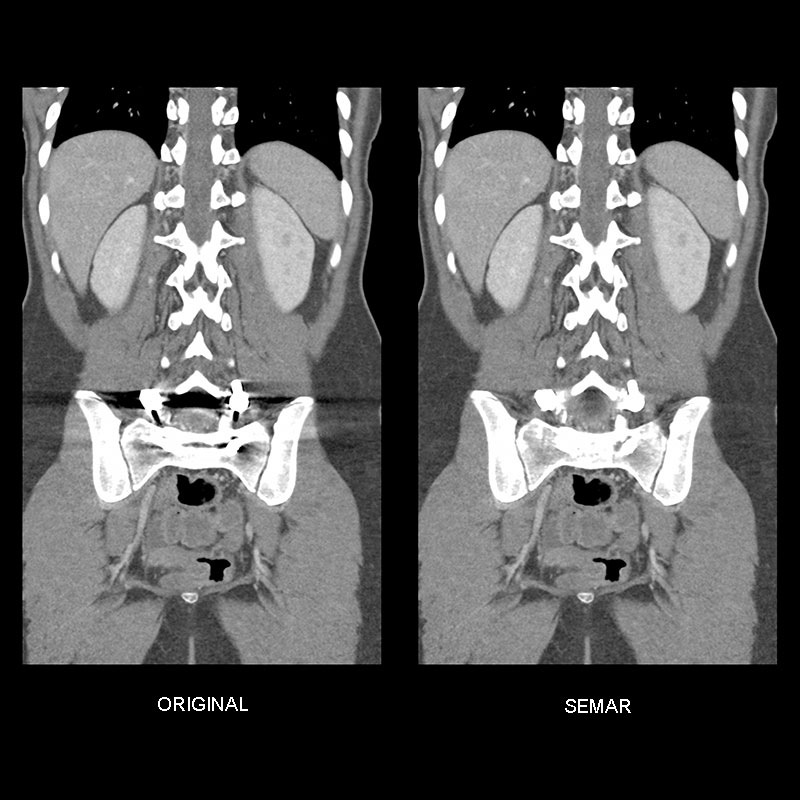

Aquilion Prime SP Lumbar Spine Fixation
Aquilion Prime SP Lumbar Spine Fixation
Aquilion Prime SP Lumbar Spine Fixation
Aquilion Prime SP Lumbar Spine Fixation
Aquilion Prime SP Lumbar Spine Fixation
Aquilion Prime SP Lumbar Spine Fixation
× 拡大画像

Aorta CTA Liver Tumor Feeding Arteries

Aquilion Prime SP

Abdominal aorta CTA performed with AIDR 3D

View Scan Parameters

Scan Mode Ultra-Helical
Collimation 0.5mm x 80
kVp 100
mAs SUREExposure
Rotation Time 0.5s
Scan Range 495.0mm
Reconstruction AIDR 3D
CTDIvol 4.3mGy
DLP 232.7mGy·cm
Effective Dose 3.4mSv
k-factor 0.015 (AAPM Report 96)

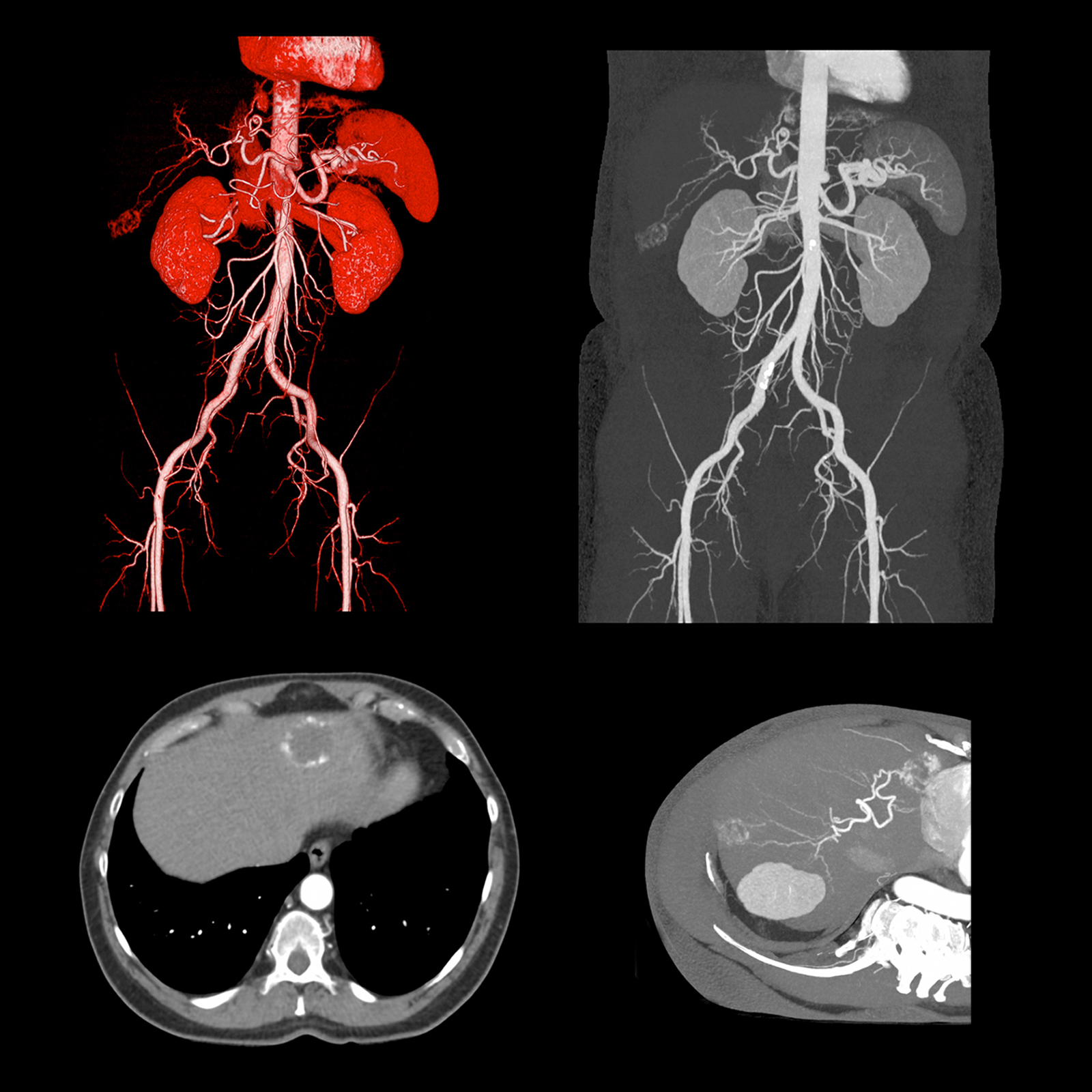

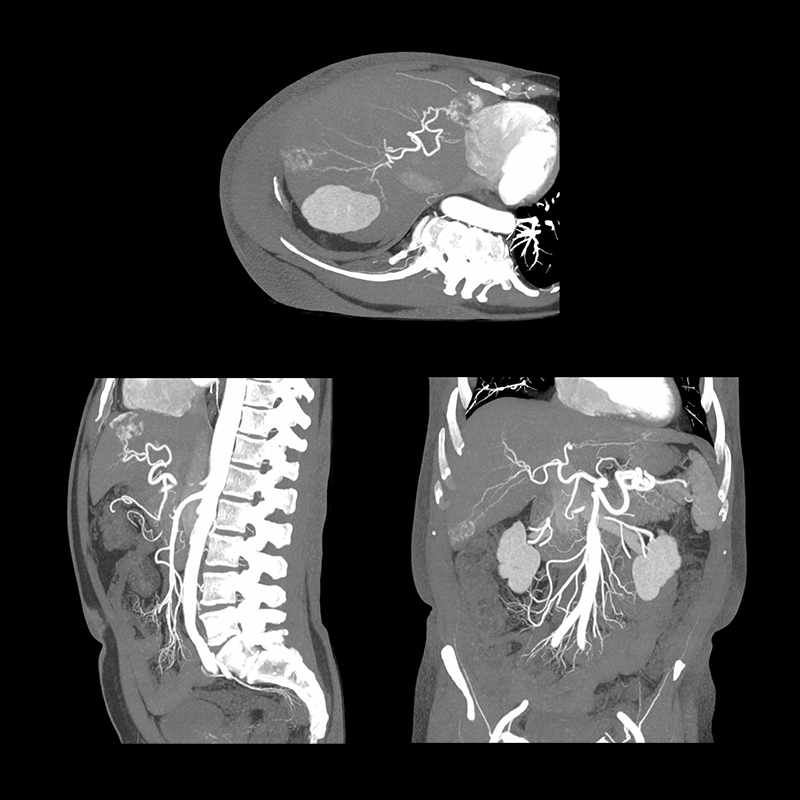

Aquilion Prime SP Aorta CTA Liver Tumor Feeding Arteries
Aquilion Prime SP Aorta CTA Liver Tumor Feeding Arteries
Aquilion Prime SP Aorta CTA Liver Tumor Feeding Arteries
Aquilion Prime SP Aorta CTA Liver Tumor Feeding Arteries
Aquilion Prime SP Aorta CTA Liver Tumor Feeding Arteries
Aquilion Prime SP Aorta CTA Liver Tumor Feeding Arteries
Aquilion Prime SP Aorta CTA Liver Tumor Feeding Arteries
Aquilion Prime SP Aorta CTA Liver Tumor Feeding Arteries
Aquilion Prime SP Aorta CTA Liver Tumor Feeding Arteries
Aquilion Prime SP Aorta CTA Liver Tumor Feeding Arteries
Aquilion Prime SP Aorta CTA Liver Tumor Feeding Arteries
Aquilion Prime SP Aorta CTA Liver Tumor Feeding Arteries
Aquilion Prime SP Aorta CTA Liver Tumor Feeding Arteries
Aquilion Prime SP Aorta CTA Liver Tumor Feeding Arteries
× 拡大画像

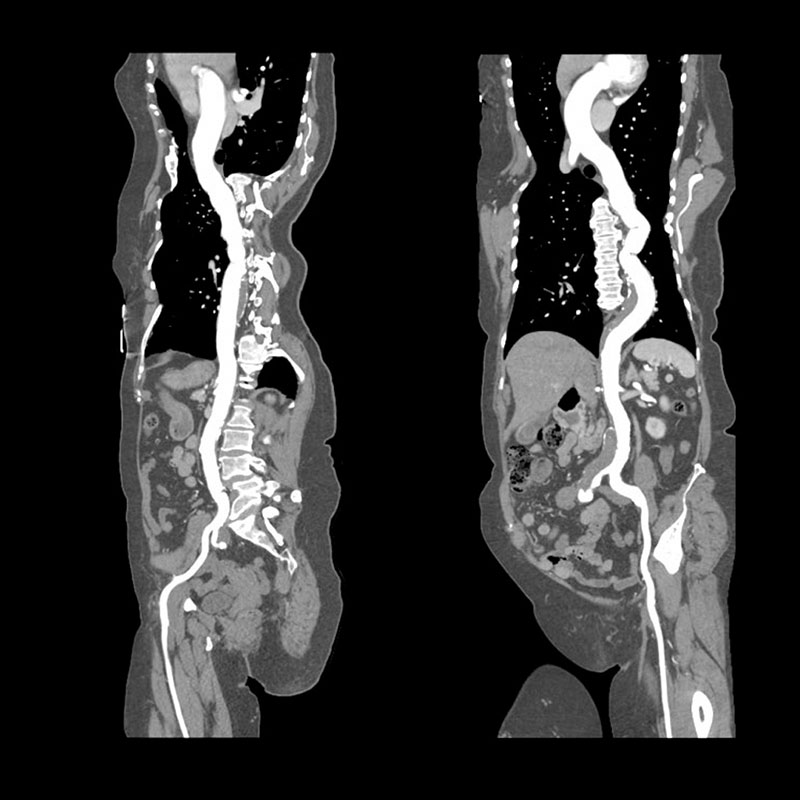

Aorta Severe Atherosclerosis

Aquilion Prime SP

CTA with AIDR 3D demonstrates advanced atherosclerotic changes in the tortuous aorta and extensive intimal hemorrhage.

View Scan Parameters

Scan Mode Ultra-Helical
Collimation 0.5mm x 80
kVp 100
mAs SUREExposure
Rotation Time 0.5s
Scan Range 697.8mm
Reconstruction AIDR 3D
CTDIvol 6.6mGy
DLP 491.4mGy·cm
Effective Dose 7.1mSv
k-factor 0.0145 (AAPM Report 96)

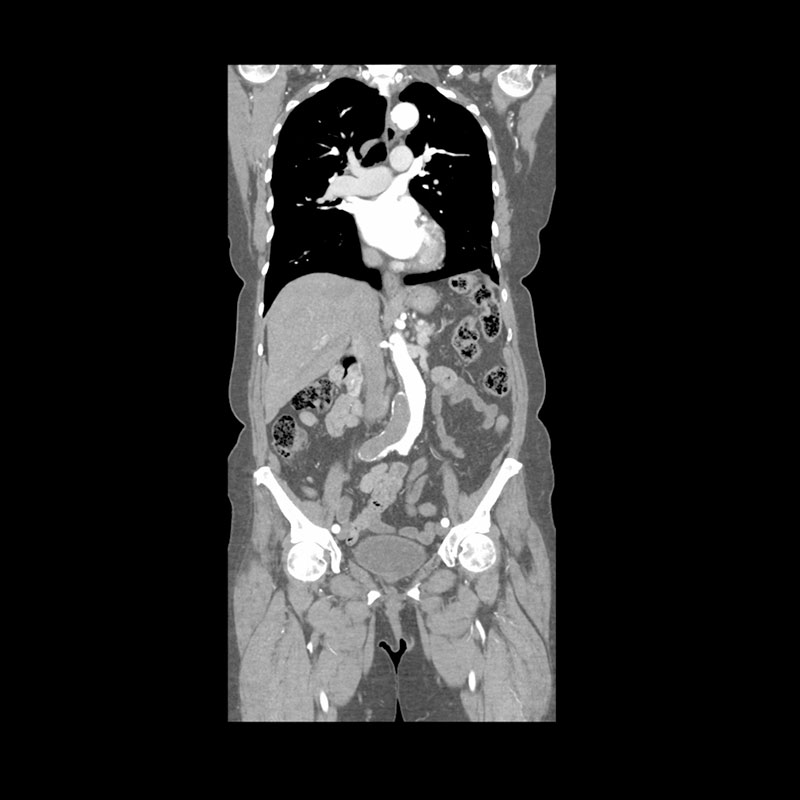

Aquilion Prime SP Aorta Severe Atherosclerosis
Aquilion Prime SP Aorta Severe Atherosclerosis
Aquilion Prime SP Aorta Severe Atherosclerosis
Aquilion Prime SP Aorta Severe Atherosclerosis
Aquilion Prime SP Aorta Severe Atherosclerosis
Aquilion Prime SP Aorta Severe Atherosclerosis
Aquilion Prime SP Aorta Severe Atherosclerosis
Aquilion Prime SP Aorta Severe Atherosclerosis
Aquilion Prime SP Aorta Severe Atherosclerosis
Aquilion Prime SP Aorta Severe Atherosclerosis
× 拡大画像

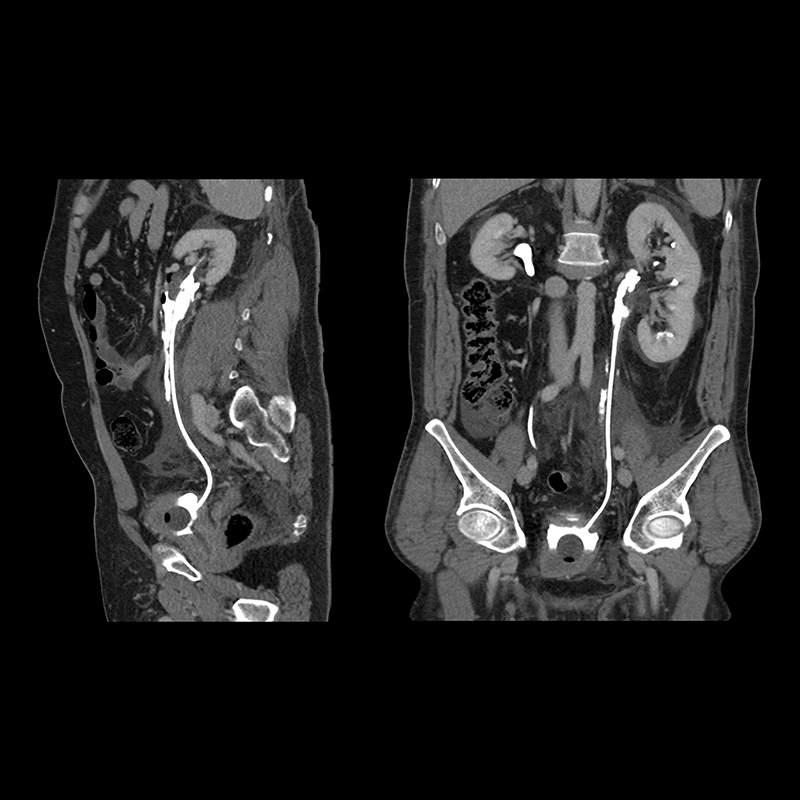

Kidney Lt. Ureteral Leak

Aquilion Prime SP

Abdominal delayed phase CT scan demonstrates left ureteral leak.

View Scan Parameters

Scan Mode Ultra-Helical
Collimation 0.5mm x 80
kVp 120
mAs SUREExposure
Rotation Time 0.5s
Scan Range 420.0mm
Reconstruction AIDR 3D
CTDIvol 9.5mGy
DLP 443.3mGy·cm
Effective Dose 6.64mSv
k-factor 0.015 (AAPM Report 96)

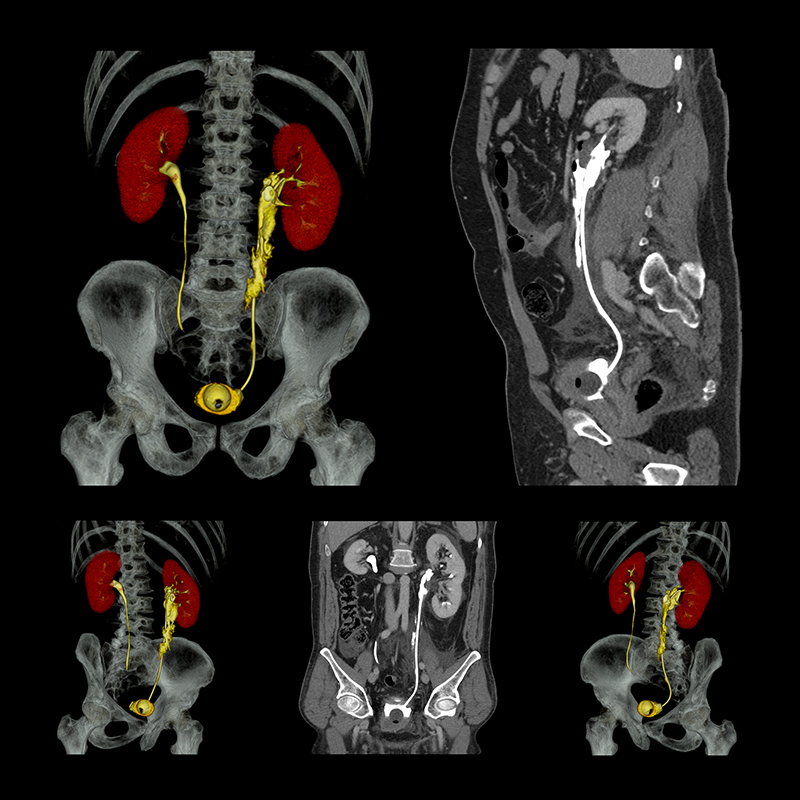

Aquilion Prime SP Kidney Lt. Ureteral Leak
Aquilion Prime SP Kidney Lt. Ureteral Leak
Aquilion Prime SP Kidney Lt. Ureteral Leak
Aquilion Prime SP Kidney Lt. Ureteral Leak
Aquilion Prime SP Kidney Lt. Ureteral Leak
Aquilion Prime SP Kidney Lt. Ureteral Leak
× 拡大画像

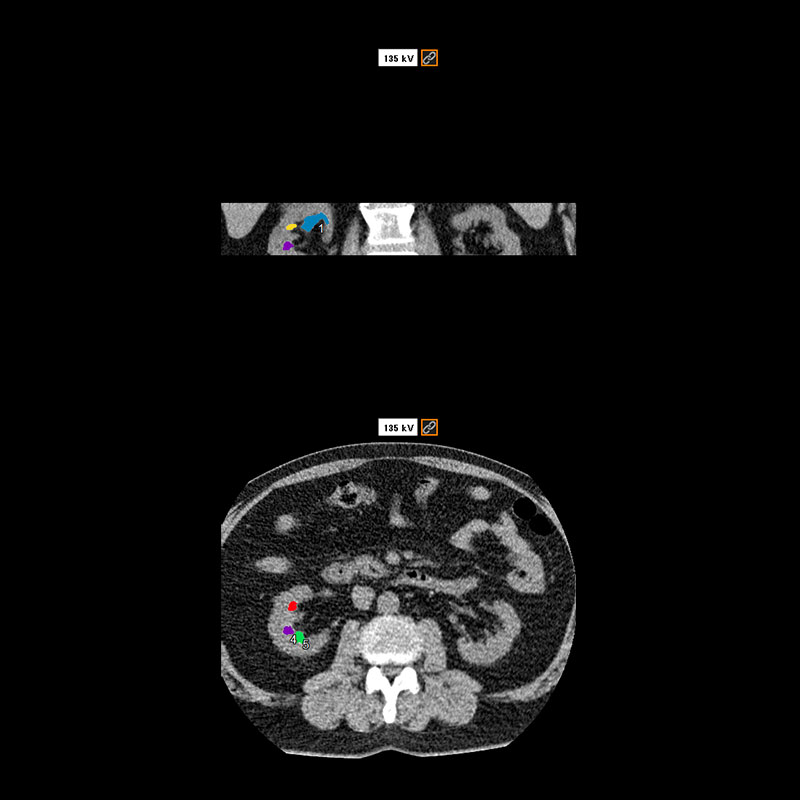

Kidney Stones DE

Aquilion Prime SP

Dual-Energy analysis to evaluate kidney stones composed of uric acid.

View Scan Parameters

Scan Mode DE-Helical
Collimation 0.5mm x 80
kVp 135/80
mAs 50/290
Rotation Time 0.5s
Scan Range 44.5mm
Reconstruction AIDR 3D
CTDIvol 12.1mGy
DLP 61.2mGy·cm
Effective Dose 0.92mSv
k-factor 0.015 (AAPM Report 96)

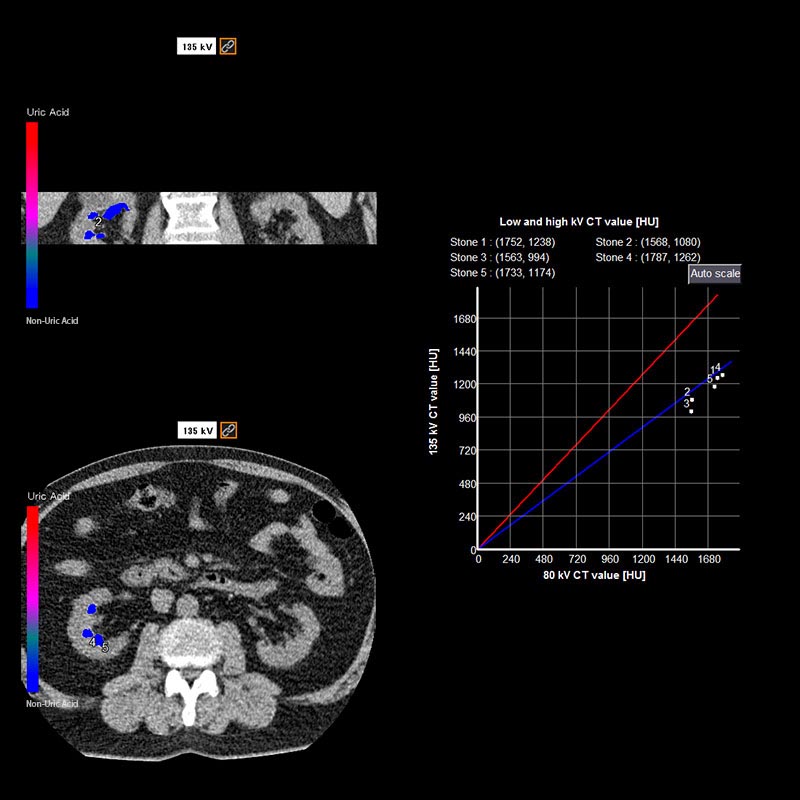

Aquilion Prime SP Kidney Stones DE
Aquilion Prime SP Kidney Stones DE
Aquilion Prime SP Kidney Stones DE
Aquilion Prime SP Kidney Stones DE
× 拡大画像
