| Head |
Fast routine for Stroke (Version 10)
This MR stroke protocol allows identification of the stroke patients' histological and anatomical characteristics including vessels from 6 imaging contrasts in almost 6 minutes.
Axial DWI with Exsper
| Sequence | SEEPI2D |
Parallel Acquisition | Exsper 2x1 |
| Scan time | 0:54 |
| Resolution | 1.7x1.3 mm |
| FOV | 23 cm |
| ACQ. Matrix size | 136x176 |
| Recon. Matrix size | 528x528 (PIQEx3) |
| Slice thickness | 4 mm |
| Number of slices | 30 |
| TR | 5884 ms |
| TE | 71 ms |
| NAQ | 1 |
| b-value | 1000 |

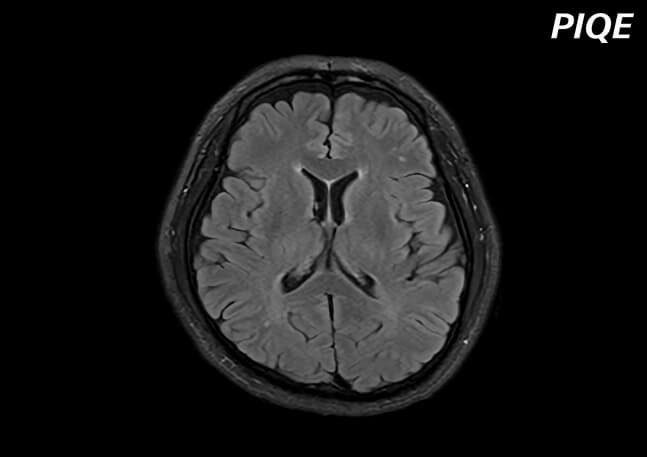

Axial FLAIR with Exsper
| Sequence | FSE2D |
Parallel Acquisition | Exsper 2x1 |
| Scan time | 1:45 |
| Resolution | 1.0x1.0 mm |
| FOV | 23 cm |
| ACQ. Matrix size | 224x224 |
| Recon. Matrix size | 672x672 (PIQEx3) |
| Slice thickness | 4 mm |
| Number of slices | 30 |
| TR | 7000 ms |
| TE | 120 ms |
| TI | 2400 ms |
| NAQ | 1 |

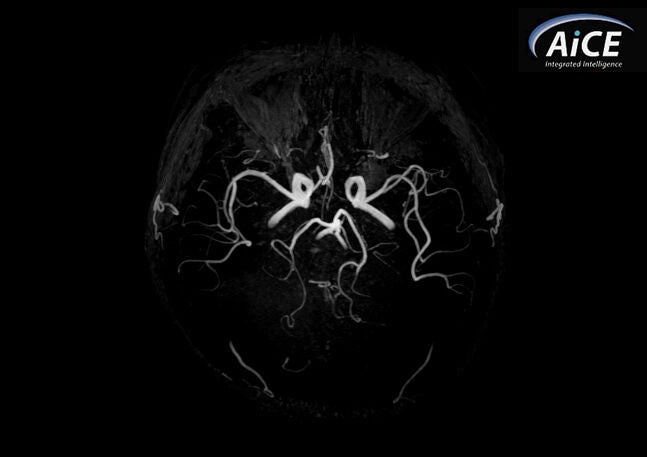

Axial TOF MRA with SPEEDER, Fast 3D mode 50%
| Sequence | MRA3D |
Parallel Acquisition | SPEEDER 3x1 |
| Scan time | 0:56 |
| Resolution | 0.8x0.4 mm |
| FOV | 20 cm |
| Matrix size | 256x480 |
| Slice thickness | 1.1 mm |
| Number of slices | 152 |
| TR | 10 ms |
| TE | 3.4 ms |
| NAQ | 1 |

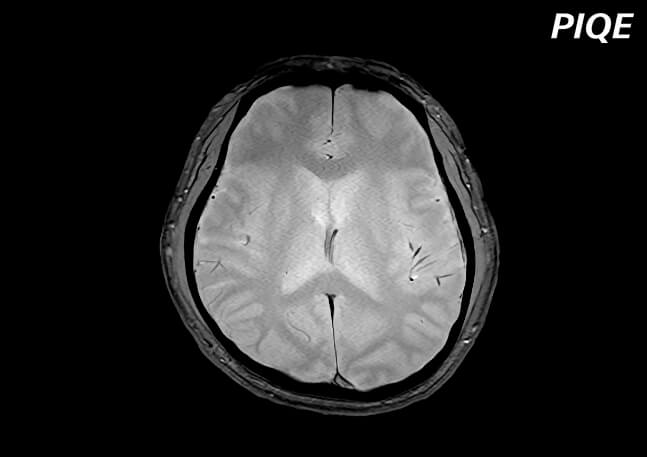

Axial T2*w with Exsper
| Sequence | FE2D |
Parallel Acquisition | Exsper 3x1 |
| Scan time | 0:38 |
| Resolution | 1.2x0.8 mm |
| FOV | 23 cm |
| ACQ. Matrix size | 192x288 |
| Recon. Matrix size | 864x864 (PIQEx3) |
| Slice thickness | 4 mm |
| Number of slices | 30 |
| TR | 445 ms |
| TE | 10 ms |
| NAQ | 1 |

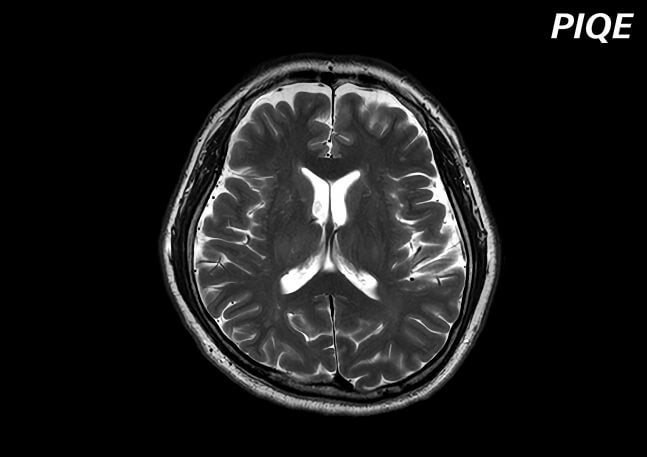

Axial T2w with Exsper
| Sequence | FSE2D |
Parallel Acquisition | Exsper 2x1 |
| Scan time | 0:55 |
| Resolution | 0.8x0.8 mm |
| FOV | 23 cm |
| ACQ. Matrix size | 288x288 |
| Recon. Matrix size | 864x864 (PIQEx3) |
| Slice thickness | 4 mm |
| Number of slices | 30 |
| TR | 4948 ms |
| TE | 90 ms |
| NAQ | 1 |

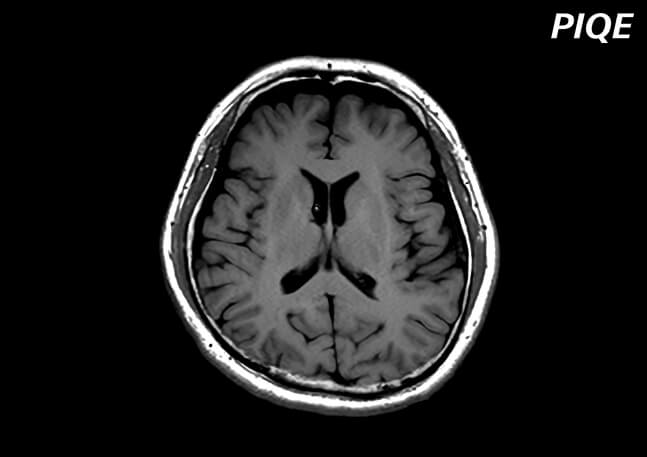

Axial T1w with Exsper
| Sequence | FSE2D |
Parallel Acquisition | Exsper 2x1 |
| Scan time | 0:58 |
| Resolution | 1.2x1.0 mm |
| FOV | 23 cm |
| ACQ. Matrix size | 192x224 |
| Recon. Matrix size | 672x672 (PIQEx3) |
| Slice thickness | 4 mm |
| Number of slices | 30 |
| TR | 2050 ms |
| TE | 27 ms |
| TI | 920 ms |
| NAQ | 1 |
Clinical Solution
Precise IQ Engine (PIQE) is Canon’s high resolution Deep Learning Reconstruction for MRI. PIQE increases matrix size, removes noise, and delivers sharp anatomical images to take MR imaging to the next level.
Advanced intelligent Clear-IQ Engine (AiCE)
AiCE is the world’s first Deep Learning Reconstruction technology for MRI. AiCE intelligently removes noise from images which can improve SNR and enable increased resolution across all applications.

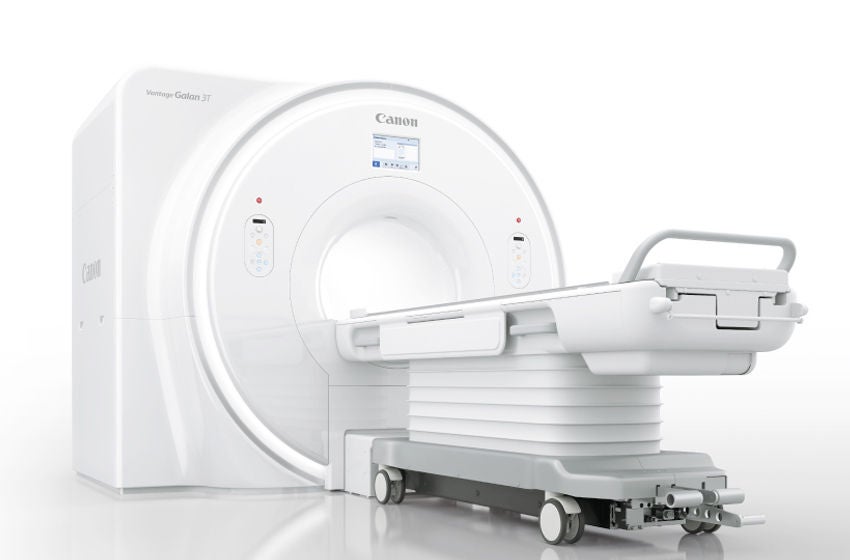

Exsper (Vantage Galan 3T / Supreme Edition Product Page)
Exsper is a unique parallel imaging technique which provides accelerated exam. Exsper suppresses unfolding errors even in the small FOV imaging.
Fast 3D mode (Good to Know Page)
You can apply Fast 3D to TOF contrast MRA procedures with the ability to reduce scan times by up to 50%*, while maintaining excellent image consistency.
*as compared to standard sequence.
Vessel Wall imaging with Black Blood method (Version 10)
This Protocol is to visualize the abnormalities in the vessel wall directly with multi planer voxel (MPV) based sequence. Suppressing the signal from the fluid including blood with black blood method, the examination for the diseases like arterial dissection, atherosclerotic plaque, moyamoya disease, cerebral aneurysm, vasculitis and so on can be supported.
| Sequence | FASE3D MPV |
Parallel Acquisition | SPEEDER 2.0x1.4 |
| Scan time | 5:06 |
| Resolution | 0.8x0.8 mm |
| FOV | 23 cm |
| Matrix size | 288x288 |
| Slice thickness | 0.8mm |
| Number of slices | 200 |
| TR | 600 ms |
| TE | 28.8 ms |
| Fat suppression | SPAIR strong |
| NAQ | 1 |
Clinical Solution
Advanced intelligent Clear-IQ Engine (AiCE)
AiCE is the world’s first Deep Learning Reconstruction technology for MRI. AiCE intelligently removes noise from images which can improve SNR and enable increased resolution across all applications.
| Neck/Cervical |

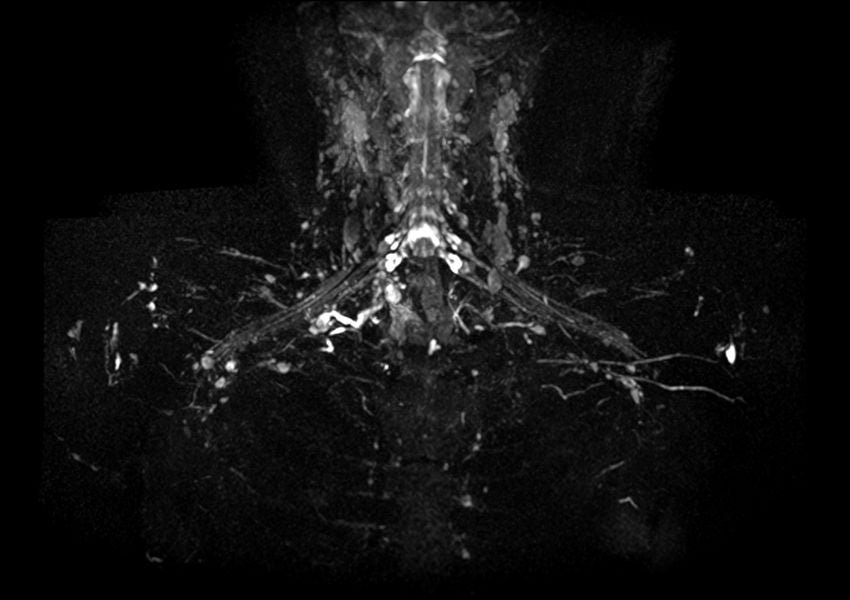

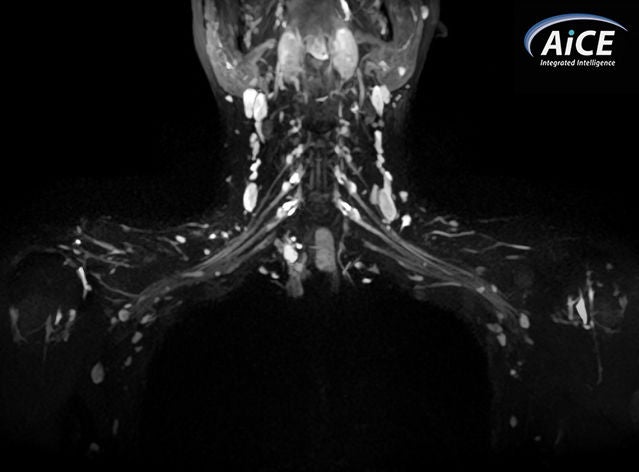

Brachial Plexus Protocol (Version 10)
This Protocol allows to identify the travel of the brachial Plexus to evaluate the level of the damage for the patient with neurological disorders.
| Sequence | FASE3D MPV |
Parallel Acquisition | SPEEDER 2.0x1.0 |
| Scan time | 4:52 |
| Resolution | 1.3x1.3 mm |
| FOV | 44x34 cm |
| Matrix size | 336x256 |
| Slice thickness | 1.7 mm |
| Number of slices | 100 |
| TR | 2700 ms |
| TE | 369 ms |
| TI | 170 ms |
| NAQ | 2 |
Clinical Solution
Advanced intelligent Clear-IQ Engine (AiCE)
AiCE is the world’s first Deep Learning Reconstruction technology for MRI. AiCE intelligently removes noise from images which can improve SNR and enable increased resolution across all applications.
| Musculoskeletal |
Finger Imaging with PIQE (Version 10)
This protocol offers routine finger imaging to assess the anatomical structure and the condition of ligaments and tendons. Utilizing PIQE, high resolution and multi-contrast images can be provided within 11 minutes.

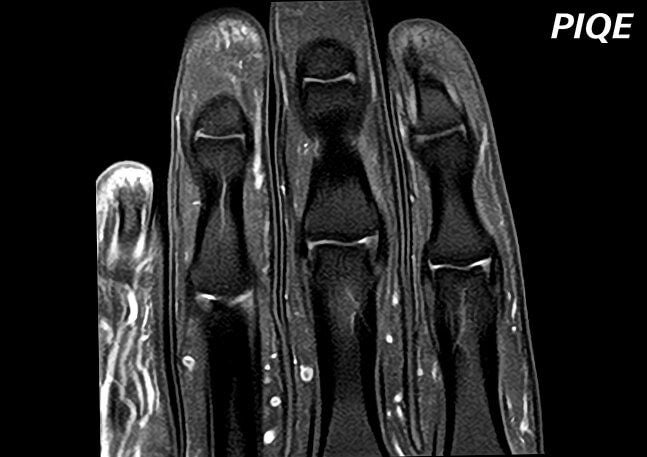

Coronal PDw FS
| Sequence | FSE2D |
| Parallel Acquisition | - |
| Scan time | 3:54 |
| Resolution | 0.4x0.4 mm |
| FOV | 8 cm |
| ACQ. Matrix size | 192x192 |
| Recon. Matrix size | 576x576 (PIQEx3) |
| Slice thickness | 1.5 mm |
| Number of slices | 20 |
| TR | 2100 ms |
| TE | 20 ms |
| NAQ | 2 |

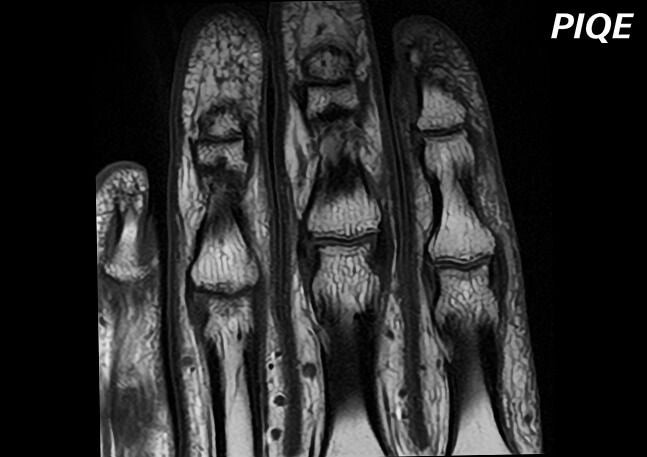

Coronal T1w
| Sequence | FSE2D |
| Parallel Acquisition | Exsper2.0x1.0 |
| Scan time | 2:22 |
| Resolution | 0.4x0.4 mm |
| FOV | 8 cm |
| ACQ. Matrix size | 192x192 |
| Recon. Matrix size | 576x576 (PIQEx3) |
| Slice thickness | 1.5 mm |
| Number of slices | 20 |
| TR | 500 ms |
| TE | 10 ms |
| NAQ | 2 |

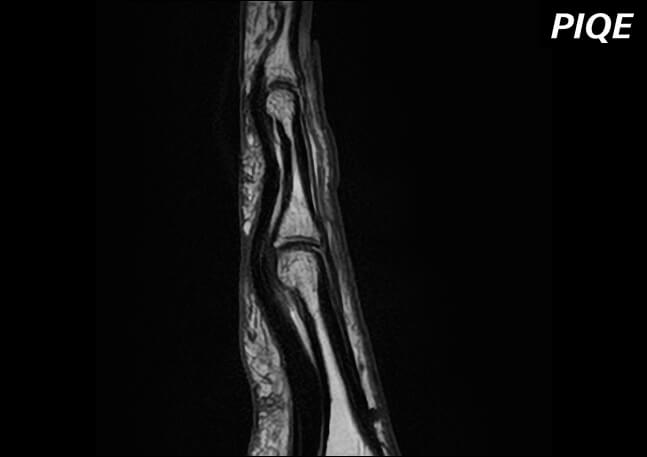

Sagittal PDw
| Sequence | FSE2D |
| Parallel Acquisition | Exsper2.0x1.0 |
| Scan time | 2:06 |
| Resolution | 0.4x0.4 mm |
| FOV | 8 cm |
| ACQ. Matrix size | 192x192 |
| Recon. Matrix size | 576x576 (PIQEx3) |
| Slice thickness | 1.5 mm |
| Number of slices | 20 |
| TR | 2000 ms |
| TE | 20 ms |
| NAQ | 2 |
Sagittal T1w
| Sequence | FSE2D |
| Parallel Acquisition | Exsper2.0x1.0 |
| Scan time | 2:22 |
| Resolution | 0.4x0.4 mm |
| FOV | 8 cm |
| ACQ. Matrix size | 192x192 |
| Recon. Matrix size | 576x576 (PIQEx3) |
| Slice thickness | 1.5 mm |
| Number of slices | 20 |
| TR | 500 ms |
| TE | 10 ms |
| NAQ | 2 |
Clinical Solution
Precise IQ Engine (PIQE) is Canon’s high resolution Deep Learning Reconstruction for MRI. PIQE increases matrix size, removes noise, and delivers sharp anatomical images to take MR imaging to the next level.
Exsper (Vantage Galan 3T / Supreme Edition Product Page)
Exsper is a unique parallel imaging technique which provides accelerated exam. Exsper suppresses unfolding errors even in the small FOV imaging.
3D Finger Imaging with AiCE (Version 10)
This protocol offers 3D high resolution finger imaging to assess the detailed anatomical structure and the condition of ligaments and tendons within 6 minutes.

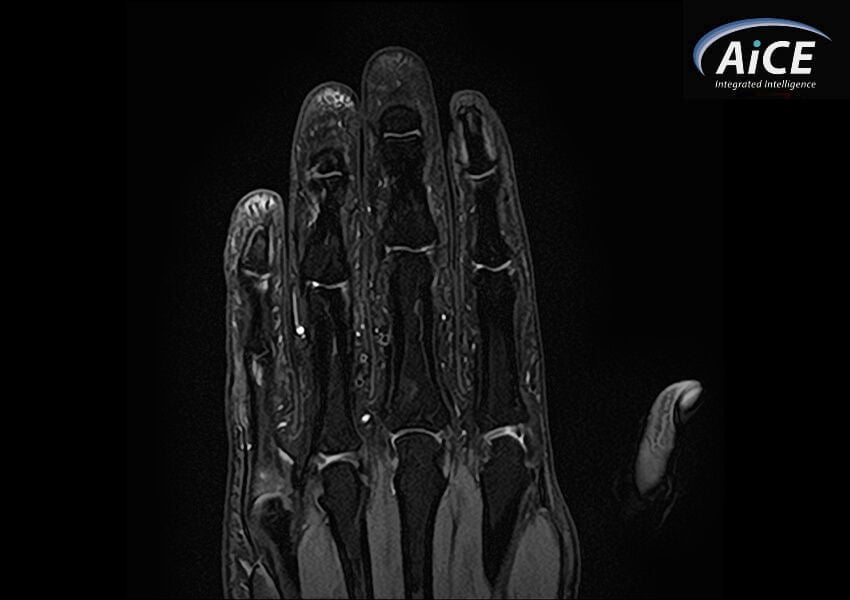

Coronal PDw FS 3D
| Sequence | FASE3D MPV |
| Parallel Acquisition | SPEEDER2.0x1.0 |
| Scan time | 5:52 |
| Resolution | 0.5x0.5 mm |
| FOV | 15 cm |
| Matrix size | 288x288 |
| Slice thickness | 0.7 mm |
| Number of slices | 144 |
| TR | 1000 ms |
| TE | 49.6 ms |
| NAQ | 1 |
Clinical Solution
Advanced intelligent Clear-IQ Engine (AiCE)
AiCE is the world’s first Deep Learning Reconstruction technology for MRI. AiCE intelligently removes noise from images which can improve SNR and enable increased resolution across all applications.
