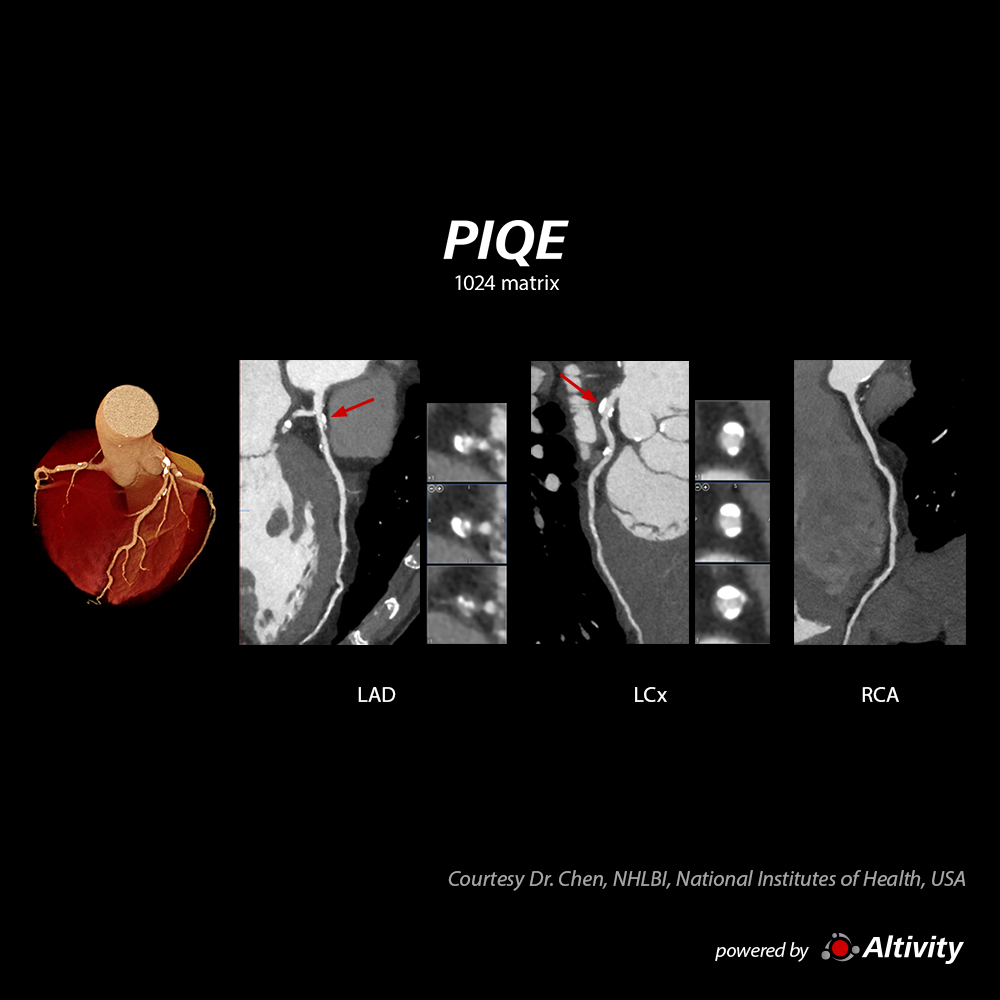

Plaque HR 62bpm

Aquilion ONE / INSIGHT Edition

Calcified plaques demonstrated in this one beat scan reconstructed with PIQE 1024.

View Scan Parameters

Scan Mode Volume
Collimation 0.5 mm
kVp 120
mAs SUREExposure
Rotation Time 0.24s
Scan Range 130mm
Dose Reduction PIQE 1024 Cardiac
CTDIvol 13.4mGy
DLP 174.4mGy.cm
Effective Dose 2.4mSv
k-factor 0.014 (AAPM Report 96)
Precise IQ Engine Venous Phase Plaque HR 62bpm
Precise IQ Engine Venous Phase Plaque HR 62bpm
× 拡大画像

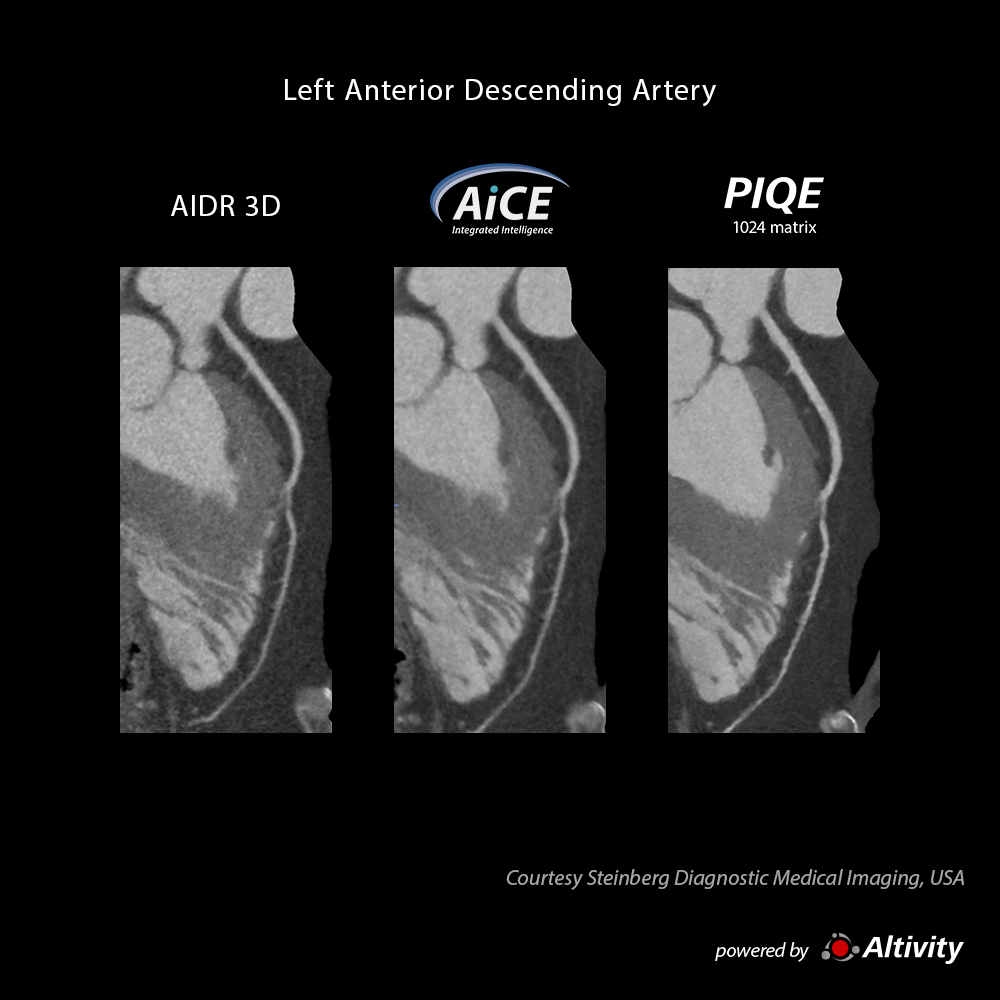

Cardiac

Aquilion Serve SP

A myocardial bridge is seen in the left anterior descending artery in this patient with BMI 25.1. PIQE 1024 shows sharp vessel borders. Courtesy Steinberg Diagnostic Medical Imaging, USA

View Scan Parameters

Scan Mode Ultra Helical
Collimation 0.5 mm x 80
kVp 120
mAs SUREExposure
Rotation Time 0.35s
Scan Range 124mm
Dose Reduction PIQE 1024
CTDIvol 25.6mGy
DLP 101mGy.cm
Effective Dose 1.4mSv
k-factor 0.014 (AAPM Report 96)
Precise IQ Engine Venous Phase Cardiac
Precise IQ Engine Venous Phase Cardiac
Precise IQ Engine Venous Phase Cardiac
Precise IQ Engine Venous Phase Cardiac
× 拡大画像

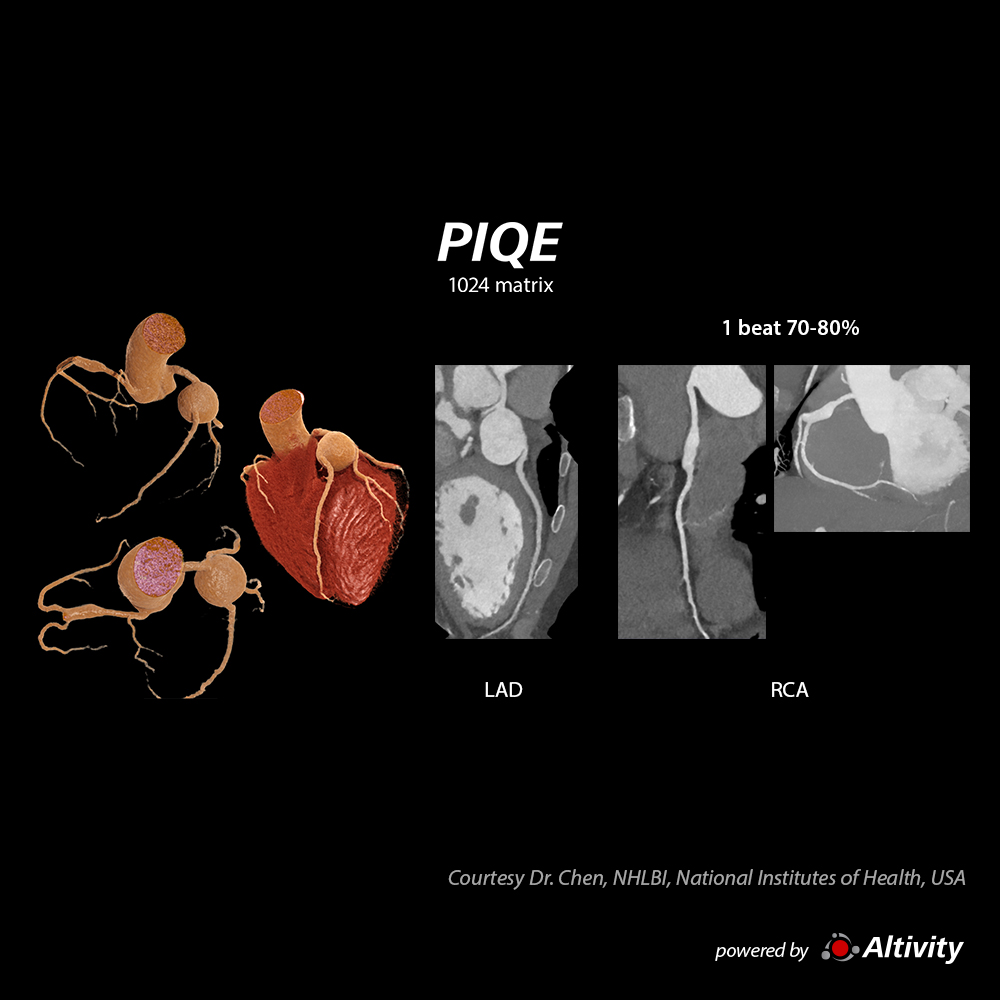

Aneurysms HR 60bpm

Aquilion ONE / INSIGHT Edition

Aneurysms are seen in the RCA and LAD

View Scan Parameters

Scan Mode Volume
Collimation 0.5 mm
kVp 100
mAs SUREExposure
Rotation Time 0.24s
Scan Range 120mm
Dose Reduction PIQE 1024 Cardiac
CTDIvol 8.4mGy
DLP 101mGy.cm
Effective Dose 1.4mSv
k-factor 0.014 (AAPM Report 96)
Precise IQ Engine Venous Phase Aneurysms HR 60bpm
Precise IQ Engine Venous Phase Aneurysms HR 60bpm
× 拡大画像

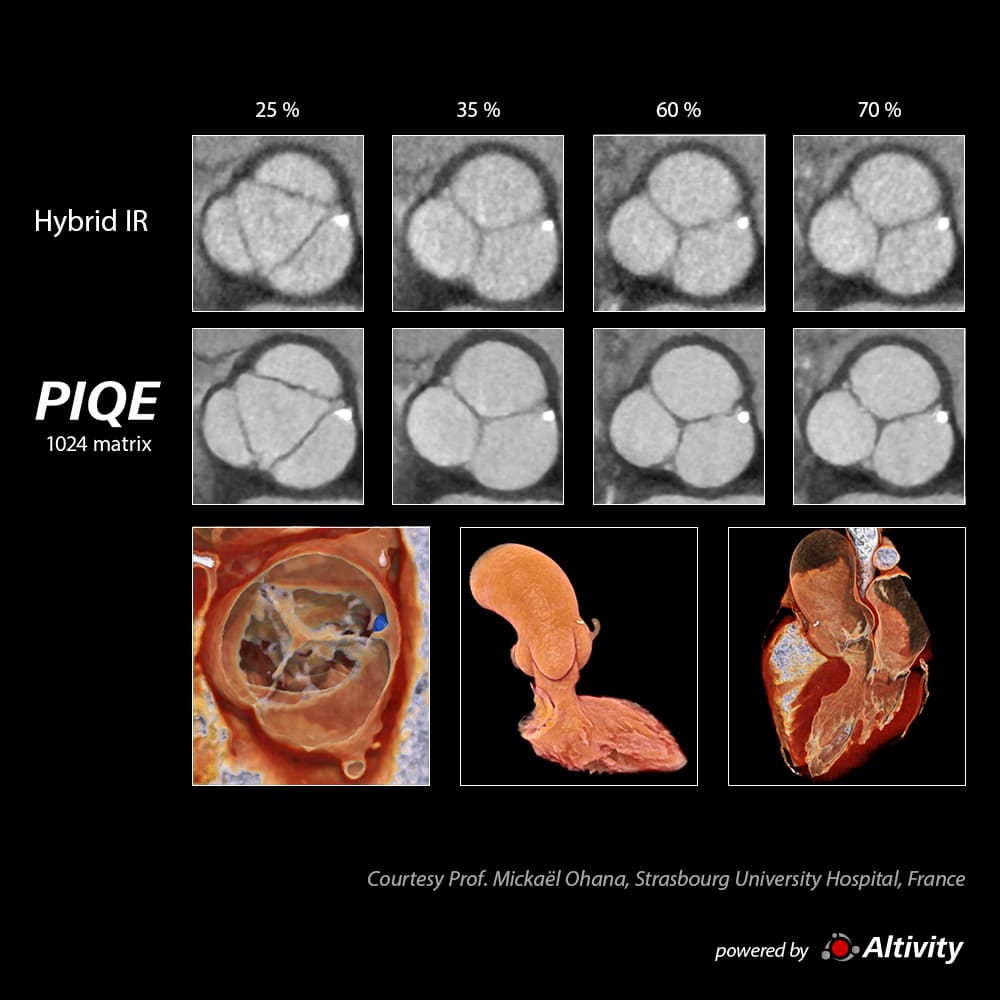

4D Aortic Valve

Aquilion ONE / INSIGHT Edition

PIQE provides clearer delineation of the aortic valve leaflets compared to hybrid IR reconstruction.

View Scan Parameters

Scan Mode Volume
Collimation 0.5 mm
kVp 100
mAs SUREExposure 3D
Rotation Time 0.275s
Scan Range 140mm
Dose Reduction PIQE 1024
CTDIvol 22mGy
DLP 351.7mGy.cm
Effective Dose 4.9mSv
k-factor 0.014 (AAPM Report 96)
Precise IQ Engine Venous Phase 4D Aortic Valve
Precise IQ Engine Venous Phase 4D Aortic Valve
