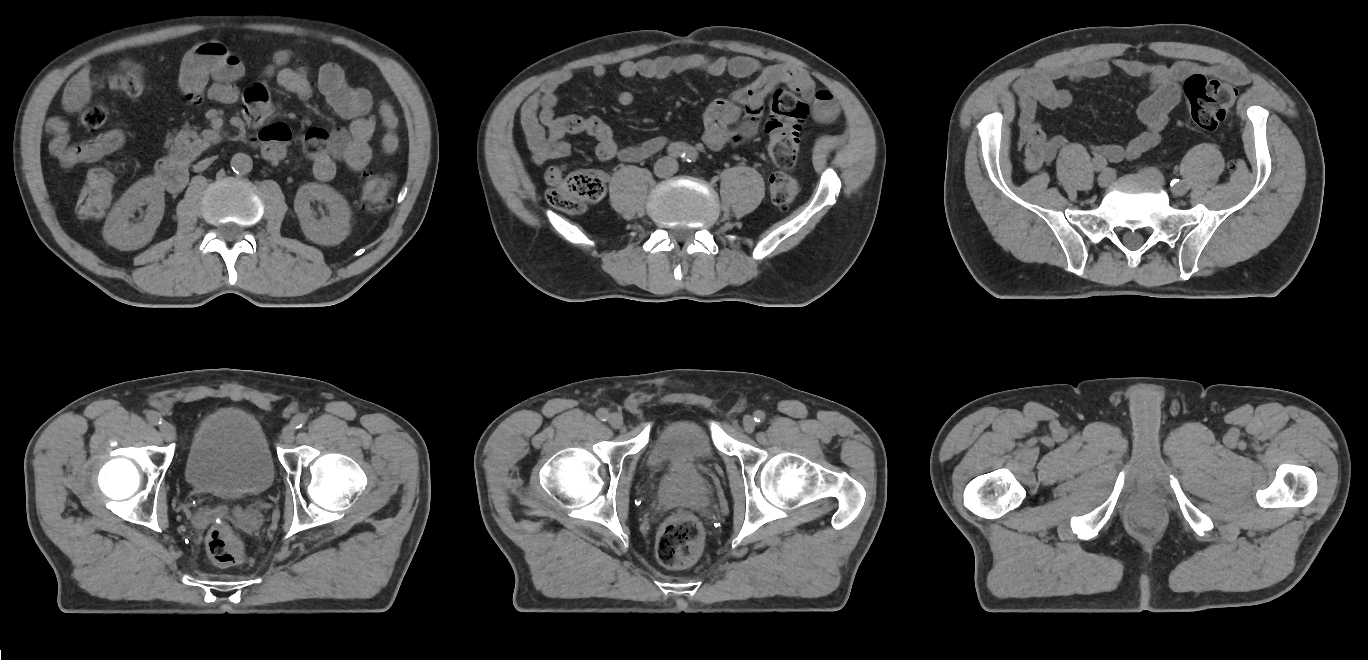

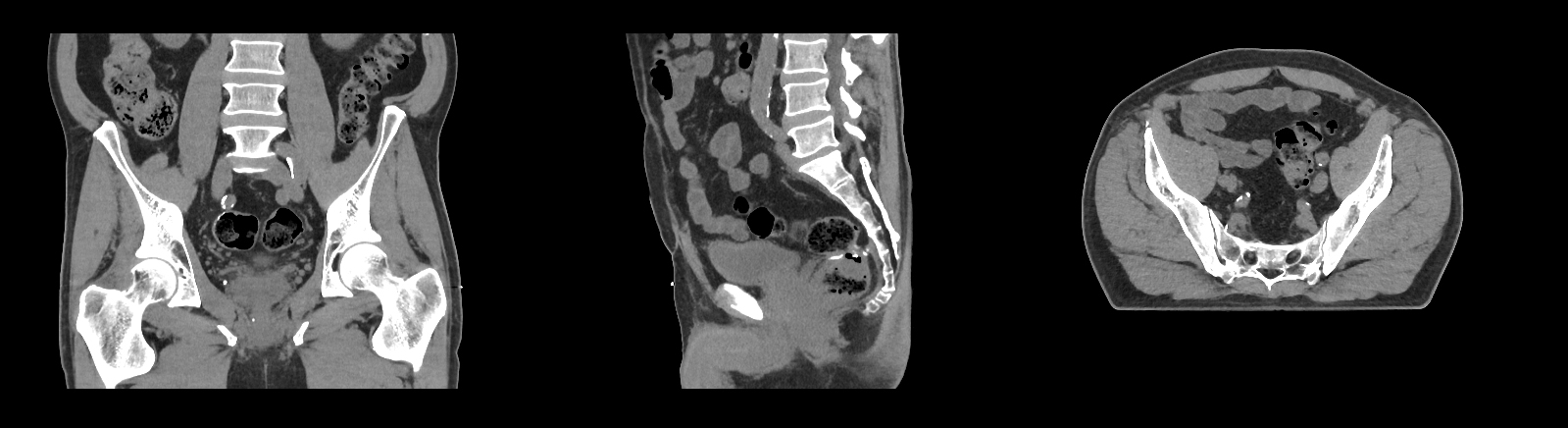

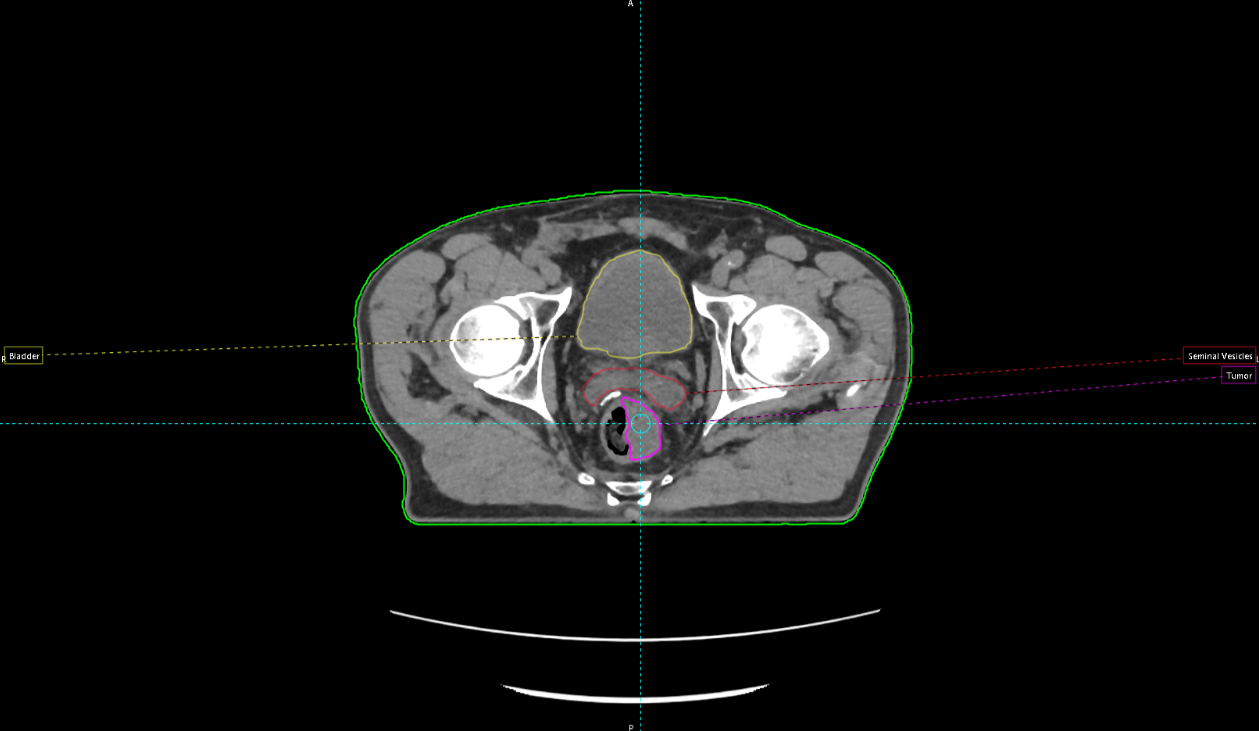

Abdomen and Pelvis

Aquilion Exceed LB

This patient presented for a CT simulation scan for colon cancer. Advanced intelligent Clear-IQ Engine (AiCE) images improve contrast resolution facilitating accurate contouring. Courtesy Radiotherapeutic Institute Friesland, the Netherlands

View Scan Parameters

Scan Mode Ultra-Helical

Collimation 0.5 mm x 80

kVp 120

mAs SUREExposure

Rotation Time 0.5 s

Scan Range 320 mm

Dose Reduction AiCE

CTDIvol 10.1 mGy

DLP 369.1 mGy·cm

Effective Dose 5.54 mSv

k-factor 0.015 (AAPM Report 96)

×

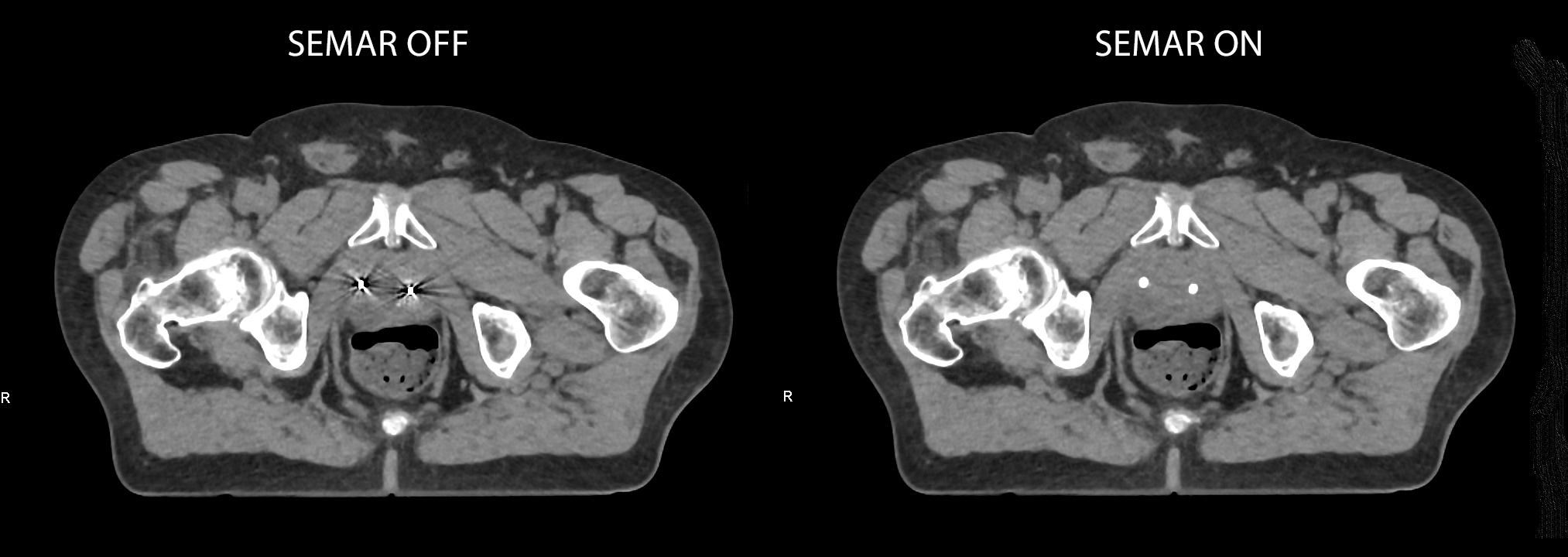

Prostate with Gold Fiducial markers

Aquilion Exceed LB

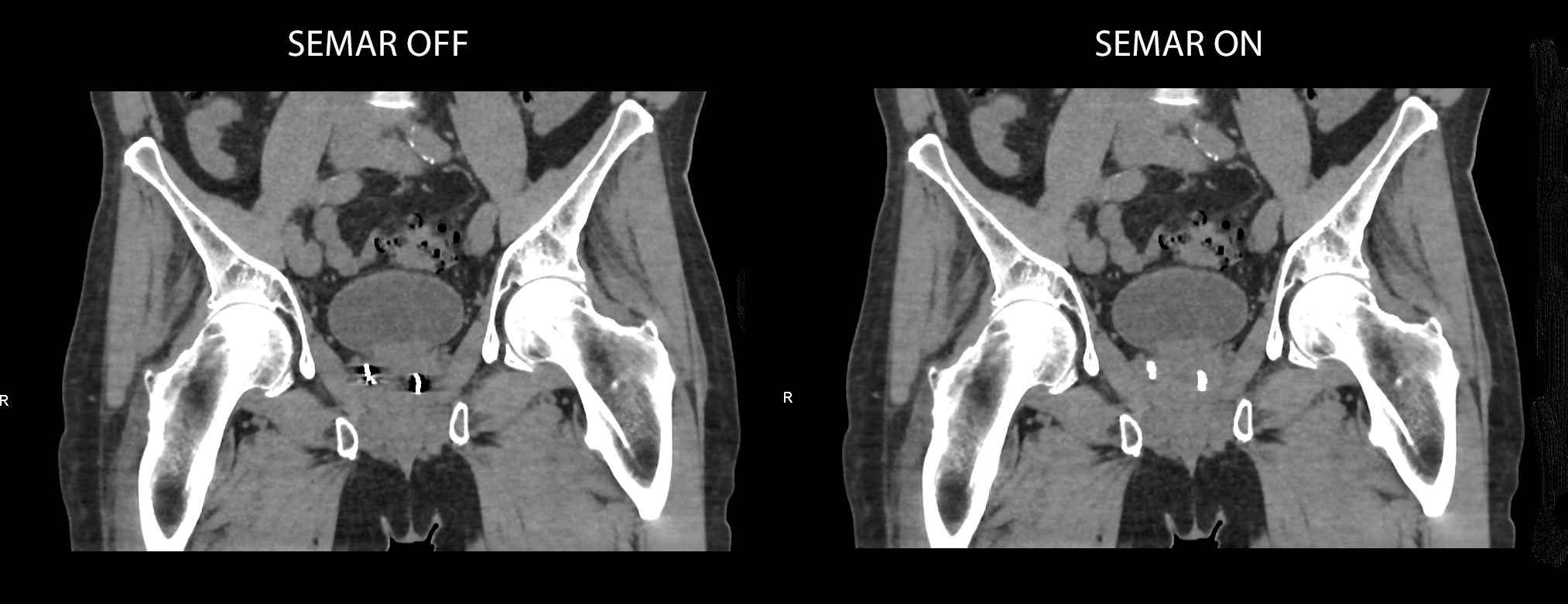

This patient underwent a CT scan for simulation. Gold Fiducial markers are seen in the prostate. SEMAR reduces the artifact caused by the markers. Courtesy Radiotherapeutic Institute Friesland, the Netherlands

View Scan Parameters

Scan Mode Ultra-Helical

Collimation 0.5 mm x 80

kVp 120

mAs SUREExposure

Rotation Time 0.5 s

Scan Range 274 mm

Dose Reduction AiCE

CTDIvol 9.9 mGy

DLP 317.3 mGy·cm

Effective Dose 5.39 mSv

k-factor 0.017 (AAPM Report 96)

Aquilion Exceed LB Prostate with Gold Fiducial markers

×

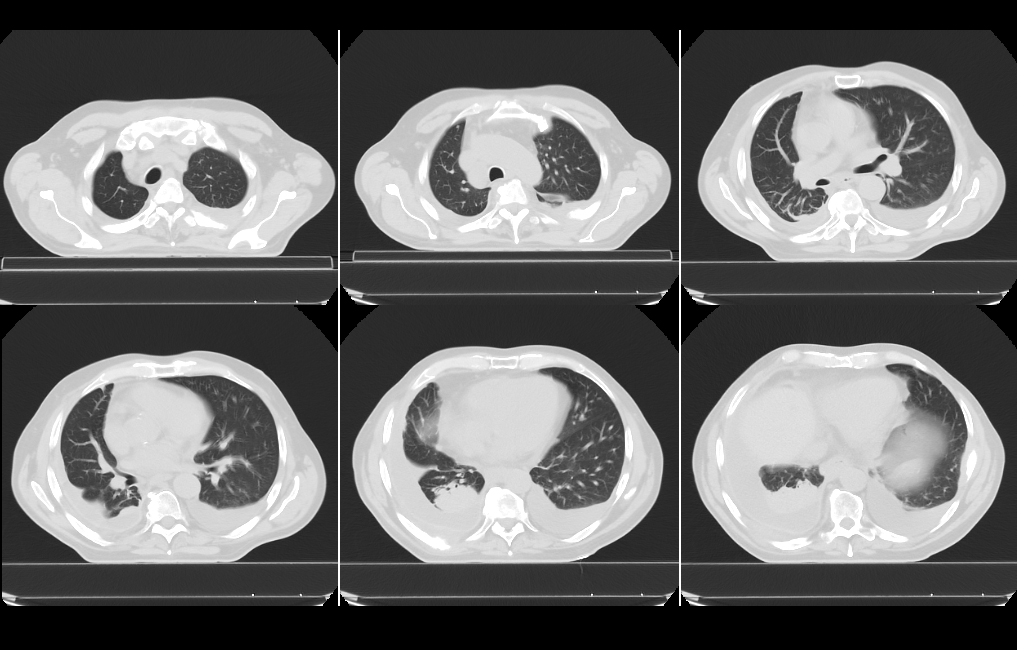

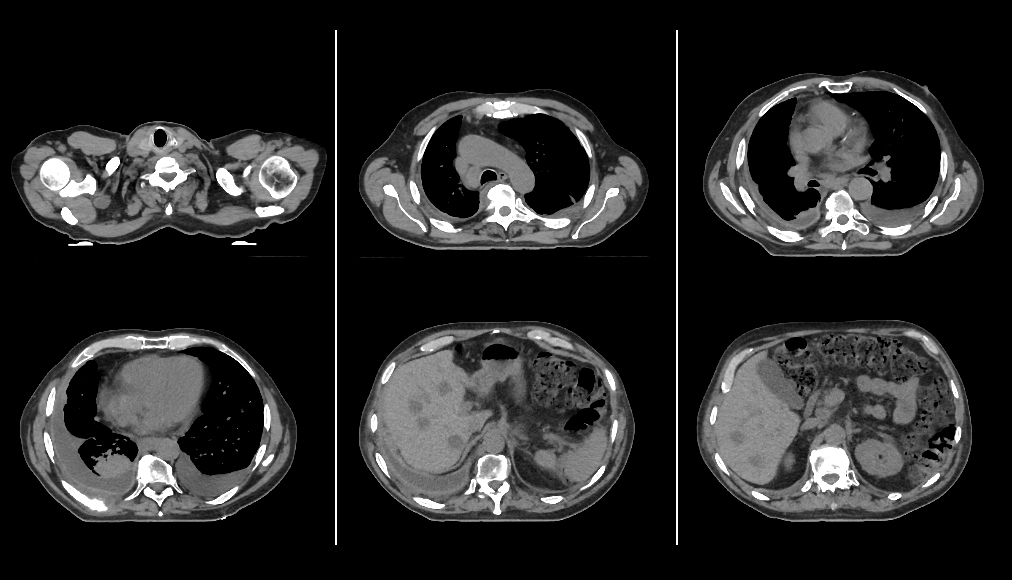

Chest and Upper Abdomen

Aquilion Exceed LB

A CT simulation scan of the chest and abdomen was performed with free breathing. AiCE reconstructions demonstrate low noise, improved image texture for improved lesion detection. Courtesy Radiotherapeutic Institute Friesland, the Netherlands

View Scan Parameters

Scan Mode Ultra-Helical

Collimation 0.5 mm x 80

kVp 120

mAs SUREExposure

Rotation Time 0.5 s

Scan Range 366 mm

Dose Reduction AiCE

CTDIvol 9.9 mGy

DLP 408.1 mGy·cm

Effective Dose 5.71 mSv

k-factor 0.014 (AAPM Report 96)

Aquilion Exceed LB Chest and Upper Abdomen

×

Respiratory Gated Chest

Aquilion Exceed LB

A respiratory gated scan of the chest was performed for CT simulation. Accurate contouring of the esophagus and surrounding structures can be performed easily with AiCE. Courtesy Radiotherapeutic Institute Friesland, the Netherlands

View Scan Parameters

Scan Mode Respiratory Gated Helical

Collimation 0.5 mm x 80

kVp 120

mAs 17

Rotation Time 0.4 s

Scan Range 342 mm

Dose Reduction AiCE

CTDIvol 13.1 mGy

DLP 510.9 mGy·cm

Effective Dose 7.15

k-factor 0.014 (AAPM Report 96)

Aquilion Exceed LB Respiratory Gated Chest

×

RT Neck

Aquilion Exceed LB

A scan of the neck was performed with the patient in the treatment position and reconstructed with AiCE and SEMAR. SEMAR reduces the artifacts from the dental fillings

View Scan Parameters

Scan Mode Ultra-Helical

Collimation 0.5 mm x 80

kVp 80

mAs SUREExposure

Rotation Time 1.0 s

Scan Range 490 mm

Dose Reduction AiCE

CTDIvol 3.7mGy

DLP 197.4mGy·cm per phase

Effective Dose 8.89 mSv

k-factor 0.0059 (AAPM Report 96)

×

Liver SBRT

Aquilion Exceed LB

This abdomen scan was performed for stereotactic body radiotherapy treatment (SBRT) planning of the liver tumor and abdominal mass. Liver SBRT simulation require high quality images and multiphasic CT for visualization of the tumor extent in the liver. In this case AiCE reconstruction allows clear delineation of the tumor in all scan phases.

View Scan Parameters

Scan Mode Ultra-Helical

Collimation 0.5 mm x 80

kVp 120

mAs SUREExposure

Rotation Time 0.75 s

Scan Range 400 mm

Dose Reduction AiCE

×

Respiratory Gated Chest

Aquilion Exceed LB

A small tumor is seen in this respiratory gated scan of the chest reconstructed with AiCE. The scan is performed while the patient is breathing in a natural rhythm. Reconstructions are made at multiple respiratory phases in order to help the physician define the range of motion of the tumor and surrounding anatomy. Courtesy: Radiotherapeutisch Instituut Friesland; Netherlands (RIF)

View Scan Parameters

Scan Mode Ultra-Helical, RGR gated

Collimation 0.5 mm x 80

kVp 120

mAs 17

Rotation Time 0.4 s

Scan Range 350 mm

Dose Reduction AiCE

Chest Respiratory Gated

×

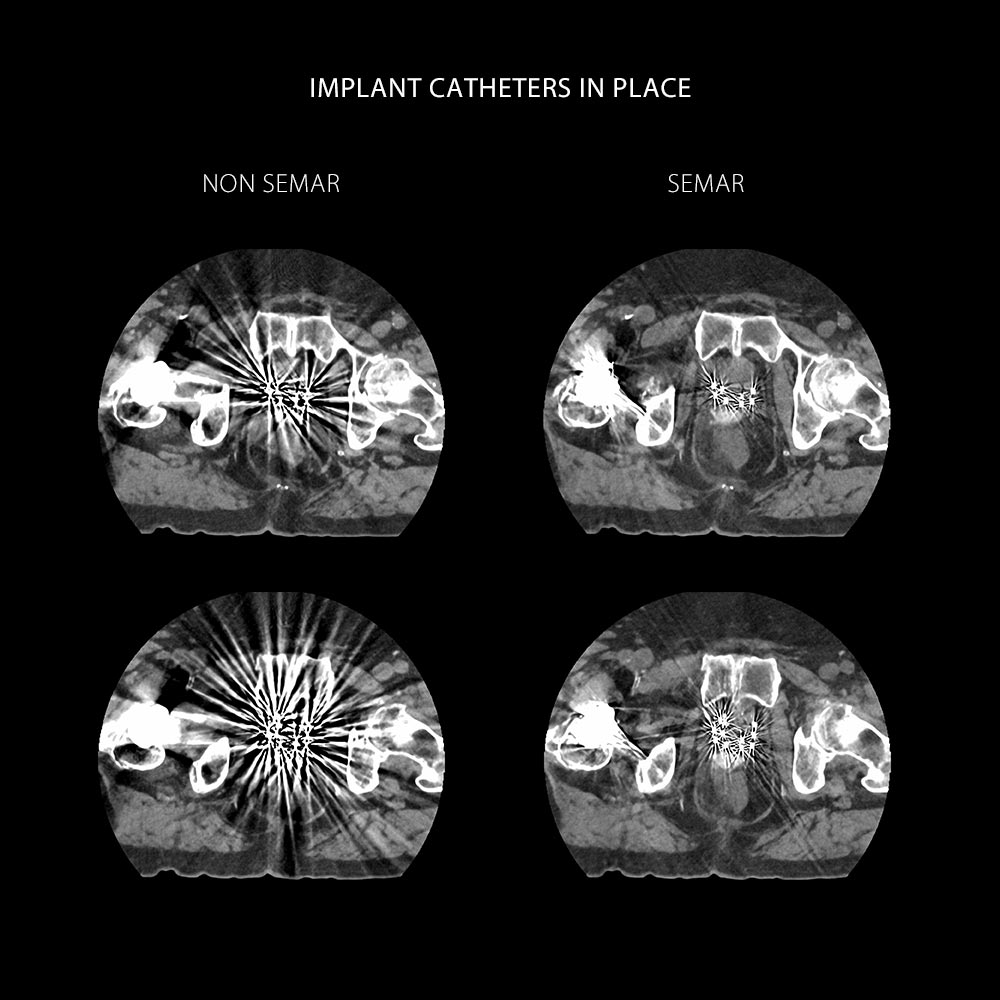

Prostate Cancer CT Simulation HDR Brachytherapy, AiCE, SEMAR

Aquilion Exceed LB

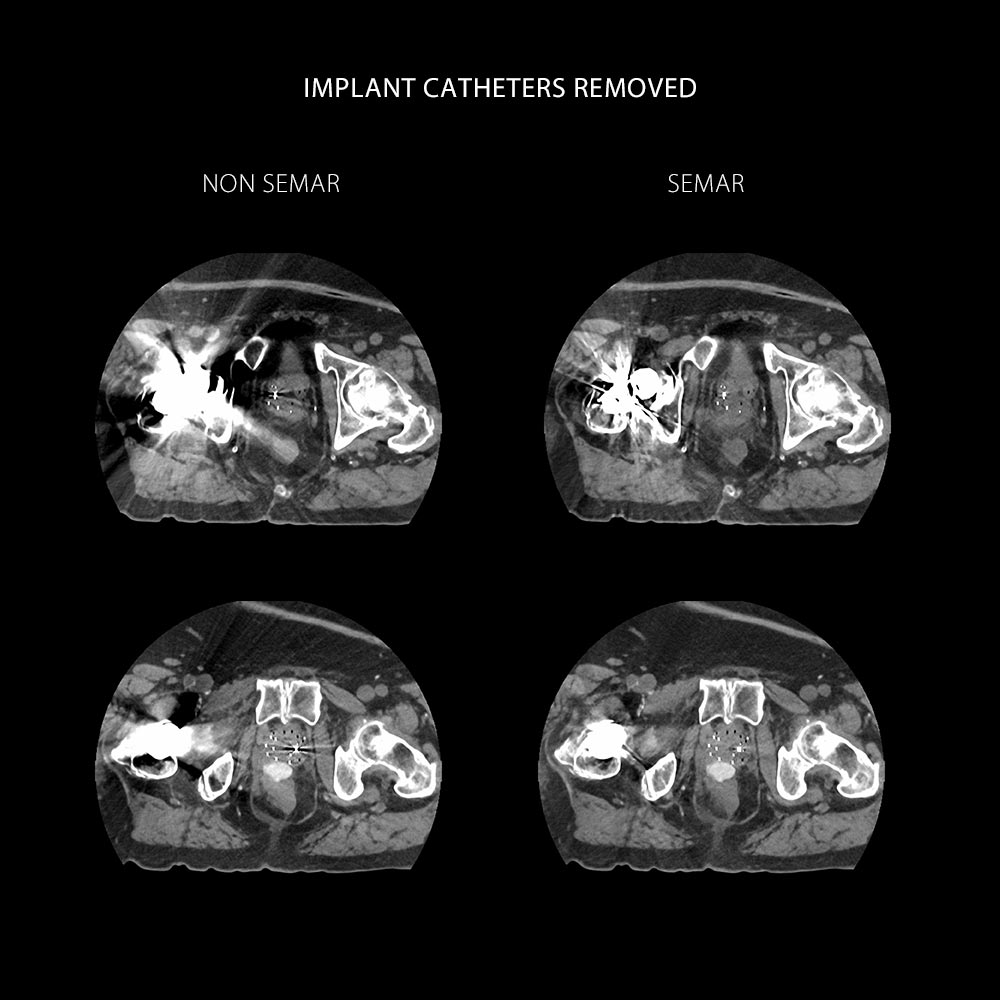

Canon's SEMAR technology minimizes metal artifact from hip replacement and HDR insertion catheters in the prostate cancer patient, allowing for better visualization of tissue edges.

View Scan Parameters

Scan Mode Helical

Collimation 0.5 mm x 80

kVp 120

Scan Range 366mm

CTDIvol 17.0mGy

DLP 647.9mGy·cm

Effective Dose 9.7mGy

k-factor 0.015 (AAPM Report 96)

Aquilion Exceed LB Prostate Cancer CT Simulation HDR Brachytherapy, AiCE, SEMAR

×

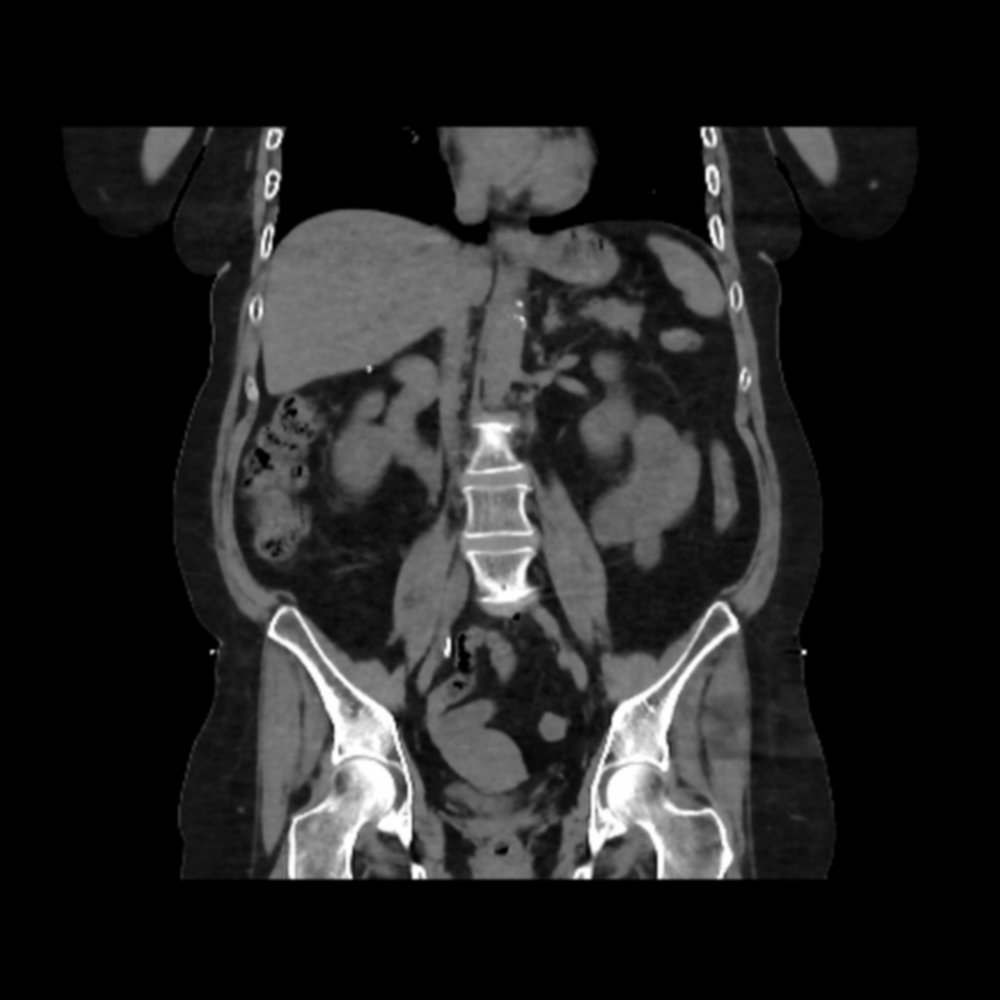

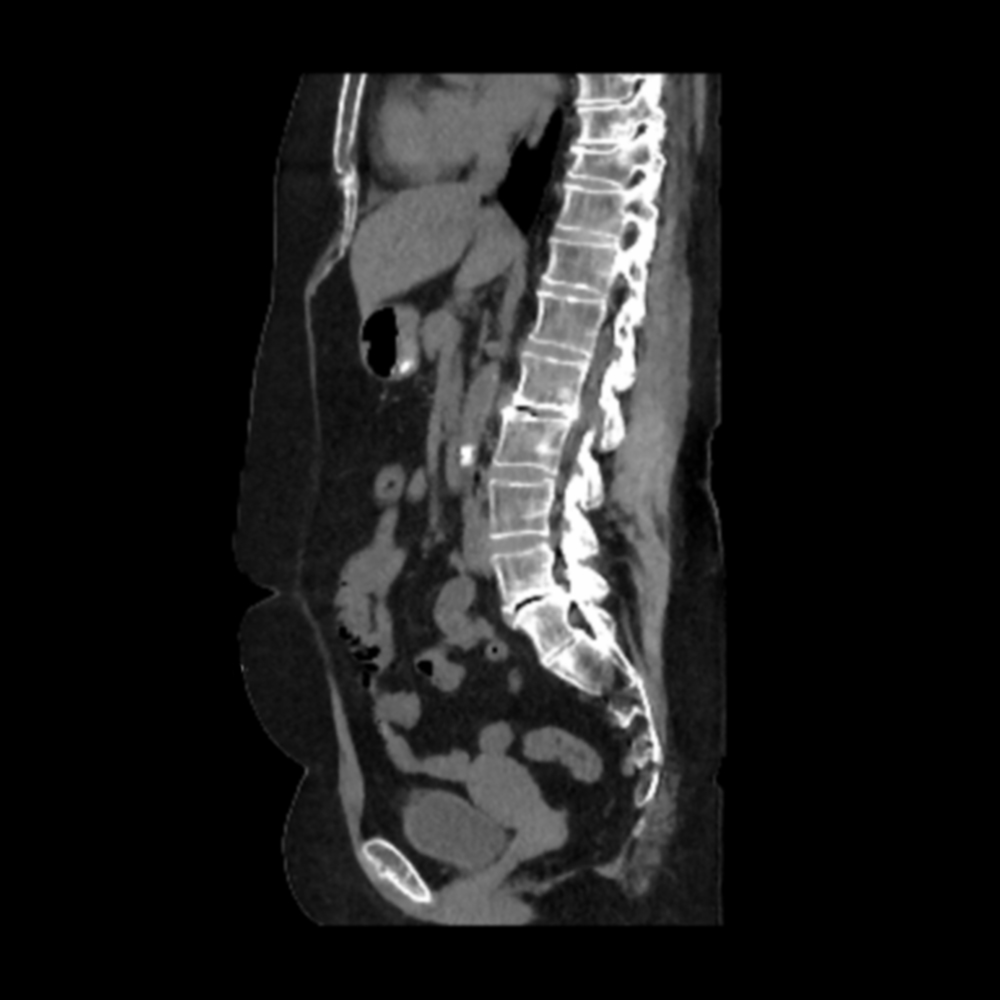

Abdominal Carcinoma, AiCE

Aquilion Exceed LB

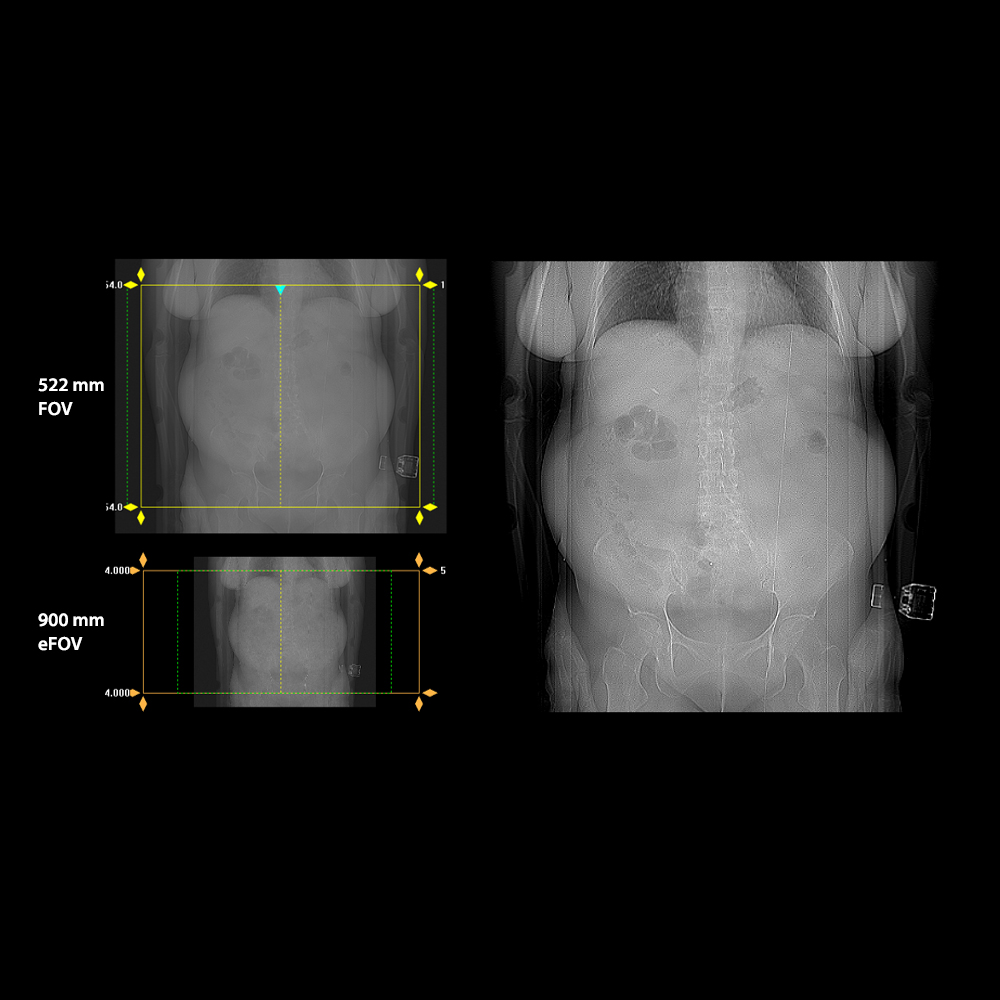

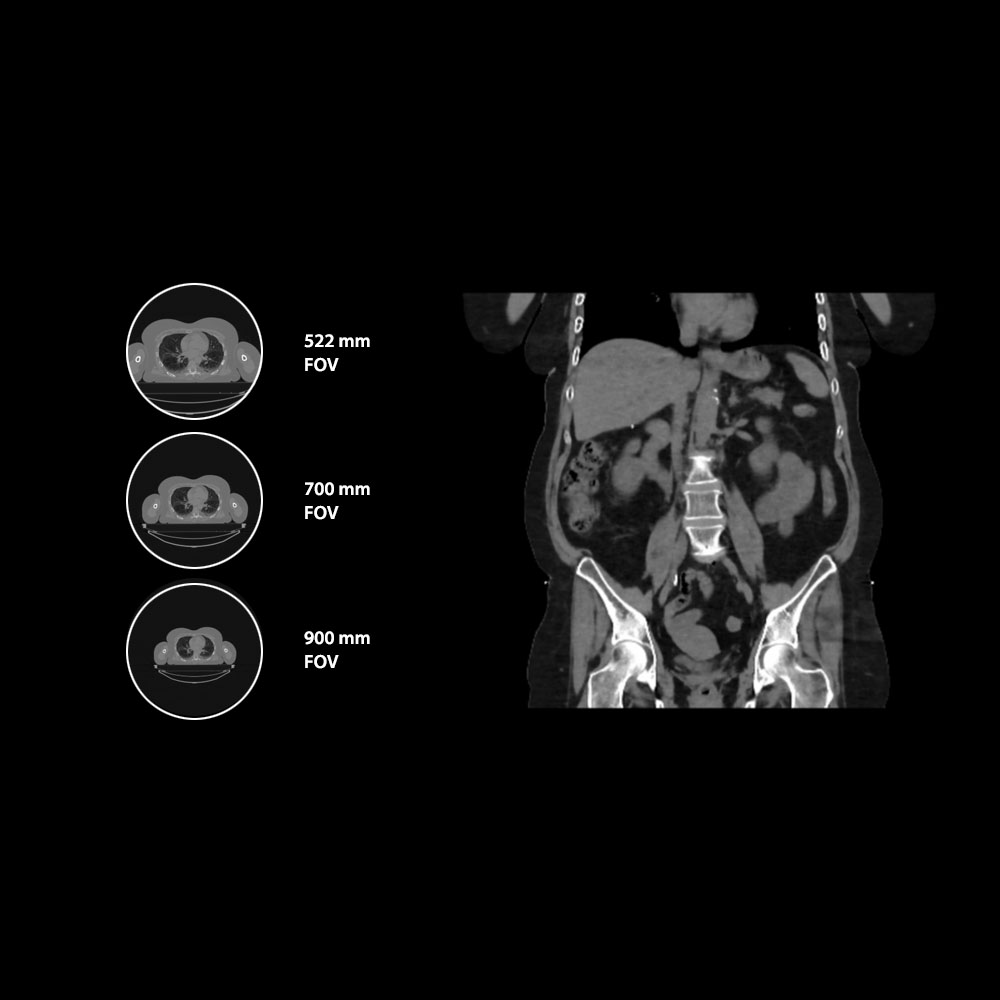

Large FOV prevents truncation of patient anatomy by keeping the entirety of the patient within the FOV.

View Scan Parameters

HelicalScan Mode Helical

Collimation 0.5mm x 80

kVp 120

Reconstruction AiCE

Scan Range 447.2mm

CTDIvol 11.2mGy

DLP 588.00mGy·cm

Effective Dose 8.8mSv

k-factor 0.015 (AAPM Report 96)

Aquilion Exceed LB Abdominal Carcinoma, AiCE

×
