Key Clinical Imaging Tips for V9.0 PIQE Validation Sites in Europe

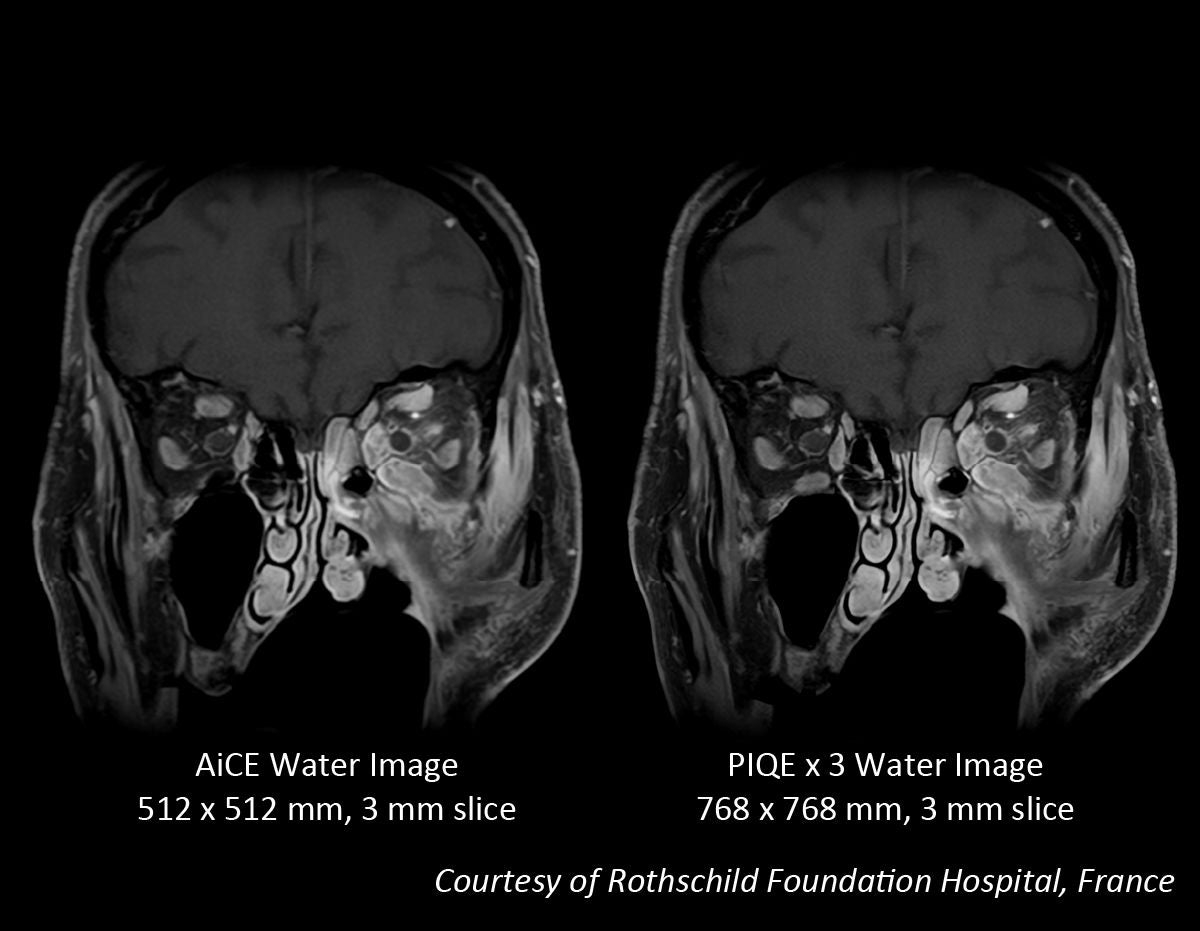

Orbits T1w
2D FSE WFS
Vantage Galan 3T

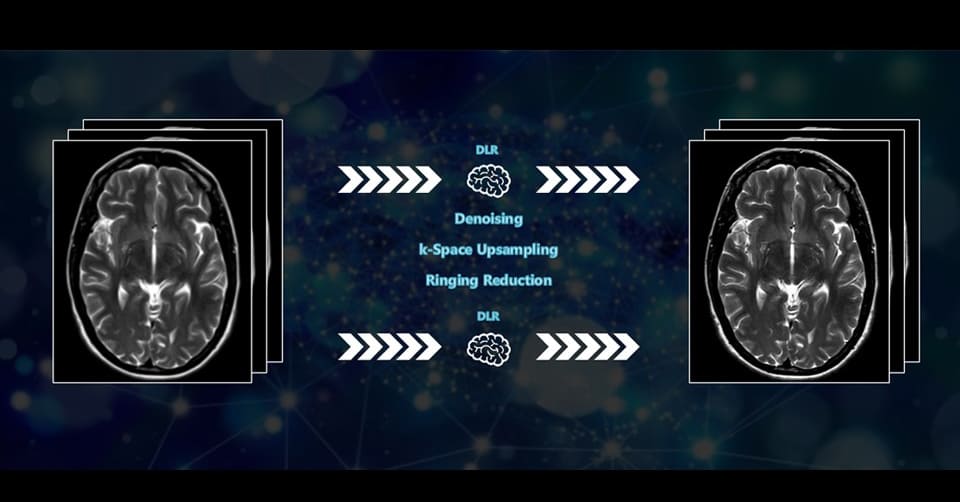

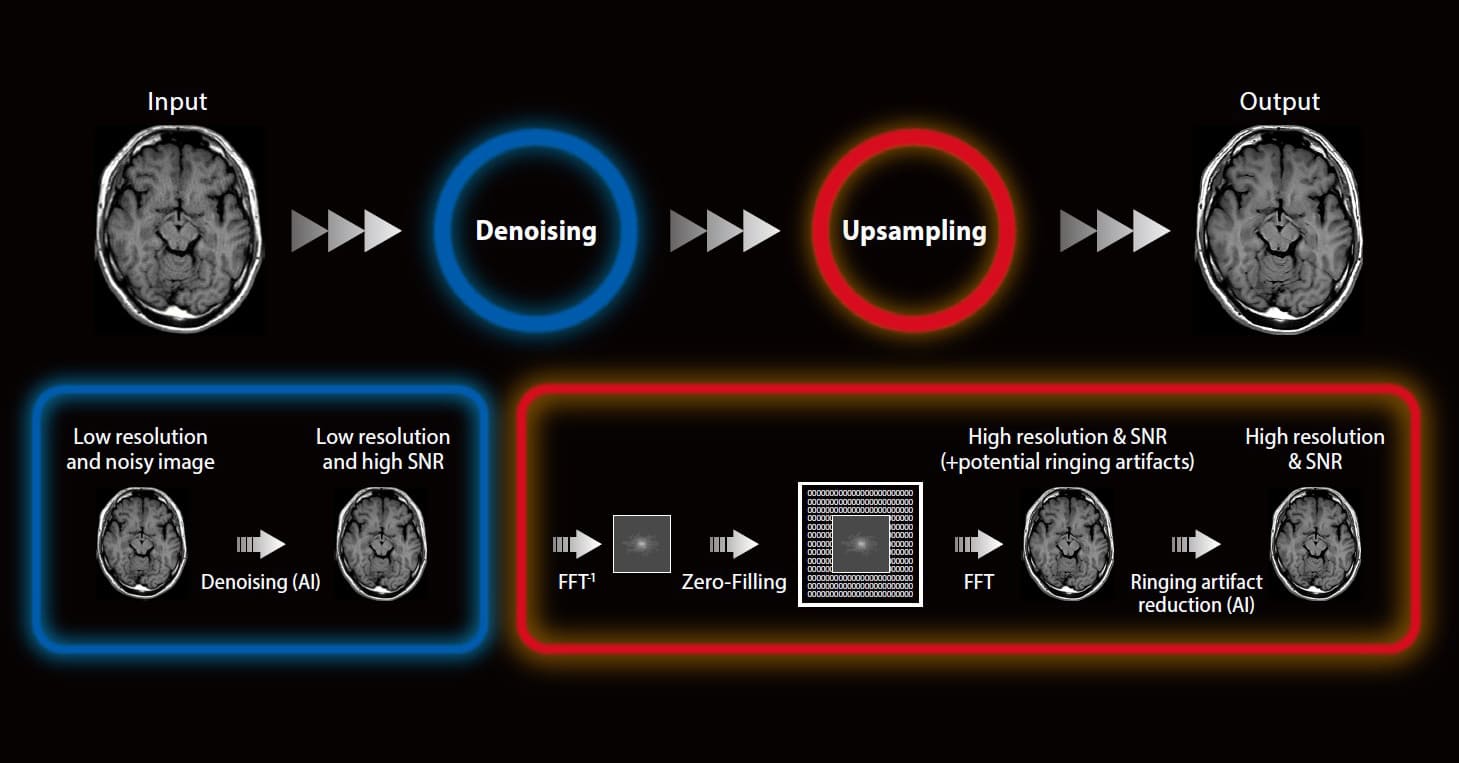

High-Definition PIQE Images can be acquired by implementation of a Deep Learning Noise and Ringing Reduction Techniques while utilizing up to 3 x Up-Sampling Image Reconstructions.
Key Clinical Imaging Tip:
Maintain Base Line Signal to Noise Ratio (SNR), 3 mm Through-Plane and In-Plane Isotropic Matrix while enhancing Anatomical Detail.

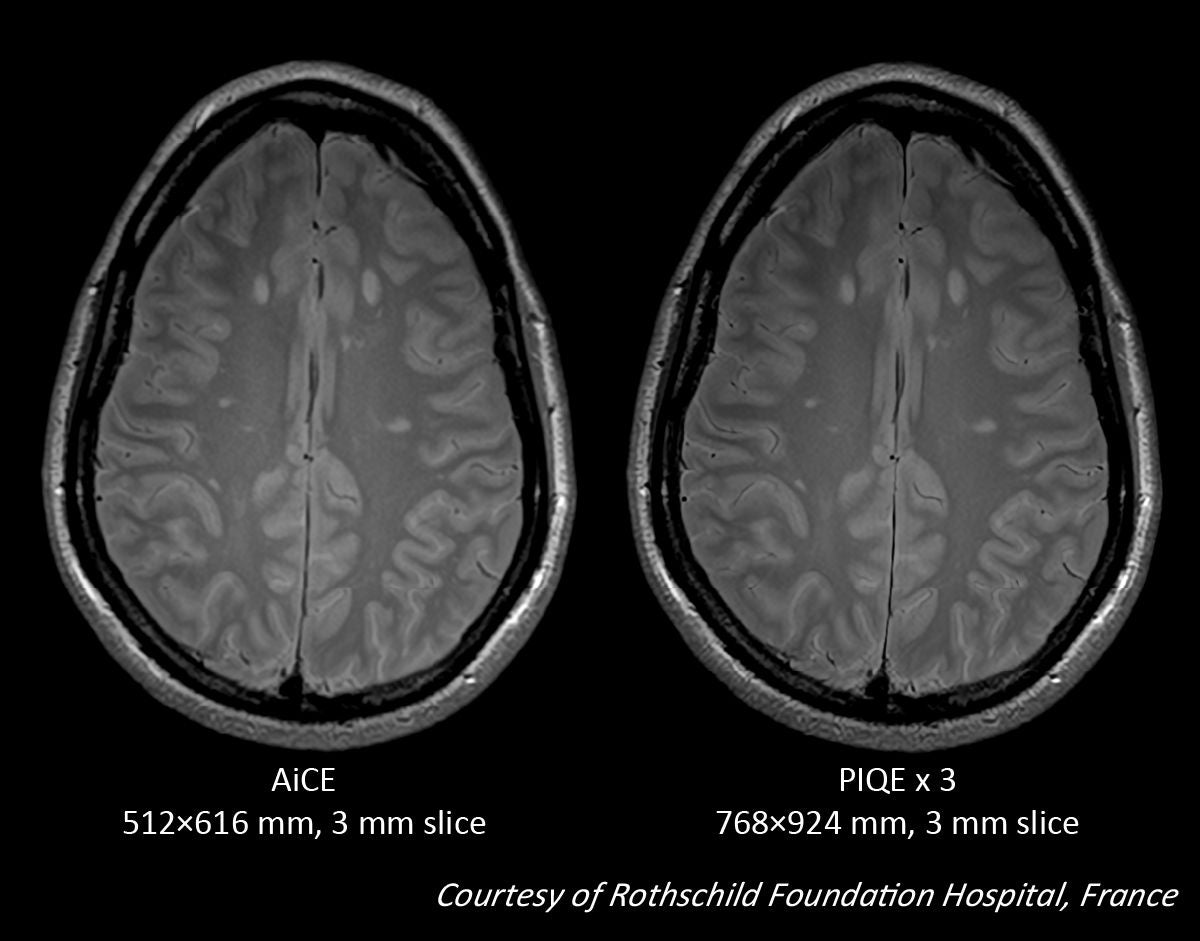

Brain PD
2D FSE
Vantage Galan 3T
High-Definition PIQE Images can be acquired by implementation of a Deep Learning Noise and Ringing Reduction Techniques while utilizing up to 3 x Up-Sampling Image Reconstructions.
Key Clinical Imaging Tip:
Maintain Base Line SNR, 3 mm Through-Plane and In-Plane Isotropic Matrix for Better White Matter Lesion Visualization.

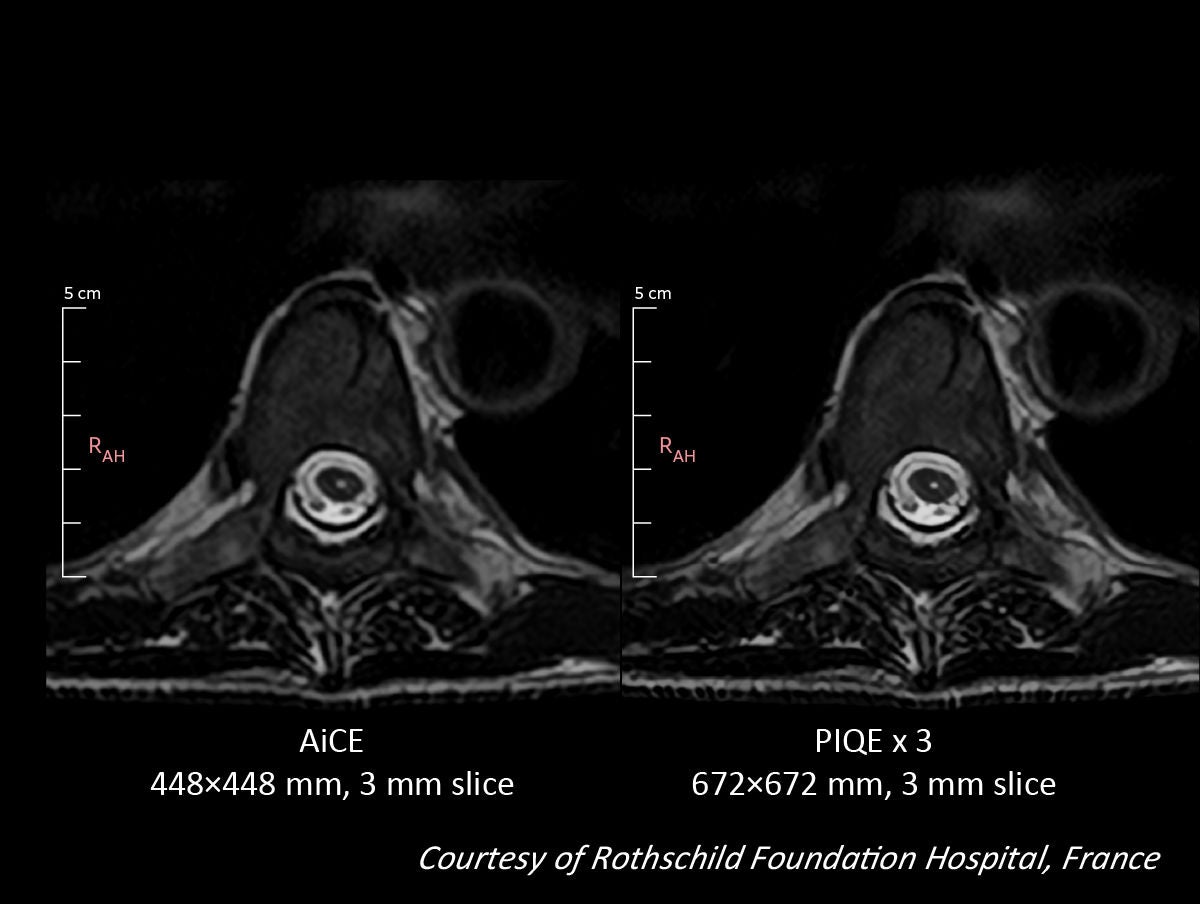

T-Spine T2w
2D FSE
Vantage Galan 3T
High-Definition PIQE Images can be acquired by implementation of a Deep Learning Noise and Ringing Reduction Techniques while utilizing up to 3 x Up-Sampling Image Reconstructions.
Key Clinical Imaging Tip:
3 mm Through-Plane and Decrease In-Plane Isotropic Matrix for scan time reduction while enhancing Anatomical Detail. Canon’s Deep Learning Ringing Reduction Technique when utilizing lower Phase Encoding Matrix allows for a scan time reduction of 1 to 2 minutes while enhancing anatomical detail due to the possibility of Up-Sampling Technology by a Factor of 3.

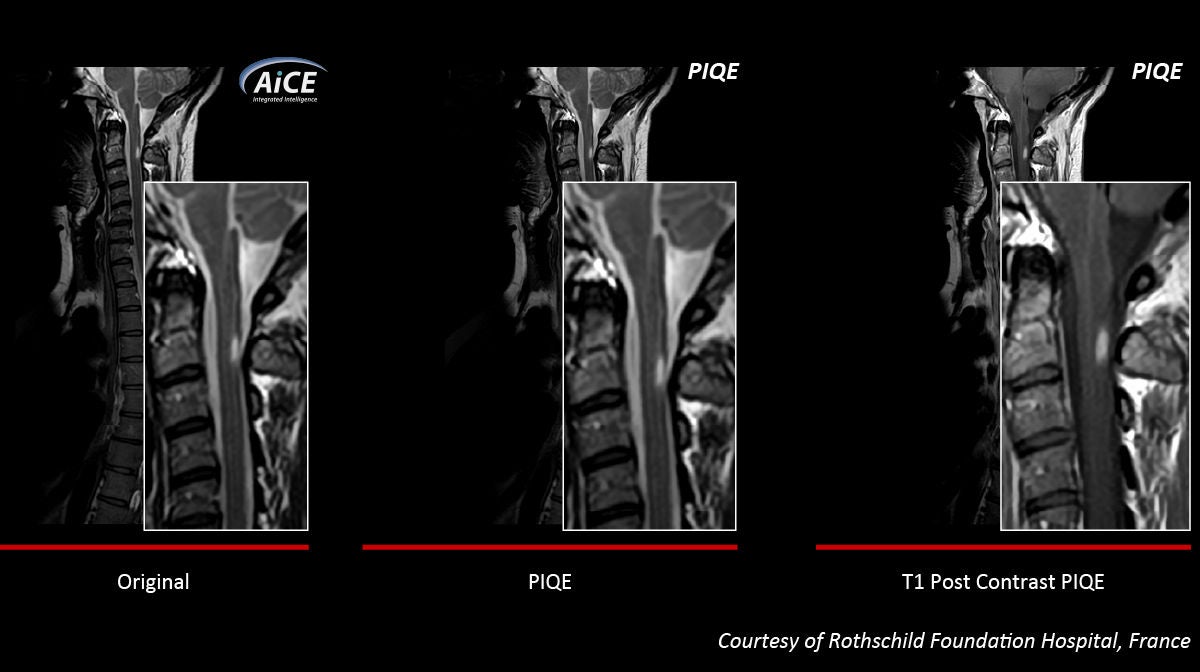

C-Spine T2w
2D FSE
Vantage Galan 3T
High-Definition PIQE Images can be acquired by implementation of a Deep Learning Noise and Ringing Reduction Techniques while utilizing up to 3 x Up-Sampling Image Reconstructions.
Key Clinical Imaging Tip:
3 mm Through-Plane and Decrease In-Plane Isotropic Matrix for scan time reduction while enhancing Anatomical Detail in regions with tendency to motion. Canon’s Deep Learning Ringing Reduction Technique when utilizing lower Phase Encoding Matrix allows for a scan time reduction of 1 to 2 minutes while enhancing anatomical detail due to the possibility of Up-Sampling Technology by a Factor of 3.

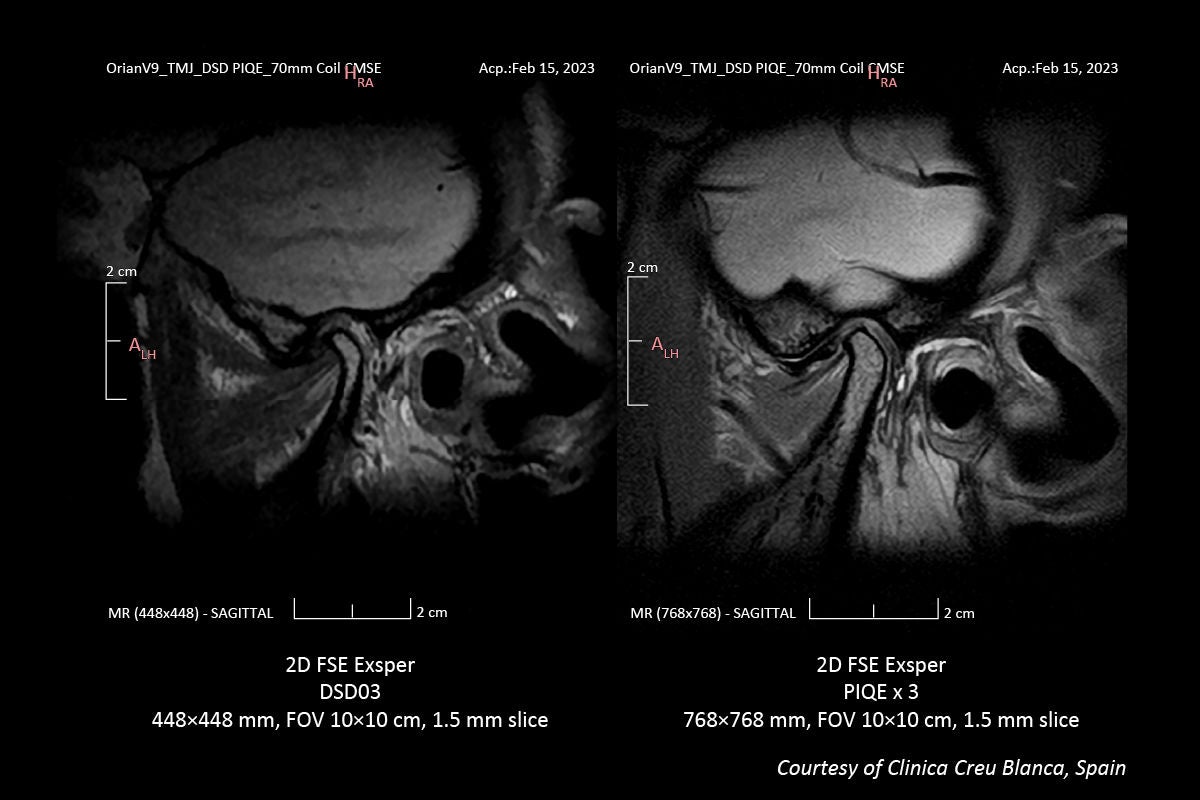

TMJ
2D FSE
Vantage Orian 1.5T
High-Definition PIQE Images can be acquired by implementation of a Deep Learning Noise and Ringing Reduction Techniques while utilizing up to 3 x Up-Sampling Image Reconstructions.
Key Clinical Imaging Tip:
1.5 mm Through-Plane and Decrease In-Plane Isotropic Matrix for maintaining SNR while enhancing Anatomical Detail in Small Body Regions.

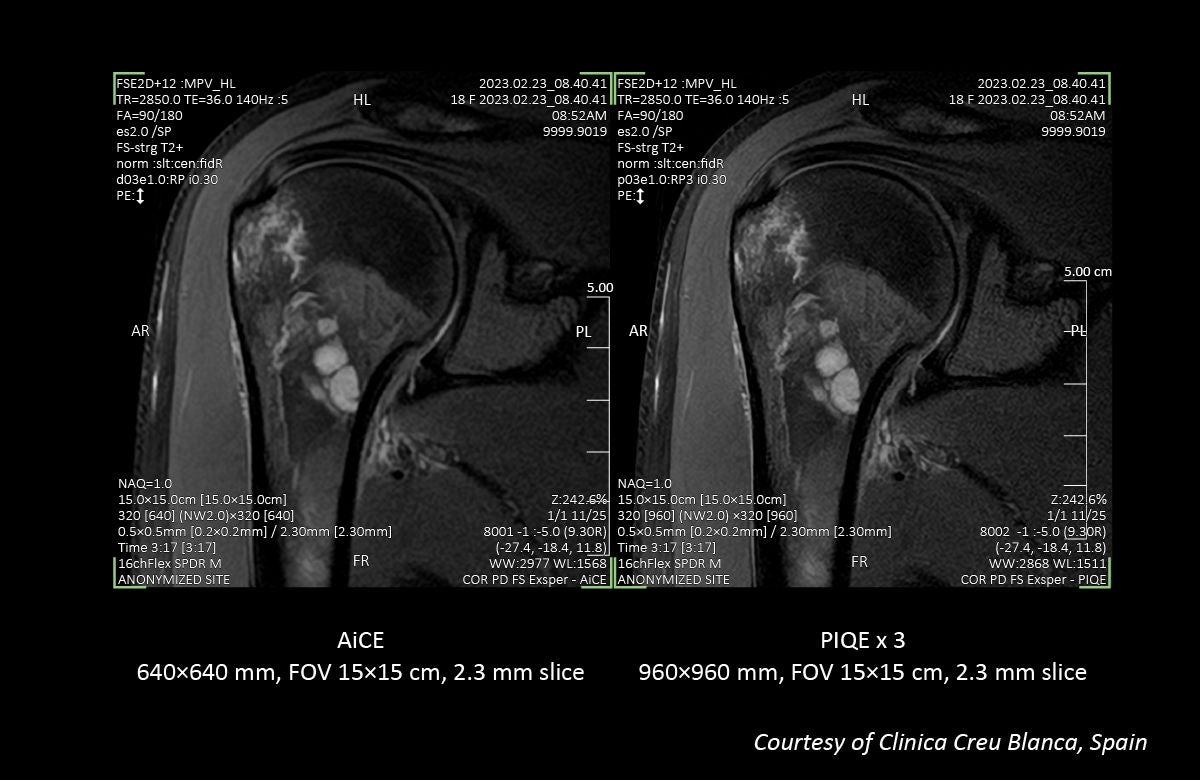

Shoulder
2D FSE
Vantage Orian 1.5T
High-Definition PIQE Images can be acquired by implementation of a Deep Learning Noise and Ringing Reduction Techniques while utilizing up to 3 x Up-Sampling Image Reconstructions.
Key Clinical Imaging Tip:
2.3 mm Through-Plane and Decrease In-Plane Isotropic Matrix for maintaining SNR while enhancing Anatomical Detail and Pathology.

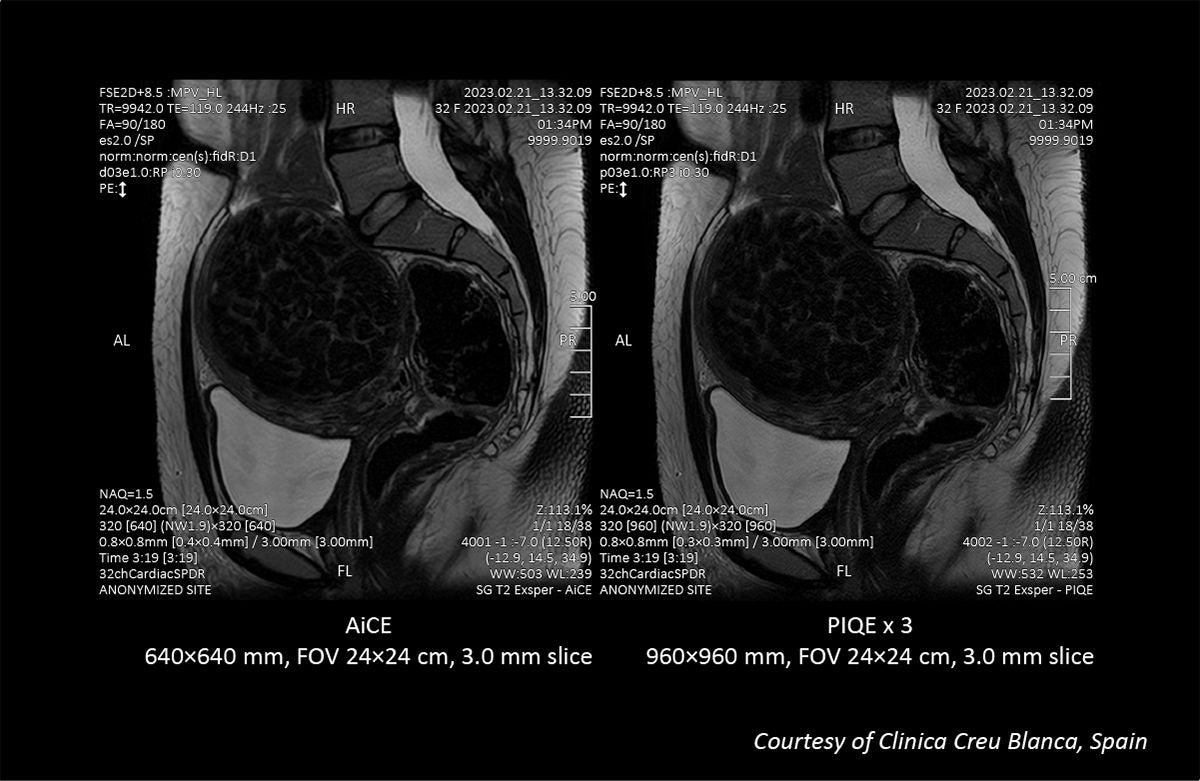

Female Pelvis
2D FSE
Vantage Orian 1.5T
High-Definition PIQE Images can be acquired by implementation of a Deep Learning Noise and Ringing Reduction Techniques while utilizing up to 3 x Up-Sampling Image Reconstructions.
Key Clinical Imaging Tip:
3 mm Through-Plane and Decrease In-Plane Isotropic Matrix for maintaining SNR while enhancing Anatomical Detail and Pathology for Pre and Post Interventional Procedures.

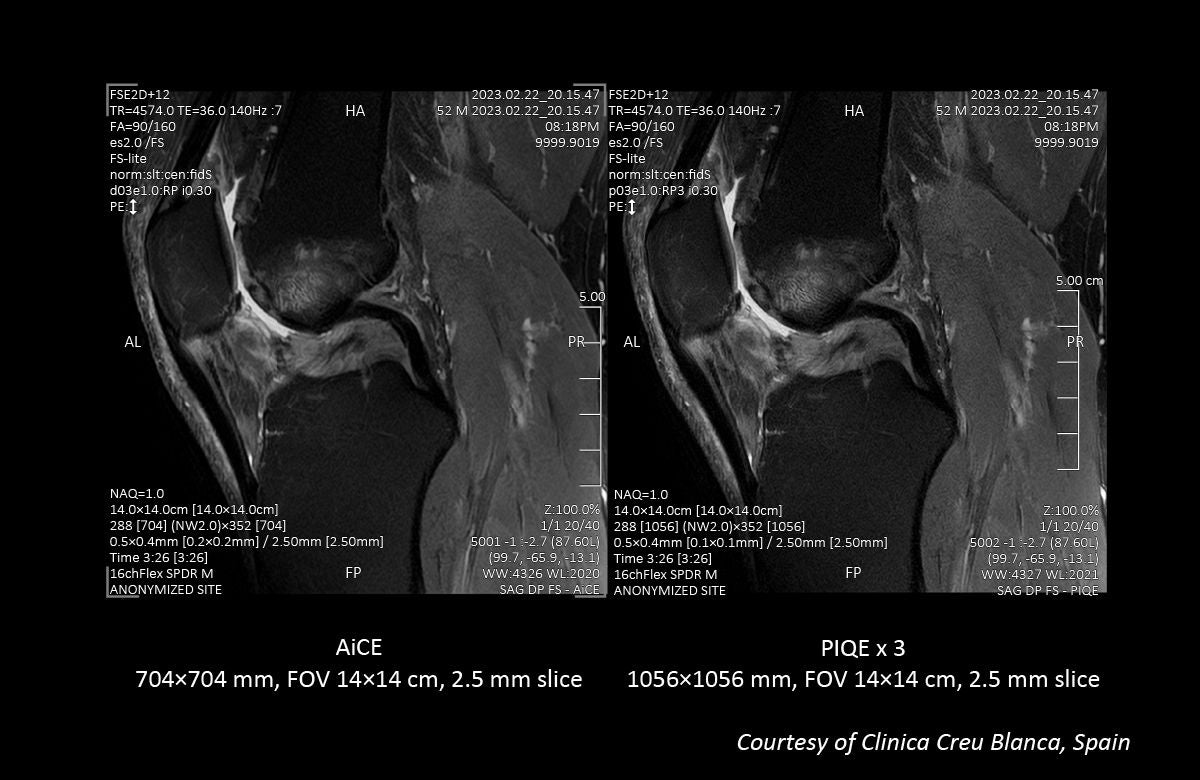

Knee
2D FSE
Vantage Orian 1.5T
High-Definition PIQE Images can be acquired by implementation of a Deep Learning Noise and Ringing Reduction Techniques while utilizing up to 3 x Up-Sampling Image Reconstructions.
Key Clinical Imaging Tip:
2.5 mm Through-Plane and Decrease In-Plane Matrix for maintaining SNR while enhancing Anatomical Detail and Extent Pathology/Edema in Bone.

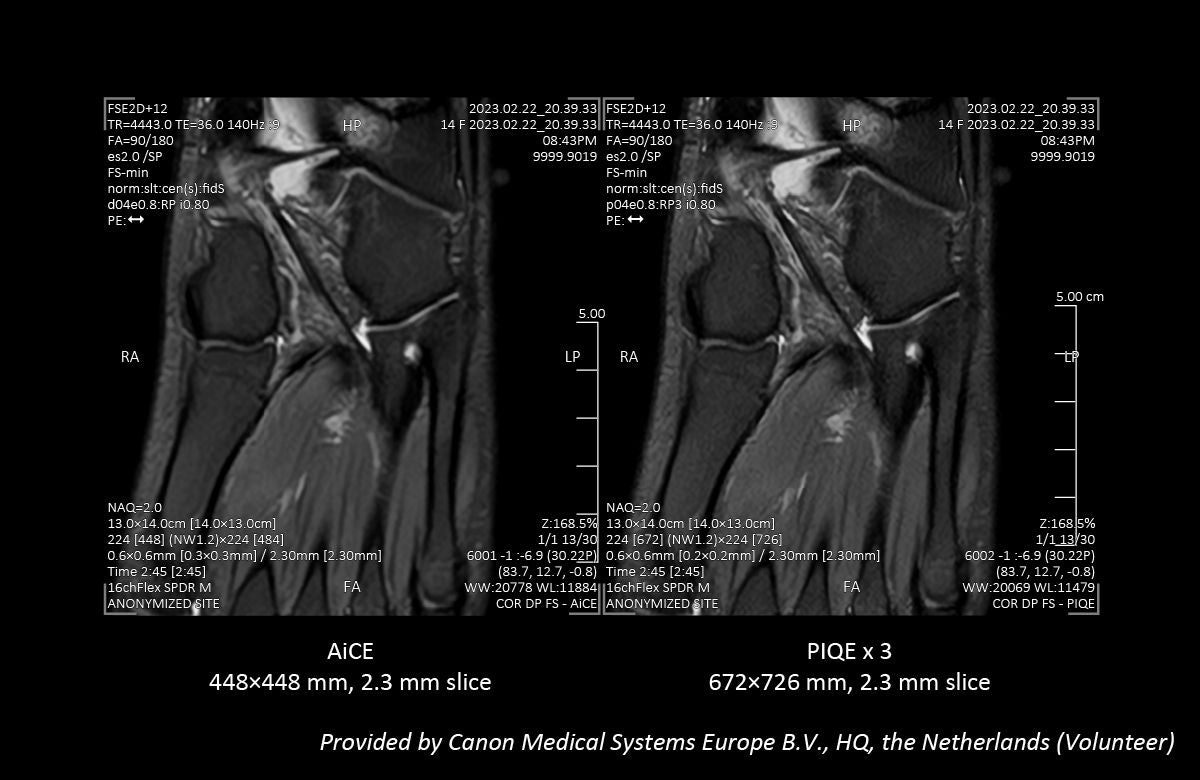

Foot
2D FSE
Vantage Orian 1.5T
High-Definition PIQE Images can be acquired by implementation of a Deep Learning Noise and Ringing Reduction Techniques while utilizing up to 3 x Up-Sampling Image Reconstructions.
Key Clinical Imaging Tip:
2.3 mm Through-Plane and Decrease In-Plane Isotropic Matrix for maintaining SNR while enhancing Anatomical Detail for Ligament and Tendon Visualization.
- Disclaimer
Some features presented in this article may not be commercially available on all systems shown or may require the purchase of additional options. Due to local regulatory processes, some commercial features included in this publication may not be available in some countries. Please contact your local representative from Canon Medical Systems for details and the most current information.
Deep Learning technology is used in the design stage of the image reconstruction processing. The system itself does not have self-learning capabilities. The contents of this report include the personal opinions of the authors based on their clinical experience and knowledge.
