Brain

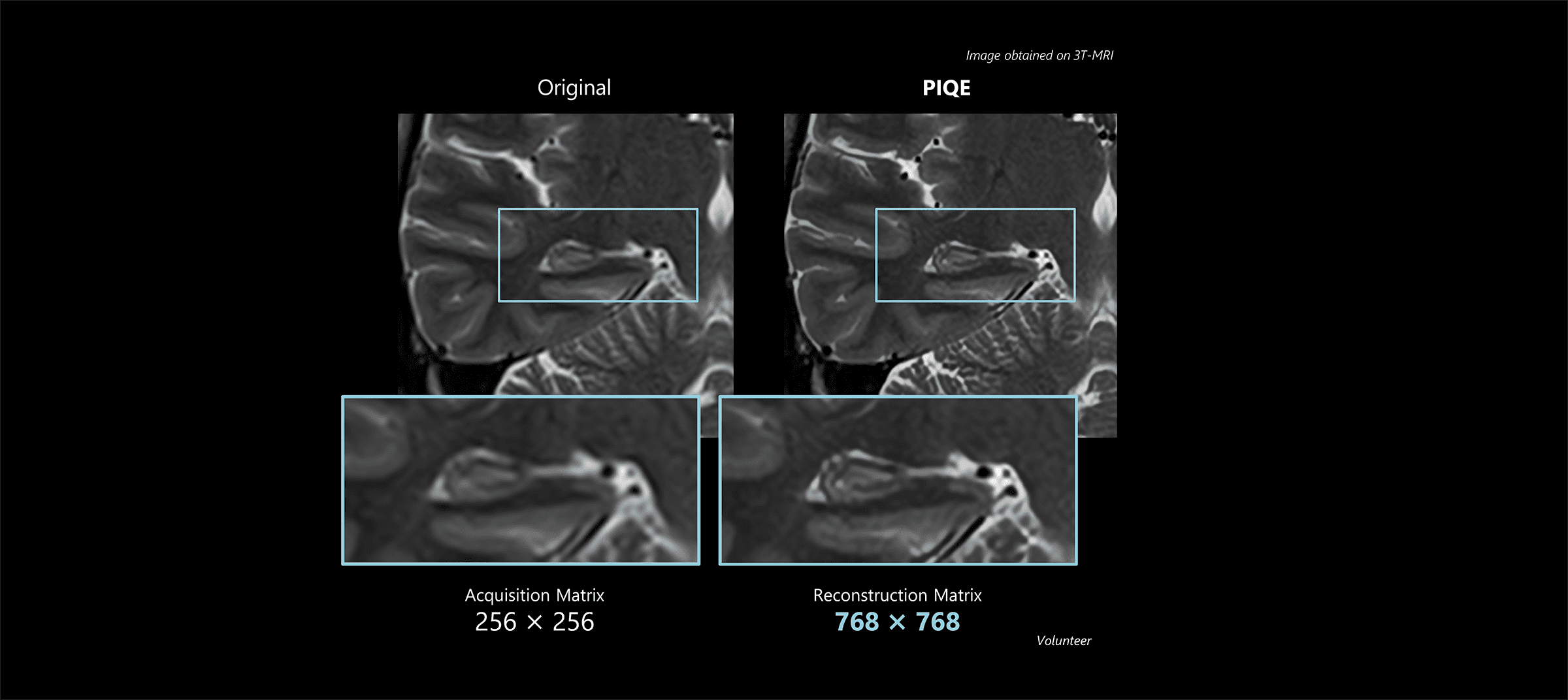

Cor T2w for hippocampus

Example of a high-resolution image of the hippocampus using Precise IQ Engine (PIQE). The original image is 256 matrix with low resolution and high signal-to-noise ratio (SNR). Even though the scan time is reasonably short and the slice thickness is as thin as 2 mm, the image is clear and demonstrates good contrast.
Brain
Brain
× 拡大画像

Brain

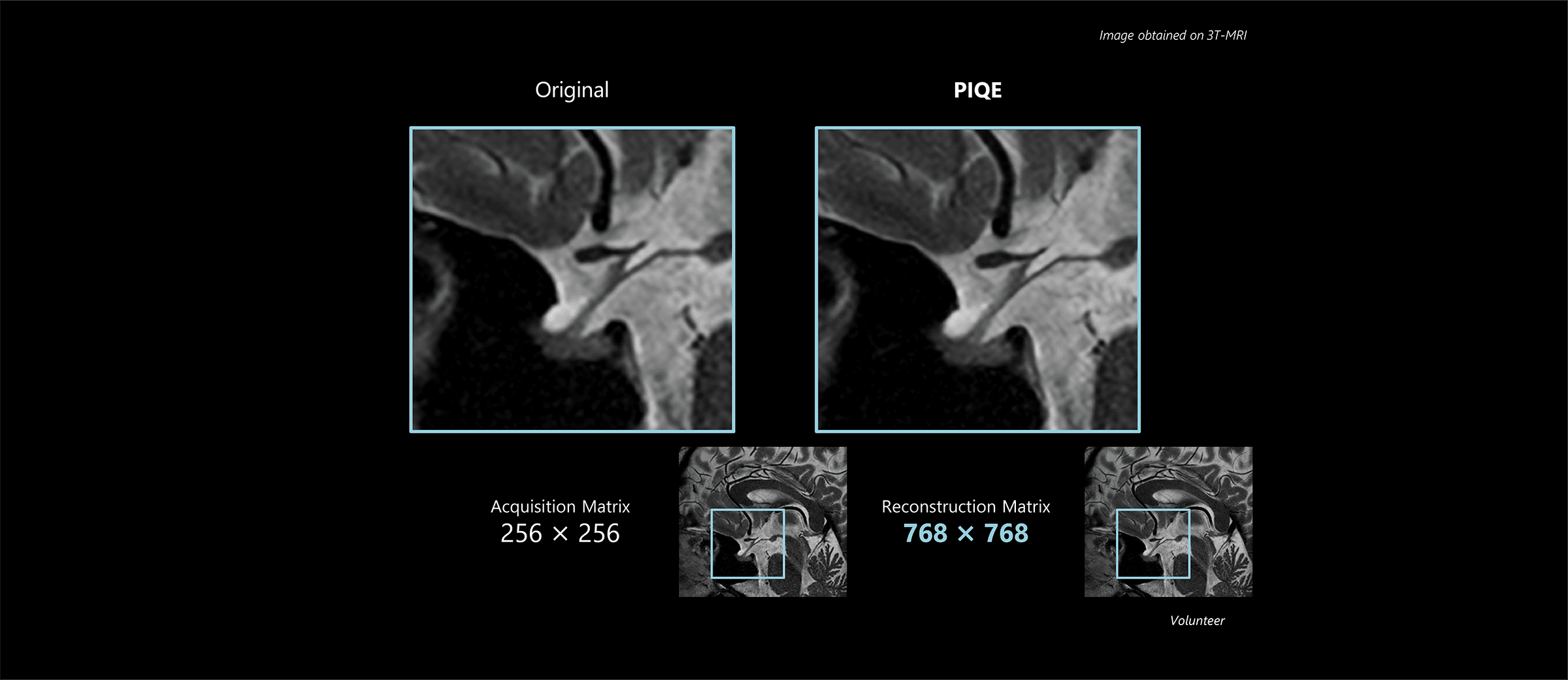

Sag T2w for pituitary

Using a regular head and neck coil, with a collection matrix 256 × 256 setting, imaging can be performed in approximately 1 minute. Structures around the pituitary gland are clearly visible. Acquisition time: 1:08
Brain
Brain
× 拡大画像

Brain

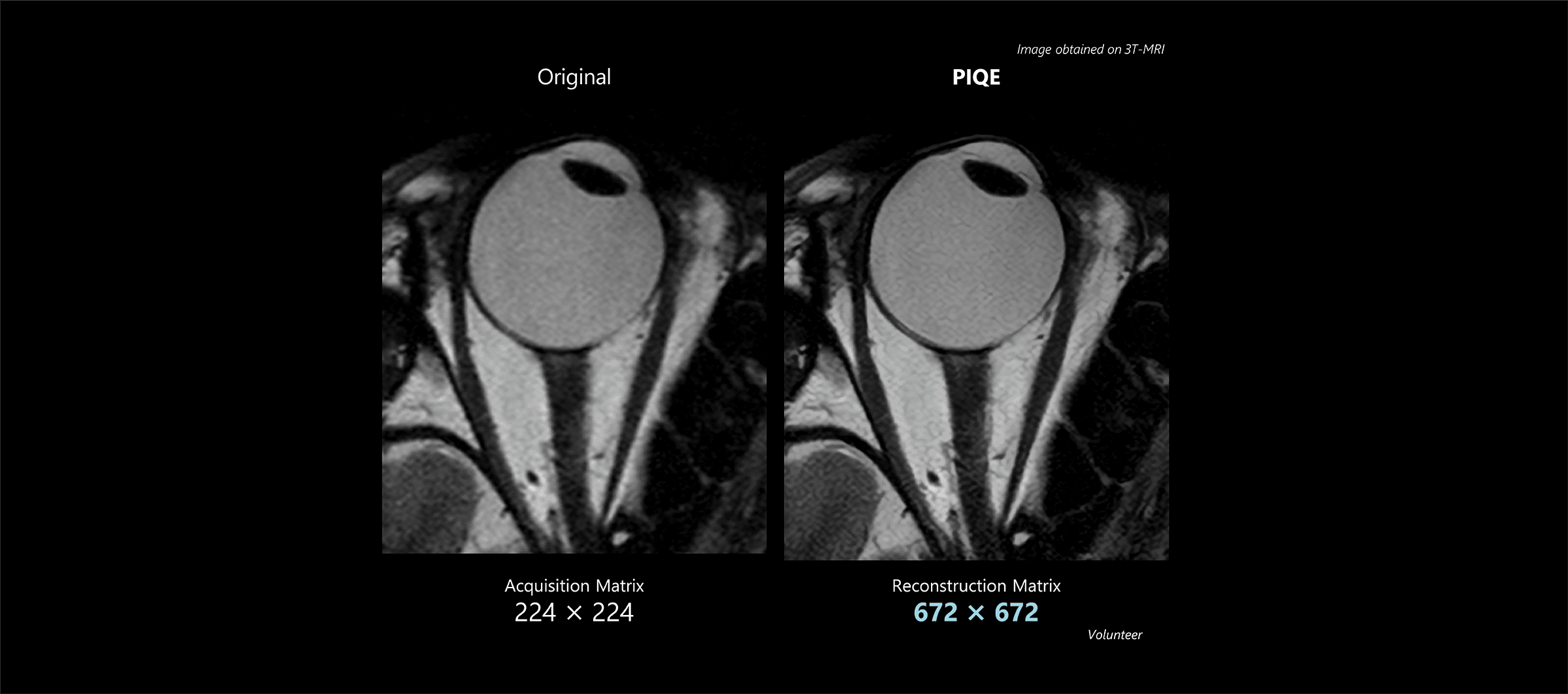

Axi T2w for orbit

Orbit image. Did not require a dedicated coil such as a circle coil to image the orbit. The image can be acquired in only 30 seconds using a normal head/neck coil with a small field of view (FOV) and low resolution. The structures around the lens are clearly visible. Acquisition time: 0:36
Brain
Brain
× 拡大画像

Brain

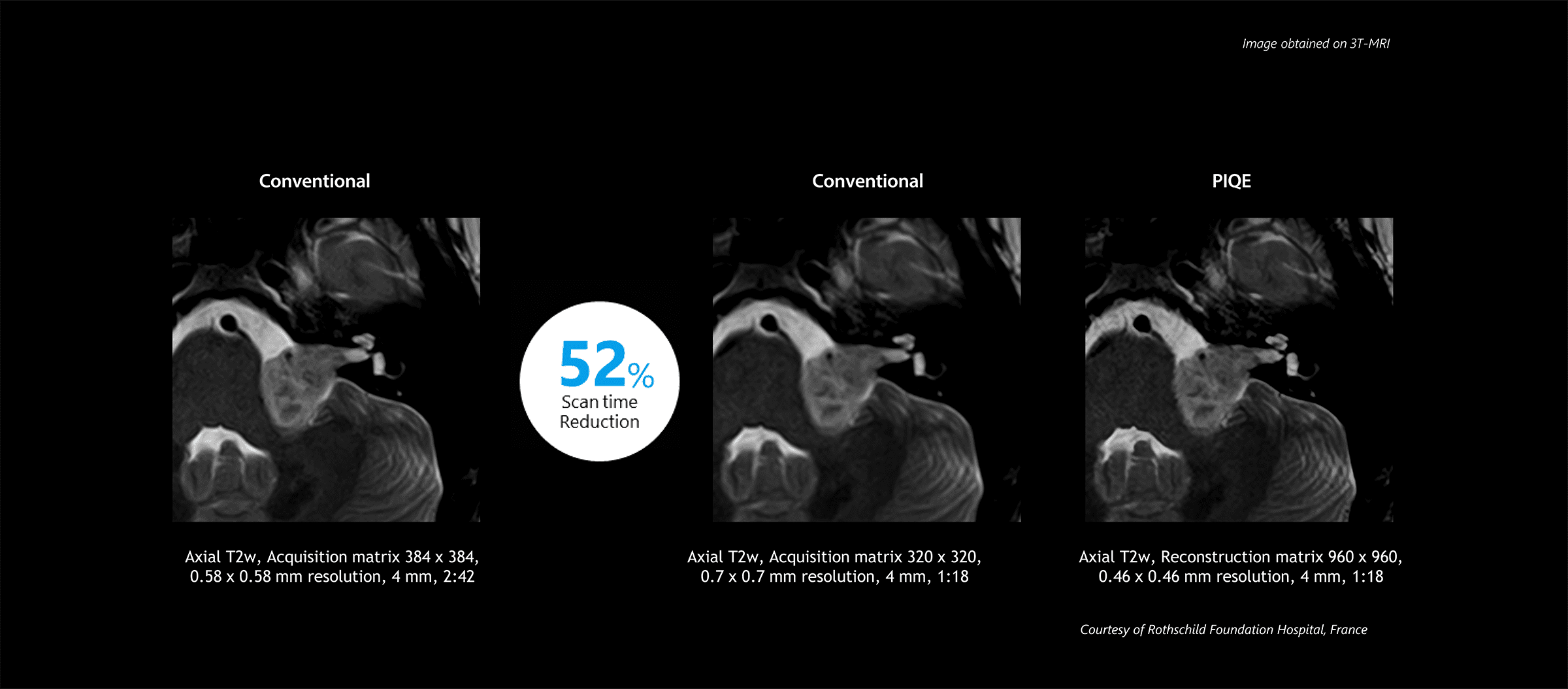

Axi T2w for Brain

As this case is acquired with a 3T system, increasing the matrix over 512 × 512 will result in poor SNR and reduced contrast. PIQE was applied after reducing the matrix to improve SNR and further shortening the scanning time. As a result, scan time was reduced by 53% while still achieving high resolution.
Brain
Brain
× 拡大画像

MSK

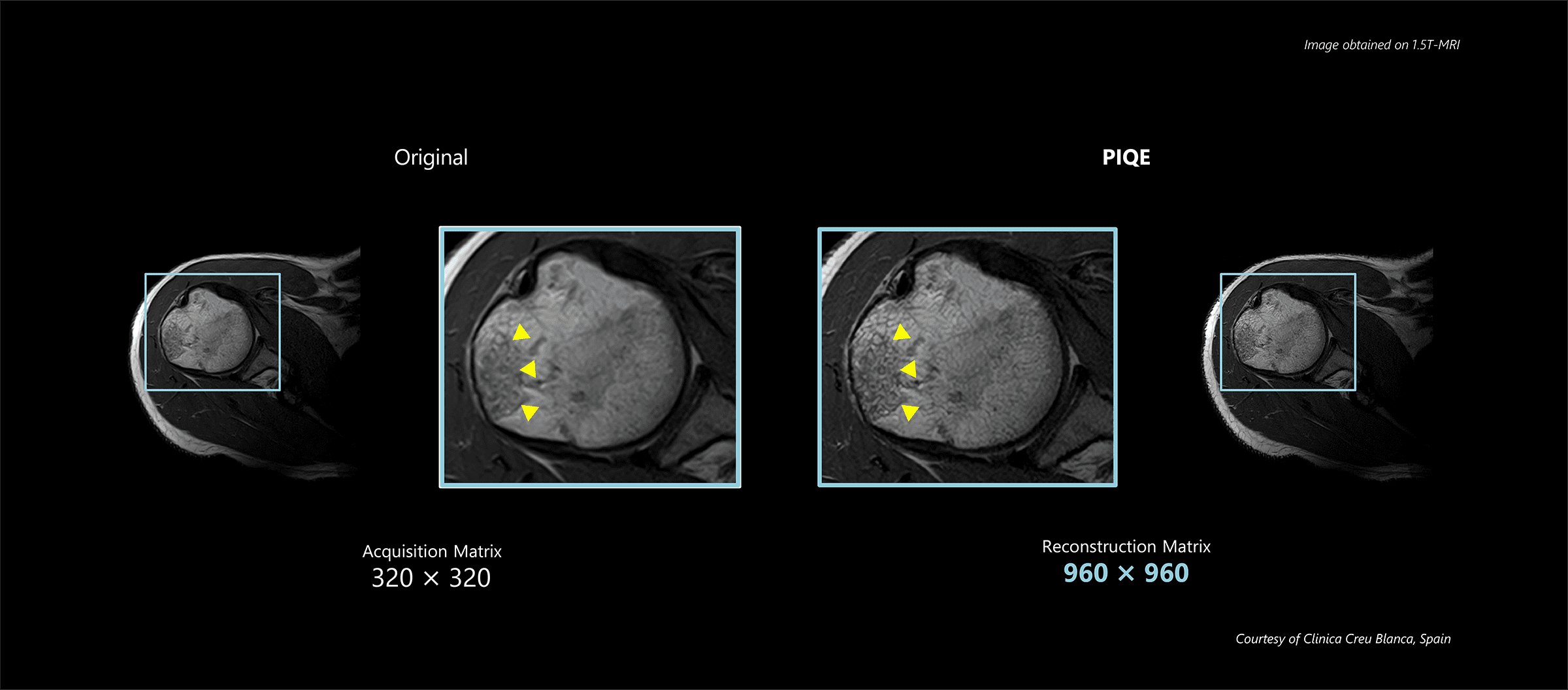

Axiall PDw for shoulder

PIQE capturing the structure more finely at three times the resolution.
MSK
MSK
× 拡大画像

MSK

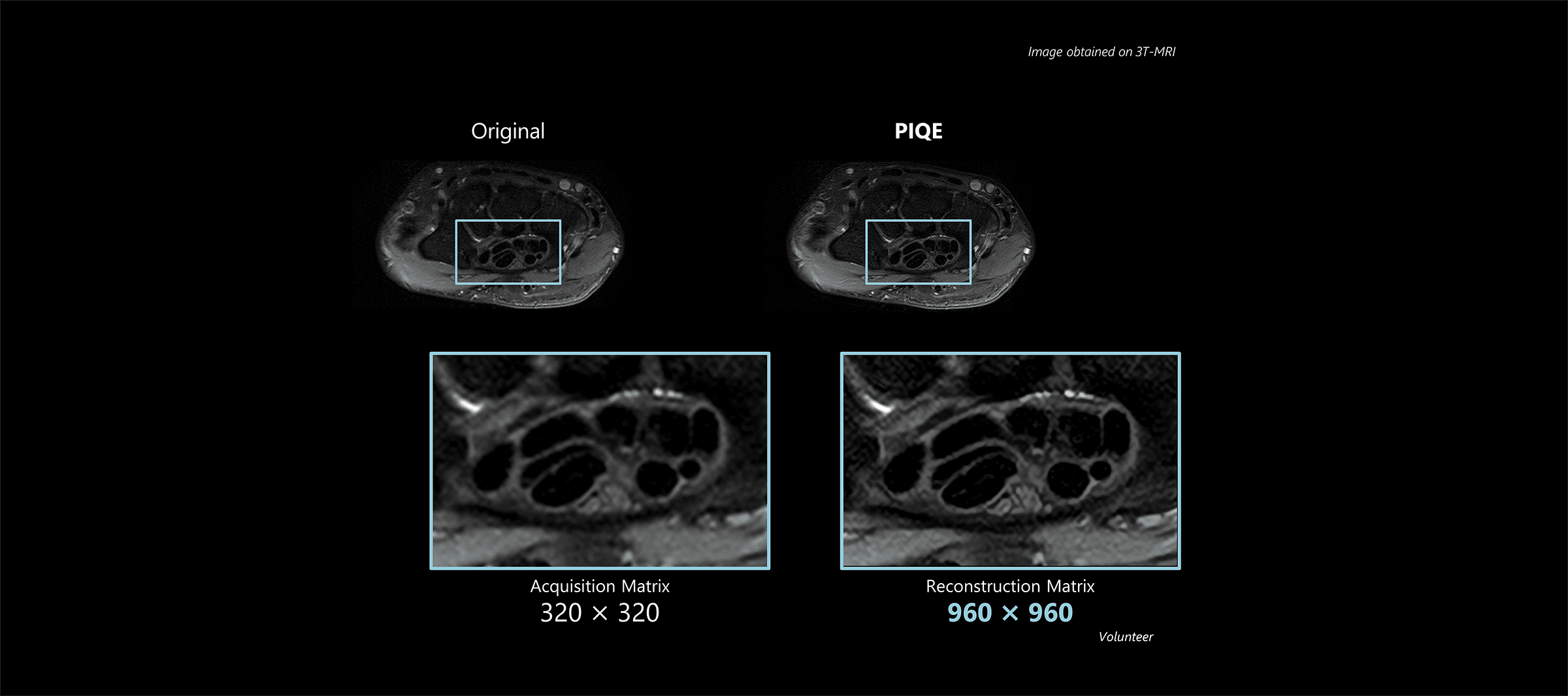

Axial FS PDw for median nerve

Using a 16ch Flex SPEEDER Medium coil and an acquisition matrix 320 × 320 setting, imaging can be performed in approximately 3 minutes. Structures around the median nerve can be clearly identified. Acquisition time: 3:14
MSK
MSK
× 拡大画像

MSK

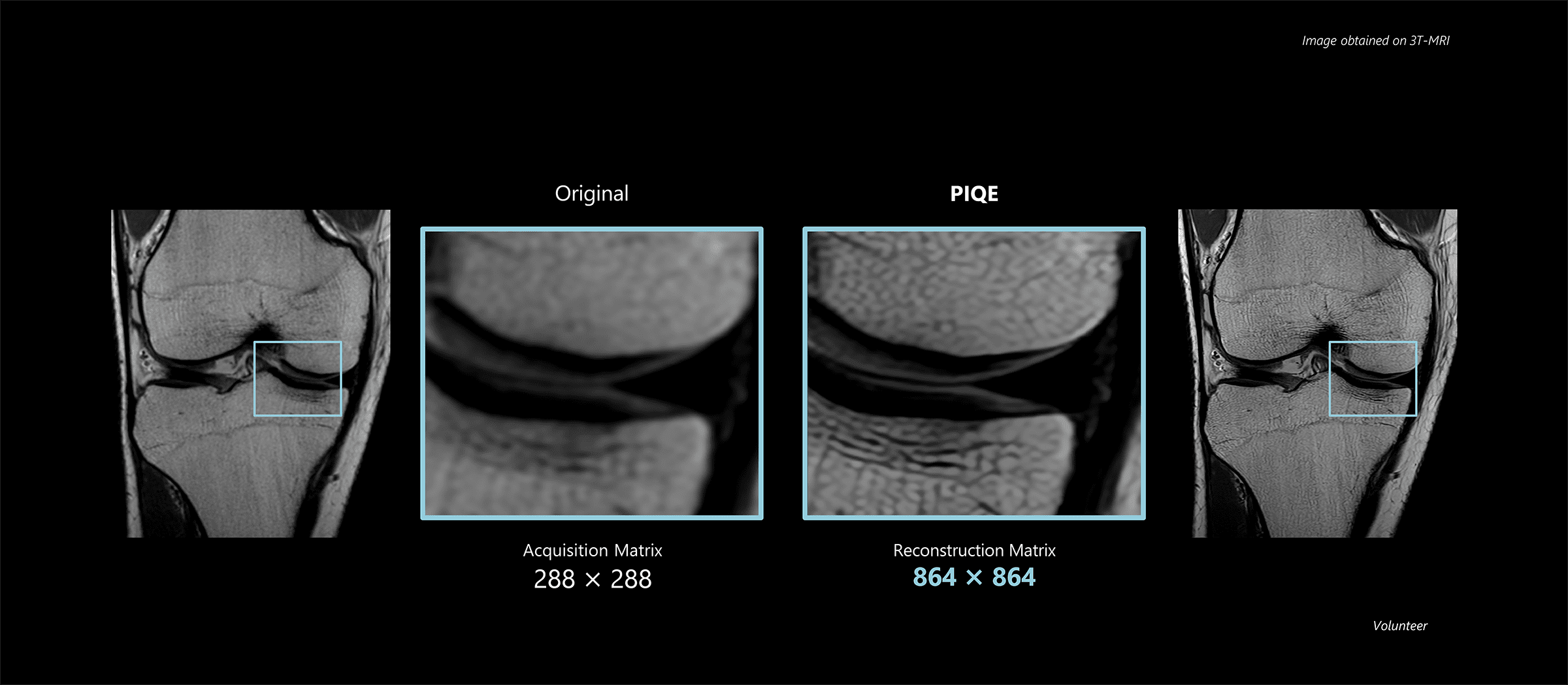

Coronal PDw for Knee

Traditionally it has taken a long time to obtain higher resolution images in the MSK region. With PIQE, higher resolution images can be obtained in a realistic amount of acquisition time. PIQE clearly delineates the fine structures around cartilage and meniscus.
MSK
MSK
× 拡大画像

MSK

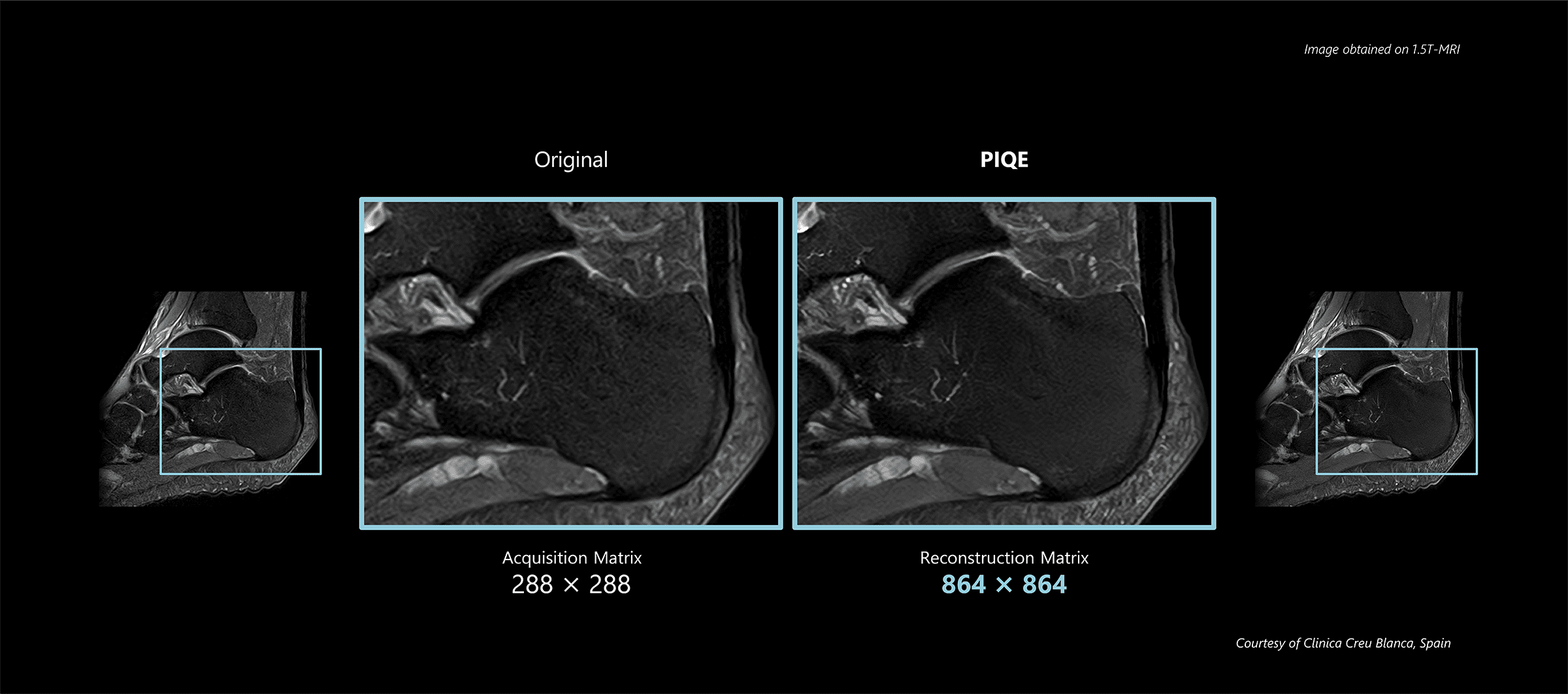

Sagittl FS PDw for ankle

This is a heel FS PDw image, with PIQE capturing the structure more finely at three times the resolution.
MSK
MSK
× 拡大画像

MSK

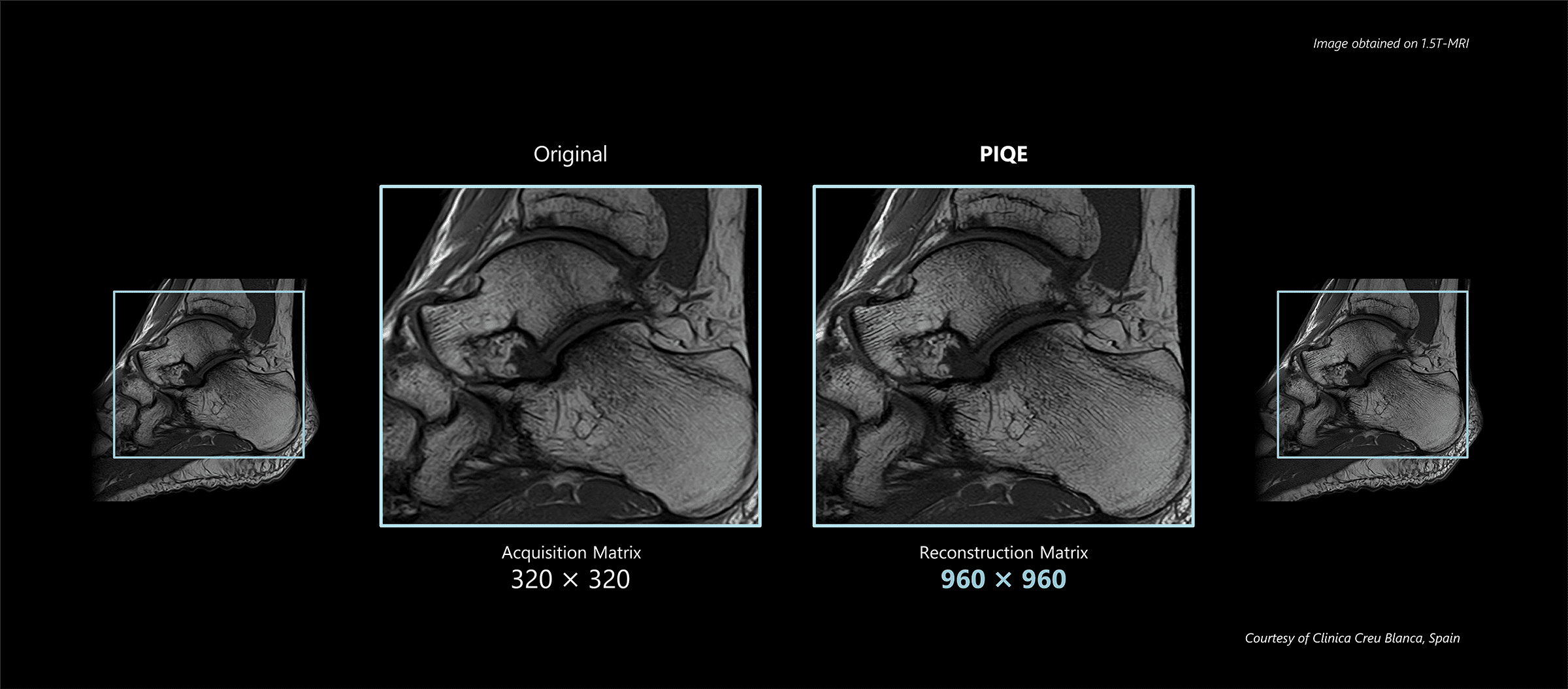

Sagittal T1w for ankle

This is a heel T1w image, with PIQE captures the structure with much more detail at three times the resolution
MSK
MSK
× 拡大画像

Pelvis

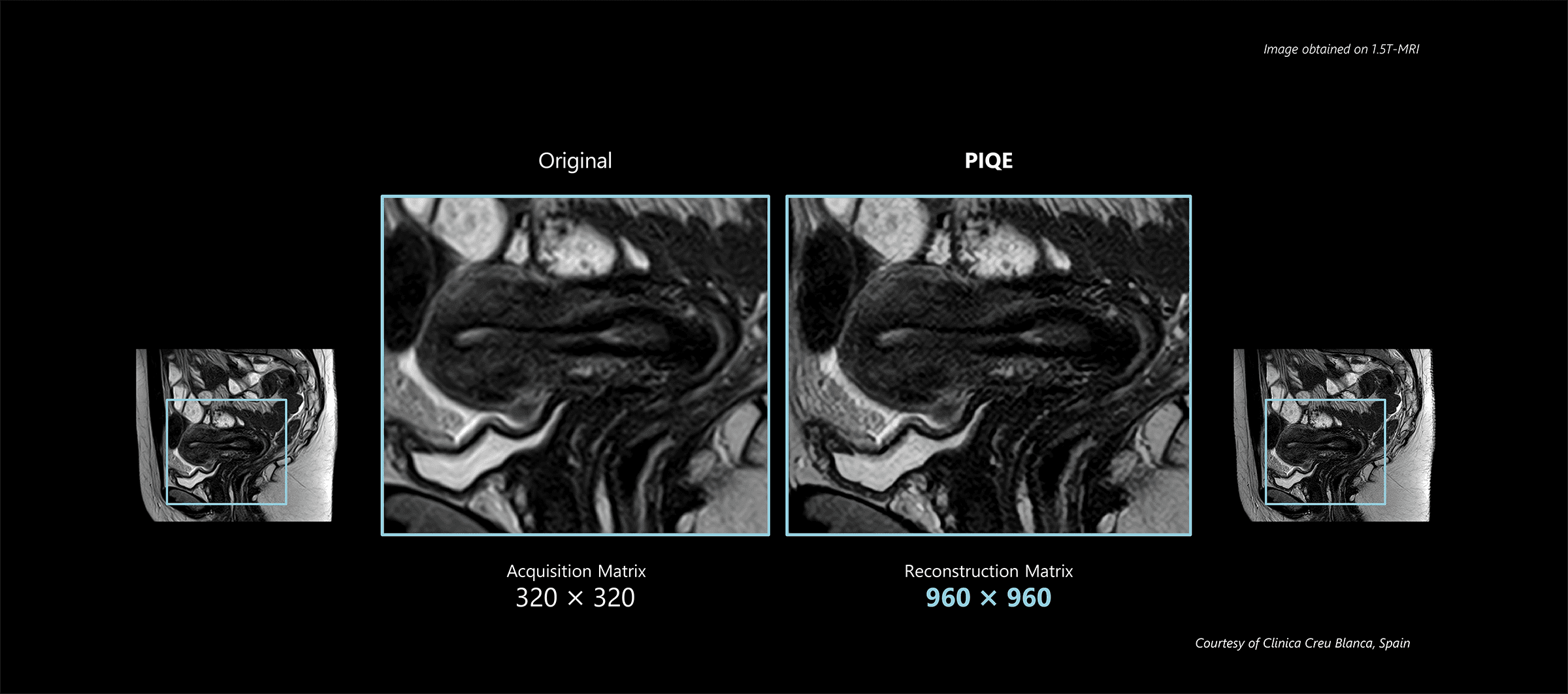

Sagittal T2w for Pelvis

PIQE captures the structure more finely at three times the resolution.
Pelvis
Pelvis
× 拡大画像

Spine

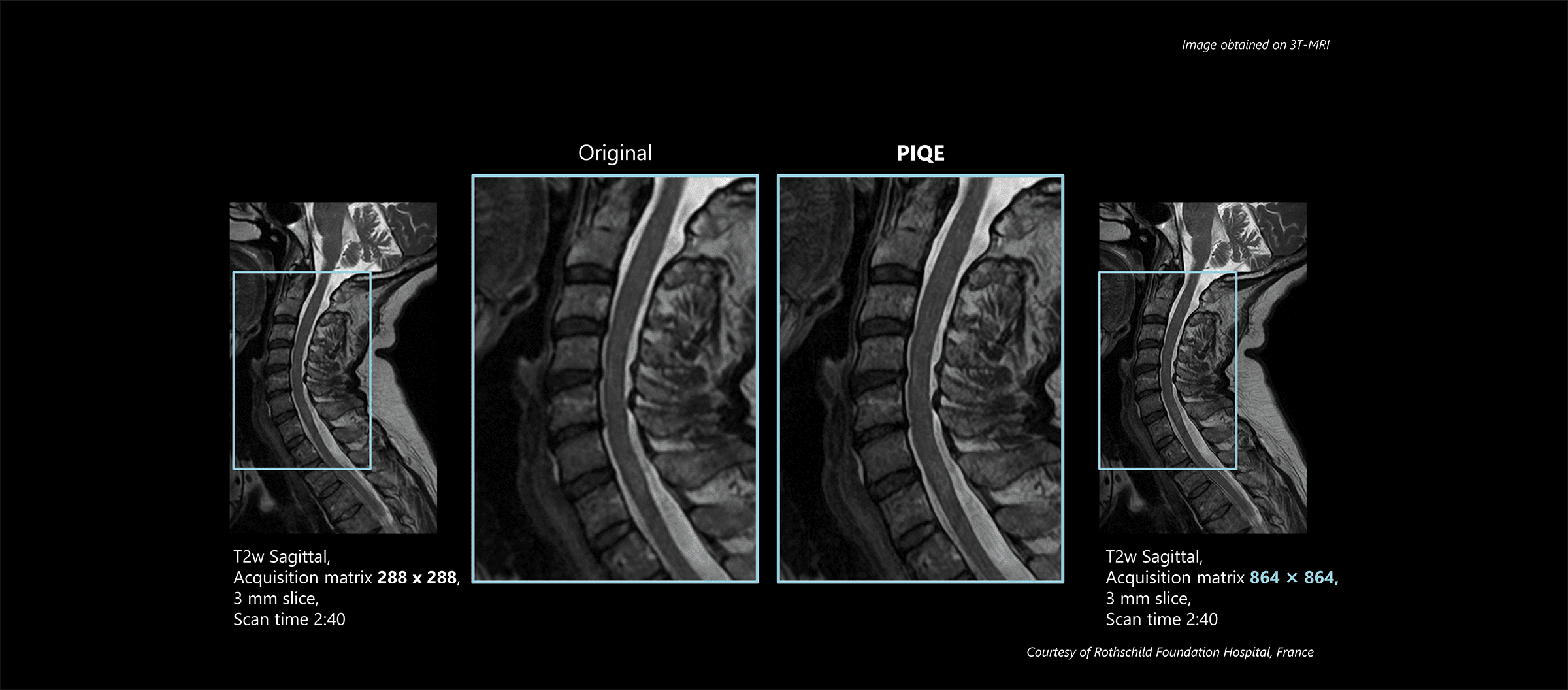

Sagittal T2w for c spine

The original image is a 288 matrix with a 3 mm slice thickness and relatively low resolution, resulting in high SNR. PIQE reconstruction can acquire high quality images within acceptable scan times.
Spine
Spine
× 拡大画像

Brain

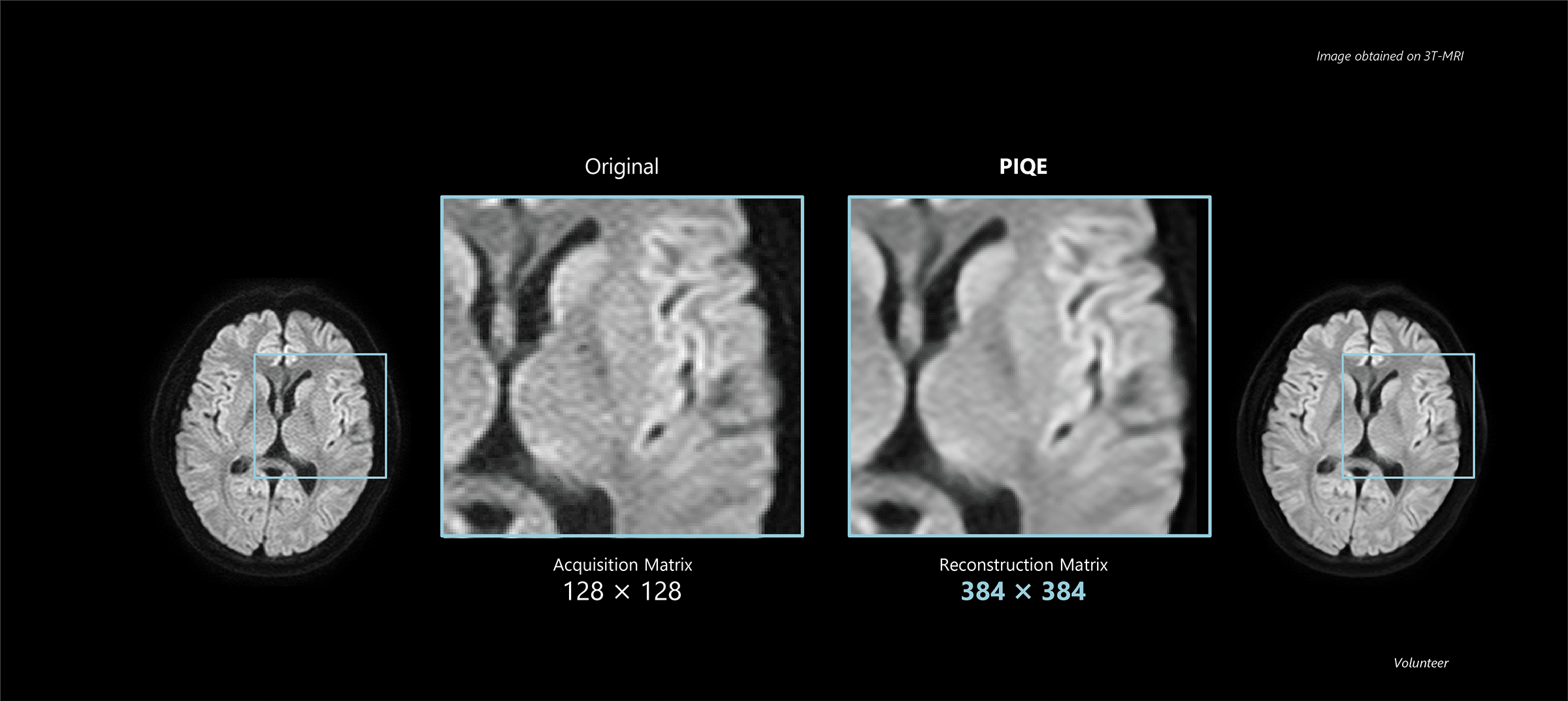

Axial FE2D T2*

Volunteer image with PIQE adapted to SEEPI DWI sequence. PIQE captures the structural detail more finely at three times the resolution.
Brain
Brain
× 拡大画像

Brain

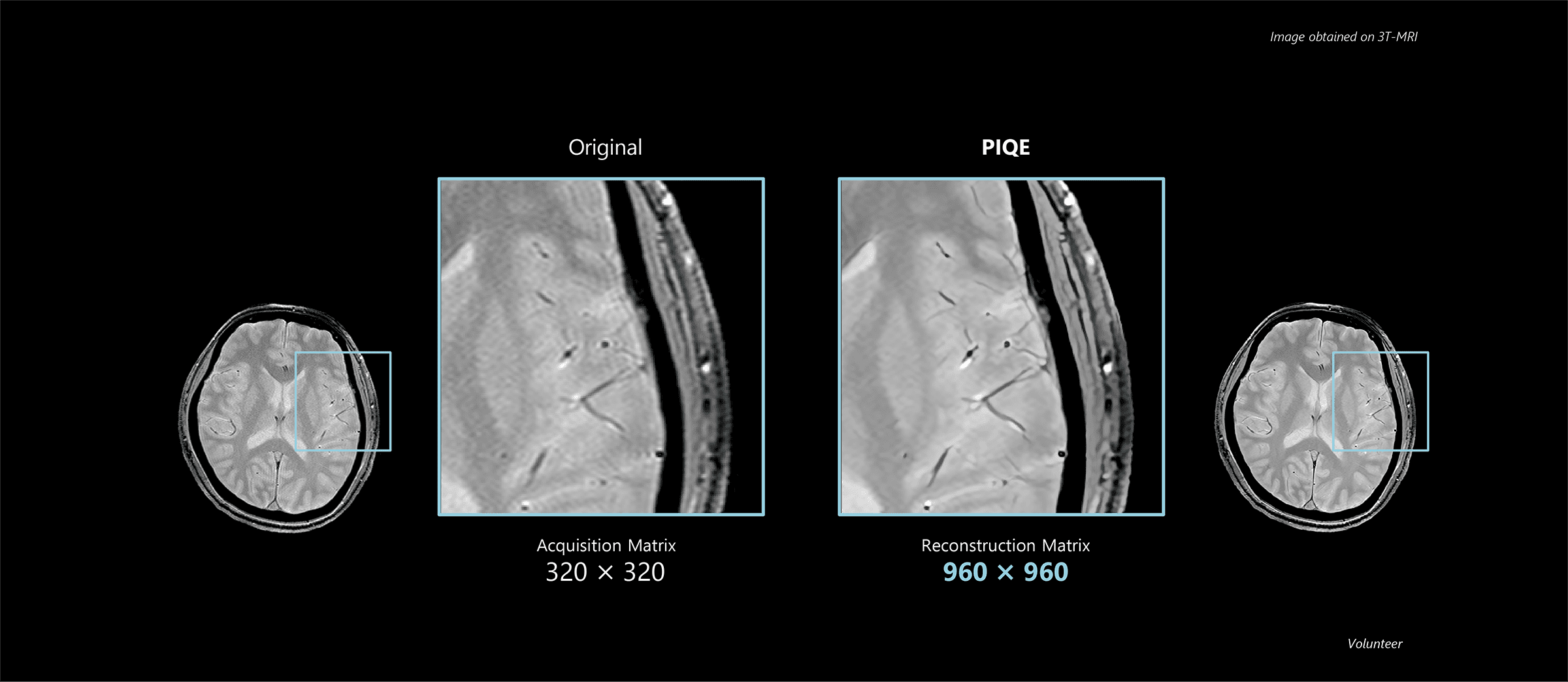

Axial FE2D T2*

Volunteer image with PIQE adapted to FE2D T2* sequence. Ringing artifacts are reduced by PIQE reconstruction.
Brain
Brain
× 拡大画像
