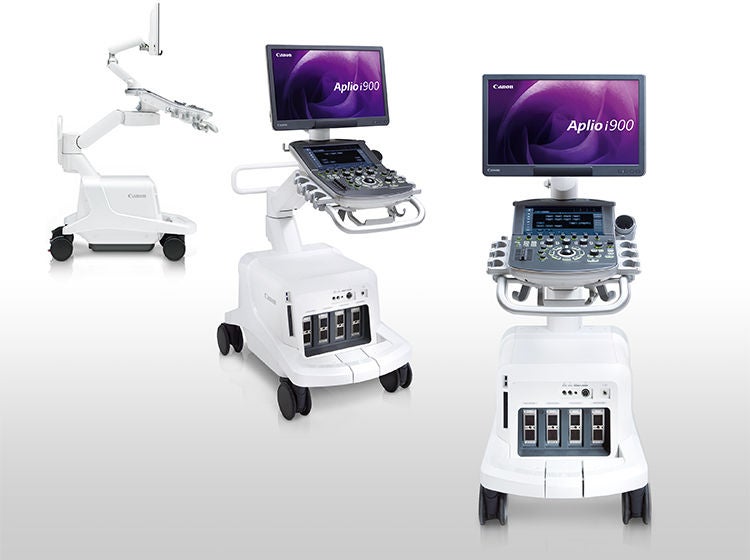

Maximize advanced cardiac ultrasound performance

As cardiac ultrasound requirements become more complex, Aplio allows you to grow your cardiac scanning capabilities over time or you can jump straight to our outstanding 3D/ 4D imaging technologies with our premium Aplio i900 / Prism Edition ultrasound machine.

Sleeker design, more punch.

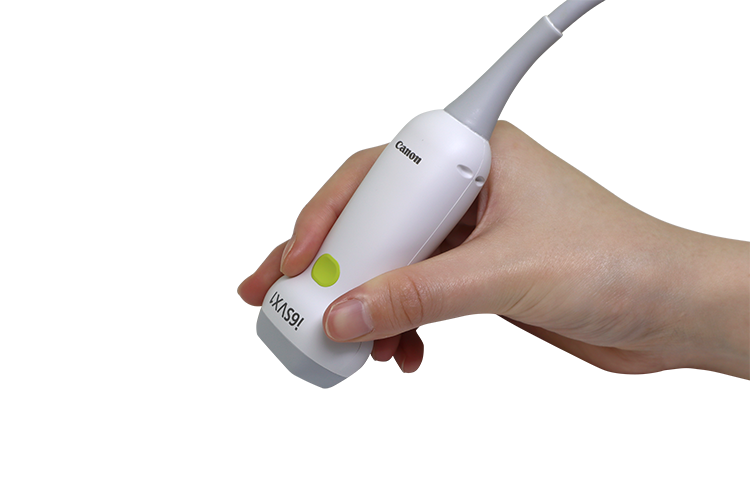

PSI-28VX (i6SVX1)

Aplio’s 3D TTE transducer PSI-28VX features improved ergonomics, higher sensitivity and penetration, as well as a sharper and more realistic volumetric image reconstruction.
The lightweight and ergonomic transducer is designed as a single-probe solution addressing the full range of transthoracic echocardiographic applications.

Features:

  • Single crystal technology
  • Longer transducer body for easier grip
  • Light weight
  • Rounder shape for easier rotation

Any view. Any detail. Precisely captured.

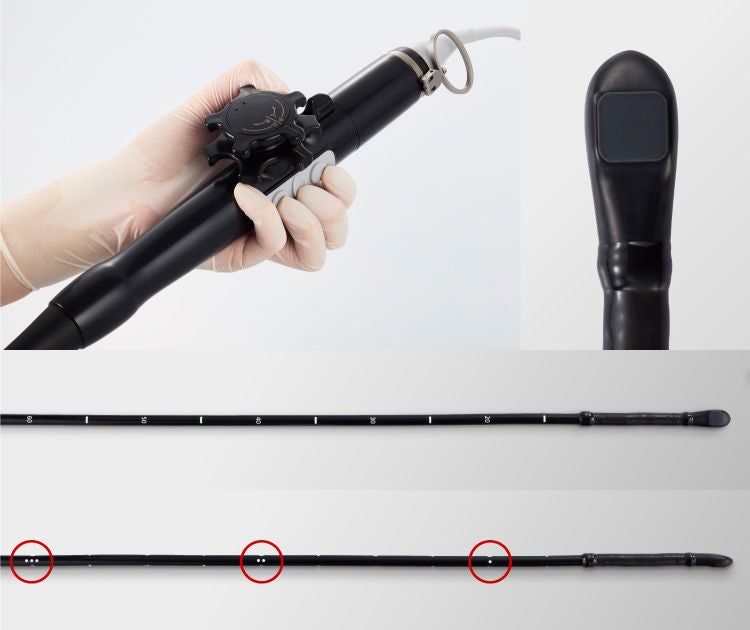

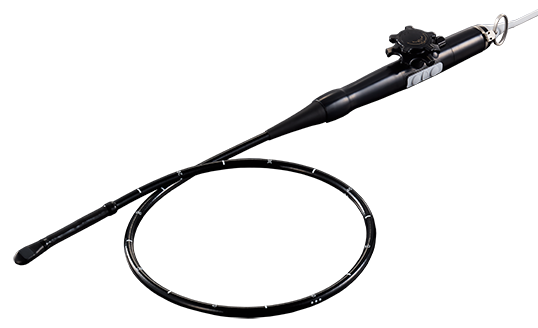

PEI-514VX (i7SVX1)

Canon’s new 3D TEE transducer PEI-514VX delivers high-resolution, high-frame-rate imaging and straightforward probe handling for advanced echocardiography and interventional guidance, helping ensure superior clarity, accuracy and workflow efficiency.


Features:

  • Single crystal
  • Streamlined probe tip for easy insertion
  • Adding a click locking system to the control knob
  • Lightweight
  • Efficient operation with three buttons for CW, Rotate CCW plane, and Freeze/Auto-store
  • Depth marking on the side of tube to indicate insertion length

Accurate quantification and reporting, regional myocardial function

Functional assessment is at the heart of cardiovascular imaging. By providing valuable additional information in easy-to-understand visual, parametric or quantitative formats, Canon's advanced clinical functions can help you get your diagnostic answer faster and more reliably.

Automated cardiac function, regional myocardial assessment
Aplio enables accurate and reproducible cardiac quantification in just a few clicks. The system automatically calculates Ejection Fraction, LV volumes and other important parameters.

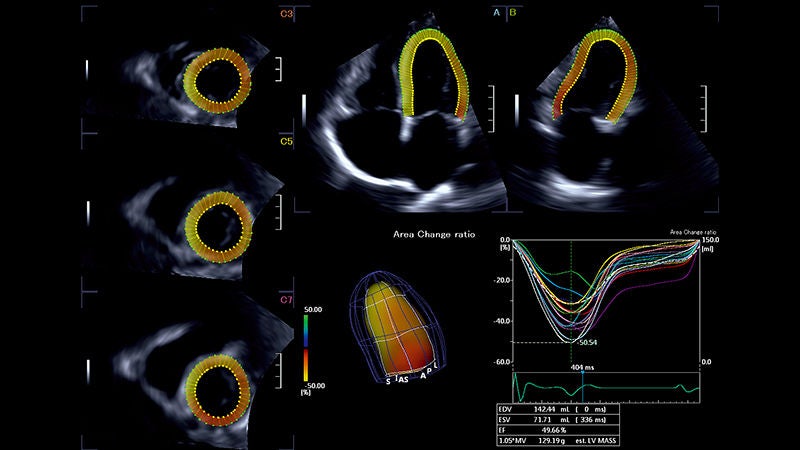

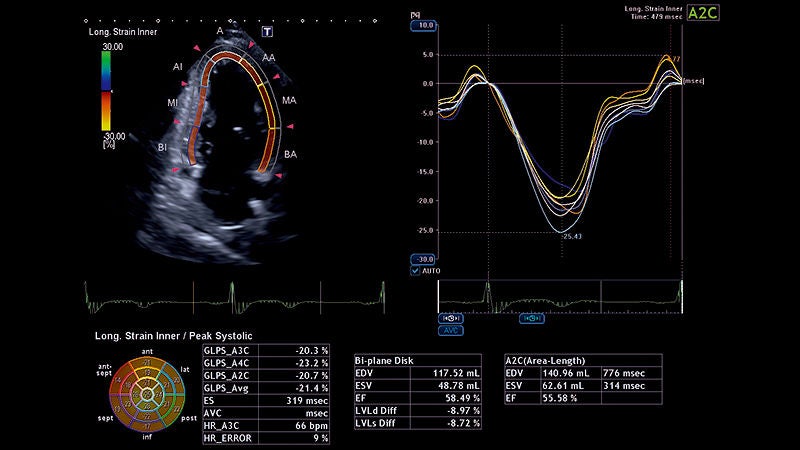

Wall Motion Tracking

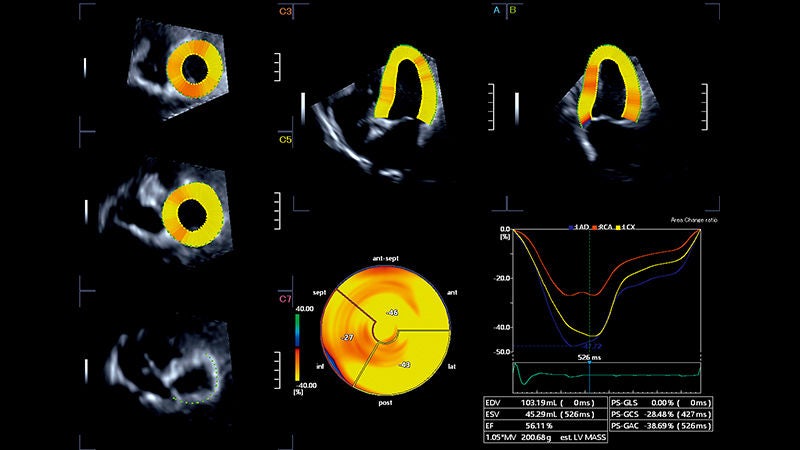

Aplio’s advanced Wall Motion Tracking technology provides immediate visual and quantitative access to global and regional myocardial wall motion dynamics in 2D and 3D, including layer-specfic strain.

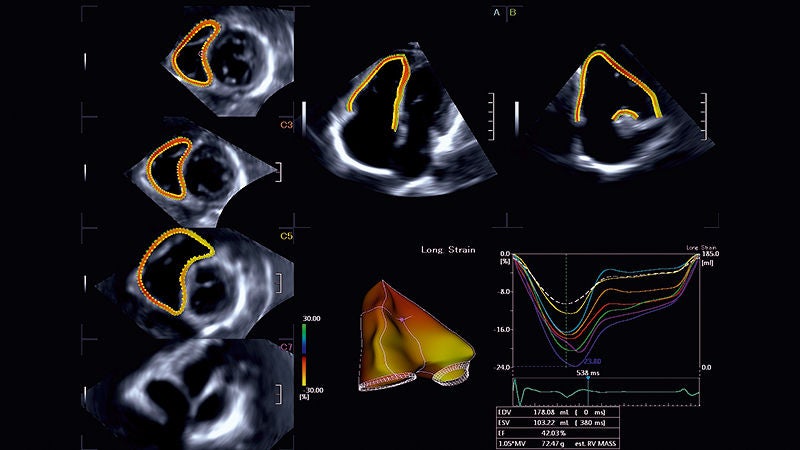

Right ventricular function
3D Wall Motion Tracking is also available for the right ventricle with functional display in the RV model as well as segmental waveforms.

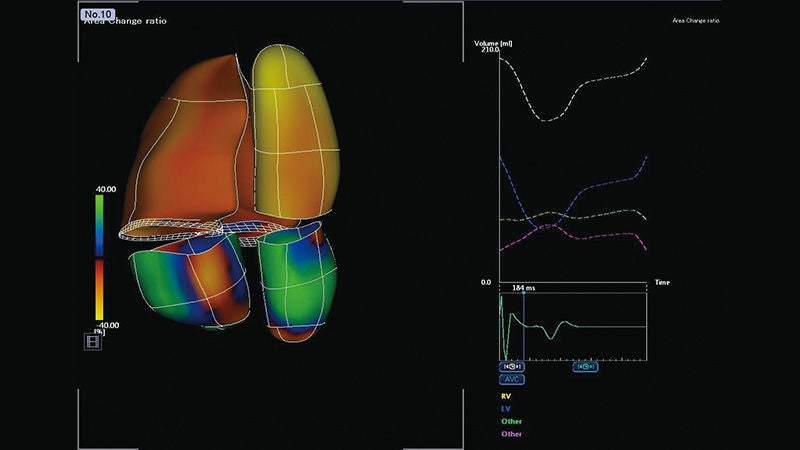

Quad-chamber tracking
Quad-chamber tracking displays the tracking of multiple cardiac chambers in one view along with waveforms.

All information in a simple overview
However complex and detailed the analysis results are, Aplio displays relevant data in a clear, easy-to understand format.

Ultrasound procedures

Aplio i900 / Prism Edition provides a comprehensive set of tools to assess patient suitability for THV deployment or clipping procedures, as well as for procedural planning and monitoring.

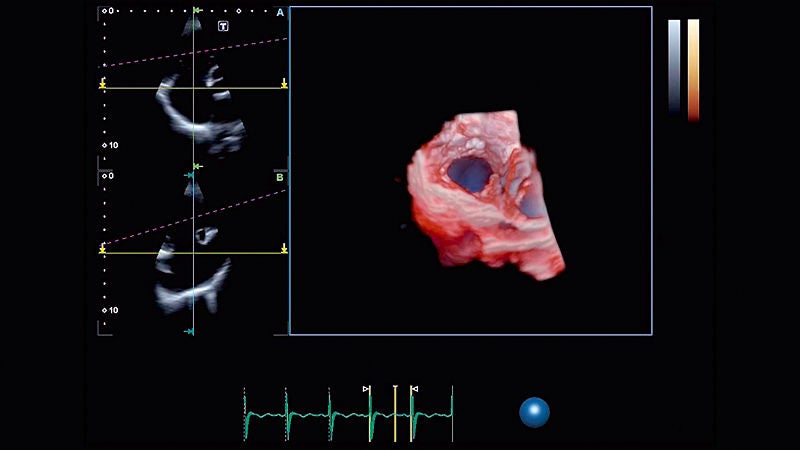

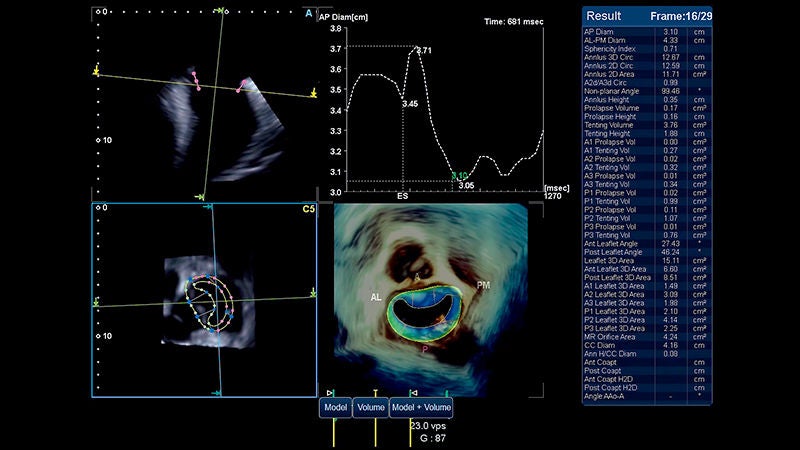

Mitral Valve Analysis (MVA)
The MVA tool provides concise anatomic and functional assessment of the mitral valve. The function’s quad display offers a clear overview of different scan planes.

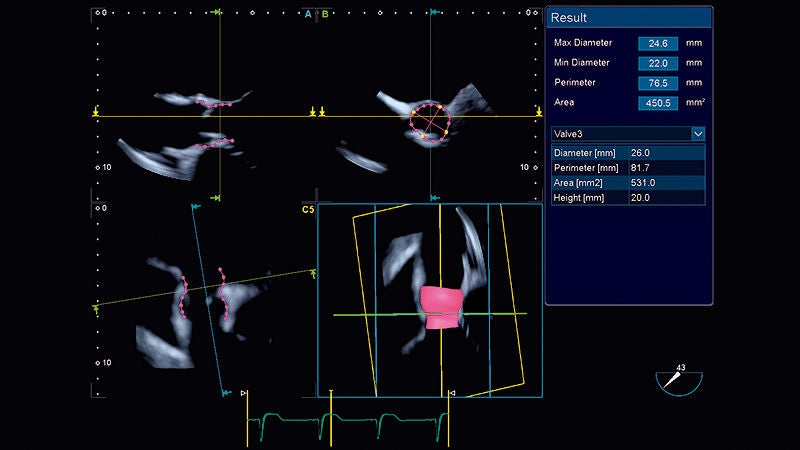

Aortic Valve Analysis (AVA)
The AVA tool is a comprehensive solution for the evaluation of patient suitability for TAVI, as well as for planning and monitoring the intervention.

Turn your clinical data into actionable insights

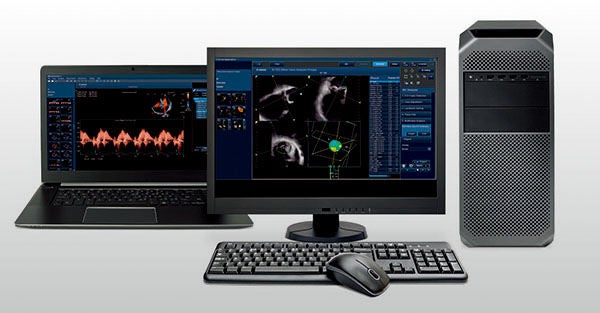

With UltraExtend NX you have access to your clinical data and diagnostic tools anywhere, anytime, just like on your Aplio ultrasound machine.

  • The embedded raw data functionality of Aplio allows you to review, analyze, report and save your clinical data quickly and easily with UltraExtend NX.
  • The integrated patient and image management system allows you to review and manage your study data conveniently offline.

A straightforward solution for clinical studies

Organizing and managing your clinical data can be challenging, especially when they are acquired alongside your daily routine. UltraExtend NX is a simple solution to organize and keep track of your cases in an efficient yet affordable manner.



Aggregating your study data

The software’s built-in patient browser and comprehensive connectivity options allow you to organize your study data quickly and efficiently - even when they are acquired at multiple sites.



Optimizing your workflow

Canon’s raw data architecture can help streamline your workflow by allowing you to work offline while freeing your ultrasound machine for many of the usually time-consuming procedures.

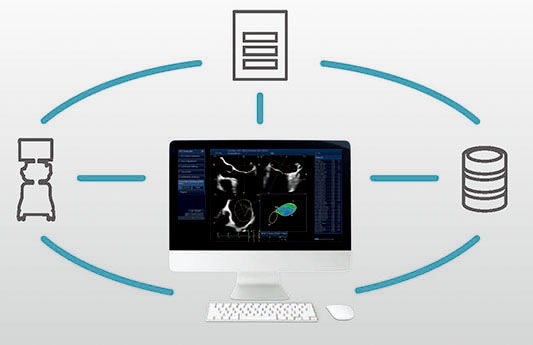

One solution – many possibilities

UltraExtend NX allows you to work with a variety of network situations. The software can for instance fetch data directly from your ultrasound machine and local NAS*; or send your results to your departmental PACS.



*NAS: Network Attached Storage; not included


Explore fetal and pediatric hearts in exceptional detail

To satisfy the sophisticated requirements of pediatric imaging, Aplio i900 / Prism Edition offers a wide range of dedicated transducers and software tools for neonatal to adolescent imaging. Canon's advanced fetal echocardiography tools provide remarkable visualization for every phase of the pregnancy, including the important first trimester.

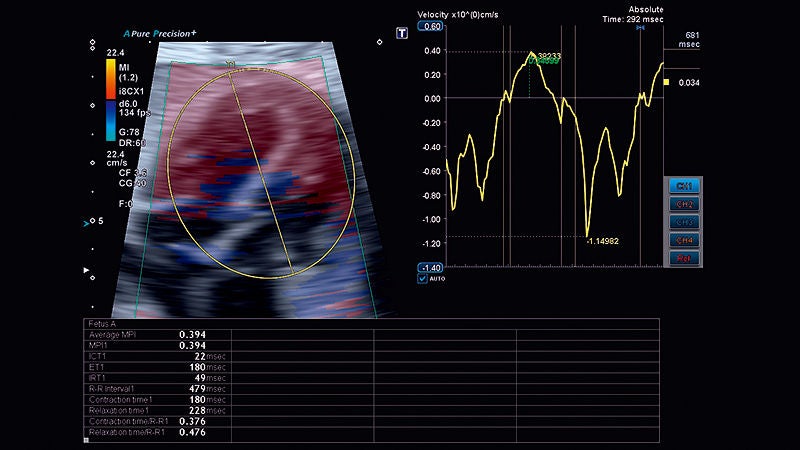

Aplio allows you to determine the Myocardial Performance Index (MPI) and other timings of a fetal heart based on standard Tissue Doppler, making it a practical tool for advanced imaging with high temporal resolution.

Small and lightweight in design, the dedicated matrix array transducer for pediatric application provides data which can be very helpful for in-depth evaluation of complex cardiac malformations in 3D/4D.

Outstanding penetration, optimal signal quality for vascular imaging
Vascular exams can be clinically challenging, with increasingly complex requirements. Aplio i900 / Prism Edition’s dedicated transducers provide optimal imaging resolution and sensitivity for many vascular applications, while automated scan protocols and measurements help you improve efficiency and consistency.

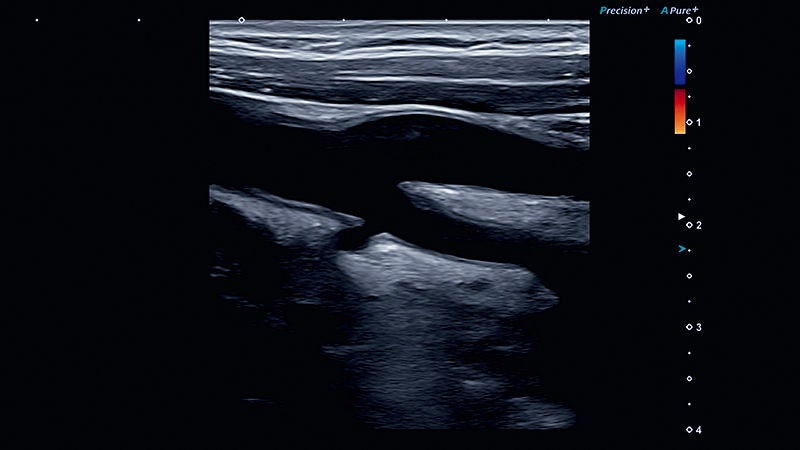

Canon's wideband transducers deliver outstanding imaging contrast and resolution over an extended range of depths, even in difficult-to-image patients.

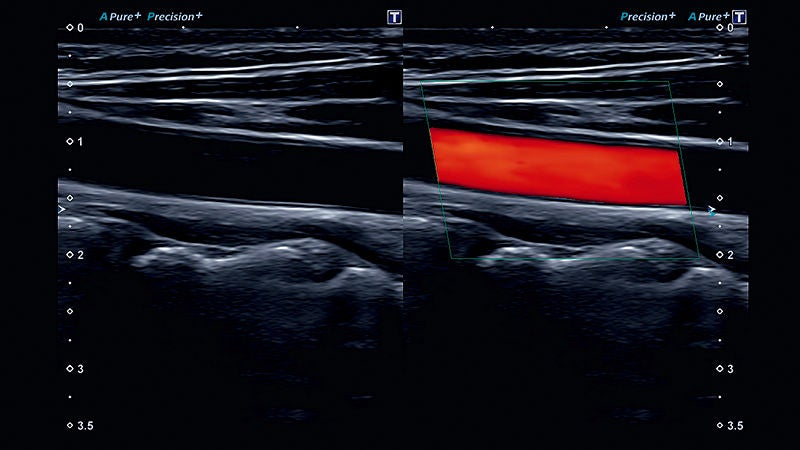

TwinView enables you to display B-mode and Color Doppler side by side, allowing you to assess morphology and hemodynamics simultaneously.

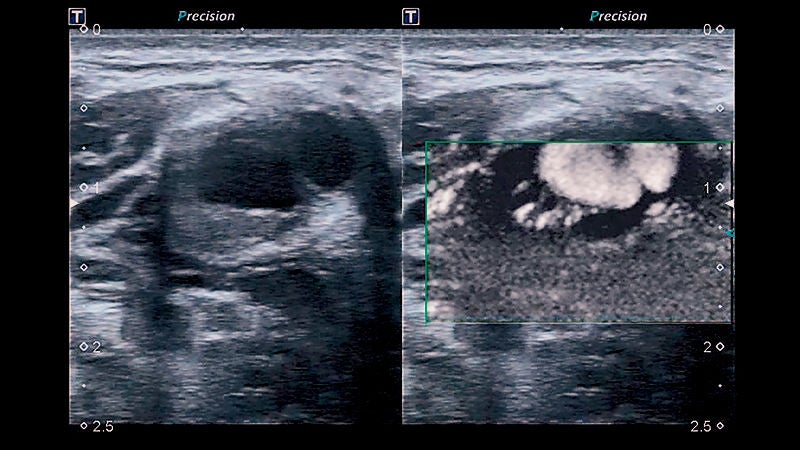

Superb Micro-vascular Imaging (SMI) expands the range of visible blood flow to an impressive level of detail, enabling you for instance to visualize plaque neovascularization right next to vascular flow.

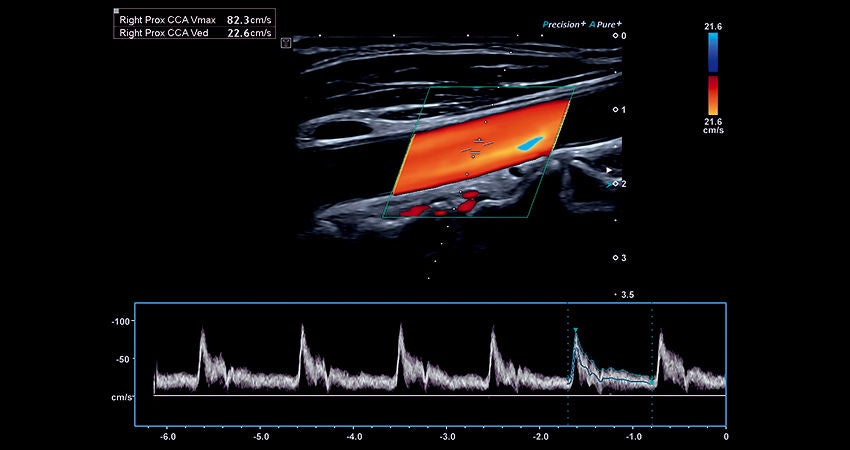

Automated measurement and analysis tools like Auto Doppler trace or Auto IMT help you increase accuracy, consistency and speed of your exams.
