Acute compression fracture with bone marrow mapping

Aquilion ONE / PRISM Edition

This patient presented with mid-lower back pain. A Spectral scan of the thoracic-lumber spine was performed for evaluation. Spectral Analysis shows an acute compression fracture of T12.

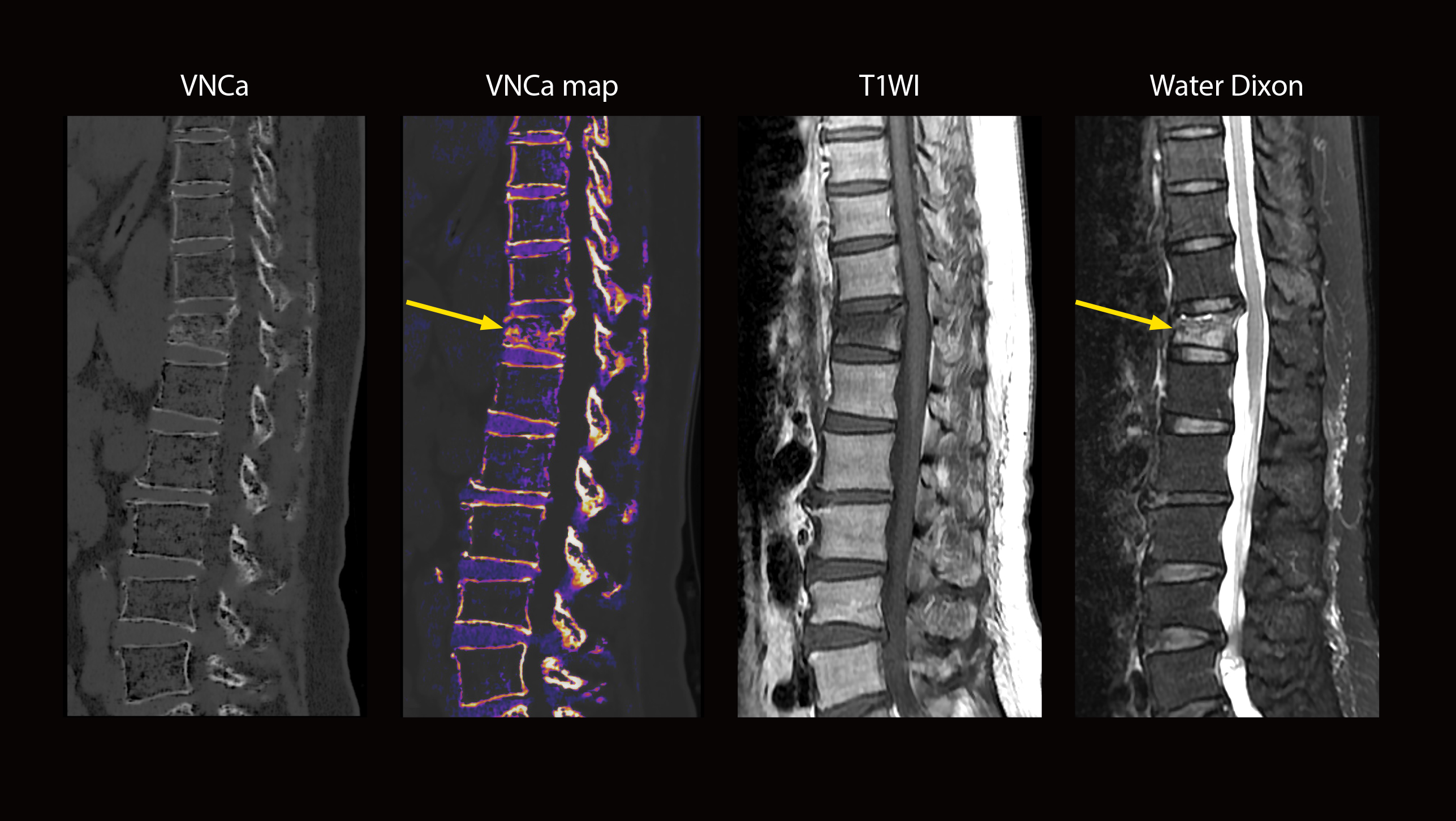

Spectral bone marrow mapping shows increased density of the T12 marrow in the VNCa (virtual non calcium) image, which is associated with an acute fracture. An MRI scan was performed the T1WI and the Dixon's Water image confirmed the Spectral CT findings.
Aquilion ONE / PRISM Edition Acute compression fracture with bone marrow mapping
Aquilion ONE / PRISM Edition Acute compression fracture with bone marrow mapping
× 拡大画像

Spine Metastasis — Iodine Map Analysis

Aquilion ONE / PRISM Edition

Deep Learning Spectral CT of the spine revealed a metastasis in this patient.

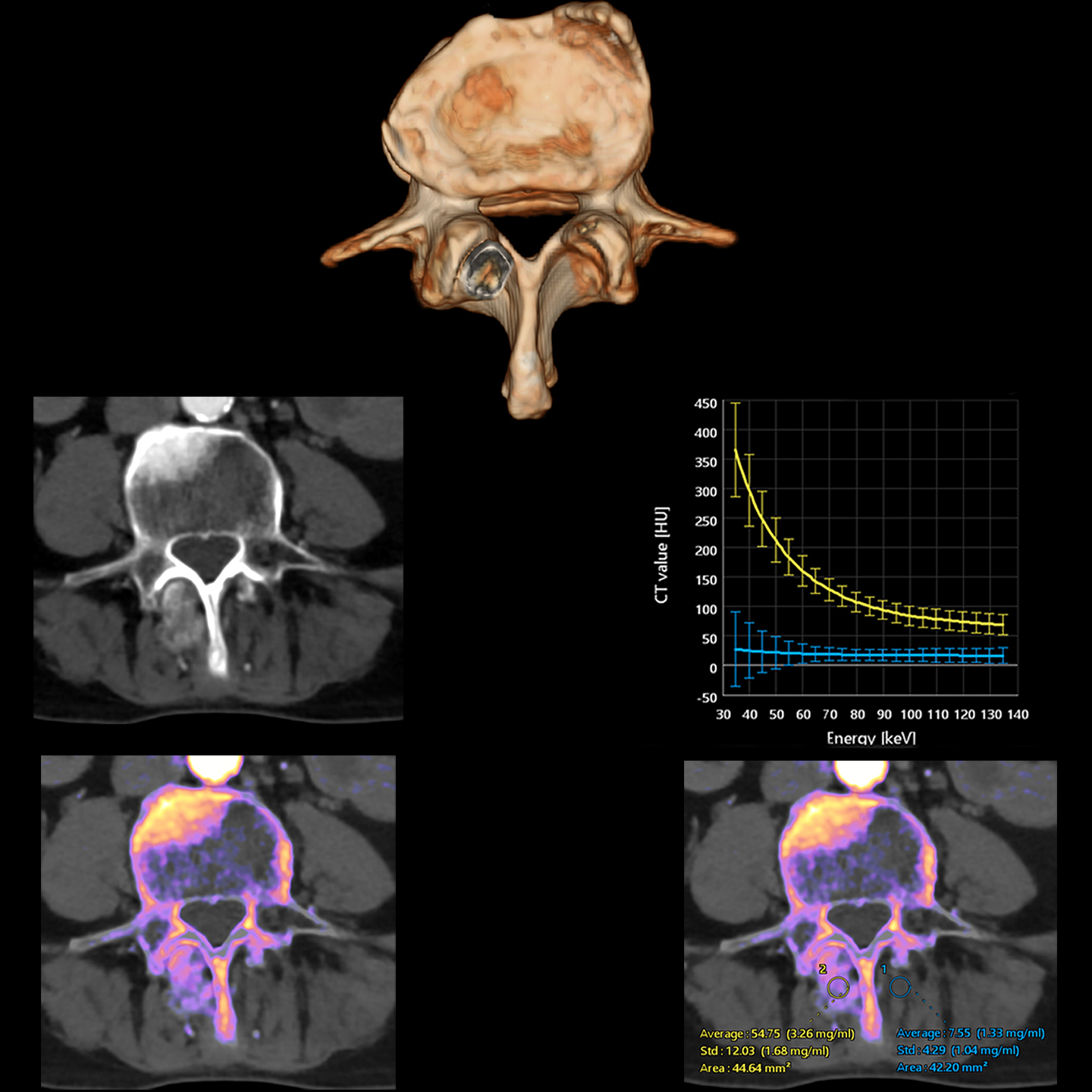

Spectral DLR delivers excellent energy separation whereby the iodine map clearly outlines the regions of iodine uptake. The quantification of iodine concentration can help facilitate a more accurate assessment between benign and malignant masses.

View Scan Parameters

Scan Mode Spectral Helical
Collimation 0.5 mm x 80
kVp 80/135
mAs SUREExposure
Rotation Time 0.5 s
Scan Range 644.0 mm
CTDIvol 10.9 mGy
DLP 752.3 mGy·cm
Effective Dose 10.9 mSv
k-factor 0.0145 (AAPM Report 96)
Aquilion ONE / PRISM Edition Spine Metastasis — Iodine Map Analysis
Aquilion ONE / PRISM Edition Spine Metastasis — Iodine Map Analysis
× 拡大画像

Gout Analysis

Aquilion ONE / PRISM Edition

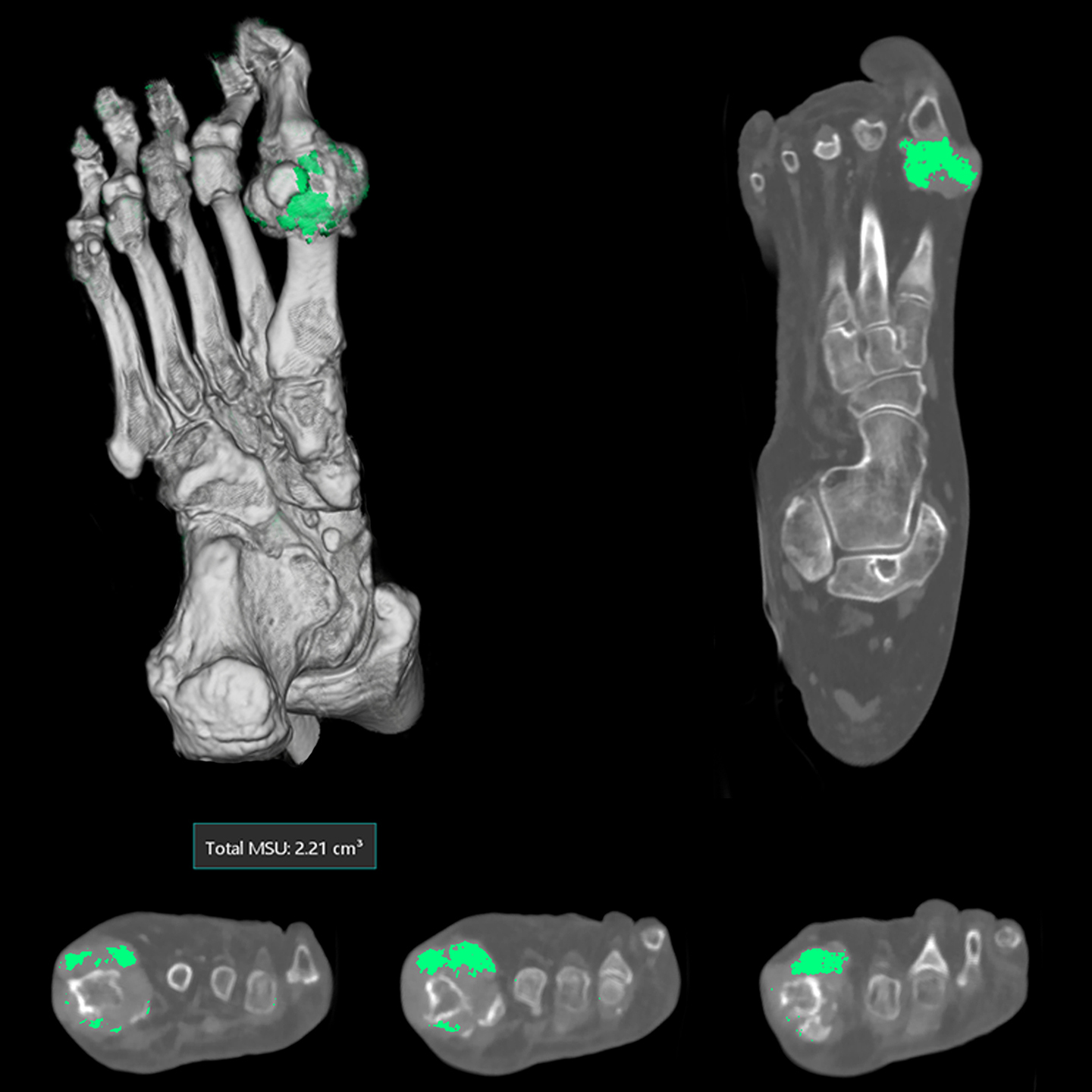

Deep Learning Spectral CT of the foot for visualization and quantification of Monosodium Urate (MSU) in the metatarsophalangeal joint of the hallux. Spectral DLR enables volume calculations of the MSU and color overlay on 3D/2D images for improved visualization of MSU.

View Scan Parameters

Scan Mode Spectral Helical
Collimation 0.5 mm x 80
kVp 80/135
mAs 200
Rotation Time 0.5 s
Scan Range 450.0 mm
CTDIvol 14.0 mGy
DLP 687.1 mGy·cm
Gout Analysis
Gout Analysis
