Discover deeper intelligence for yourself

When it comes to understanding the power of Deep Learning Reconstruction, seeing really is believing. It’s time to see how deep the Aquilion ONE / PRISIM Edition’s intelligence really goes.

Advanced intelligent Clear-IQ Engine (AiCE) is available on Aquilion ONE / PRISM Edition.

View Spectral Clinical Gallery
Menu

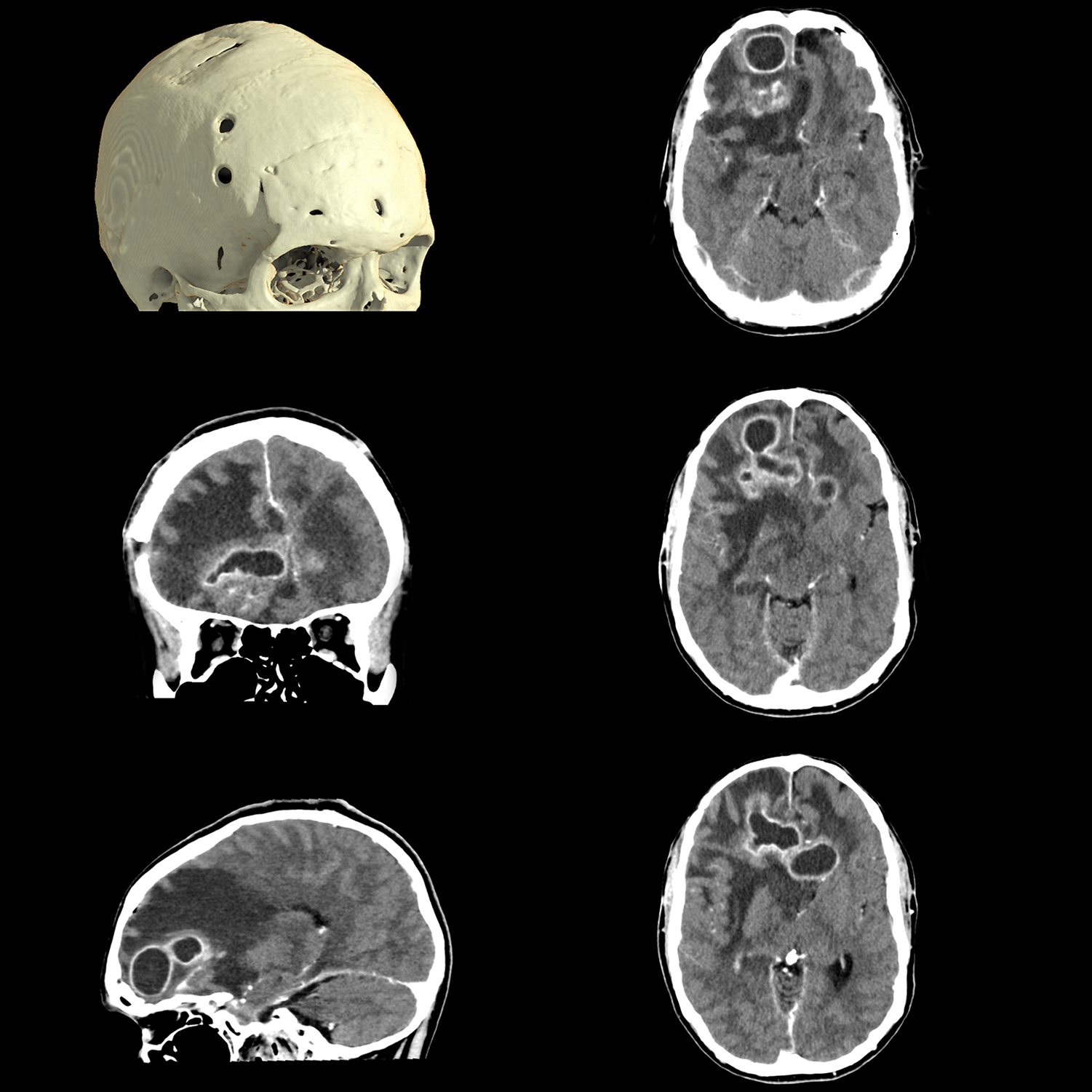

Brain Abscesses, AiCE

Aquilion ONE / PRISM Edition

Improved low-contrast detectability with AiCE DLR reveals multiple locular cystic lesions in both cerebral hemispheres with peripheral enhancement and consequent edematous changes of the brain parenchyma.

View Scan Parameters

Scan Mode Ultra Helical
Collimation 0.5 mm x 80
kVp 120
mAs 350
Rotation Time 1.0 s
Scan Range 150.0 mm
Dose Reduction AiCE
CTDIvol 45.83 mGy
DLP 692.0 mGy·cm
Effective Dose 1.45 mSv
k-factor 0.0021 (AAPM Report 96)
Aquilion ONE / PRISM Edition Brain Abscesses, AiCE
Aquilion ONE / PRISM Edition Brain Abscesses, AiCE
Aquilion ONE / PRISM Edition Brain Abscesses, AiCE
Aquilion ONE / PRISM Edition Brain Abscesses, AiCE
× 拡大画像

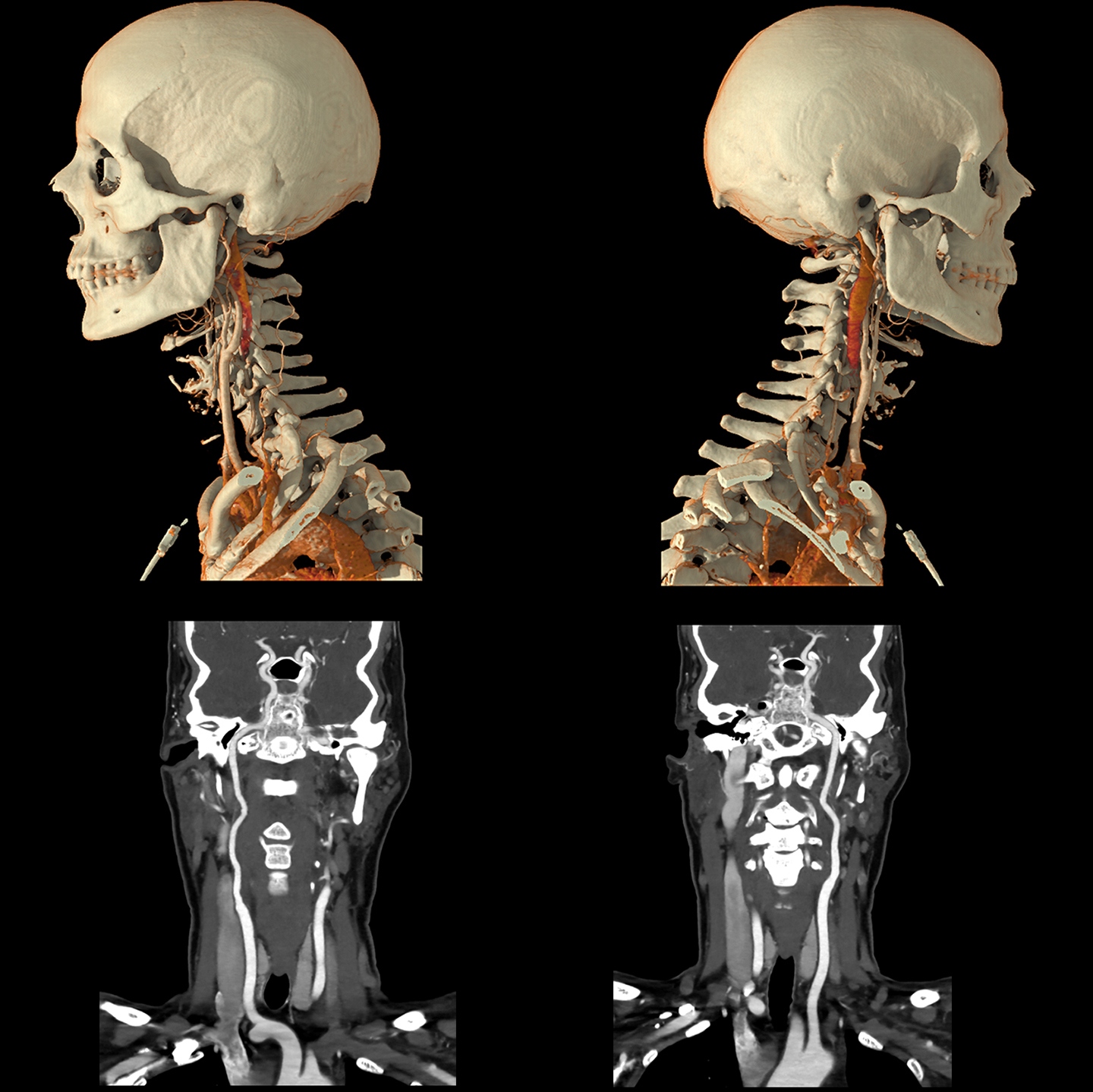

Carotid Angiography, AiCE

Aquilion ONE / PRISM Edition

Low-dose Ultra Helical CT Angiogram of the Carotids and Circle of Willis for stroke work-up. AiCE DLR provides clear visualization of contrast enhanced vessels and surrounding soft tissue for fast and confident rule-out of occlusion.

View Scan Parameters

Scan Mode Ultra Helical
Collimation 0.5 mm x 80
kVp 120
mAs SUREExposure
Rotation Time 0.5 s
Scan Range 342.0 mm
Dose Reduction AiCE
CTDIvol 5.3 mGy
DLP 202.6 mGy·cm
Effective Dose 1.19 mSv
k-factor 0.0059 (AAPM Report 96)
Aquilion ONE / PRISM Edition Carotid Angiography, AiCE
Aquilion ONE / PRISM Edition Carotid Angiography, AiCE
Aquilion ONE / PRISM Edition Carotid Angiography, AiCE
Aquilion ONE / PRISM Edition Carotid Angiography, AiCE
Aquilion ONE / PRISM Edition Carotid Angiography, AiCE
Aquilion ONE / PRISM Edition Carotid Angiography, AiCE
× 拡大画像

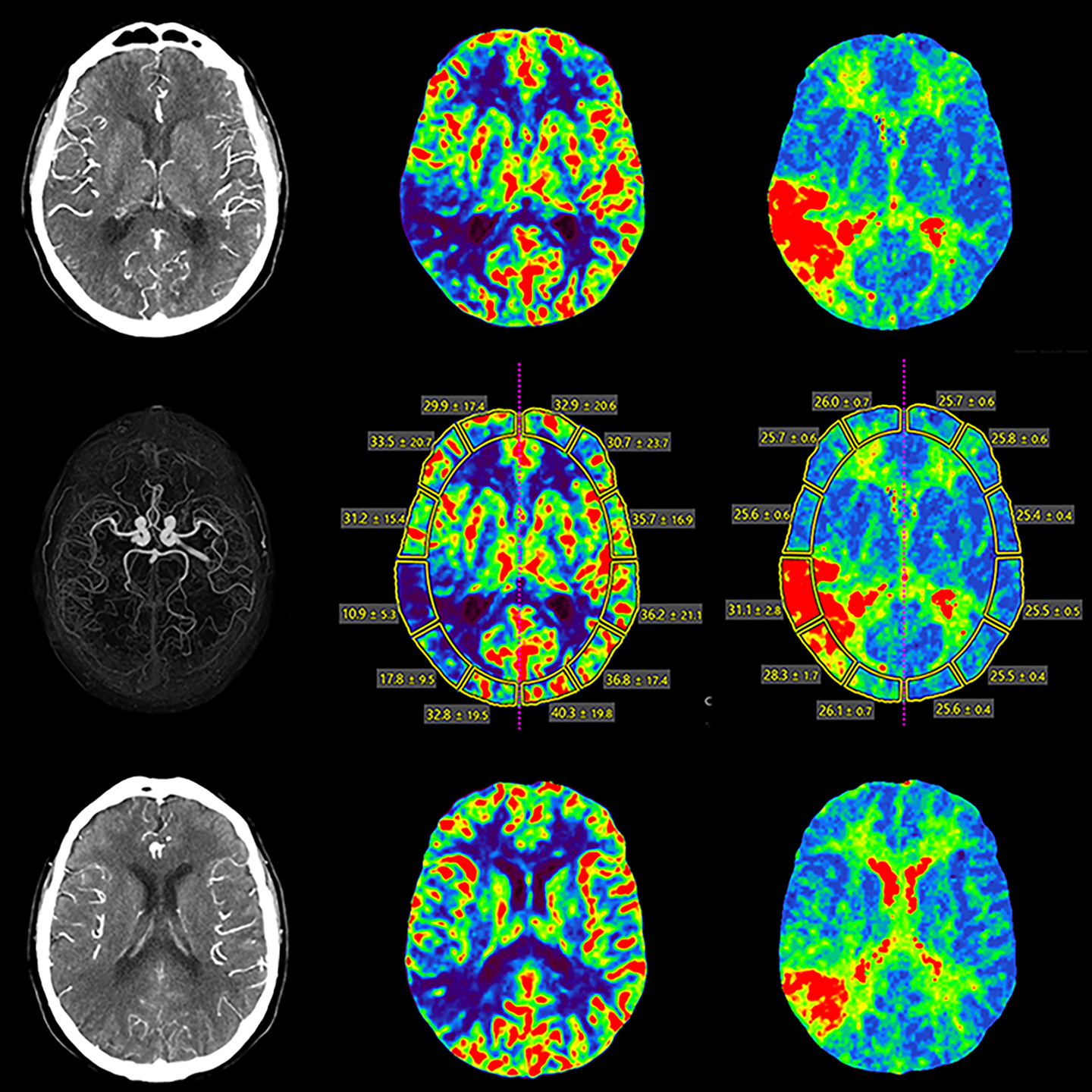

Brain Perfusion Right Occlusion, Volume, AiCE

Aquilion ONE / PRISM Edition

Low-dose whole-brain dynamic 4D CTA DSA and perfusion, enabled by wide-area CT and AiCE DLR. The 4D CTA shows a blood flow interruption of the right MCA-M3 segment. Perfusion maps display reduced regional cerebral blood flow and increased MTT in M3 territory corresponding to the vascular abnormality.

View Scan Parameters

Scan Mode Dynamic Volume
Collimation 0.5 mm x 320
kVp 120
mAs SUREExposure
Rotation Time 0.5 s
Scan Range 160.0 mm
Dose Reduction AiCE
CTDIvol Variable
DLP 986.5 mGy·cm
Effective Dose 2.07 mSv
k-factor 0.0021 (AAPM Report 96)
Aquilion ONE / PRISM Edition Brain Perfusion Right Occlusion, Volume, AiCE
Aquilion ONE / PRISM Edition Brain Perfusion Right Occlusion, Volume, AiCE
Aquilion ONE / PRISM Edition Brain Perfusion Right Occlusion, Volume, AiCE
Aquilion ONE / PRISM Edition Brain Perfusion Right Occlusion, Volume, AiCE
× 拡大画像

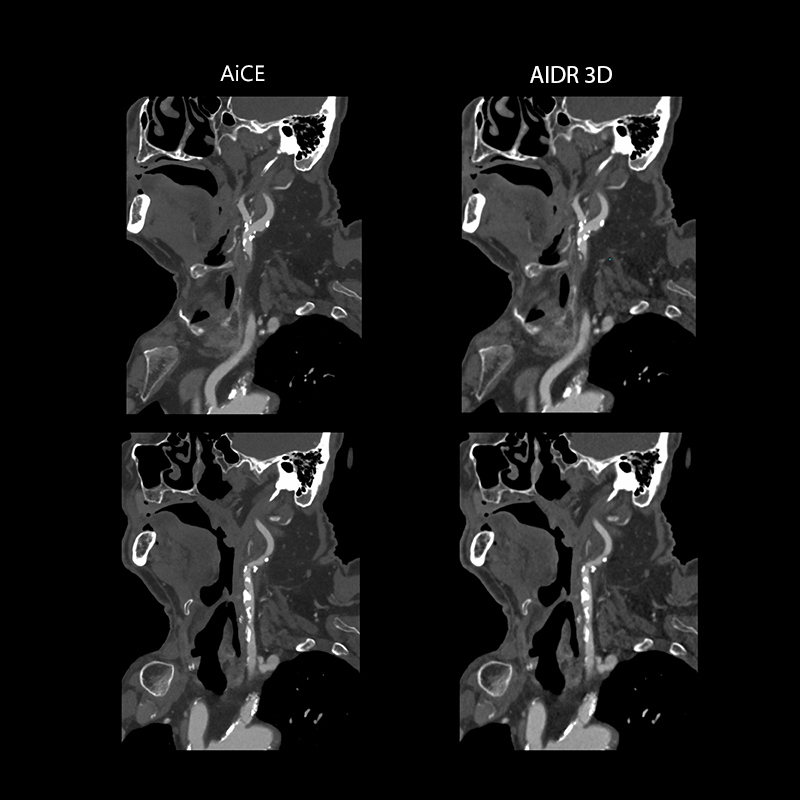

Carotid CTA with Plaque, AiCE

Aquilion ONE / PRISM Edition

View Scan Parameters

Scan Mode Ultra Helical
Collimation 0.5mm x 80
kVp 120
mAs SUREExposure
Rotation Time 0.5 s
Scan Range 230.0mm
Dose Reduction AiCE
CTDIvol 6.7mGy
DLP 190.3mGy·cm
Effective Dose 1.1mSv
k-factor 0.0059 (AAPM Report 96)
Aquilion ONE / PRISM Edition Carotid CTA with Plaque, AiCE
Aquilion ONE / PRISM Edition Carotid CTA with Plaque, AiCE
Aquilion ONE / PRISM Edition Carotid CTA with Plaque, AiCE
Aquilion ONE / PRISM Edition Carotid CTA with Plaque, AiCE
Aquilion ONE / PRISM Edition Carotid CTA with Plaque, AiCE
Aquilion ONE / PRISM Edition Carotid CTA with Plaque, AiCE
Aquilion ONE / PRISM Edition Carotid CTA with Plaque, AiCE
Aquilion ONE / PRISM Edition Carotid CTA with Plaque, AiCE
× 拡大画像

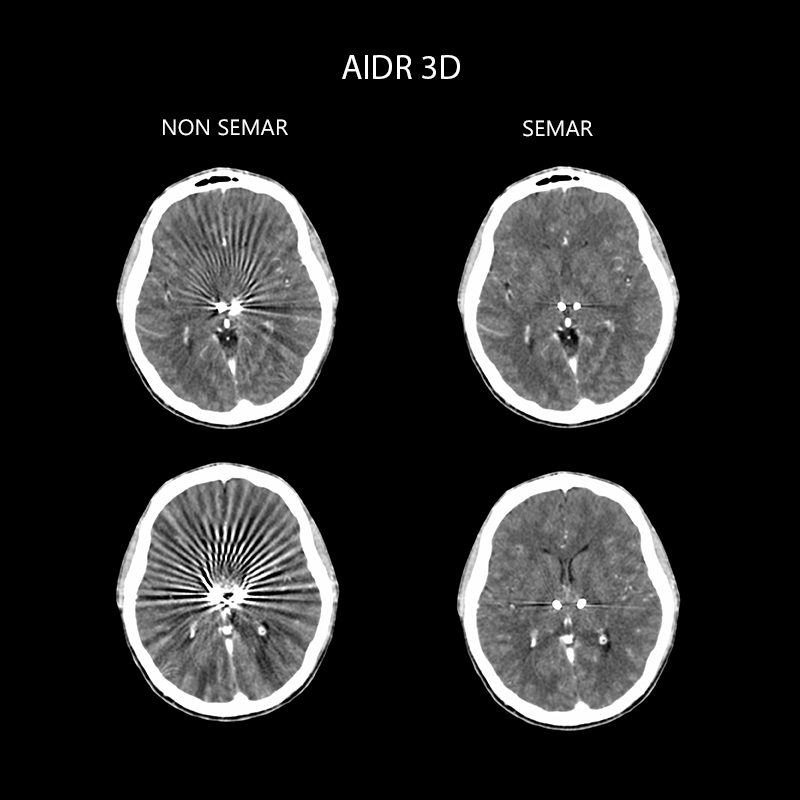

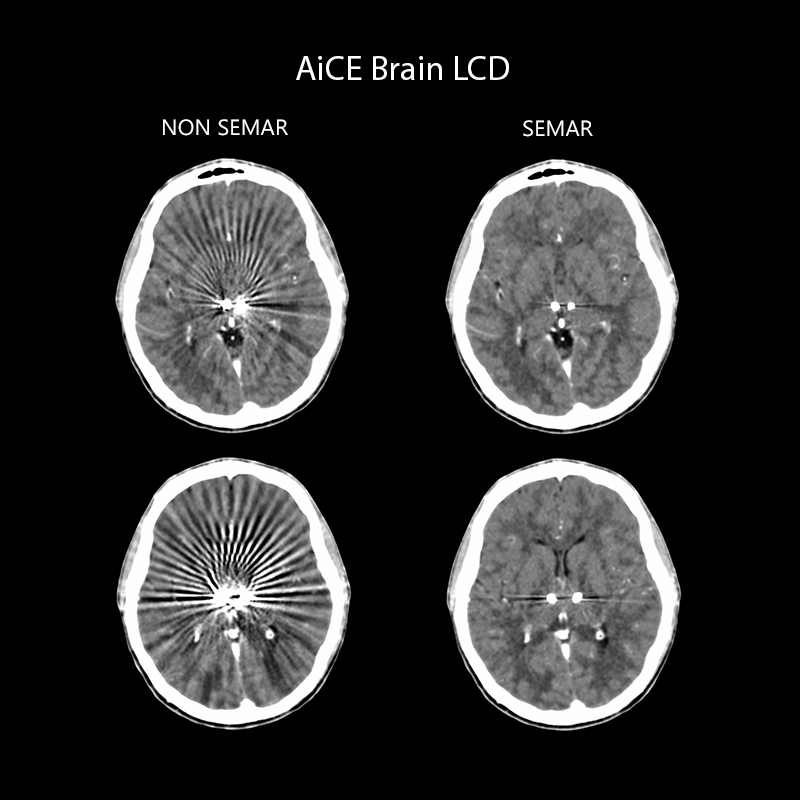

Deep Brain Stimulator, SEMAR, AiCE LCD

Aquilion ONE / PRISM Edition

View Scan Parameters

Scan Mode Helical
Collimation 0.5mm x 40
kVp 120
mAs 262
Rotation Time 0.75s
Scan Range 260mm
Dose Reduction AiCE Brain LCD
CTDIvol 61.4mGy
DLP 1691.8mGy·cm
Effective Dose 3.5mSv
k-factor 0.0021 (AAPM Report 96)
Aquilion ONE / PRISM Edition Deep Brain Stimulator, SEMAR, AiCE LCD
Aquilion ONE / PRISM Edition Deep Brain Stimulator, SEMAR, AiCE LCD
Aquilion ONE / PRISM Edition Deep Brain Stimulator, SEMAR, AiCE LCD
Aquilion ONE / PRISM Edition Deep Brain Stimulator, SEMAR, AiCE LCD
Aquilion ONE / PRISM Edition Deep Brain Stimulator, SEMAR, AiCE LCD
Aquilion ONE / PRISM Edition Deep Brain Stimulator, SEMAR, AiCE LCD
× 拡大画像

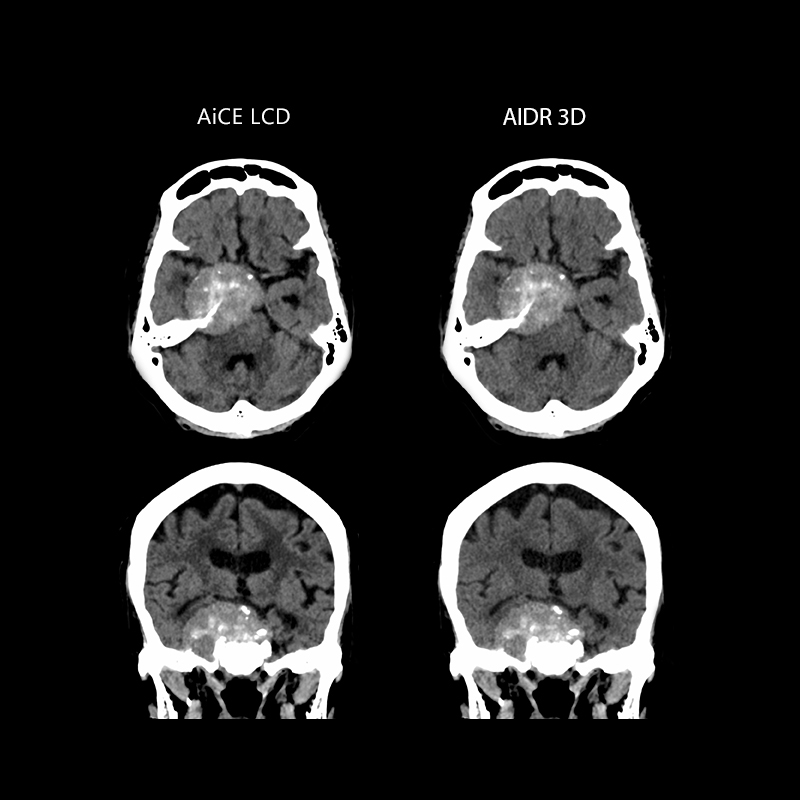

Brain Mass, AiCE LCD and AIDR 3D

Aquilion ONE / PRISM Edition

View Scan Parameters

Scan Mode Helical
Collimation 0.5mm x 40
kVp 120
mAs 262
Rotation Time 0.75s
Scan Range 178.0mm
Dose Reduction AiCE Brain LCD
CTDIvol 61.4mGy
DLP 1194.0mGy·cm
Effective Dose 2.5mSv
k-factor 0.0021 (AAPM Report 96)
Aquilion ONE / PRISM Edition Brain Mass, AiCE LCD and AIDR 3D
Aquilion ONE / PRISM Edition Brain Mass, AiCE LCD and AIDR 3D
Aquilion ONE / PRISM Edition Brain Mass, AiCE LCD and AIDR 3D
Aquilion ONE / PRISM Edition Brain Mass, AiCE LCD and AIDR 3D
