Musculoskeletal
Wrist, Scaphoid Fracture
Aquilion Lightning

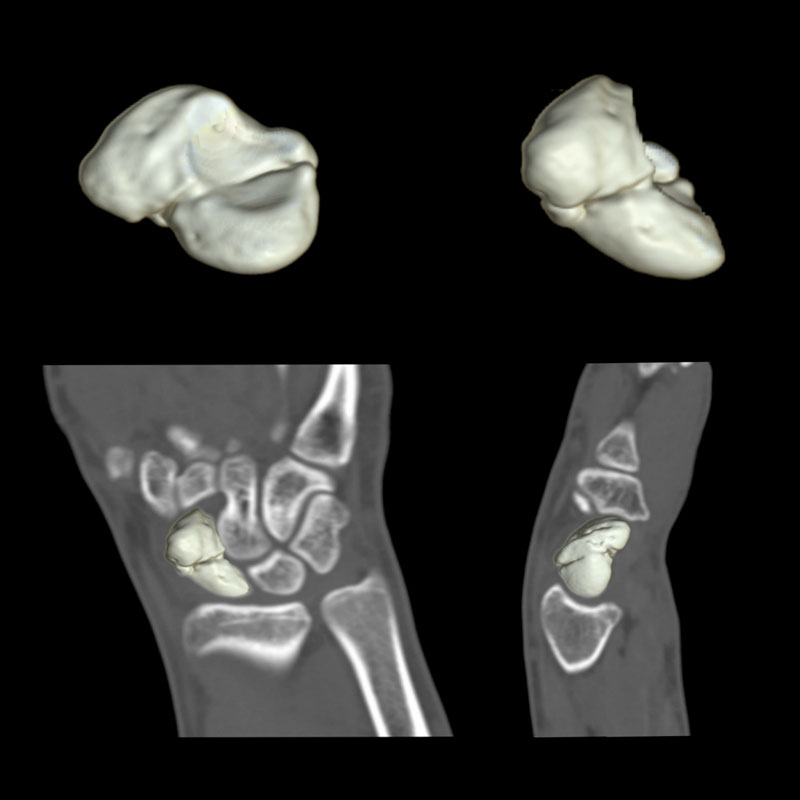

19-year-old male reported severe pain after falling on his wrist. A CT scan of the wrist was performed. 3D Volume Rendered images, Multiplanar Reconstructions (MPR) and fused images demonstrate a scaphoid fracture.
19-year-old male reported severe pain after falling on his wrist. A CT scan of the wrist was performed. 3D Volume Rendered images, Multiplanar Reconstructions (MPR) and fused images demonstrate a scaphoid fracture.
View Scan Parameters
Scan Mode
Ultra-Helical
Collimation
0.5 mm x 80
kVp
120
mAs
45
Rotation Time
0.75 s
Scan Range
87.9 mm
Dose Reduction
AIDR3D
CTDIvol
8.1 mGy
DLP
81.8 mGy•cm
×
