Advanced intelligent Clear-IQ Engine (AiCE) brings you enhanced anatomical resolution across the whole body including brain, lung, cardiac and musculoskeletal scans.

Menu

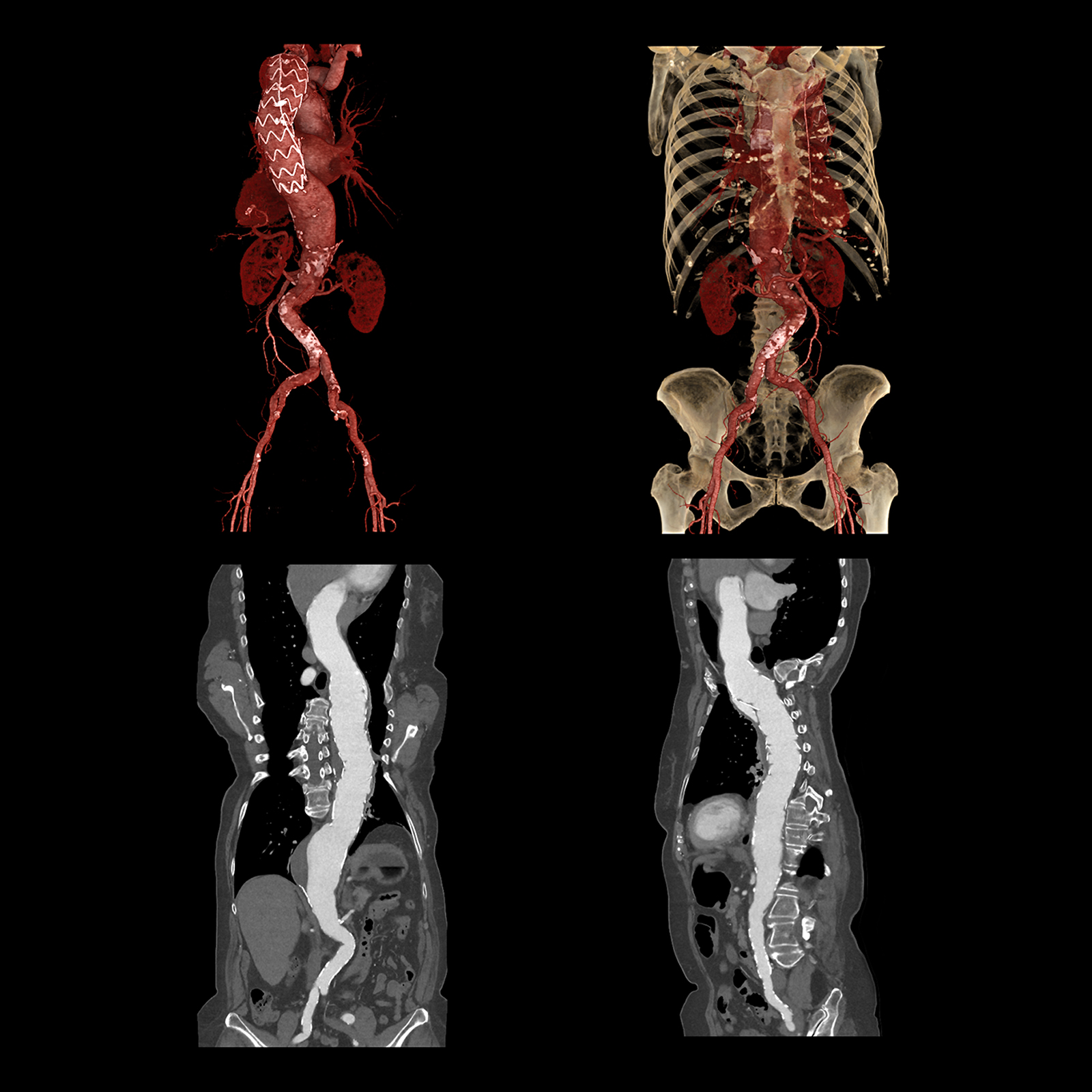

Thoracic Aorta Stent Follow up, AiCE

Aquilion ONE / PRISM Edition

Ultra Helical CTA combined with AiCE deep learning reconstruction, demonstrating good deployment of the thoracic aortic stent. The low-noise high-resolution properties of AiCE DLR enable excellent visualization of anatomical detail.

View Scan Parameters

Scan Mode Ultra Helical
Collimation 0.5 mm x 80
kVp 100
mAs SUREExposure
Rotation Time 0.5 s
Scan Range 624.0 mm
Dose Reduction AiCE
CTDIvol 2.9 mGy
DLP 194.4 mGy·cm
Effective Dose 2.8 mSv
k-factor 0.014 (AAPM Report 96)
Aquilion ONE / PRISM Edition Thoracic Aorta Stent Follow up, AiCE
Aquilion ONE / PRISM Edition Thoracic Aorta Stent Follow up, AiCE
Aquilion ONE / PRISM Edition Thoracic Aorta Stent Follow up, AiCE
Aquilion ONE / PRISM Edition Thoracic Aorta Stent Follow up, AiCE
× 拡大画像

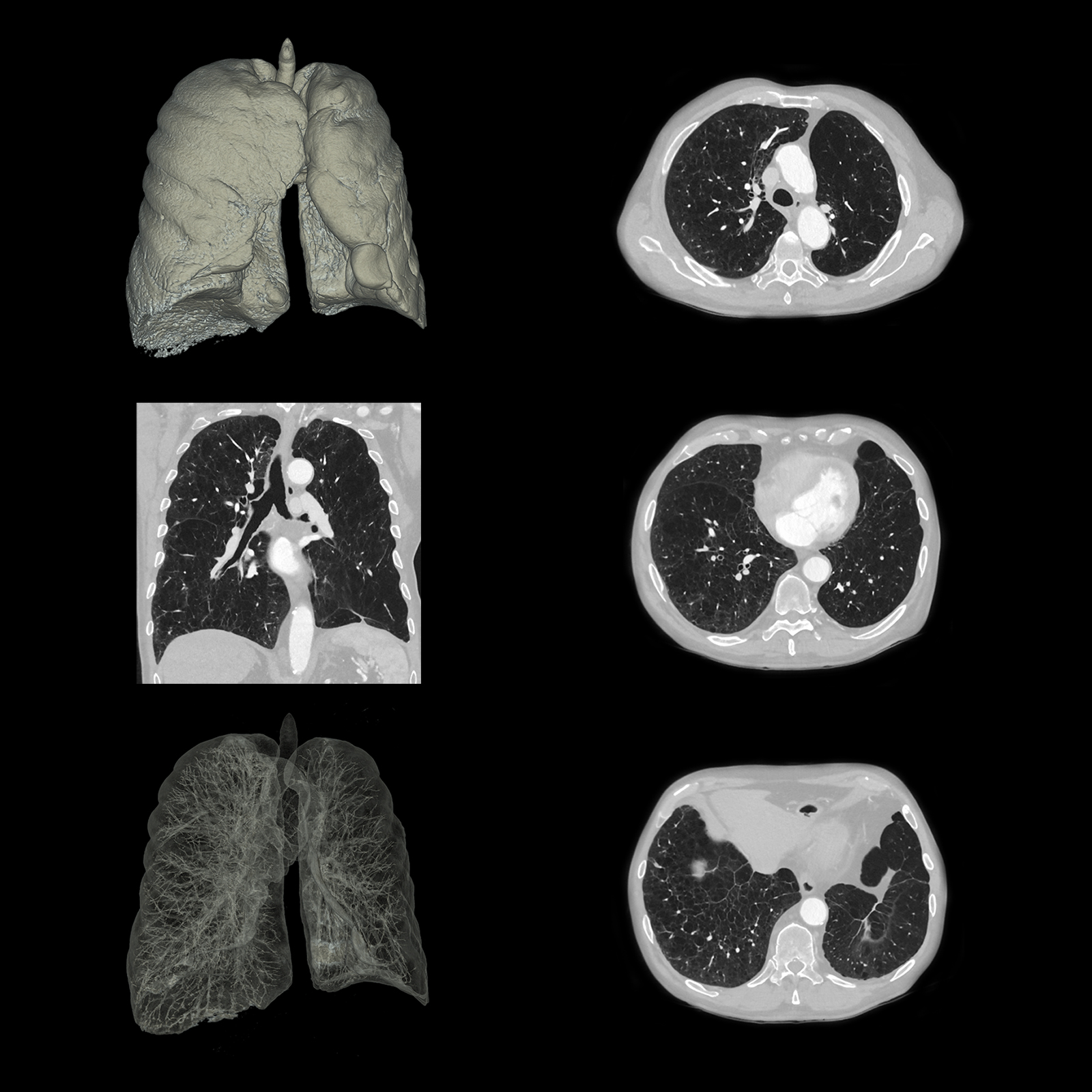

Lung Emphysema, AiCE

Aquilion ONE / PRISM Edition

High-resolution characteristics of AiCE deep learning reconstruction revealing extensive emphysematous changes of both lung fields.

View Scan Parameters

Scan Mode Ultra Helical
Collimation 0.5 mm x 80
kVp 100
mAs SUREExposure
mAs SUREExposure
Rotation Time 0.5 s
Scan Range 375.0 mm
Dose Reduction AiCE
CTDIvol 1.4 mGy
DLP 47.4 mGy·cm
Effective Dose 0.66 mSv
k-factor 0.014 (AAPM Report 96)
Aquilion ONE / PRISM Edition Lung Emphysema, AiCE
Aquilion ONE / PRISM Edition Lung Emphysema, AiCE
× 拡大画像

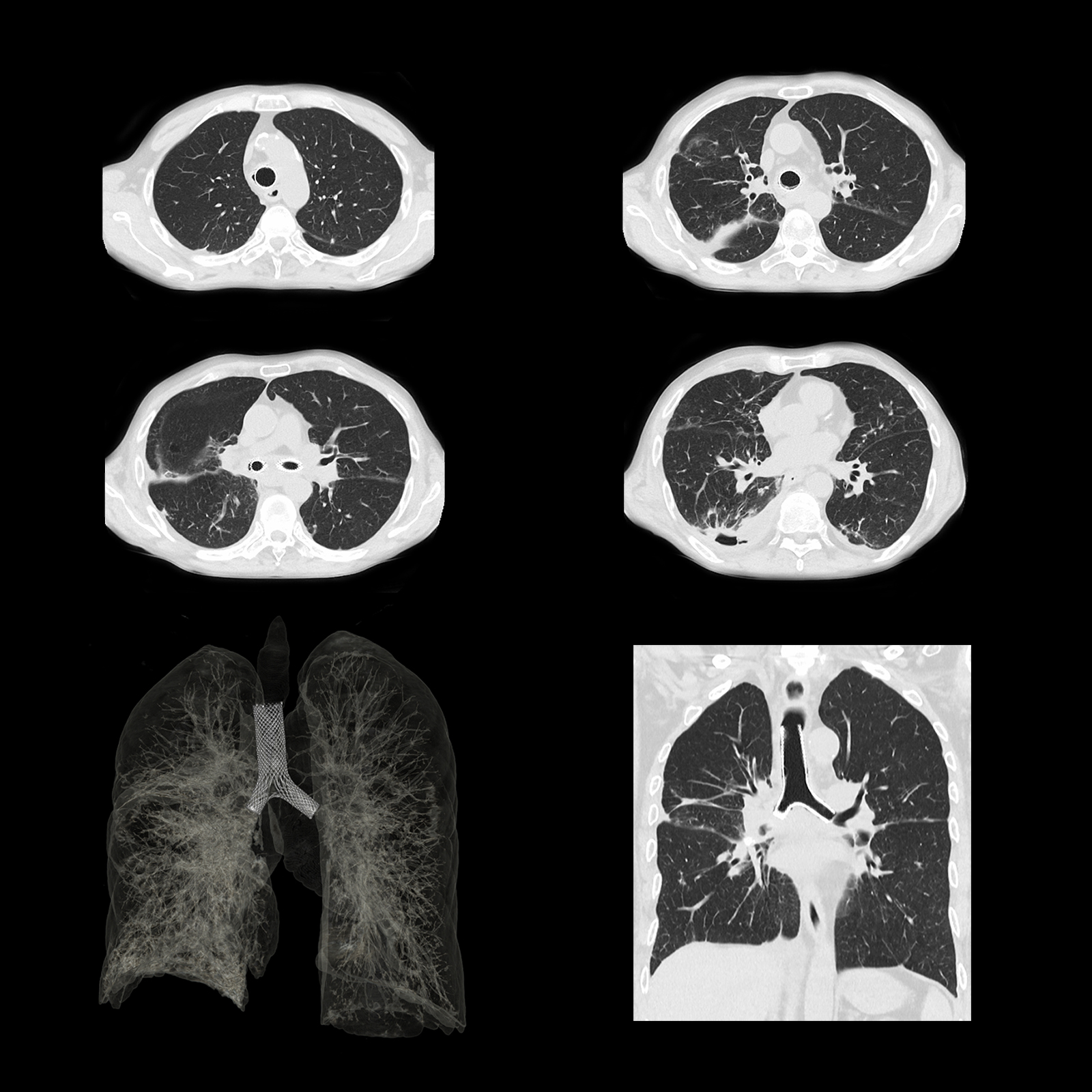

Tracheal Stent Ultra Low Dose, AiCE

Aquilion ONE / PRISM Edition

Sub-mSv Ultra Helical CT of the chest revealing tracheal stent in situ with bilateral pleural thickening and pleural effusion with draining tube. Despite the extremely low effective dose, AiCE was able to produce excellent HRCT images in all planes.

View Scan Parameters

Scan Mode Ultra Helical
Collimation 0.5 mm x 80
kVp 100
mAs SUREExposure
Rotation Time 0.275 s
Scan Range 340.0 mm
Dose Reduction AiCE
CTDIvol 1.4 mGy
DLP 53.0 mGy·cm
Effective Dose 0.7 mSv
k-factor 0.014 (AAPM Report 96)
Aquilion ONE / PRISM Edition Tracheal Stent Ultra Low Dose, AiCE
Aquilion ONE / PRISM Edition Tracheal Stent Ultra Low Dose, AiCE
Aquilion ONE / PRISM Edition Tracheal Stent Ultra Low Dose, AiCE
Aquilion ONE / PRISM Edition Tracheal Stent Ultra Low Dose, AiCE
Aquilion ONE / PRISM Edition Tracheal Stent Ultra Low Dose, AiCE
Aquilion ONE / PRISM Edition Tracheal Stent Ultra Low Dose, AiCE
× 拡大画像

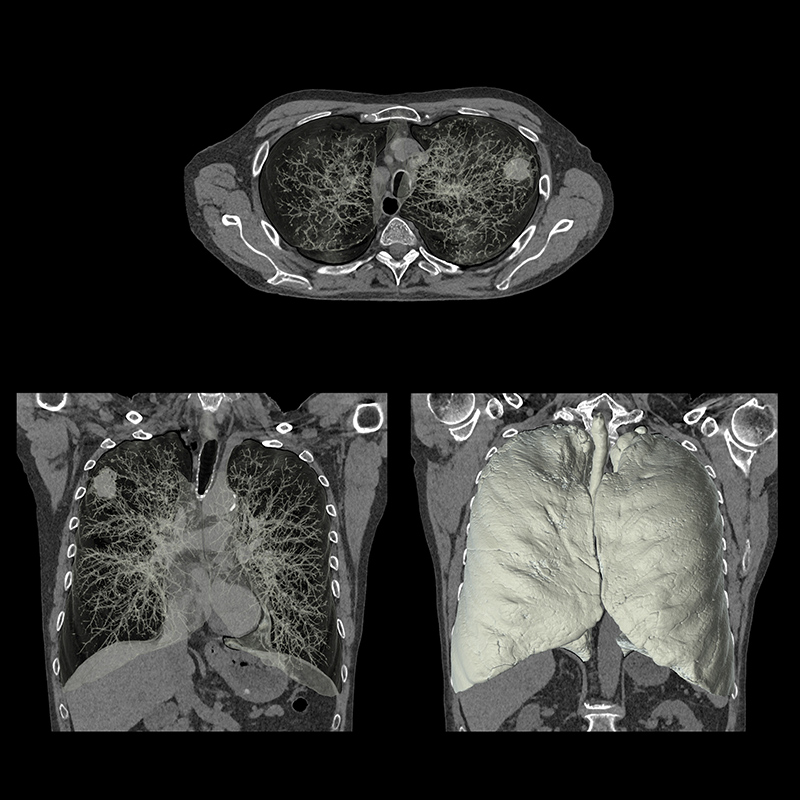

Lung Mass, HR, AiCE

Aquilion Precision

High Resolution CT scan of the lung was performed with AiCE. It demonstrates right upper lobe lung mass. Courtesy of Prof. Prokop, Radboud UMC, Nijmegen, the Netherlands

View Scan Parameters

Scan Mode Ultra-Helical
Collimation 0.5 mm x 80
kVp 120
mAs SUREExposure
Reconstruction AiCE
CTDIvol 5.10 mGy
DLP 216.80 mGy·cm
Effective Dose 3.0 mSv
k-factor 0.014 (AAPM Report 96)
Aquilion Precision Lung Mass, HR, AiCE
Aquilion Precision Lung Mass, HR, AiCE
Aquilion Precision Lung Mass, HR, AiCE
Aquilion Precision Lung Mass, HR, AiCE
Aquilion Precision Lung Mass, HR, AiCE
Aquilion Precision Lung Mass, HR, AiCE
Aquilion Precision Lung Mass, HR, AiCE
Aquilion Precision Lung Mass, HR, AiCE
Aquilion Precision Lung Mass, HR, AiCE
Aquilion Precision Lung Mass, HR, AiCE
Aquilion Precision Lung Mass, HR, AiCE
Aquilion Precision Lung Mass, HR, AiCE
× 拡大画像

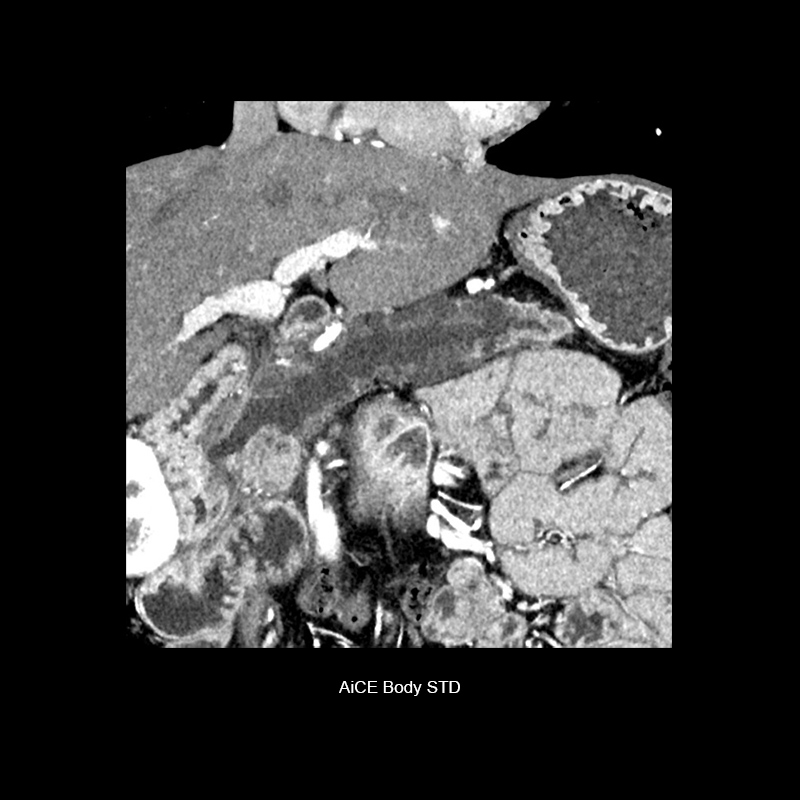

Pancreas Mixed-type Cancer, SHR, AiCE

Aquilion Precision

Ultra High Resolution Abdominal CT scanned with AiCE delineates mixed ductal papillary mucinous adenocarcinoma, which correlates with surgical pathology specimen. Courtesy of National Cancer Center Hospital, Japan

View Scan Parameters

Scan Mode Ultra-Helical
Collimation 0.25 mm x 160
kVp 120
mAs SUREExposure
Reconstruction AiCE
CTDIvol 15.4 mGy
DLP 395.5 mGy·cm
Effective Dose 5.9 mSv
k-factor 0.014 (AAPM Report 96)
Aquilion Precision Pancreas Mixed-type Cancer, SHR, AiCE
Aquilion Precision Pancreas Mixed-type Cancer, SHR, AiCE
Aquilion Precision Pancreas Mixed-type Cancer, SHR, AiCE
Aquilion Precision Pancreas Mixed-type Cancer, SHR, AiCE
Aquilion Precision Pancreas Mixed-type Cancer, SHR, AiCE
Aquilion Precision Pancreas Mixed-type Cancer, SHR, AiCE
× 拡大画像

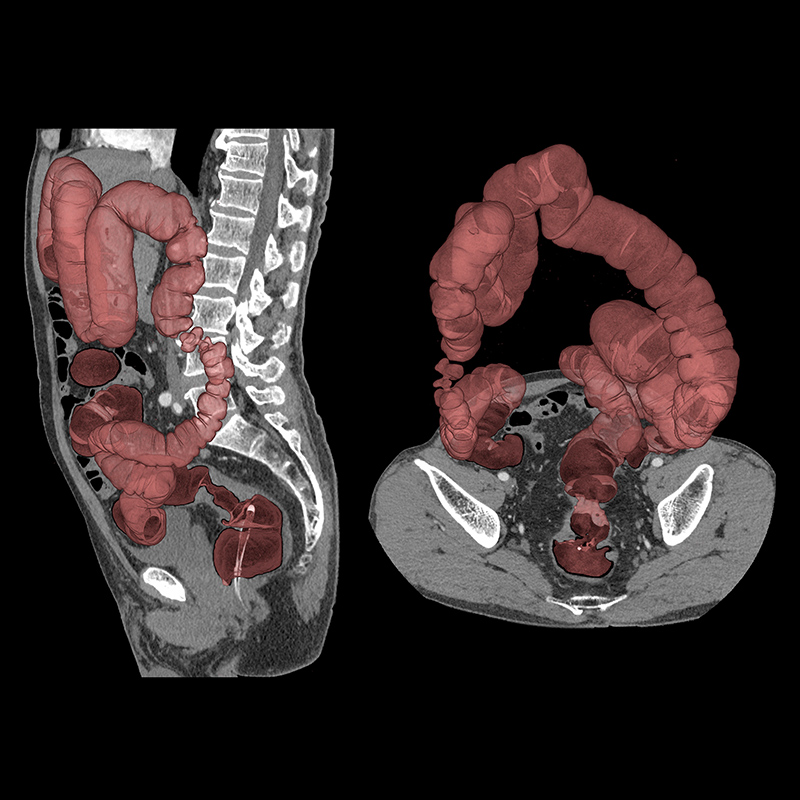

Colo-Rectal Cancer, HR, AiCE

Aquilion Precision

High Resolution Abdominal CT with AiCE demonstrate with high precision the extent of rectal cancer. Courtesy of Kyushu University

View Scan Parameters

Scan Mode Ultra-Helical
Collimation 0.5 mm x 80
kVp 120
mAs SUREExposure
HP 65
Rotation Time 0.5 s
Reconstruction AiCE
CTDIvol 15.7 mGy
DLP 772.3 mGy·cm
11.5 mSv k-factor
0.014 (AAPM Report 96)
Aquilion Precision Colo-Rectal Cancer, HR, AiCE
Aquilion Precision Colo-Rectal Cancer, HR, AiCE
Aquilion Precision Colo-Rectal Cancer, HR, AiCE
Aquilion Precision Colo-Rectal Cancer, HR, AiCE
Aquilion Precision Colo-Rectal Cancer, HR, AiCE
Aquilion Precision Colo-Rectal Cancer, HR, AiCE
Aquilion Precision Colo-Rectal Cancer, HR, AiCE
Aquilion Precision Colo-Rectal Cancer, HR, AiCE
Aquilion Precision Colo-Rectal Cancer, HR, AiCE
Aquilion Precision Colo-Rectal Cancer, HR, AiCE
Aquilion Precision Colo-Rectal Cancer, HR, AiCE
Aquilion Precision Colo-Rectal Cancer, HR, AiCE
× 拡大画像

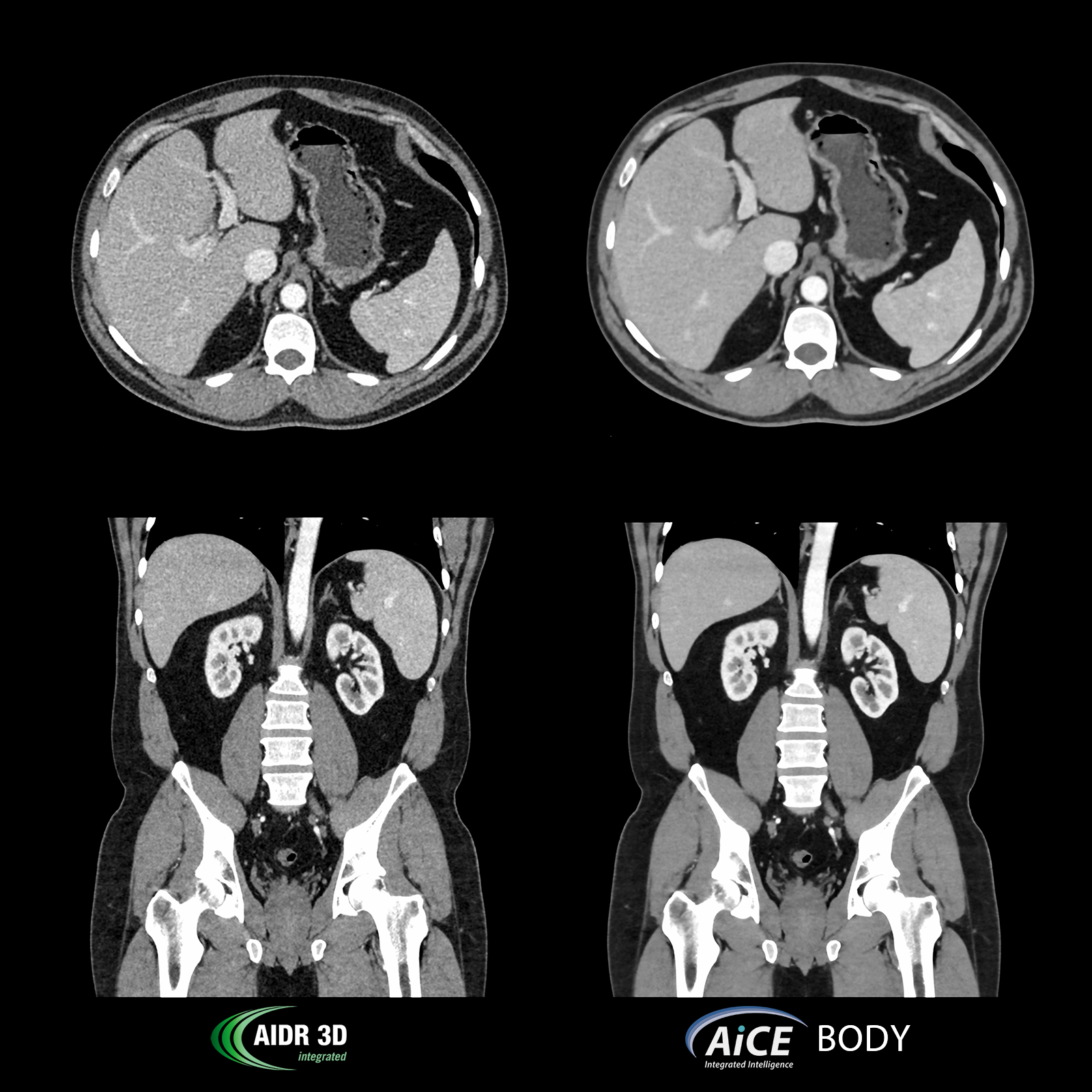

Abdomen Pelvis, AiCE

Aquilion Prime SP

Excellent image quality with AiCE DLR relative to Hybrid IR approaches – lower noise, finer grain size and sharper images.

View Scan Parameters

Scan Mode Ultra-Helical
Collimation 0.5 mm x 80
kVp 120
mAs EC
Reconstruction AiCE Body Sharp
CTDIvol 11.0 mGy
DLP 605.7 mGy·cm
Effective Dose 9.0 mSv
k-factor 0.014 (AAPM Report 96)
Aquilion Prime SP Abdomen Pelvis, AiCE
Aquilion Prime SP Abdomen Pelvis, AiCE
Aquilion Prime SP Abdomen Pelvis, AiCE
Aquilion Prime SP Abdomen Pelvis, AiCE
Aquilion Prime SP Abdomen Pelvis, AiCE
Aquilion Prime SP Abdomen Pelvis, AiCE
× 拡大画像

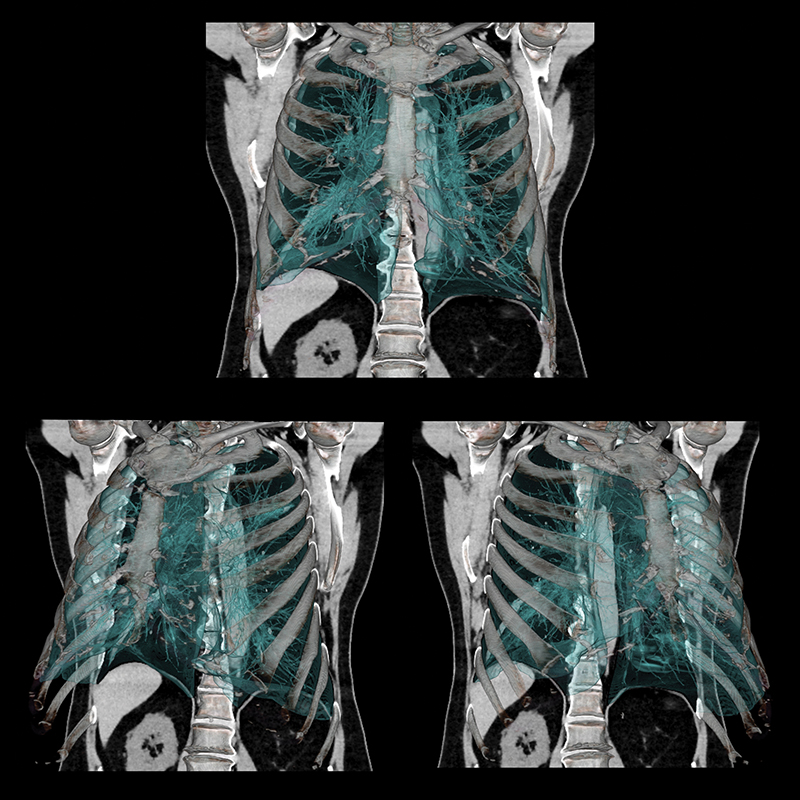

Chest Lesions, AiCE

Aquilion Prime SP

AiCE DLR demonstrating excellent visualization of subtle Ground-Glass Opacity and Emphysematous changes, through low-noise and high-resolution characteristics.

View Scan Parameters

Scan Mode Ultra-Helical
Collimation 0.5 mm x 80
kVp 120
mAs EC
Reconstruction AiCE Lung
CTDIvol 9.1 mGy
DLP 392.5 mGy·cm
Effective Dose 5.7 mSv
k-factor 0.014 (AAPM Report 96)
Aquilion Prime SP Chest Lesions, AiCE
Aquilion Prime SP Chest Lesions, AiCE
Aquilion Prime SP Chest Lesions, AiCE
Aquilion Prime SP Chest Lesions, AiCE
Aquilion Prime SP Chest Lesions, AiCE
Aquilion Prime SP Chest Lesions, AiCE
Aquilion Prime SP Chest Lesions, AiCE
Aquilion Prime SP Chest Lesions, AiCE
