Alphenix solutions forinterventional neurology
Innovative technologies optimized for neurovascular intervention including the world’s first high definition flat panel detector help you deliver the best possible outcomes for your patients.
ImagingRite
See and deploy complex devices with confidence
Alphenix’s unique Hi-Def Imaging mode* allows you to effortlessly zoom up to 1.5” in resolution without losing image quality. Alphenix’s improved imaging chain, including Illuvis noise reduction technology, provides cleaner, sharper, more defined images during device placement or embolization procedures with enhanced visualization of the surrounding vessels and devices.*Available as an option only
New High-Definition Detector

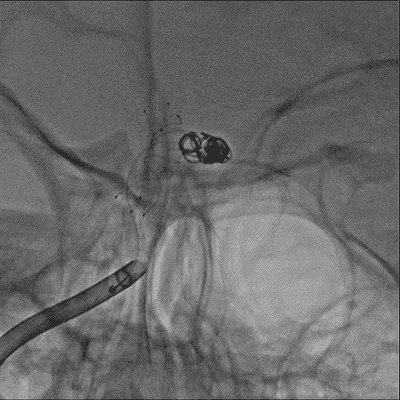

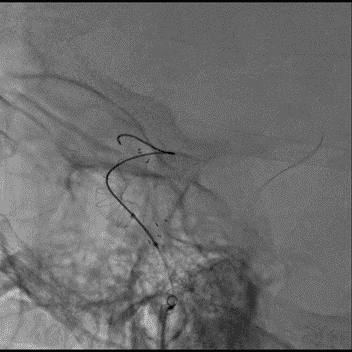

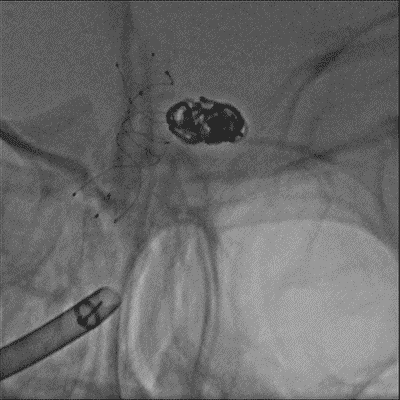

Clinical Examples
Aneurysm Stenting (Flow Diverter)
Aneurysm Stenting (Flow Diverter)

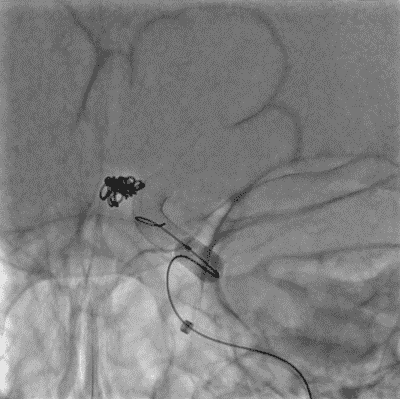

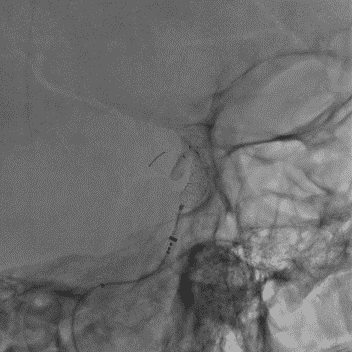

6” Standard FOV
1.5” Hi-Def FOV

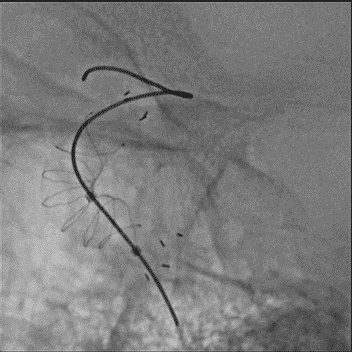

Carotid Stenting
6” Standard FOV
3” Hi-Def FOV
1.5” Hi-Def FOV

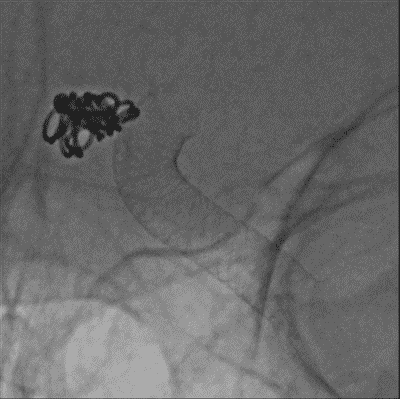

Stent-Assisted Coiling
1.5” Hi-Def FOV
2.3” Hi-Def FOV

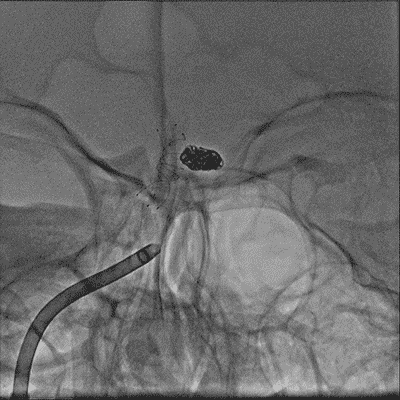

3” Hi-Def FOV
WorkRite
Navigate faster with confidence and accuracy

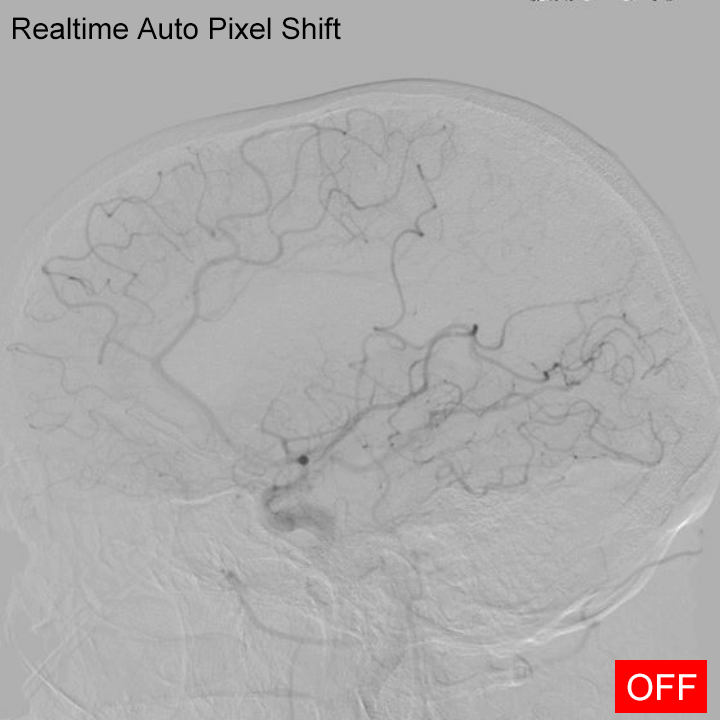

Improved DSA and 2D roadmap with real-time auto pixel shift to automatically correct the position of the mask image due to body motion. Alpha CT can be used to obtain CT-like 3D imaging data from the C-arm. Superimpose this 3D data or prior CT/MR data with the live fluoro display to guide device placement with greater confidence. Comprehensive planning tools, such as cerebral aneurysm analysis allow for quick and intuitive stent sizing and positioning prior to treatment.
WorkRite
Enhanced workflow to give you greater control and flexibility

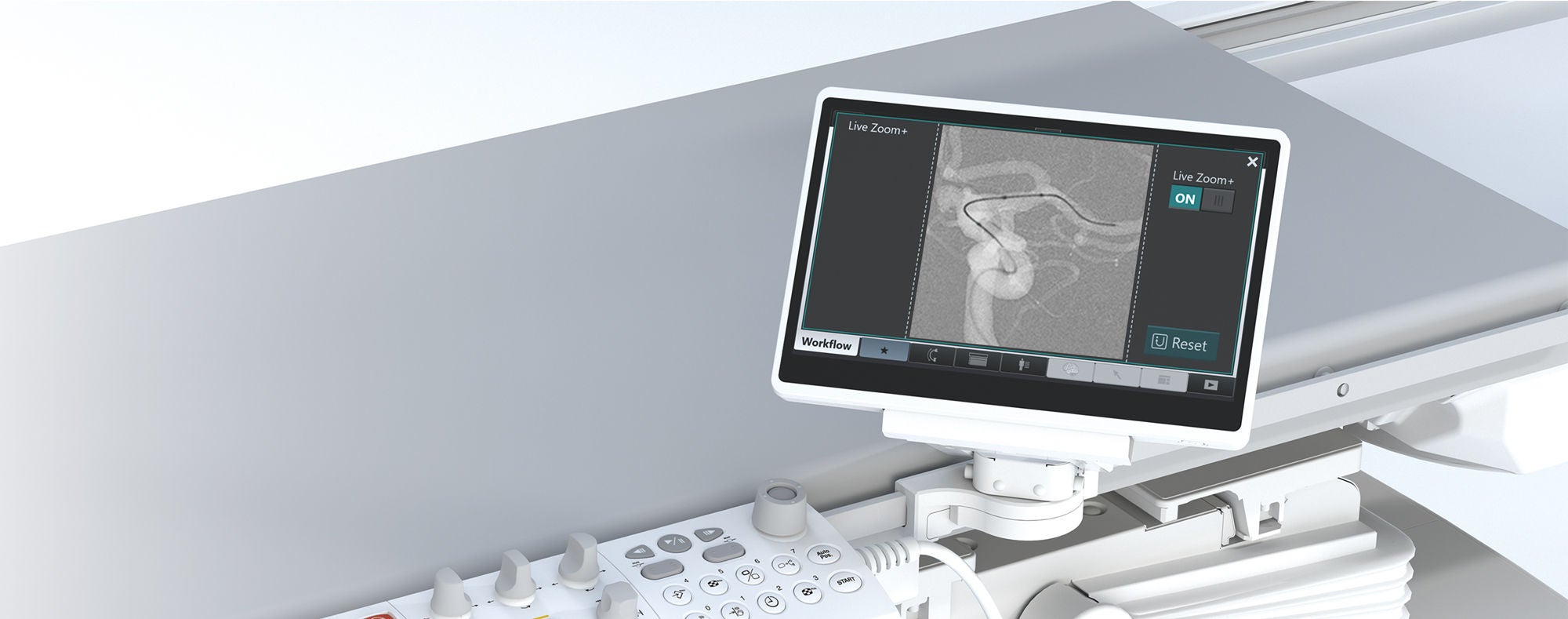

Alphenix floor- and ceiling-mounted C-arms support complex neurology procedures with an unprecedented range of patient access and full-body coverage. The new tableside Alphenix Tablet gives you control right at your fingertips to deliver a faster, more seamless and richer work experience. The new feature-rich Alphenix Workstation Pro better integrates applications to help you plan, analyze and perform interventional procedures.
WorkRite

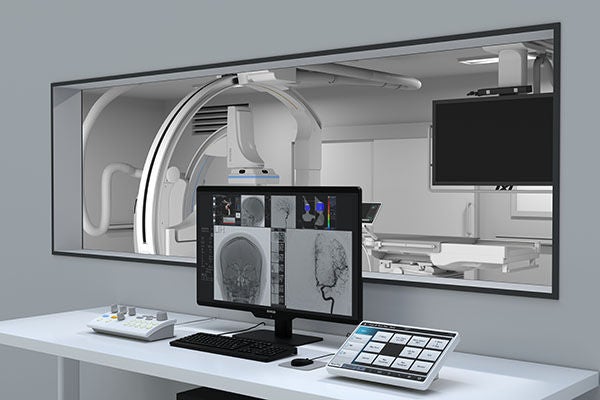

Alphenix Unispot: Organize the control room, simplify the workflow
Alphenix Unispot can manage multiple image sources with one keyboard and mouse, keeping the layout of the control room organized. The medical grade 32 inch monitor delivers high quality images with fine details to meet your clinical needs and simplify workflows.
WorkRite
Visualize features and devices as never before
An improved imaging chain with new hardware and software technologies provide you with faster and more assured visualization. Superimpose 3D volume data on the live fluoro display to safely see and deploy devices with confidence.

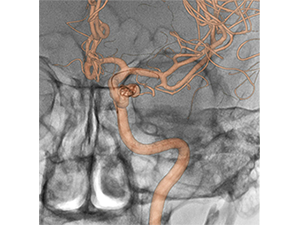

3D/Multi-modality roadmap*

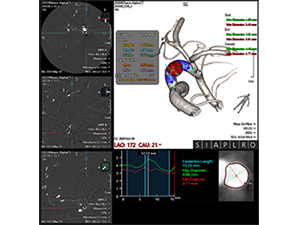

Cerebral aneurysm analysis*

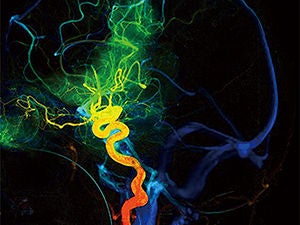

Parametric Imaging
* Available as an option
3D/Multi-modality roadmap*
Cerebral aneurysm analysis*
Parametric Imaging
* Available as an option
Customer testimonials
Progress in Stroke Treatment with State-of-the-Art Magnification Technology
Institute of Diagnostic and Interventional Neuroradiology, Hannover Medical School (MHH), Germany
DoseRite
See more of interest, with less exposure
The unique functionality of DoseRite Spot ROI reduces dose outside the region of interest while still allowing visualization of the surrounding anatomy to aid device placement. DoseRite Spot Fluoro uses asymmetric collimation to significantly reduce patient dose as well as scatter radiation to clinical staff.DoseRite
Comprehensive dose management tools benefit patients and clinical staff
Advanced hardware significantly reduces patient dose and scatter radiation offering greater protection for the patient and clinical staff. Real-time software tools help eliminate unnecessary exposure to minimize dose and improve workflow. Enhanced dose tracking tools allow real-time estimated peak skin dose monitoring and archiving. Real-time monitoring and visualization of dose allows the operator to choose a different approach during a long procedure to avoid regions where dose thresholds have been exceeded.
InvestRite
The smart investment choice
Whatever your clinical needs, versatile space-saving configurations make refitting existing suites an economical option. Alphenix systems seamlessly integrate into your HIS and PACS networks. Improvements in functionality, speed and workflow efficiency boost system utilization and productivity. In addition, lower energy consumption, flexible upgrade options and Canon’s industry-recognized customer service, all help you get the best out the system once installed.
System Options
Flexible Configurations to Address Your Clinical Needs

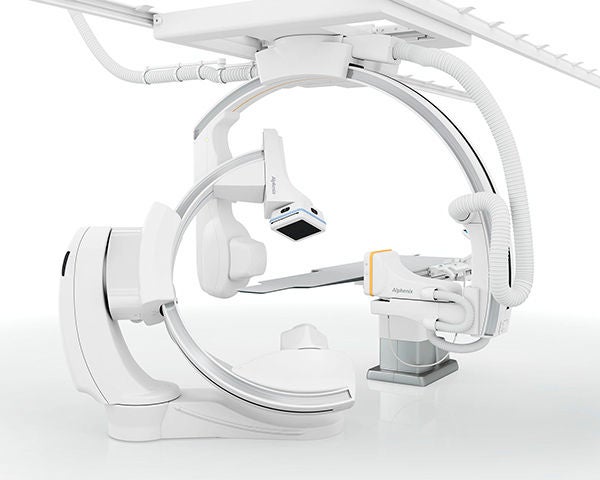

Developed in collaboration with leading clinicians, Alphenix offers a range of C-arm positioners designed to offer unprecedented access to your patient.
Detector size choice
Alphenix interventional angiography systems are available with a choice of flat panel detectors sizes to suit your coverage needs.
12”x12” (30cm x 30cm)
This compact design can clear the patient’s shoulder in a lateral projection, making it ideal for neurology applications.
Hi-def 12”x12” (30cm x 30cm)* Housed in the same compact design as the standard flat panel detector, this detector increases resolution from 6” (15cm) to an impressive 1.5” (38mm).
* Available as an option
12”x12” (30cm x 30cm)
This compact design can clear the patient’s shoulder in a lateral projection, making it ideal for neurology applications.
Hi-def 12”x12” (30cm x 30cm)* Housed in the same compact design as the standard flat panel detector, this detector increases resolution from 6” (15cm) to an impressive 1.5” (38mm).
* Available as an option

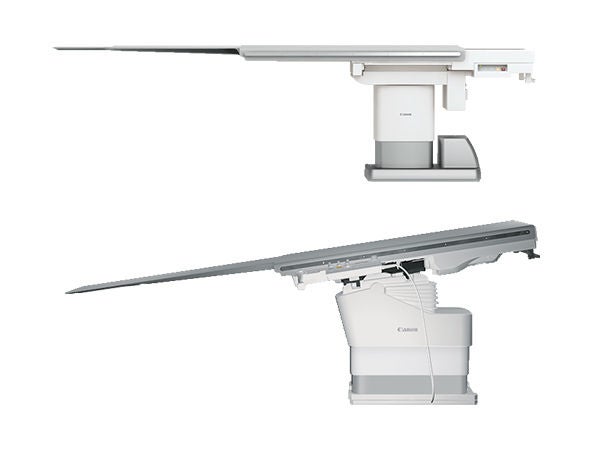

Table choices
Multiple table options are available that facilitate positioning flexibility and clinical procedure to support your needs.
White papers
|
Refine and Redefine Intervention Using High-Definition (Hi-Def) Technology
Andrew Kuhls-Gilcrist, PhD, DABR, Mark Hohn, Dale Marek, RT(R), Yiemeng Hoi, PhD Medical Affairs, Interventional X-ray, Canon Medical Systems USA, Inc. Swetadri Vasan Setlur Nagesh, PhD, Stephen Rudin, PhD, FAAPM, Adnan Siddiqui, MD, PhD, FACS, FAHA, FAANS Canon Stroke and Vascular Research Center University at Buffalo, Buffalo, NY |
Read white paper |
|
High Definition Imaging Reduces Procedure Time Without Impacting Patient Dose in Image-Guided Neuro Interventional Procedures.
Swetadri Vasan Setlur Nagesh, MS,PhD, Buffalo, NY (Presenter) Nothing to Disclose |
Read article (link to external website) |
|
Single-center experience of using high definition (Hi-Def) imaging during neurointervention treatment of intracranial aneurysms using flow diverters.
Swetadri Vasan Setlur Nagesh1,2, Kunal Vakharia2,3, Muhammad Waqas2,3, Stephan A Munich2,3, Daniel R Bednarek1,2,4, Jason M Davies2,3,5, Kenneth V Snyder2,3, Maxim Mokin6, Stephen Rudin1,2,4,7,8,9, Elad I Levy1,2,3,4, Adnan H Siddiqui 1,2,3,4 |
Read article (link to external website) |
|
Experience using the New Alphenix Interventional System for Neuro-endovascular Therapy
Prof. Ichiro Nakahara, Professor, Department of Comprehensive Stroke, Fujita Health University Hospital |
Read whitepaper |
|
Benefits of Using High-Definition (Hi-Def) Technology in Complex Neurovascular Procedures
Dr. Adnan Siddiqui, MD, PhD, FACS, FAHA, FAANS. |
Read whitepaper |
