One of the Most Energy-Efficient Systems in its Class
The Alphenix Series are able to offer exceptional energy savings through economical design and a wide range of special features.
- Complete power off
Consumes almost no energy*1 during downtime
- Sleep mode
Automatically activated after 15 minutes of inactivity
- Designed to fit even the smallest rooms
The Alphenix Series is also space efficient and straightforward to install, with minimal construction and installation requirements, which minimize the need for renovation or reconstruction.
- Unprecedented arm movement flexibility
Provides perfect clinical freedom with floor-mounted or ceiling–suspended systems.

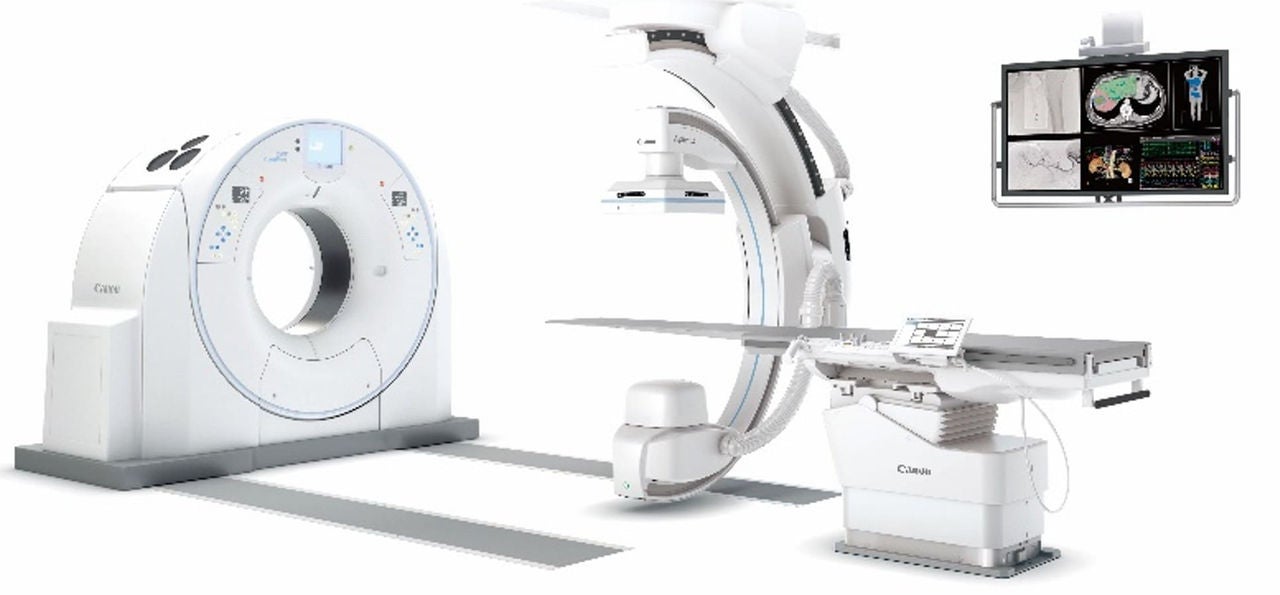

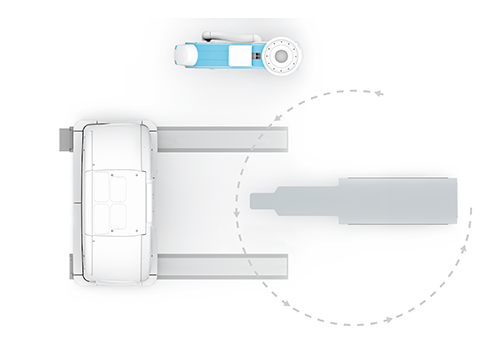

- Premium Capabilities – The Alphenix 4D CT

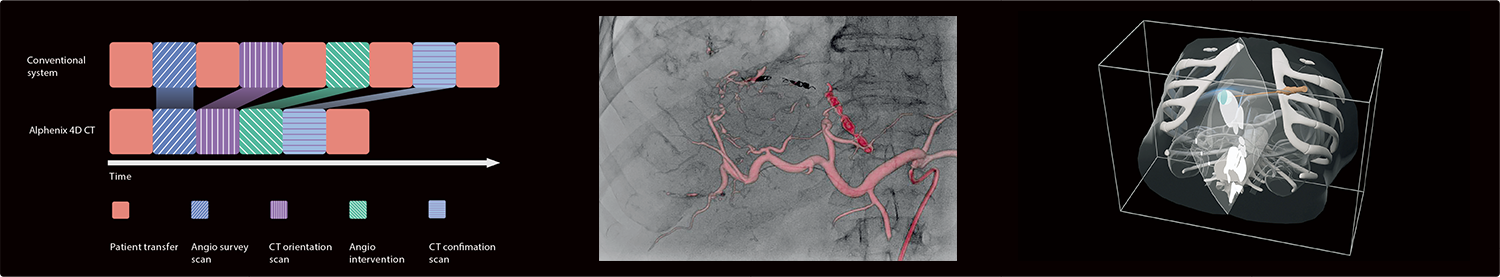

An Angiography CT system that seamlessly integrates the flexible Alphenix Interventional system with the advanced Aquilion CT imaging suite to create one versatile solution.
- Drastic dose reduction
Radiation exposure for clinicians and patients can be significantly reduced by replacing cine acquisition with fluoroscopy.
- An open upgrade path
Every Alphenix can be upgraded to latest platform through software updates*2.
support the latest software version
- : 0.01kVA
- : Upgrade availability depends on product status. Models discontinued at the time may not
Energy
Energy Saving Solution
Complete Power Off
Flat panel detectors (FPDs) in most systems consume power even when system is off, contributing to significant energy waste over time. Alphenix eliminates this inefficiency with a complete power-off mode, consuming almost no energy*1 during downtime, advancing sustainability.
- : 0.01kW
Sleep Mode
The Sleep Mode offers energy savings by reducing power consumption by temporarily disabling some internal operations of the system. The Sleep Mode is automatically activated after 15 minutes of inactivity, or it can be switched on manually with one click/touch. Energy consumption can be reduced by up to 31% compared to normal standby modes with Sleep Mode*1. In emergencies, the system can instantly return to standby, ensuring that there are no delays in procedures while supporting optimal sustainability.
- : Comparison between Alphenix Biplane (v9.6) standby mode vs Alphenix Biplane (v9.6) sleep mode.

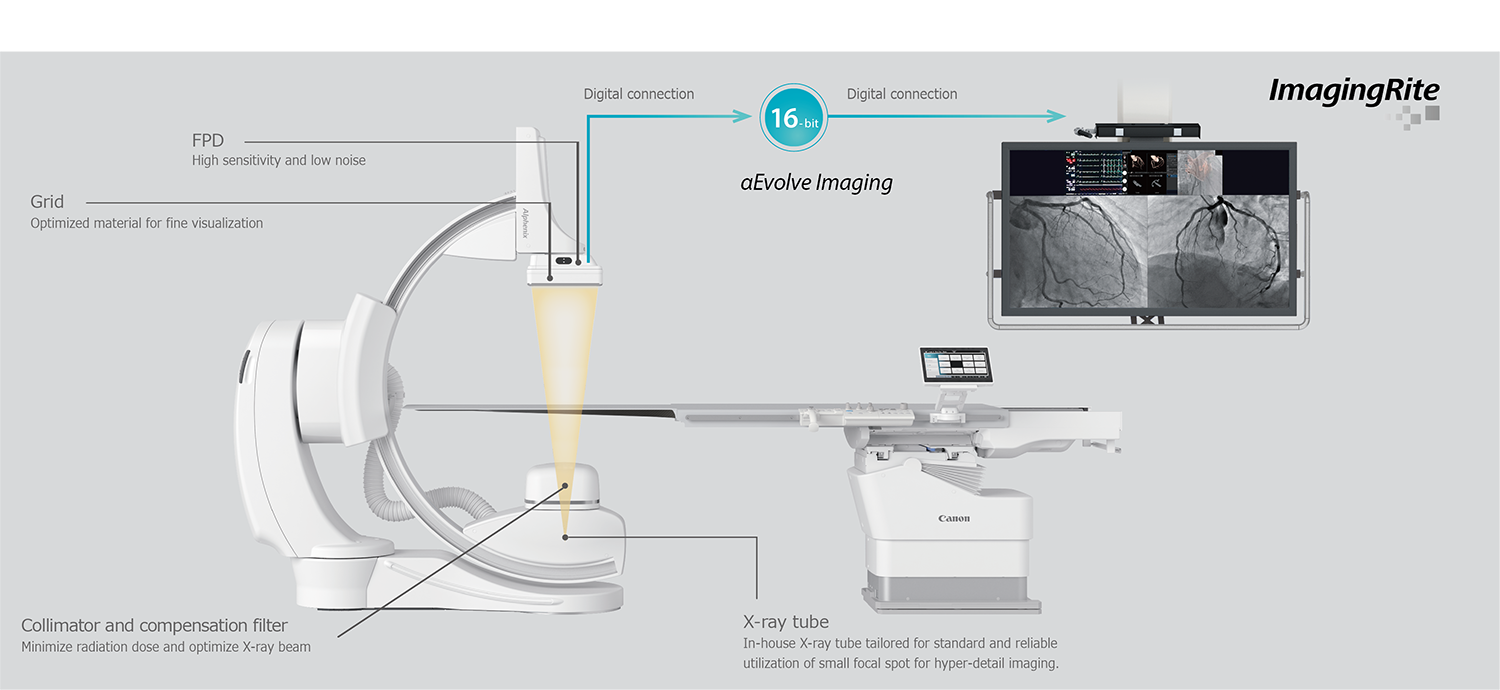

Optimize Image Quality while Reducing the Dose and Energy
Optimized radiation dose and reduced energy with advanced imaging chain.
Weight/Space

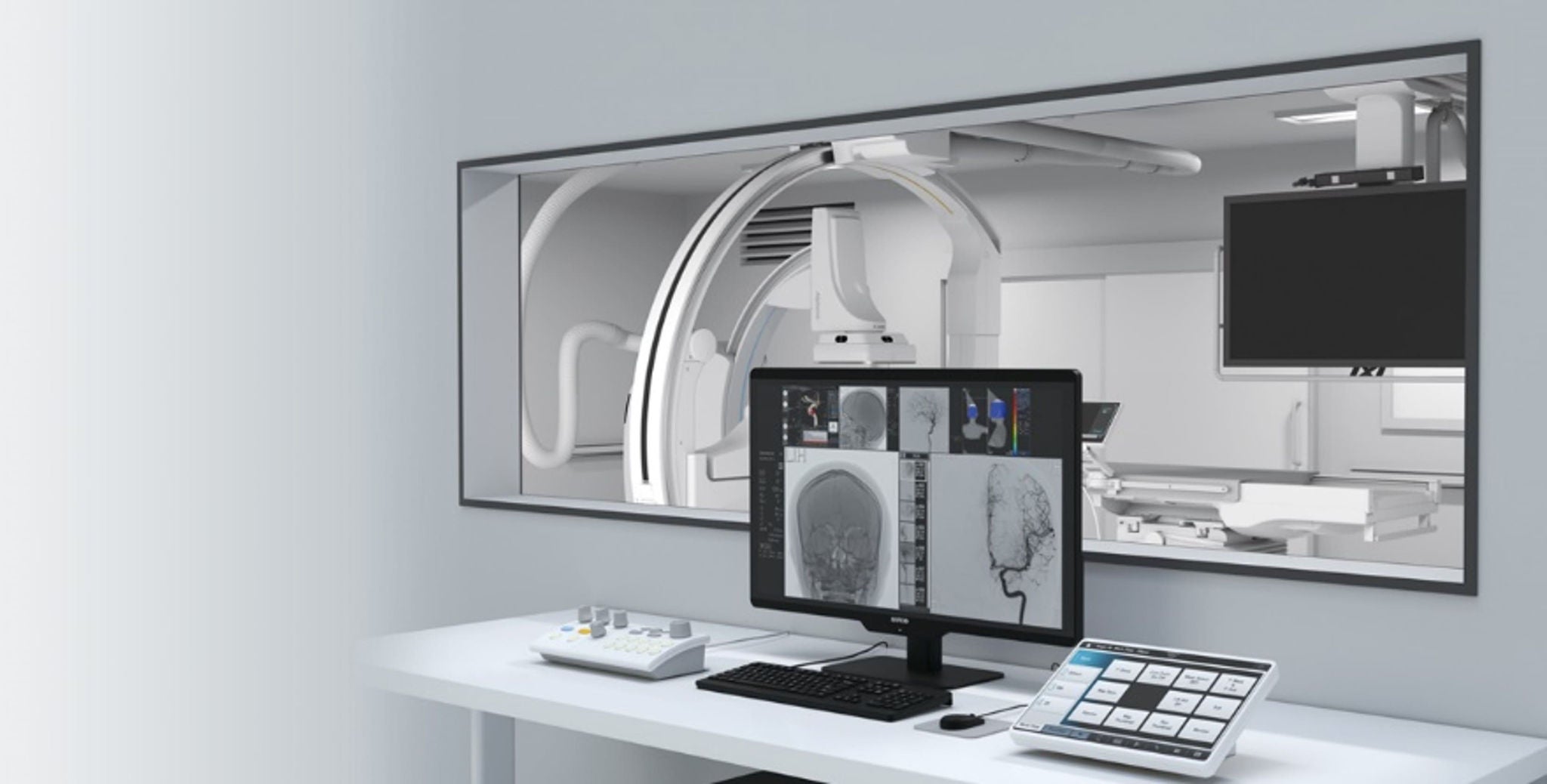

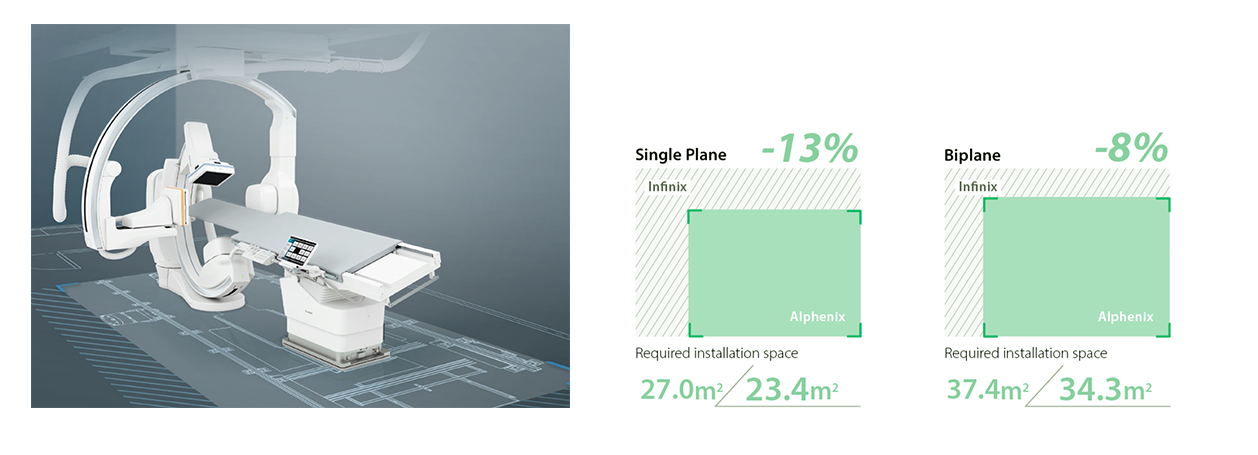

Actual Space Savings
The Alphenix is designed to fit even the smallest rooms. Avoiding the need for renovations or reconstruction enhances hospital financial management of sustainability.
AI
Meaningful AI in daily procedures
αEvolve Technology, series of Alphenix features powered by artificial intelligence aims to provide various benefits to customers.
Drastic dose reduction
Dose rate for cine angiography is known to be up to 9-13 times higher than that of fluoroscopy*1. Therefore, radiation exposure for clinicians and patients can be significantly reduced if cine angiography can be replaced with fluoroscopy.
- 1: Multicenter Evaluation of Cine Angiography and Digital Subtraction Angiography Dose Rate for Various Angiography Programs: Comparison with Fluoroscopic Dose Rate, Nippon Hōshasen Gijutsu Gakkai zasshi, 2021, Vol.77 (7), p.718-725, Article 2021_JSRT_77.7.718
“We can significantly reduce the number of cine runs by replacing them with αEvolve Imaging Fluoro recordings. This can potentially contribute to huge dose saving.”
Dr. Lukas Altwegg
Head of Cardiology at St. Claraspital, Basel, Switzerland.

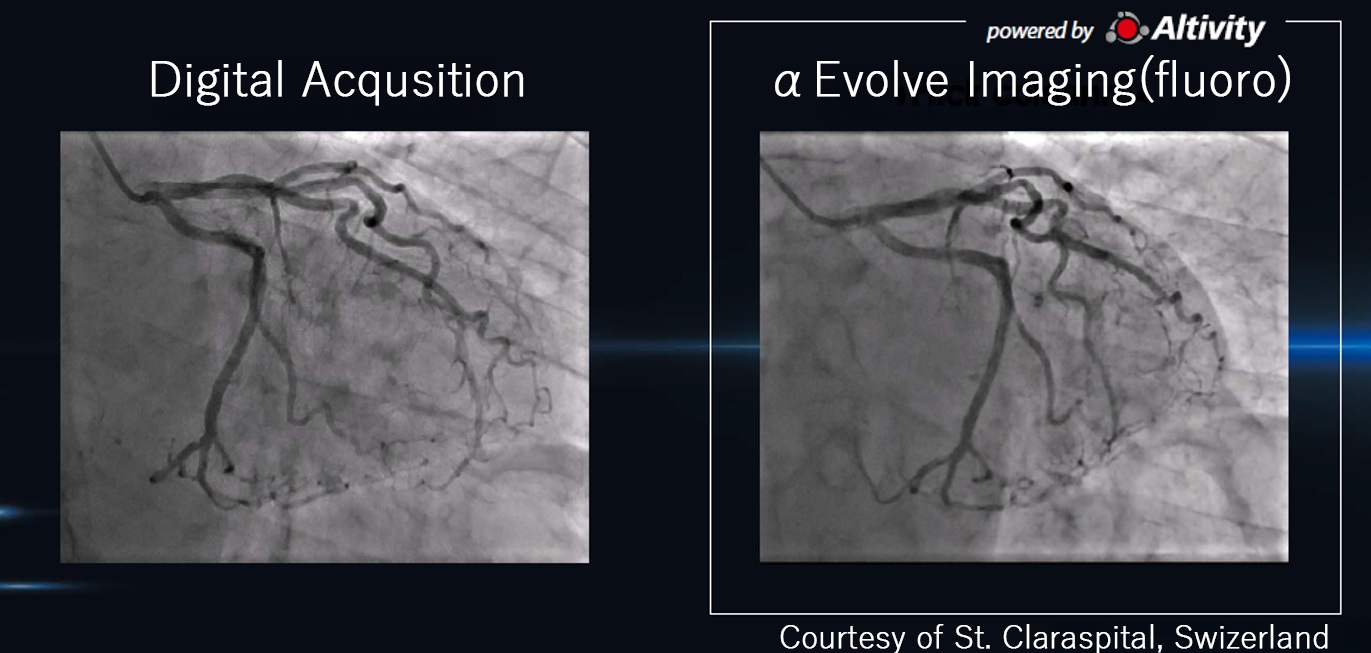

96% of cardiologists agreed that αEvolve Imaging fluoro can achieve an image quality that can replace digital acquisition*2.
- 2: Results obtained during a physician evaluation conducted in October and November 2024. The tests involved 98 cardiologists from 9 countries, and the data was reviewed and analyzed by an independent third-party research company.
Introducing Altivity, our bold new approach to AI innovation that uses smart technologies to make a whole new level of quality, insight and value across the entire care pathway possible. Designed specifically to address the growing complexities of interventional cardiology we developed αEvolve Technology. Leveraging Artificial Intelligence, αEvolve Technology provides innovative solutions to support high quality, safe and efficient diagnosis and treatment while improving the experience for patients and healthcare workers.
Workflow

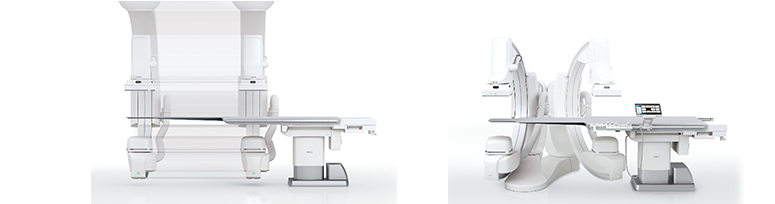

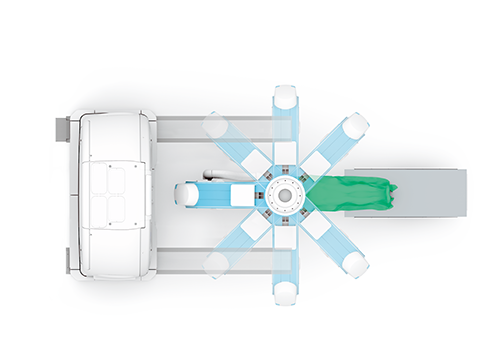

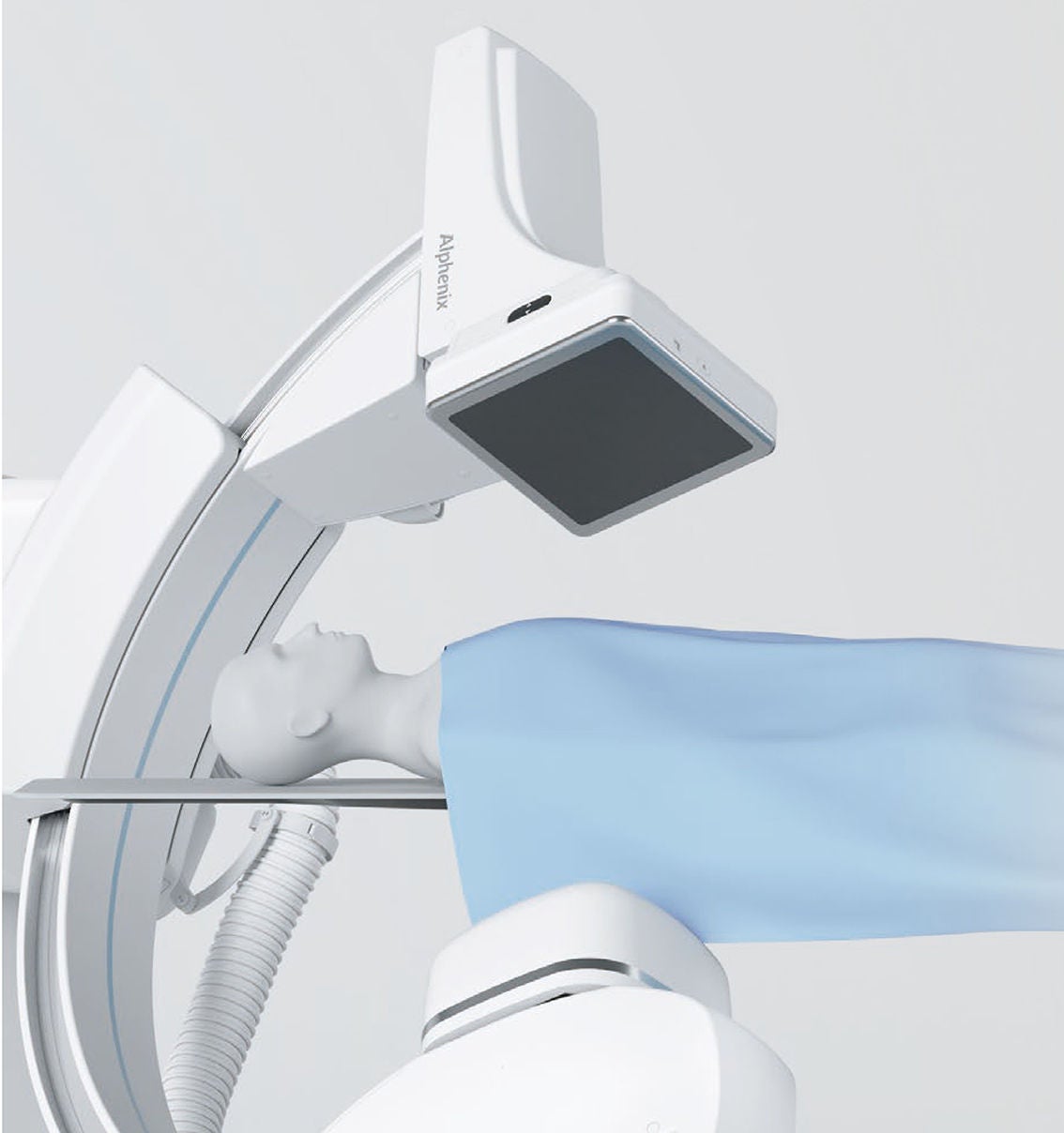

Unprecedented Arm Movement Flexibility
Alphenix, with its WorkRite technologies, provides you with unprecedented access to the patient and flexible anatomical coverage from any angle.

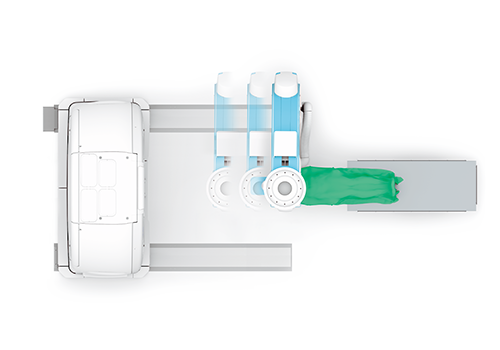

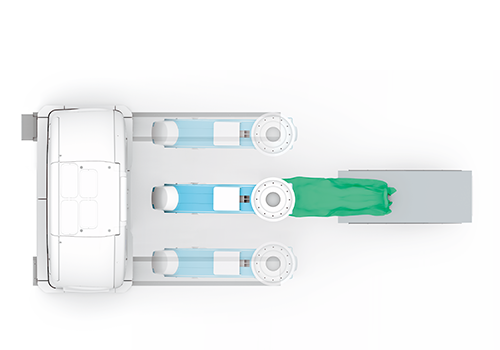

Total patient coverage from head-to-toe

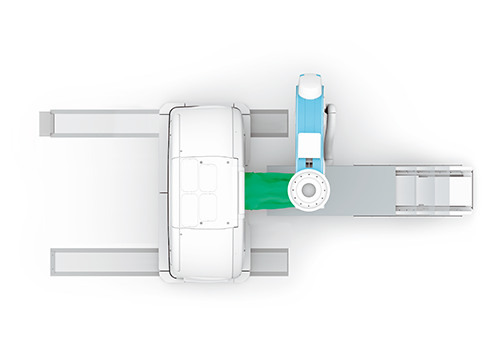

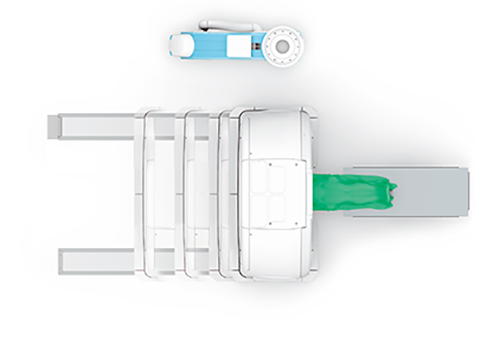

Head-end free biplane setting
| Alphenix | ||
| Product packaging | Wooden crates, cardboard, simple packaging | |
| Packing materials | Wood | 84% |
| Cardboard and paper | 6.80% | |
| Plastics, Others | 8.9% (Iron, plastic) | |
| Open packaging (Domestic delivery) | 1956 kg* | |
| Effective use of resources | Smaller system size and lighter packaging weight than the previous model | |

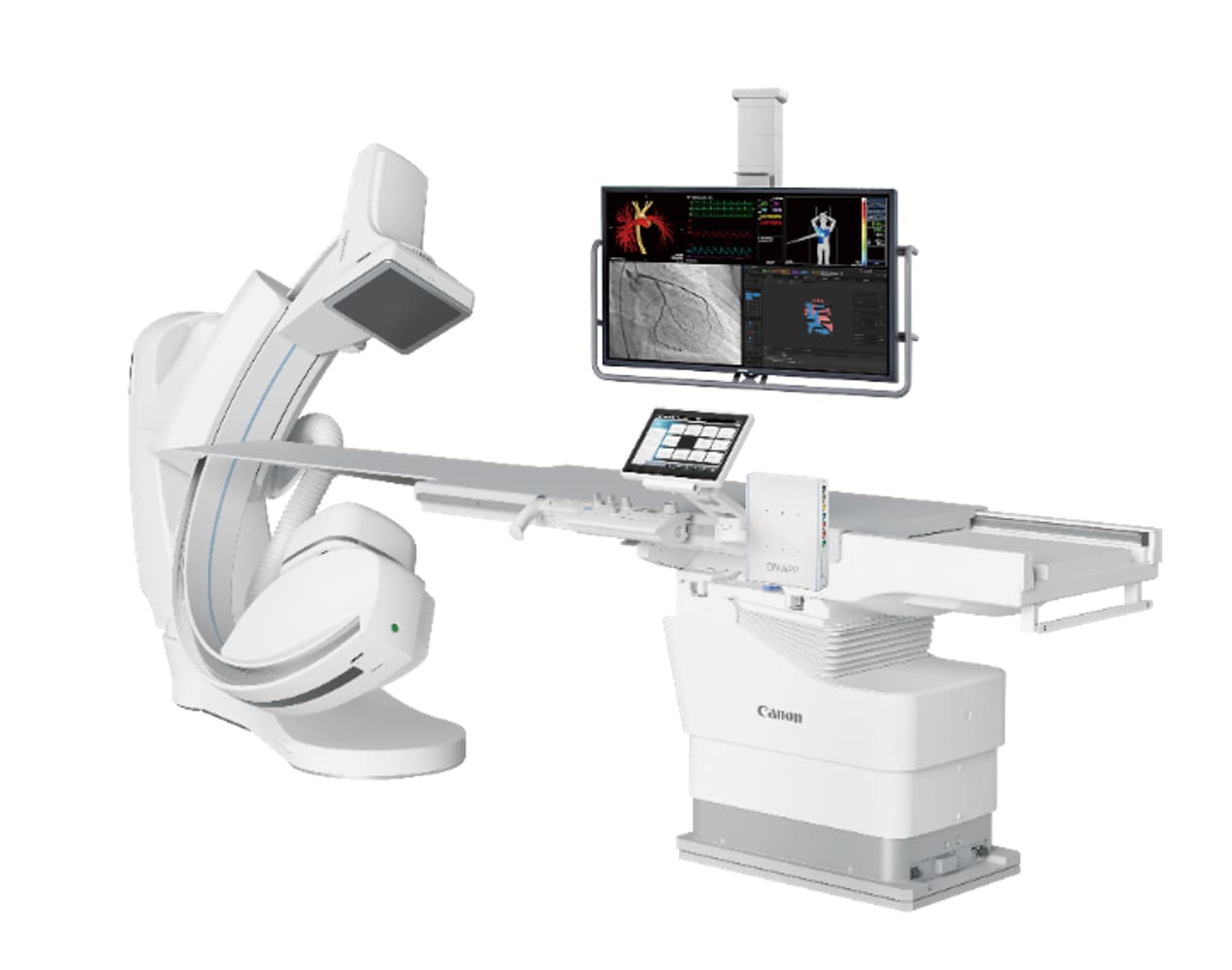

| Replacement Parts and Consumables | ||
| Periodic replacement parts and consumable supplies | Periodic replacement parts (CAS-880A) | Battery (3 years) |
| Touch sensor (3 years) | ||
| Roll screen (3 years) | ||
| Micro-switch (5 years) | ||
| Gas spring (3 years) | ||
| Bushing (3 years) | ||
| Coolant (2 years) | ||
| Arrester (2 years) | ||
| Packing (3 years) | ||
| Consumable supplies | CD-R, DVD±R | |
