Intelligence MRI imaging for 1.5T MRI

New techniques like Deep Learning Reconstruction technology are advancing medical imaging by harmonizing the trade-offs between resolution, speed and SNR. In addition, accelerated scan techniques, quantifiable imaging and methods to reduce distortion and artifacts are enhancing diagnostic capability.

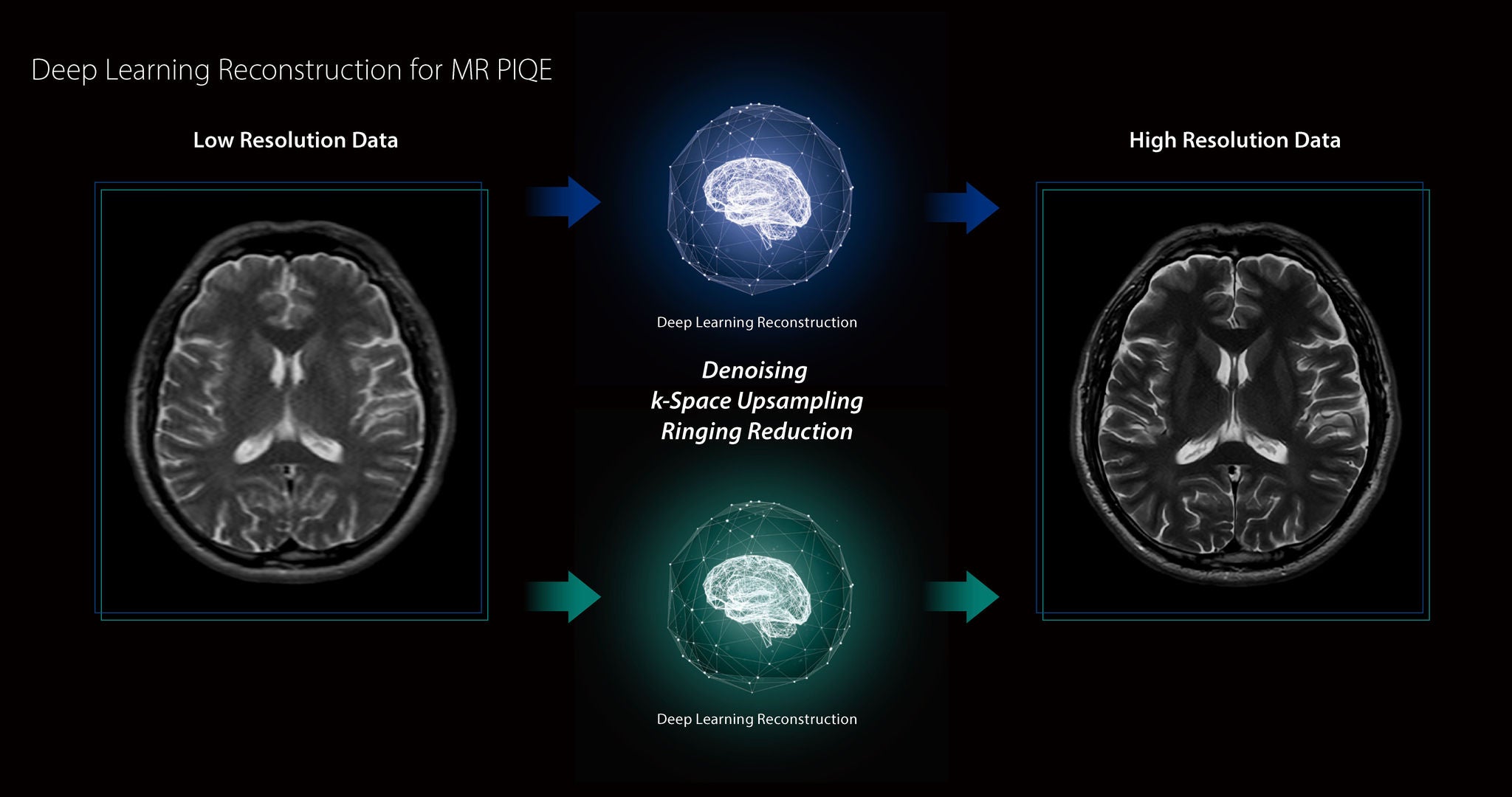

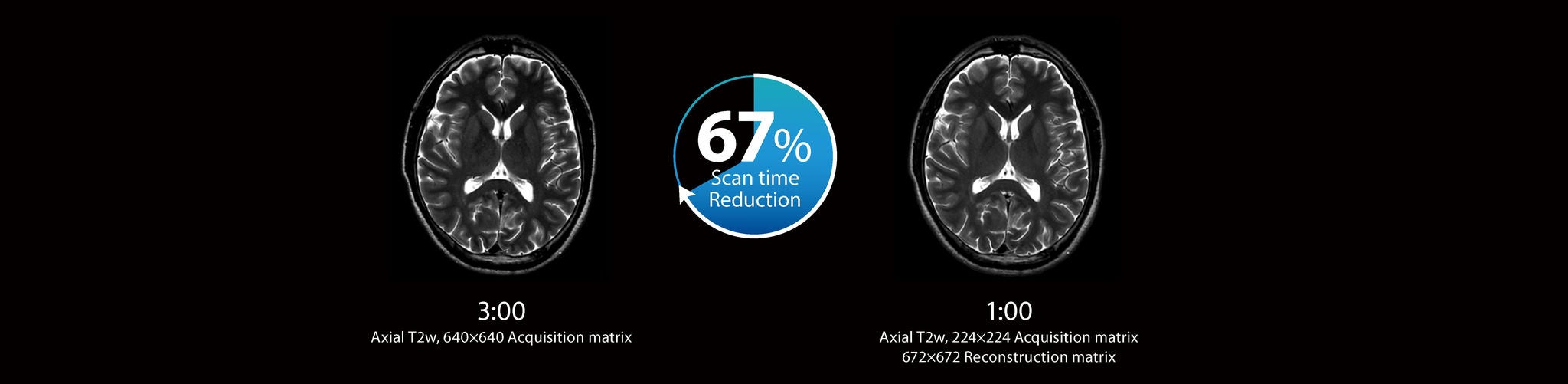

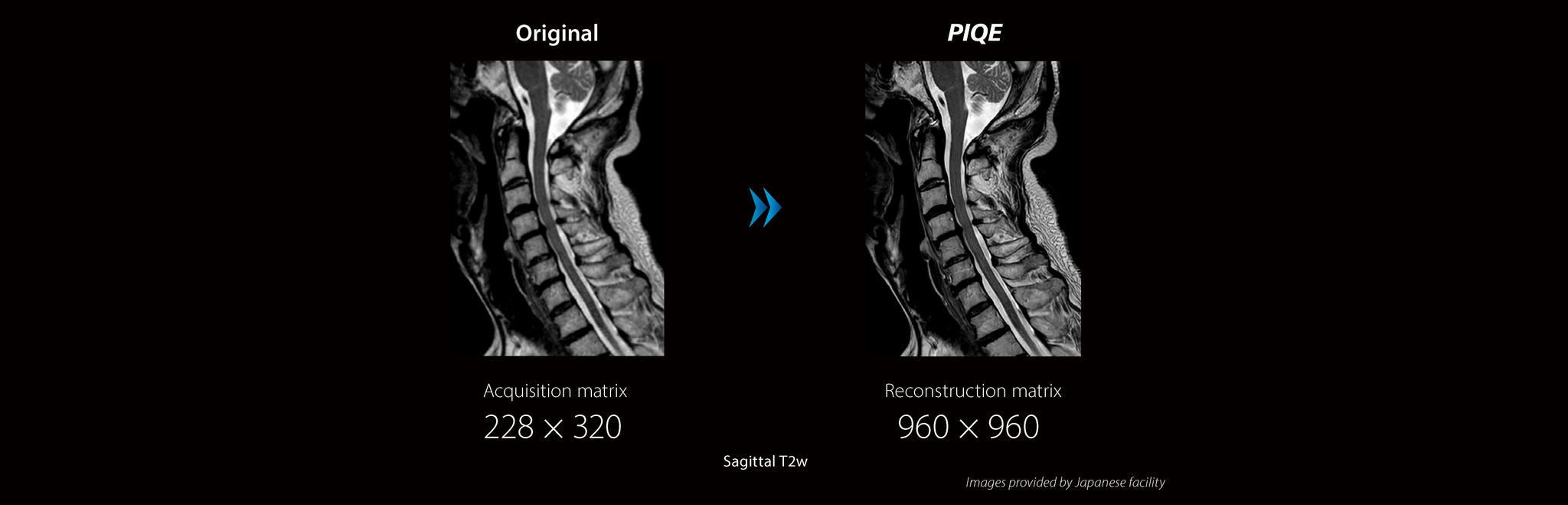

PIQE is our high resolution Deep Learning Reconstruction for MRI. PIQE increases matrix size, remove noise, and delivers sharp anatomical images which take MR imaging to the next level by utilizing two types of Neural Network.

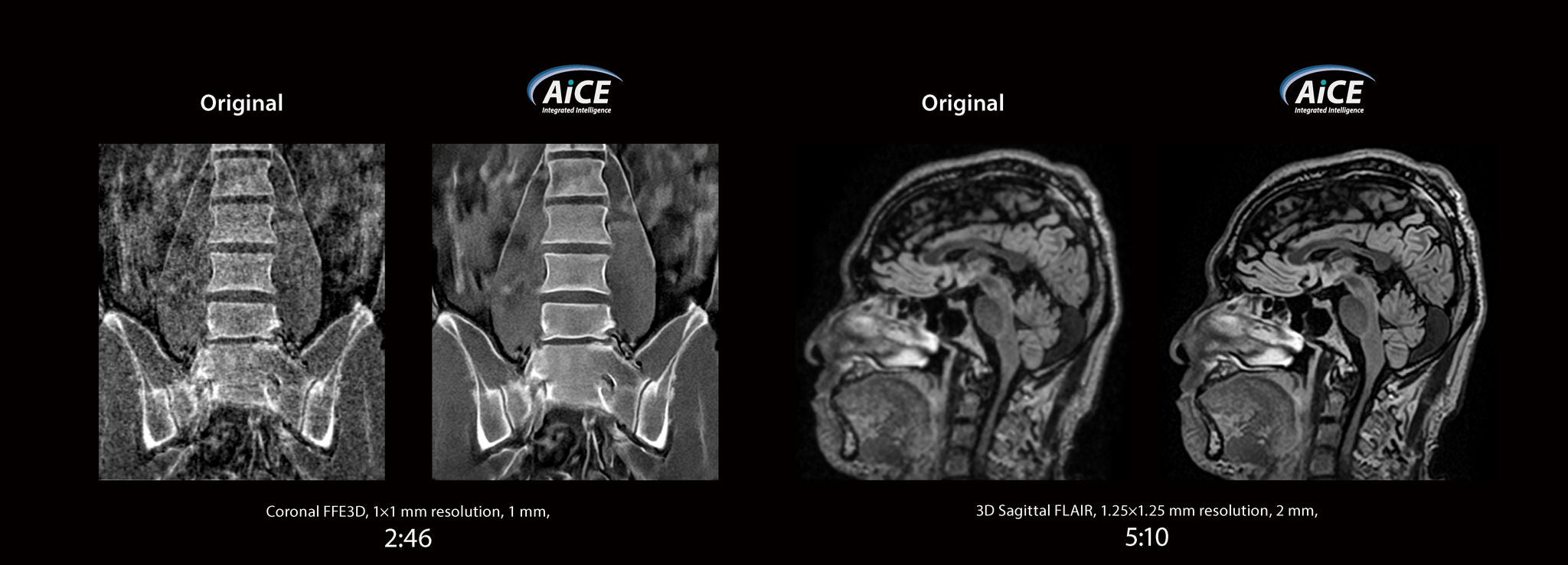

AiCE intelligently removes noise from the images which results in higher SNR and enables increased resolution. Neural Network reconstruct the data only with high frequency which related to noise and structure of the image. Contrast defined by low frequency data will be kept even after the reconstruction.

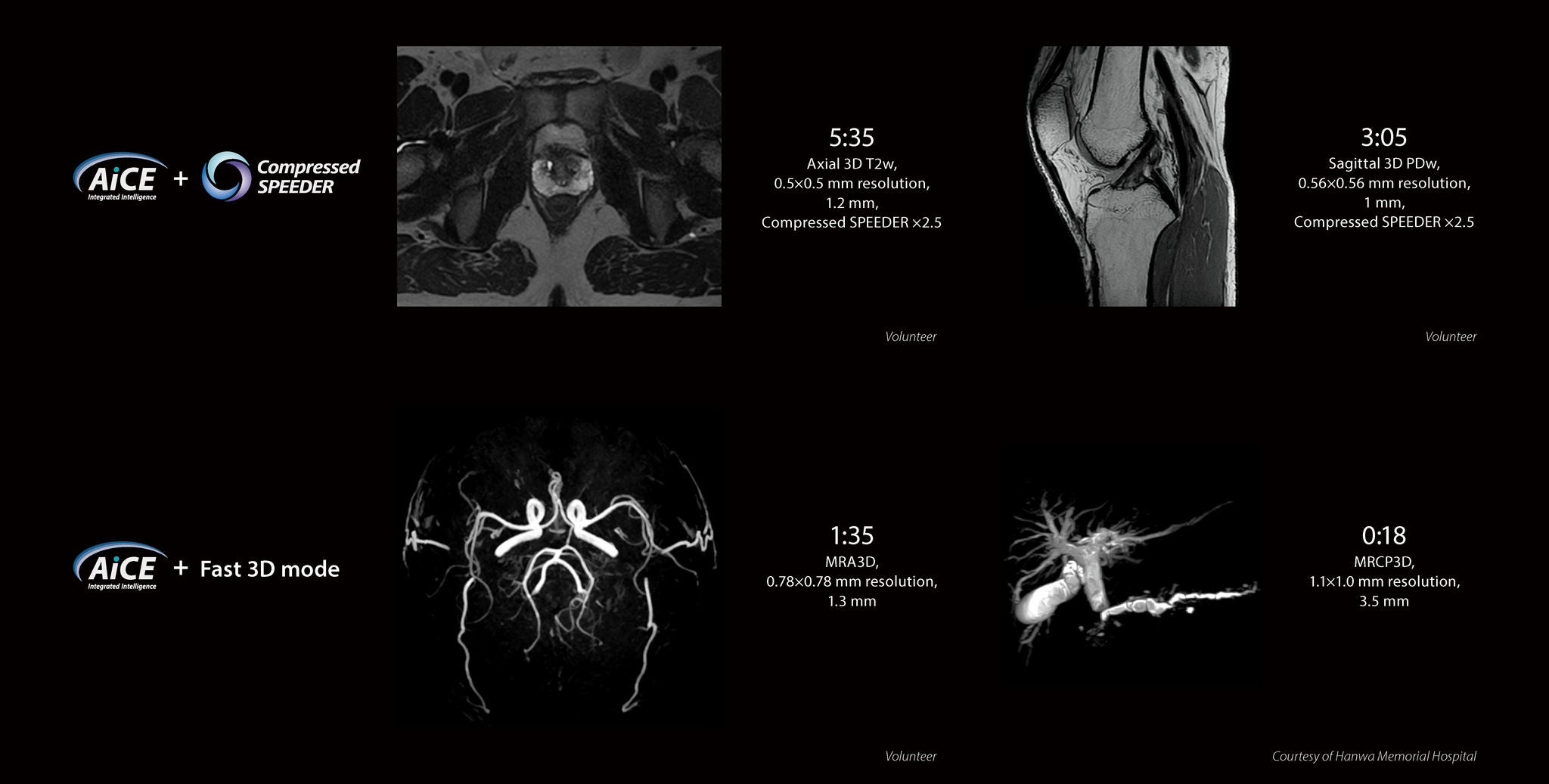

In combination with unique Canon scan acceleration technologies like Compressed SPEEDER and Fast 3D mode, you have the ability to scan faster and higher resolutions and enhance SNR by removing noise during image reconstruction.

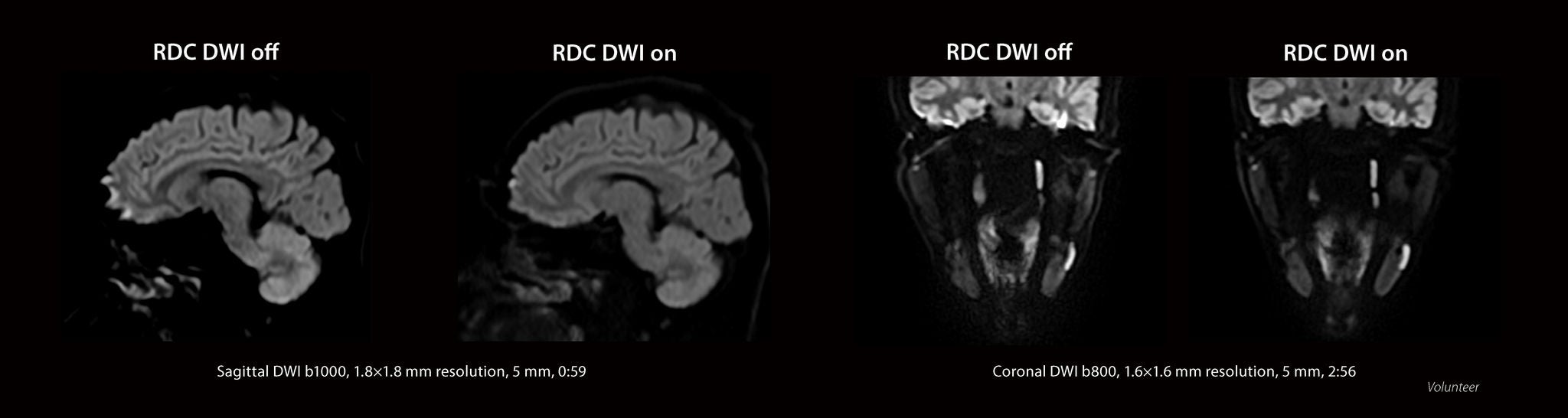

In diffusion weighted imaging, distortion can be easily caused due to B0 field inhomogeneity or eddy current. RDC DWI (Reverse encoding Distortion Correction DWI) is intended to reduce distortion in phase encoding direction by estimating the distortion with generated shift maps.

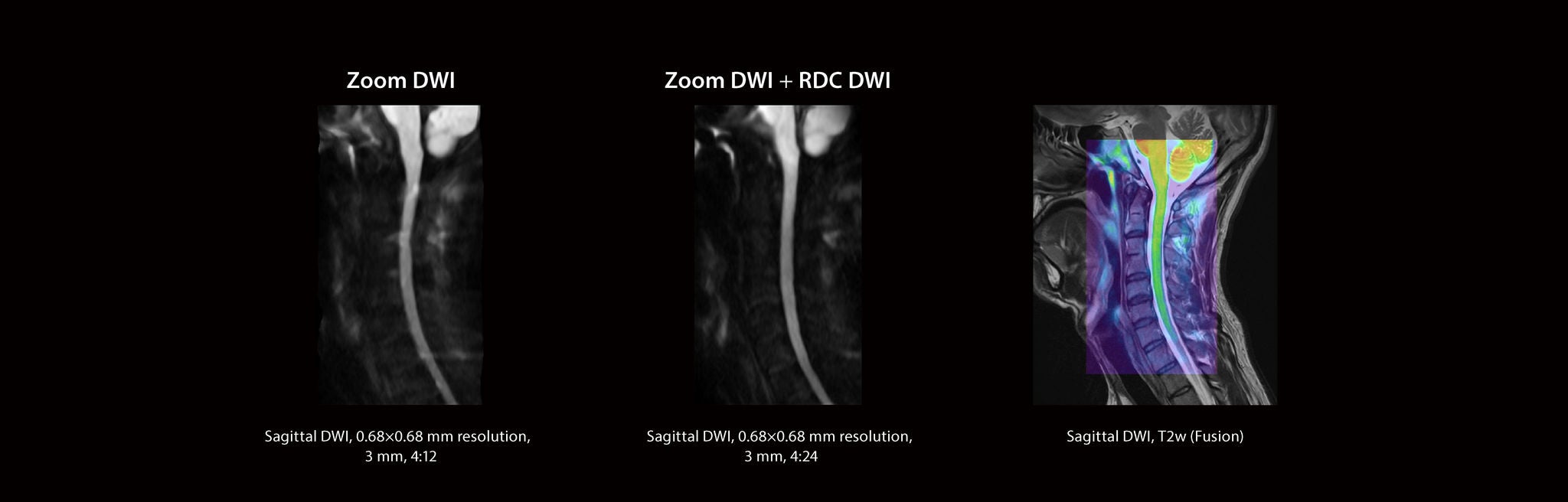

With Zoom DWI, diffusion weighted imaging with small FOV can be acquired suppressing distortion and unfolding errors. The combination of RDC DWI and Zoom DWI enhances the stability of the image and expand the diagnostic reliability.

The imaging with contrast media forces burden for both patients and operators. Canon offers the stable and reliable examination of non-contrast MR angiography as a pioneer of the technology.

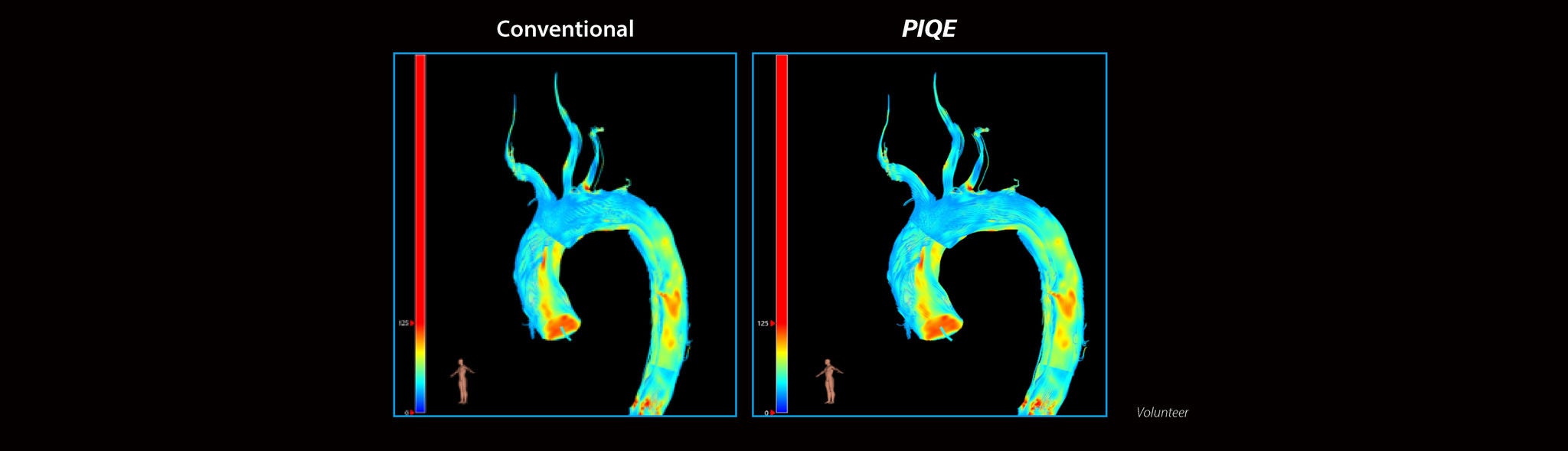

4D flow MRI offers the ability to measure and to visualize the temporal evolution of complex blood flow patterns within an acquired 3D volume.
