Sustainable Solutions for Vantage Galan 3T / Supreme Edition
This extremely eco-friendly system reduces construction and installations requirements, while also being one of the most energy efficient systems in its class.
Economical design to meet your needs
- Reduction in power consumption with ECO Mode
- One of the smallest MR systems with a compact footprint of 27m2.
- Ceiling Camera solution confirms coil set-up and assists patient positioning.
- Canon’s unique Pianissimo Σ (sigma) reduces noise in and around the MRI environment for every sequence, improving the patient experience.
- Precise IQ Engine (PIQE) accelerate scanning by reducing the acquisition matrix, while maintaining clinical matrix size and image quality.
- Contrast reduction for environment benefit Non-contrast imaging
Auto Scan Assist standardizes your workflow
- Reduction of burden on the operator
- Reduction of operation steps
- Reduction of operation time
Our Sustainable Solutions
Energy saving solution
Reduction in power consumption with ECO Mode
ECO Mode reduces power consumption to minimize system operating costs. Among other methods, the ECO Mode can be automatically activated simply by lowering the couch to the floor.
The system can recover from ECO Mode and be ready for scanning within a few seconds. Quick enough to cope with even emergency patients and unscheduled.
Resource saving solution

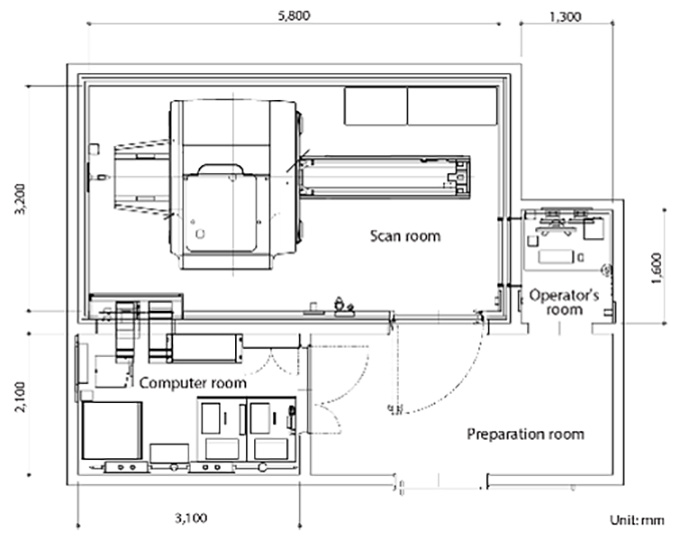

Canon Medical Systems’ Vantage Galan 3T with a compact footprint* of 27 m2.
Aquilion Serve saves space with the smallest footprint in its class. Its compact and space saving dimensions contribute to easy installation without large construction with a wide bore 80 cm, flared gantry, delivering comfortable exams for patients and easy to access to patients from the front or rear of the gantry.

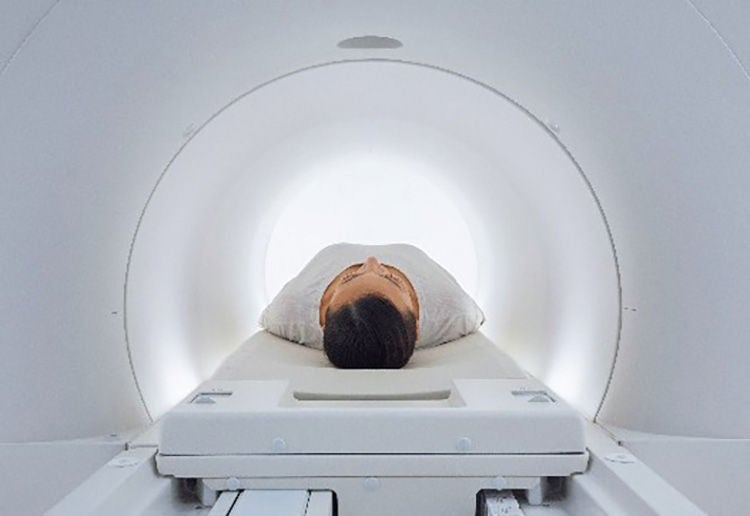

The system’s short and compact bore minimizes patient anxiety and at the same time allows a 3T scanner to be installed in a room originally designed to hold a 1.5T system. The eco-friendly cabinet design simplifies and shortens installation time.
| Vantage Galan 3T / Supreme Edition weight |
| XGO 11,115 kg (varies depending on configuration) |
| STD 11,333 kg (varies depending on configuration) |
| Vantage Galan 3T/ Supreme Edition Foot print |
| 27 m2 |
- The 5 Gauss line is not confined within the scan room. Controlled access area should be considered when preparing for installation. The above specifications may not meet local requirements. Please consult with your architectural and/or electric consultant for coding requirements. The minimum footprint may not be applicable to some cases depending on each site.
Zero helium boil-off
Eliminates the necessity of periodic helium refilling and as a result increases the system uptime, enhances environmental performance, and reduces helium costs.

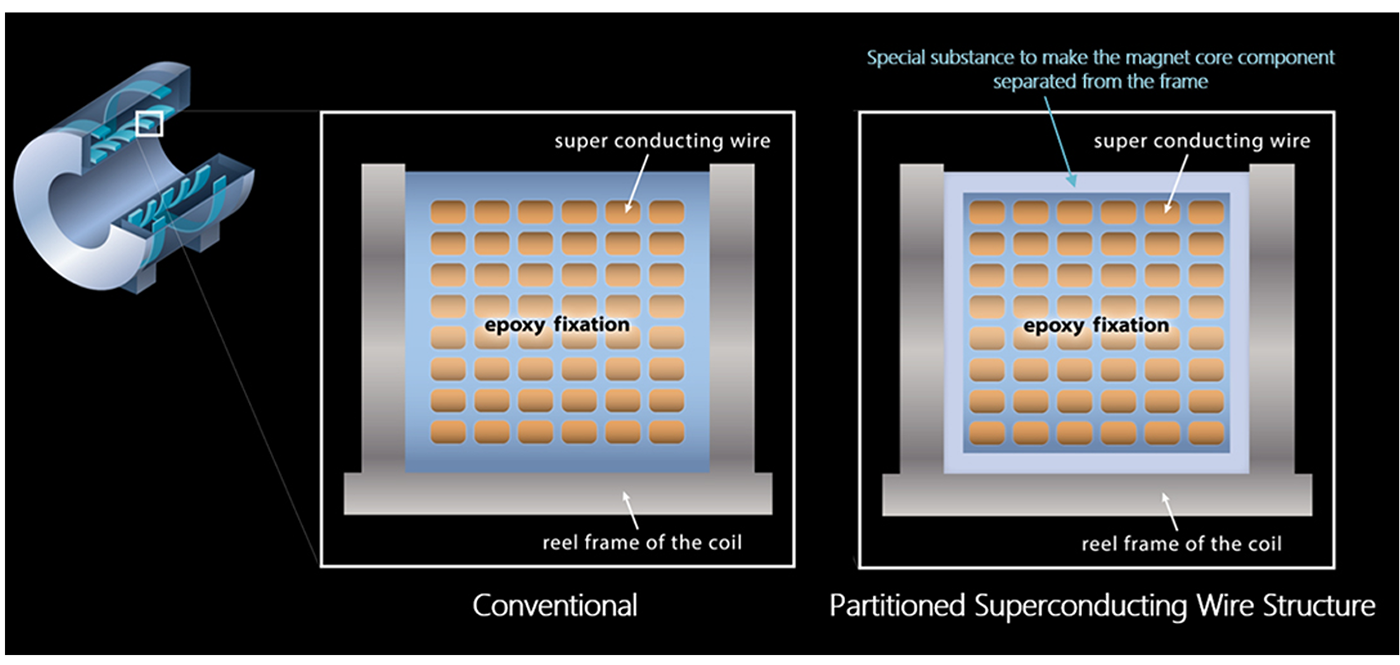

New Hardware Solutions

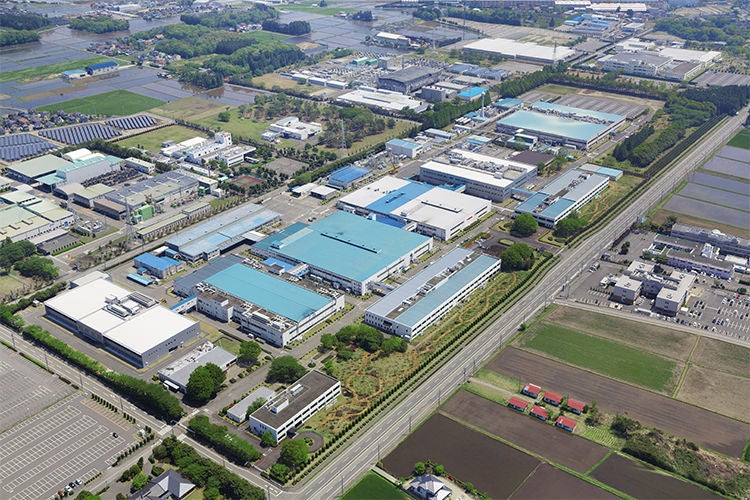

The new magnet is manufactured in Japan where Canon’s headquarter is, making it possible to reduce transportation cost and energy.
Contrast reduction for environment benefit
Contrast agents are excreted from the body via the urine, they also enter the aquatic environment through our sewage systems. Reducing resource consumption is crucial to support the transition towards more environmentally sustainable healthcare.
Recycling / Reducing packing
Leading with Recycling
Canon Medical actively collects and reuses parts in new products after the products have been used and discarded. In addition, for equipment collected for reuse of parts, we follow Canon Medical Systems’ recycling operation rules for residual materials after parts are collected.
In this way, we aim to reduce the environmental impact and increase the effectiveness of recycling.
| Recycling | |
| Parts recycling rate at time of disposal | 88.0% |
